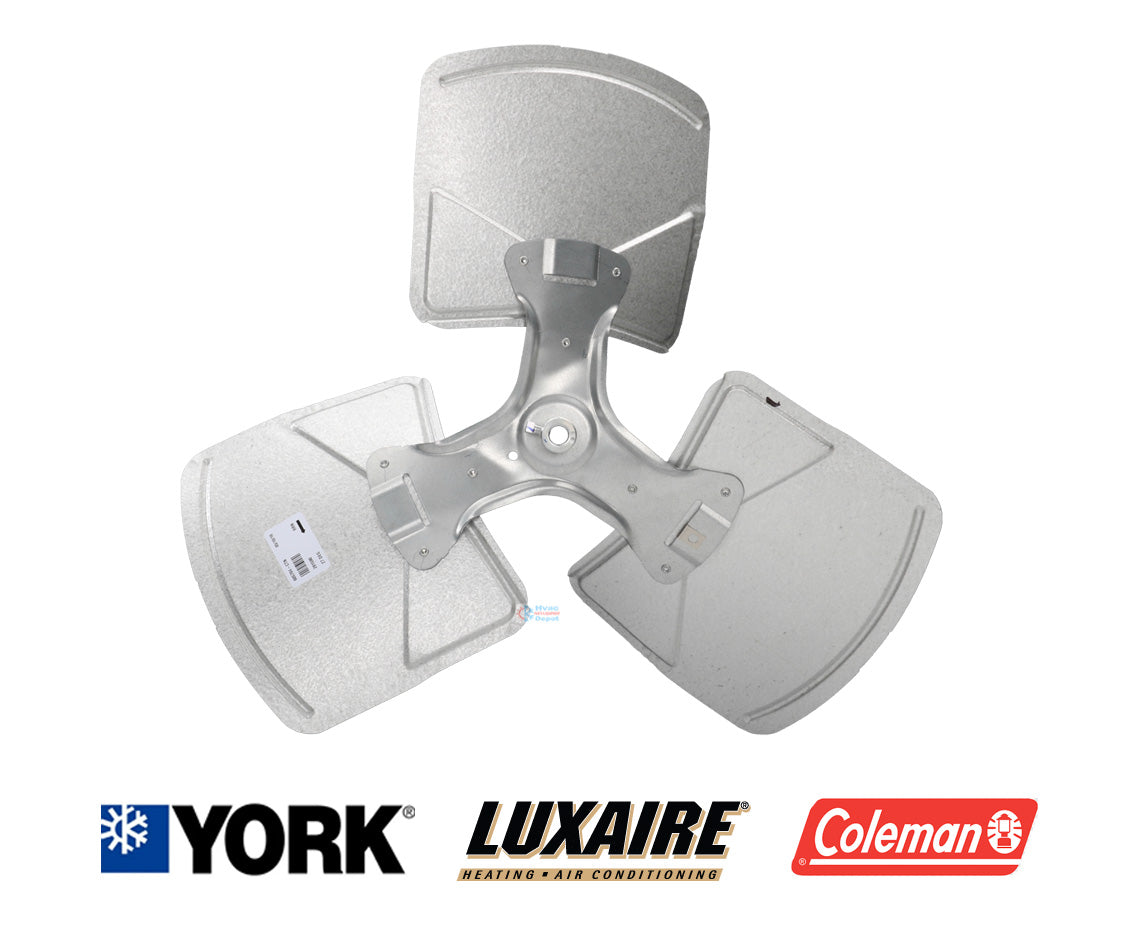

York / Johnson Controls S1-02642491000 Condenser Fan Blade – 22" Diameter, 3-Wing, 27° Pitch, Clockwise Rotation (CW)
York / Johnson Controls S1-02642491000 Condenser Fan Blade – 22" Diameter, 3-Wing, 27° Pitch, Clockwise Rotation (CW)
Low stock: 1 left
Key Features & Specifications
-
Genuine OEM York 22-inch condenser fan blade
-
3-wing design with 27-degree pitch for efficient airflow
-
Clockwise rotation matches OEM specifications
-
Heavy-duty construction for outdoor durability
-
Designed for York and Johnson Controls HVAC systems
Please visit our store for pick up.
Couldn't load pickup availability
safe & secure Checkout
Specifications
Specifications
Product Details and Key Specifications:
• Part Number: S1-02642491000
• Alternate Part Number: 286FB491
• Manufacturer: Johnson Controls / York (Genuine OEM)
• Part Type: Condenser Fan Blade
• Diameter: 22 Inches
• Blade Configuration: 3-Wing
• Blade Pitch: 27 Degrees
• Rotation: Clockwise (CW)
• Application: Air Conditioner & Heat Pump Condensing Units
• Function: Condenser Airflow & Heat Transfer
• Compatible Brands: York, Coleman, Luxaire, Fraser-Johnston, Guardian
• Construction: Heavy-Duty Metal Fan Blade
• Shipping Weight: Approx. 3-6 lbs
description
description
York / Johnson Controls S1-02642491000 Condenser Fan Blade – 22" Diameter, 3-Wing, 27° Pitch, Clockwise Rotation (CW)
The York S1-02642491000 Condenser Fan Blade is a genuine OEM outdoor fan blade designed to provide efficient condenser airflow and dependable heat transfer in residential and light commercial HVAC systems. Featuring a 22-inch diameter, 3-wing blade design, and 27-degree pitch, this fan blade helps maximize airflow across the condenser coil for improved cooling efficiency and compressor protection.
Manufactured to OEM specifications for precise balance and durability, the S1-02642491000 fan blade is engineered for clockwise (CW) rotation and delivers smooth, reliable operation in demanding outdoor environments. Its heavy-duty metal construction minimizes vibration while supporting long-term HVAC performance.
Key Features and Function:
• 22-Inch Diameter Design – Provides efficient airflow across condenser coils
• 27° Blade Pitch – Optimized for heat rejection and cooling performance
• 3-Wing Configuration – Delivers balanced airflow and stable operation
• Clockwise Rotation (CW) – Matches OEM airflow requirements
• Heavy-Duty Construction – Built for long-lasting outdoor HVAC service
Product Details and Key Specifications:
• Part Number: S1-02642491000
• Alternate Part Number: 286FB491
• Manufacturer: Johnson Controls / York (Genuine OEM)
• Part Type: Condenser Fan Blade
• Diameter: 22 Inches
• Blade Configuration: 3-Wing
• Blade Pitch: 27 Degrees
• Rotation: Clockwise (CW)
• Application: Air Conditioner & Heat Pump Condensing Units
• Function: Condenser Airflow & Heat Transfer
• Compatible Brands: York, Coleman, Luxaire, Fraser-Johnston, Guardian
• Construction: Heavy-Duty Metal Fan Blade
• Shipping Weight: Approx. 3-6 lbs
🛠️ HVAC Depot Pro Tip: Match Blade Rotation and Pitch Exactly
When replacing a condenser fan blade, always verify the blade diameter, pitch, hub dimensions, and rotation direction. A fan blade with the wrong pitch or rotation can significantly reduce airflow, increase operating pressures, and decrease overall system efficiency.
Cross-Reference & Compatibility:
The S1-02642491000 fan blade is commonly used in the following applications:
• OEM Number: S1-02642491000
• Alternate Number: 286FB491
• Application Type: Outdoor Condenser Fan Blades
• Rotation Type: Clockwise (CW)
• Blade Style: 3-Wing, 27° Pitch
Extensive Model Compatibility List:
Compatible HVAC Systems:
• York Air Conditioning Systems
• York Heat Pump Systems
• Coleman Condensing Units
• Luxaire HVAC Systems
• Fraser-Johnston HVAC Equipment
• Guardian Outdoor Units
• Residential Split-System Air Conditioners
• Residential Heat Pump Systems
• Light Commercial HVAC Equipment
Always verify blade diameter, pitch, hub dimensions, shaft size, and rotation direction before ordering.
