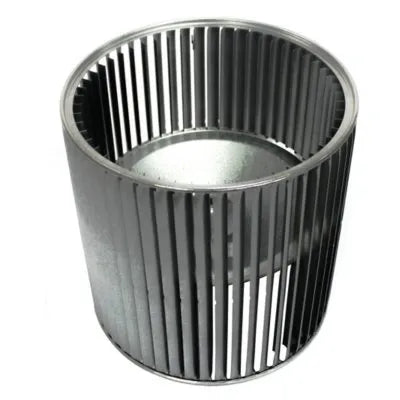

Factory Authorized Parts™ LA22ZA123 HVAC Blower Wheel – 10 5/8" x 10 5/8", 1/2" Bore, CW, OEM Specs
The High-Capacity Precision Air Mover
The Factory Authorized Parts™ LA22ZA123 is a specialized, high-performance centrifugal blower wheel engineered specifically for mid-to-high capacity residential furnaces and fan coils. As an official Factory Authorized Part for Carrier, Bryant, and Payne equipment, this wheel features a unique 10 5/8" by 10 5/8" footprint designed to maximize airflow within compact blower decks. Constructed from premium galvanized steel, it utilizes precision-curved blades to deliver the exact static pressure required to push conditioned air through complex ductwork systems. This wheel is the essential OEM replacement for restoring the quiet, vibration-free air delivery your high-efficiency system was designed to provide.
Key Features
- Factory Authorized Part Number: The LA22ZA123 is the genuine OEM replacement, ensuring the exact mass and balance required to protect your blower motor's internal bearings.
- Unique Dimensional Footprint: Features a 10 5/8-inch diameter and width, specifically sized for high-velocity air movement in modern, space-saving HVAC cabinets.
- Corrosion-Resistant Galvanized Steel: Built to withstand the moisture-rich environment of a cooling coil, preventing rust-induced imbalances over the life of the system.
- Clockwise (CW) Rotation: Precision-pitched fins are optimized for clockwise rotation, ensuring maximum CFM (Cubic Feet per Minute) delivery at standard motor speeds.
- Vibration-Free Factory Balance: Each wheel is electronically balanced and fitted with individual weighting clips to eliminate the "thumping" or "rattling" common in lower-quality wheels.
Product Details
- Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
- Manufacturer: Carrier Corporation
- Part #: LA22ZA123
- Weight: 7.2 lbs
- Wheel Diameter: 10 5/8 inches
- Wheel Width: 10 5/8 inches
- Bore Size: 1/2 inch (Motor Shaft Diameter)
- Rotation: Clockwise (CW) from hub/back end
- Material: Galvanized Steel
- Design: Double Inlet, Centrifugal
🛠️ HVAC Depot Pro Tip
"Measure Twice, Install Once." The 10 5/8" dimension is specific; ensure your old wheel matches this exactly before installation, as a standard 10" or 11" wheel will not seat correctly in the LA22ZA123's designated housing. Before sliding the new wheel onto the motor, use a fine emery cloth to polish the motor shaft until it is shiny and smooth. Always apply a thin layer of high-temperature anti-seize or light oil to the shaft to ensure the wheel can be easily removed for future maintenance. Tighten the set screw firmly against the flat section of the shaft and verify the wheel spins freely without rubbing the inlet rings.
Cross-Reference
- Superseded/Legacy Numbers: LA22LA123, P251-10610, 326628-401
- Drawing Numbers: 10-5/8X10-5/8-1/2, 331775-401
- Equivalent Model Numbers: Lau 00832015, Revcor 10610-1/2, Morrison 41-1120-19
- Industry Equivalents: Mars 40325, Packard BW10610
Model Compatibility
- Carrier / Bryant / Payne 58PHB (Suffixes: 070, 090, 110**)**
- Carrier / Bryant / Payne 58PHA (Suffixes: 070, 090, 110**)**
- Carrier / Bryant / Payne 312AAV (Suffixes: 042070, 042090**)**
- Carrier / Bryant / Payne 313AAV (Suffixes: 042070, 042090**)**
- Carrier / Bryant / Payne 59SC2 (Suffixes: 070, 090, 100**)**
- Universal Application (Suffixes: Fits high-efficiency residential units requiring a 10 5/8" x 10 5/8" wheel with a 1/2" bore**)**
