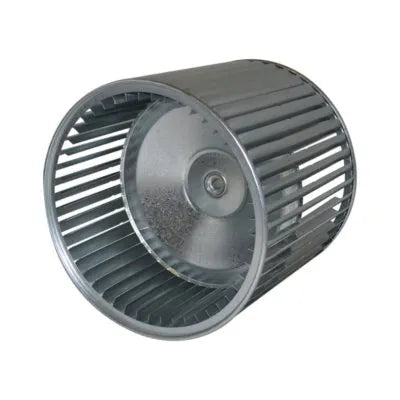

Factory Authorized Parts™ LA22LA014 Blower Wheel | 11" Diameter x 10" Width | 1/2" Bore | CW Rotation | OEM Centrifugal Fan
Factory Authorized Parts™ LA22LA014 Blower Wheel | 11" Diameter x 10" Width | 1/2" Bore | CW Rotation | OEM Centrifugal Fan
Factory Authorized Parts™ - LA22LA014 - Blower Wheel
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
Factory Authorized Parts™ LA22LA014 Blower Wheel | 11" Diameter x 10" Width | 1/2" Bore | CW Rotation | OEM Centrifugal Fan
The Factory Authorized Parts™ LA22LA014 is the heavy-duty "body" of your air circulation system, functioning as the primary air-moving component for high-capacity residential HVAC units. This OEM-focused blower wheel is the specific module responsible for pulling air through your return ducts and pushing it with high velocity across the heat exchanger or evaporator coil. Engineered specifically for Carrier, Bryant, and Payne furnace series, this wheel serves as the "lungs" of your system, ensuring that the "brain" (the control board) can maintain the precise static pressure required for multi-speed or variable-speed operation. Replacing a damaged "squirrel cage" with this authorized part restores factory-standard CFM (Cubic Feet per Minute) and eliminates mechanical strain.
Key Features
- OEM Factory Authorized Fit: Specifically engineered for part number LA22LA014, providing an exact match for Carrier-family blower housings to ensure zero-clearance friction.
- 11" x 10" High-Volume Performance: Calibrated dimensions designed to handle the airflow requirements of 3.5 to 5-ton cooling systems and high-BTU heating cycles.
- Dynamic Vibration Resolution: Factory-balanced to fix issues with system shaking, rattling, and low-frequency humming that lead to premature motor bearing failure.
- Industrial-Grade Construction: Built with galvanized steel to prevent rust and maintain structural integrity during the high-moisture conditions of the cooling season.
- Safety & Static Pressure Support: Maintains the critical air velocity needed to prevent heat exchanger overheating and the tripping of high-limit safety switches.
Product Details
- Brand: Factory Authorized Parts™ (Carrier/Bryant/Payne)
- Manufacturer: Carrier Global Corporation
- Part #: LA22LA014
- Weight: 8.20 lbs
- Diameter: 11 Inches
- Width: 10 Inches
- Bore Size: 0.50 inch (1/2" Bore)
- Rotation: Clockwise (CW) as viewed from the hub side
- Material: Galvanized Steel
- Drive Type: Direct Drive
🛠️ HVAC Depot Pro Tip
Take a Picture First: Before loosening the set screw on your old wheel, take a photo showing exactly how much of the motor shaft is visible behind the hub. This ensures the new LA22LA014 is perfectly centered within the blower housing's venturi ring. Perform a diagnostic check by spinning the wheel manually after tightening; if you hear a "scuffing" sound, the wheel is likely offset. Ensure the set screw is tightened exclusively onto the flat "D" shape of the motor shaft to prevent the wheel from slipping under high-torque starts.
Cross-Reference
- Superseded / Legacy: LA22LA010, LA22LA012, P291-1110
- Drawing / OEM Equivalents: 320875-402, 320875-752
- Lau / Morrison Equivalents: 11-10A DD, DD11-10A
- Brand Equivalents: Carrier, Bryant, Payne, Day & Night, Totaline
Model Compatibility
- Carrier 58 Series (Suffixes: 58STA090, 58STX090, 58WAV091, 58WAV111, 58PAV091, 58PAV111, 58MCB100)
- Bryant 310/311 Series (Suffixes: 310AAV048090, 310JAV048090, 311AAV048090, 311JAV048111)
- Payne PG8 Series (Suffixes: PG8MAA048090, PG8JAA048090, PG9MAA048111)
- Carrier Air Handlers (Suffixes: FB4ANF042, FB4ANF048, FX4ANF042, FX4ANF048)
