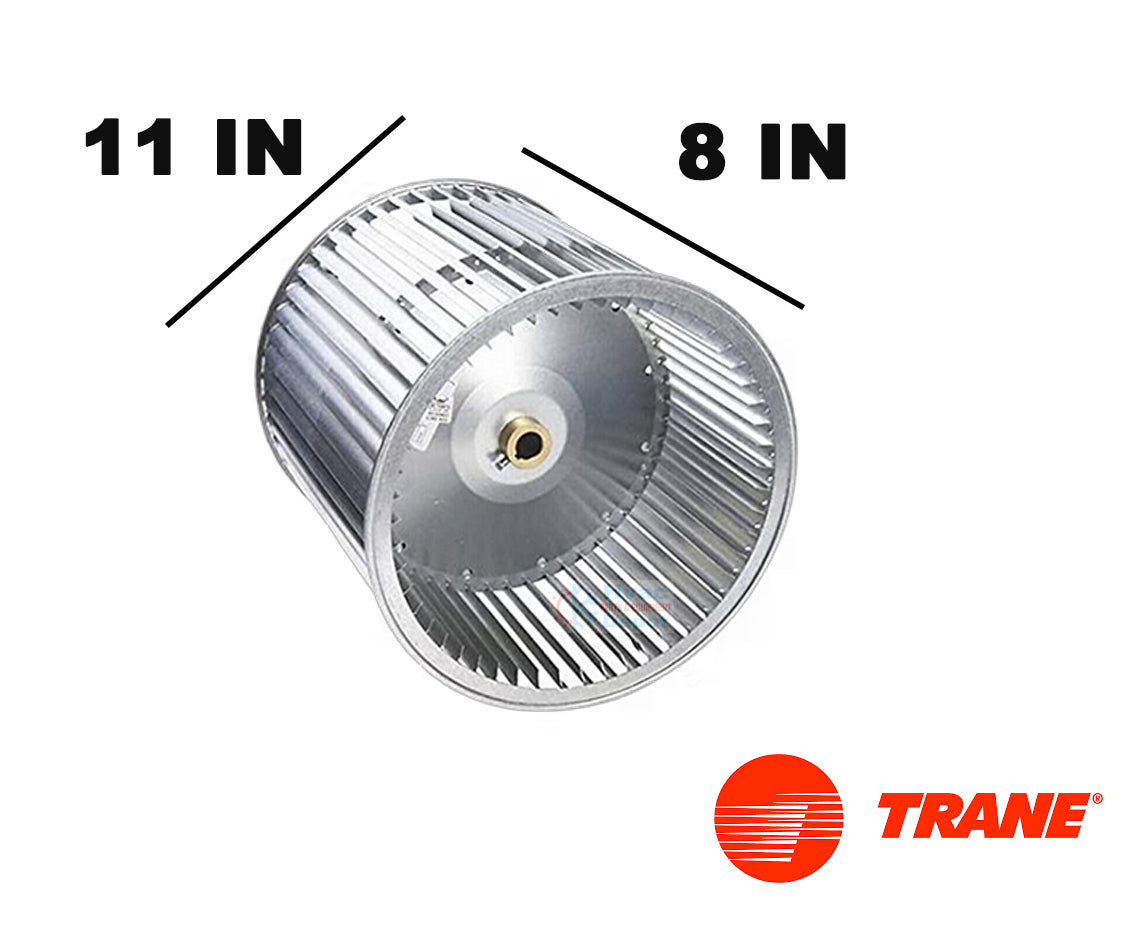

Trane WHL01146 Blower Wheel (11" x 8", 1/2" Bore) – Genuine OEM, Clockwise Rotation

Name: Trane WHL01146 Blower Wheel (11" x 8", 1/2" Bore) – Genuine OEM, Clockwise Rotation
Brand: Trane / American Standard
SKU: WHL01146
Price: 145.00 USD
Availability: InStock

Low stock: 1 left

$145.00 USD

Sale Sold out

Shipping calculated at checkout.

Key Featurees

Genuine Trane/American Standard OEM
11" Diameter x 8" Width
Clockwise (CW) Rotation
Standard 1/2" Bore
Replaces Legacy Part WHL1146

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details and Key Specifications

Dimensions: 11 inches by 8 inches.
Bore (shaft hole): 1/2 inch or 0.500 inches.
Rotation: Clockwise(CW) when viewed from the hub side.
Material: Stainless Steel
Wheel Type: Direct Drive
Wheel Design: Concave center disk
Shipping Weight: 10.75
Wheel Diameter: 11 inch (measured across hub)
Wheel Width: 8 inch (measured across wheel blade)

description

Trane WHL01146 Blower Wheel (11" x 8", 1/2" Bore) – Genuine OEM, Clockwise Rotation

The Trane WHL01146 is a genuine OEM (Original Equipment Manufacturer) blower wheel for American Standard and

Trane HVAC systems. Its function is crucial: it circulates air throughout your home's ventilation system, driven by a direct drive blower motor to efficiently move hot or cold air.

This specific blower wheel has an 11-inch diameter, an 8-inch width, with a half-inch bore, and is designed for Clockwise (CW) rotation. Constructed from durable galvanized (stainless) steel with a concave center disk, this precision-balanced wheel is essential for maintaining proper airflow and eliminating rattling or humming noises caused by an old, unbalanced wheel.

Key Characteristics and Product Details:

Optimal Airflow: 11" x 8" dimensions and concave blade design ensure proper air movement for specific furnace and air handler models.
Genuine OEM: A direct replacement part that ensures compatibility and protects your equipment's performance and efficiency.
Clockwise Rotation (CW): Specifically engineered for systems where the motor spins clockwise when viewed from the hub side.
Fixes Noise Issues: Replacing an unbalanced wheel is the primary fix for loud noise and vibration in your blower compartment.

Product Details and Key Specifications

Dimensions: 11 inches by 8 inches.
Bore (shaft hole): 1/2 inch or 0.500 inches.
Rotation: Clockwise(CW) when viewed from the hub side.
Material: Stainless Steel
Wheel Type: Direct Drive
Wheel Design: Concave center disk
Shipping Weight: 12.75
Wheel Diameter: 11 inch (measured across hub)
Wheel Width: 8 inch (measured across wheel blade)

🛠️ HVAC Depot Pro Tip: The "Flat Spot" Rule

When installing the WHL01146, pay close attention to the motor shaft.

Alignment: The set screw in the blower wheel hub must be tightened directly onto the flat spot of the motor shaft. Tightening it onto the round part of the shaft will cause the wheel to slip and vibrate severely, leading to a high-pitched squeal and potential motor failure.
Rotation Check: Confirm your system requires a CW rotation wheel. If your original wheel scoops air in the opposite direction, you need a different part number.

Cross-Reference & Replaced Part Numbers

This blower wheel is the current OEM part number that supersedes or cross-references the following older drawing and service numbers:

Previous Part Number: WHL1146, WHL-1146
Drawing Numbers: 270161845707, D303766P42, D330757P04
X-Number: X38020402420

Extensive Model Compatibility List

This blower wheel is a direct replacement for various American Standard and Trane models, including popular ADC, TDC, ADX, TDX, and CDC series units:

This blower wheel is a direct replacement for the following American Standard and Trane model numbers:

Note: This list contains extensive model numbers. Use the 'CTRL+F' function (Command+F on Mac) to search for your specific model number below.

American Standard Models:

ADC080C942A0
ADC080C942A1
ADC080C942B1
ADC080C942B2
ADC080C942B4
ADC080C942B7
ADC080C942B8
ADC080C942BA
ADC1B080A9421AA
ADC1B080A9421AD
ADC1B080A9421AE
ADC1B080A9421AF
ADC1B080A9421AG
ADX080C942A0
ADX080C942A1
ADX080C942B0
ADX080C942B1
ADX080C942B2
ADX080C942B3
ADX080C942B4
ADX080C942C0
ADX080C942C3
ADX080C942D3
ADX080R942V0
ADX080R942V2
ADX080R942W1
ADX080R942W3
ADX080R942W5
ADX080R942W6
ADX080R942W7
ADX1B060A9H31AB
ADX1B060A9H31BA
ADX1B080A9421AA
ADX1B080A9H31AA
ADX1B080A9H31BA
ADX1B080A9H31BB
ADX1B080A9H31BC
ADX2B080A9422AB
AUH2B080A942VAA
AUH2B080A942VAB

Trane Models:

2TFB3F24B1D05AA
2TFB3F24B1D08AA
2TFB3F24B1D10AA
2TFB4036A1D05AA
2TFB4036A1D08AA
2TFB4036A1D10AA
CDC080A942A0
CDC080A942A1
CDC080A942A2
CDC080A942A3
CDC080A942A5
CDC080A942A6
CDX080A942A0
CDX1B080A9421AB
CDX1B080A9421AC
CDX1B080A9421AD
M951P065BD42AAA
M951P065BD42AAB
M951P065BD42AAC
M951P080BU42ABB
TDC080C942A0
TDC080C942A1
TDC080C942B1
TDC080C942B2
TDC080C942B4
TDC080C942B7
TDC080C942B8
TDC080C942BA
TDC1B080A9421AA
TDC1B080A9421AD
TDC1B080A9421AE
TDC1B080A9421AF
TDC1B080A9421AG
TDX080C942A0
TDX080C942A1
TDX080C942B0
TDX080C942B1
TDX080C942B2
TDX080C942B3
TDX080C942B4
TDX080C942C0
TDX080C942C3
TDX080C942D3
TDX080R942V0
TDX080R942V2
TDX080R942W1
TDX080R942W3
TDX080R942W5
TDX080R942W6
TDX080R942W7
TDX1B060A9H31AB
TDX1B060A9H31BA
TDX1B080A9421AA
TDX1B080A9H31AA
TDX1B080A9H31BA
TDX1B080A9H31BB
TDX1B080A9H31BC
TDX2B080A9422AB
TUH2B080A942VAA
TUH2B080A942VAB

If your specific model number is not listed above, please contact our support team @ 214-734-5222 to verify fitment.
