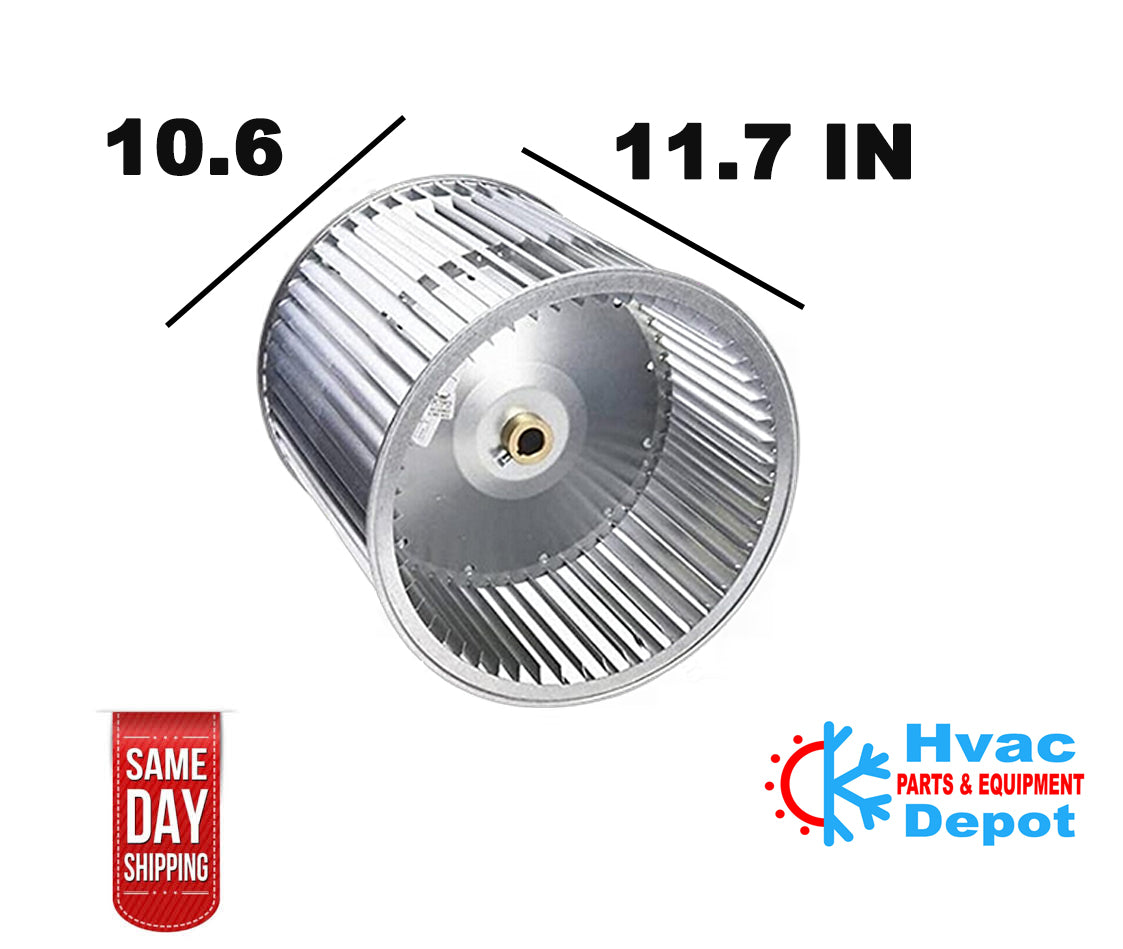

Trane WHL03116 Blower Wheel, 11.7 IN DIA X 10.6 IN WIDE, 1/2" Bore, WHL03116

Trane WHL03116 Blower Wheel, 11.7 IN DIA X 10.6 IN WIDE, 1/2" Bore, WHL03116

Low stock: 2 left

Regular price $186.64 USD
Regular price Sale price $186.64 USD
Sale Sold out
Shipping calculated at checkout.

Quick bullet points near the price

  • Genuine Trane/American Standard OEM

  • 11.7" Diameter x 10.6" Width, With a half inch bore!

  • Clockwise (CW) Rotation

  • Fixes Noise & Vibration Issues, Balanced for perfection

  • Replaces WHL02915 & D803476P35
    Tags:

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details and Key Specifications

  • Brand: Trane / American Standard
  • Part Number: WHL03116
  • Type: Direct Drive Blower Wheel
  • Dimensions: 11.7" Diameter x 10.6" Width
  • Diameter: 11.7
  • Width: 10.6
  • Bore Size: 1/2" (0.50-inch)
  • Rotation: Clockwise (CW)
  • Shipping Weight: 12.35
  • Wheel Type: Direct Drive Blower Wheel

description

Trane WHL03116 Blower Wheel (11.7" x 10.6", 1/2" Bore) – Genuine OEM, Clockwise Rotation


The Trane WHL03116 is a genuine OEM (Original Equipment Manufacturer) direct drive blower wheel for Trane and American Standard HVAC air handlers and furnaces. Its function is crucial for moving conditioned air efficiently through your ventilation system, maintaining consistent indoor temperatures for both heating and cooling cycles.

This specific wheel measures 11.7 inches in diameter by 10.6 inches wide, features a 1/2-inch bore, and is designed for Clockwise (CW) rotation. Replacing a worn, damaged, or unbalanced blower wheel is essential for restoring optimal airflow and eliminating excessive noise or vibration.


Key Features and Function:

  • Efficient Airflow: Provides the exact airflow required to maintain system efficiency and comfort ratings.

  • OEM Quality:

    A genuine replacement part designed to seamlessly integrate with your existing Trane equipment.
  • Direct Drive:

    Configured for direct drive systems, ensuring compatibility with your motor setup.
  • Reduces Noise:

    A balanced wheel ensures quiet operation and prevents premature wear on your blower motor bearings.


Product Details and Key Specifications

  • Brand: Trane / American Standard
  • Part Number: WHL03116
  • Type: Direct Drive Blower Wheel
  • Dimensions: 11.7" Diameter x 10.6" Width
  • Diameter: 11.7
  • Width: 10.6
  • Bore Size: 1/2" (0.50-inch)
  • Rotation: Clockwise (CW)
  • Shipping Weight: 12.35
  • Wheel Type: Direct Drive Blower Wheel


🛠️ HVA Depot Pro Tip: Balance and Rotation are Critical!

When installing a new blower wheel, two factors determine success:

  • Check Rotation:

    This is a Clockwise (CW) wheel. Installing a Counter-Clockwise (CCW) wheel will result in virtually no airflow.
  • Ensure Balance:

    Secure the set screw tightly onto the flat part of the motor shaft. An unbalanced or loose wheel is the primary cause of loud humming or rattling noises and quickly ruins blower motors.


Cross-Reference & Replaced Part Numbers

The WHL03116 is an OEM part number that replaces the following legacy parts and drawing numbers:

  • WHL3116 (Common shorthand)
  • WHL02915 / WHL2915
  • WHL02057 / WHL2057
  • D803476P35 (Drawing Number)
  • 2122B15571703E02 (X-Number)


Extensive Model Compatibility List

This blower wheel can be used with the following Trane/American Standard model numbers (often found in TAM or AUD series air handlers):

  • TAM9A0C60V51DBA
  • TAMXA0B30V31DA
  • TAMXA0B30V31DAA
  • TAMXA0B30V31DB
  • TAMXA0C36V31DB
  • TAMXA0C42V41DA
  • TAMXA0C42V41DAA
  • TAMXA0C42V41DB
  • ...and many more specific air handler models.

If your specific model number is not listed above, please contact our support team at 2147345222 to verify fitment.
