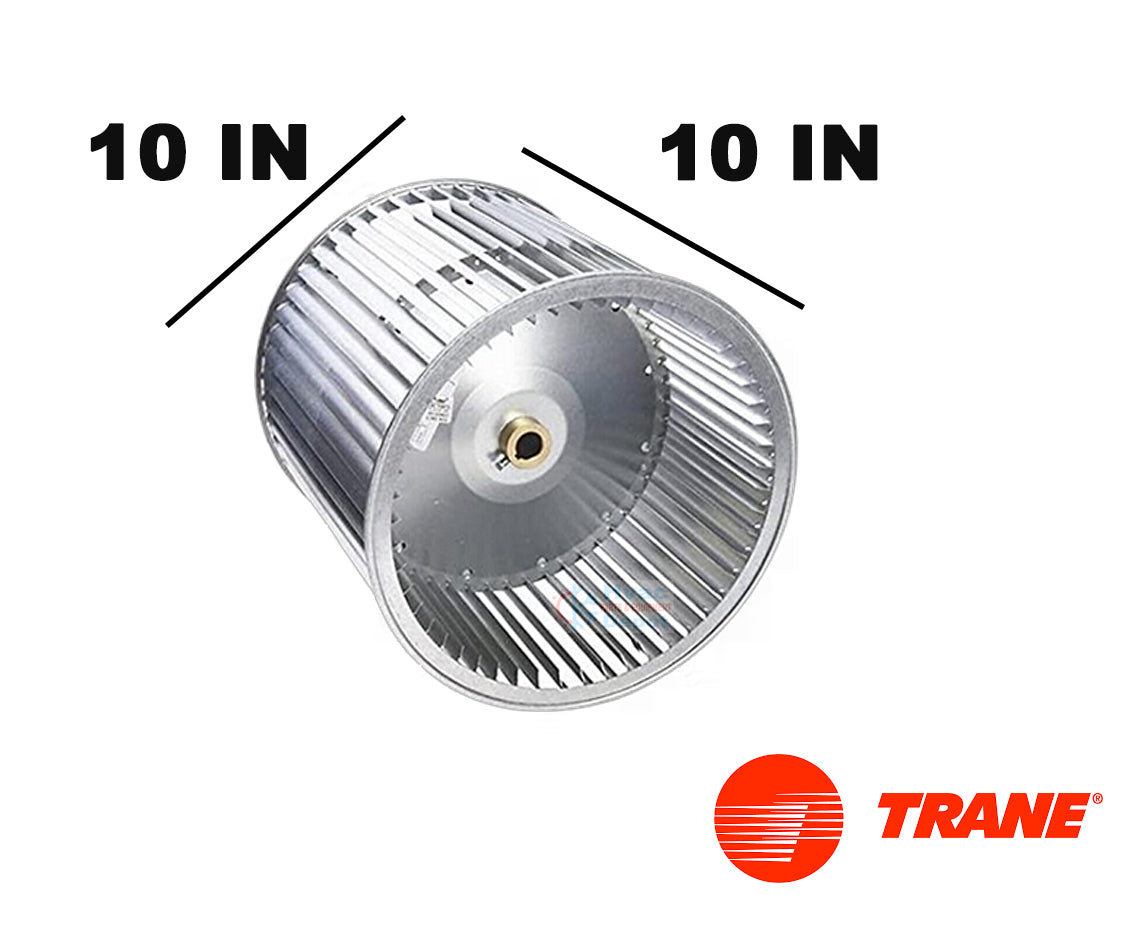

Trane American Standard WHL00502 Blower Wheel 10"D X 10" W Direct Replacement

Name: Trane American Standard WHL00502 Blower Wheel 10"D X 10" W Direct Replacement
Brand: Trane / American Standard
SKU: WHL00502
Price: 246.00 USD
Availability: InStock

Low stock: 1 left

$246.00 USD

Sale Sold out

Shipping calculated at checkout.

Key Features & Specifications

Dimensions: 10" Diameter x 10" Width
Bore Size: 0.500" (1/2 inch) shaft hole
Rotation: Clockwise (CW) rotation
Material: Heavy-duty balanced steel
Fitment: Genuine OEM for Trane/American Standard furnaces

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details and Key Specifications:

Part Type: Direct Drive Blower Wheel
Part Number: WHL00502
Manufacturer: Trane (OEM) / American Standard
Rotation: Clockwise (CW)
Bore Size: 1/2 inch (0.500")
Diameter: 10 inches
Width: 10 inches
Material: Steel
Wheel Type: Direct Drive / Concave
Shipping Weight: 11.25 lbs

description

Trane WHL00502 Blower Wheel – Genuine OEM (10" x 10", CW Rotation)

The Trane WHL00502 is a genuine OEM direct drive steel fan wheel for Trane and American Standard HVAC systems. This "squirrel cage" wheel creates the airflow necessary to circulate hot or cold air throughout your home’s ventilation system, ensuring proper temperature regulation and system efficiency.

This specific blower wheel features a 10-inch diameter, a 10-inch width, and a standard 1/2-inch bore. It is engineered for Clockwise (CW) rotation and is commonly found in a wide range of Trane and American Standard furnaces and air handlers like the TUD and TWE series.

Key Features and Function:

High-Volume Airflow:
Precision 10" x 10" design provides optimal static pressure for 3.5 to 5-ton systems.
Genuine OEM Quality:
An original equipment manufacturer (OEM) part manufactured by Trane to guarantee a perfect fit and function.
Clockwise Rotation:
Specifically engineered for systems requiring a CW motor rotation when viewed from the hub side.
Durable Construction:
Made from high-quality steel with a concave center disk design for lasting reliability and balanced operation.

Product Details and Key Specifications:

Part Type: Direct Drive Blower Wheel
Part Number: WHL00502
Manufacturer: Trane (OEM) / American Standard
Rotation: Clockwise (CW)
Bore Size: 1/2 inch (0.500")
Diameter: 10 inches
Width: 10 inches
Material: Steel
Wheel Type: Direct Drive / Concave
Shipping Weight: 11.25 lbs

🛠️ HVAC Depot Pro Tip: The "Flat Spot" Rule

When sliding the WHL00502 onto the motor shaft, make sure the set screw aligns perfectly with the flat side of the shaft. This ensures the wheel grips securely and spins true. A drop of blue Loctite on the set screw is a pro move to keep it locked in place and prevent future service calls due to slippage or vibration.

Cross-Reference & Replaced Part Numbers:

This OEM blower wheel replaces the following internal and legacy numbers:

WHL0502
270148270407
435895140700
D303766P19
D303766P40
X38020402190

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model number within this extensive list:

AUD/TUD Series:
AUD100C961H0, AUD100C961H3, AUD100R961H4, AUD100R961K4, TUD100C961H0, TUD100C961H3, TUD100R961H4, TUD100R961K4
BLU/BLH Series:
BLU060H942A, BLU060KN42B0, BLU060P942A, BLU080P942A, BLU085J942A0, BLU085J942A1, BLU100H948A, BLU100H948B, BLU100J948A2, BLU120H948B, BLU120KN48B0, BLH120E960G0, BLH120F960B0, BLH140F960B0
BWH/BWV Series:
BWH736D100A1, BWH748A100A0, BWH748P100A1, BWH754P100A0, BWH754P100A1, BWH754P100B0, BWH942D100E0, BWV042A100A0, BWV042A100C1, BWV748P100A1, BWV754P100A0, BWV754P100A1, BWV754P100B0, BWV760S100A, BWV760S100A0
TWE/TWG/TWH Series:
TWE037E13FA0, TWE040CA40B0, TWE040CA40W0, TWE048C140A0, TWE048C140F1, TWE048C140F2, TWE048C140F3, TWE060P130A0, TWG042A140B0, TWH040A540A0, TWH040B540A0, TWH048A140A0, TWH064E150F0, TWH064P150A0, TWH064P150C0, TWH064P150F0, TWH734P150B0, TWH739E150B0, TWH739P100A0, TWH739P150A0, TWH739P150B0
Other Models:
AHCB0401AFA0, BGWE948C9A, BGWE960C1B, BGWE960C9B, BLD100K948B4, LE051B1C, LE68BC1F, TC048B1C, TC048B3C, TC048B4C, TC048B6C, TC048B7A, TC048B7C, TC48AN1, TC48AN3, TDC100A948A0, TE036C1A, TE036C1B, TR048B7A, TWV040A540A0, TWV042B140A1, TWV064P150C0, TWV739E100A0, TWV739E150B0, TWV739E150C0, WC048A1A, WC048A3A, WC048B1B, WC048B3B, WE036B1A, WE036B1C, WE036C1C, WE036C9C, WTB53E11, WTE24AH1, WTE36BC1, WTE36BC9, YCG048A1LNAA, YCG048A1M0AA, YCG048A3H0AA, YCG048A3LNAA, YCG048A4H0AA
