York P/N S1-02436094000 – Genuine OEM ECM Blower Motor with Control Module (1/2 HP, 115-120V)
York P/N S1-02436094000 – Genuine OEM ECM Blower Motor with Control Module (1/2 HP, 115-120V)
Low stock: 1 left
High-Level Highlights:
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description

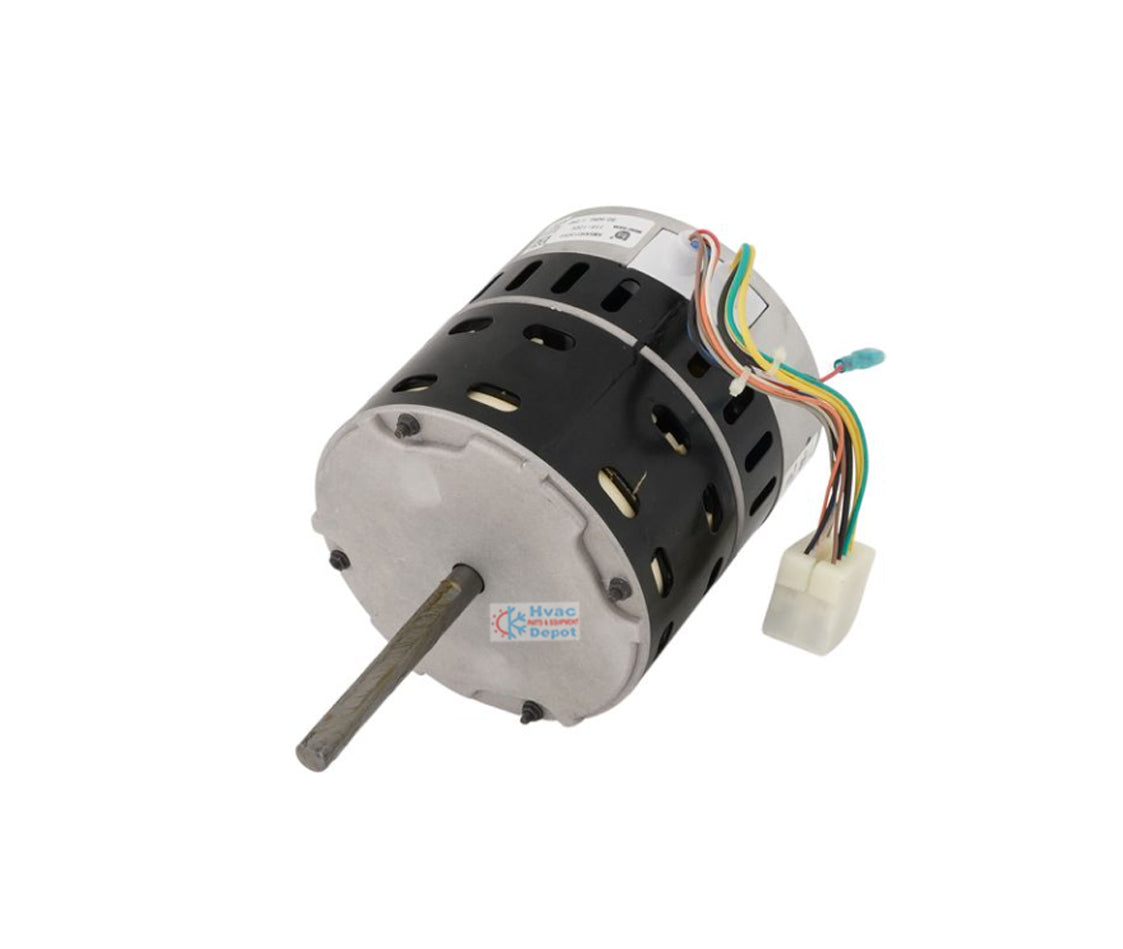

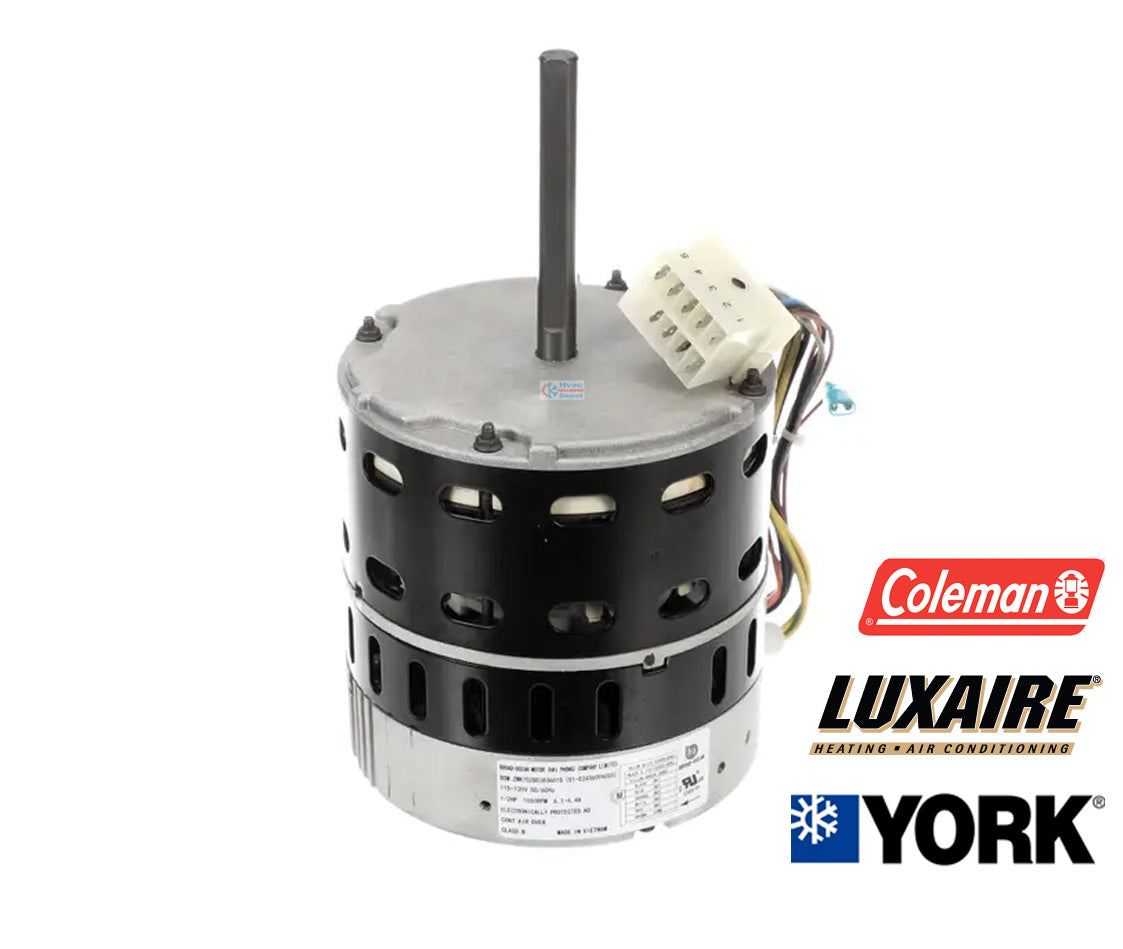

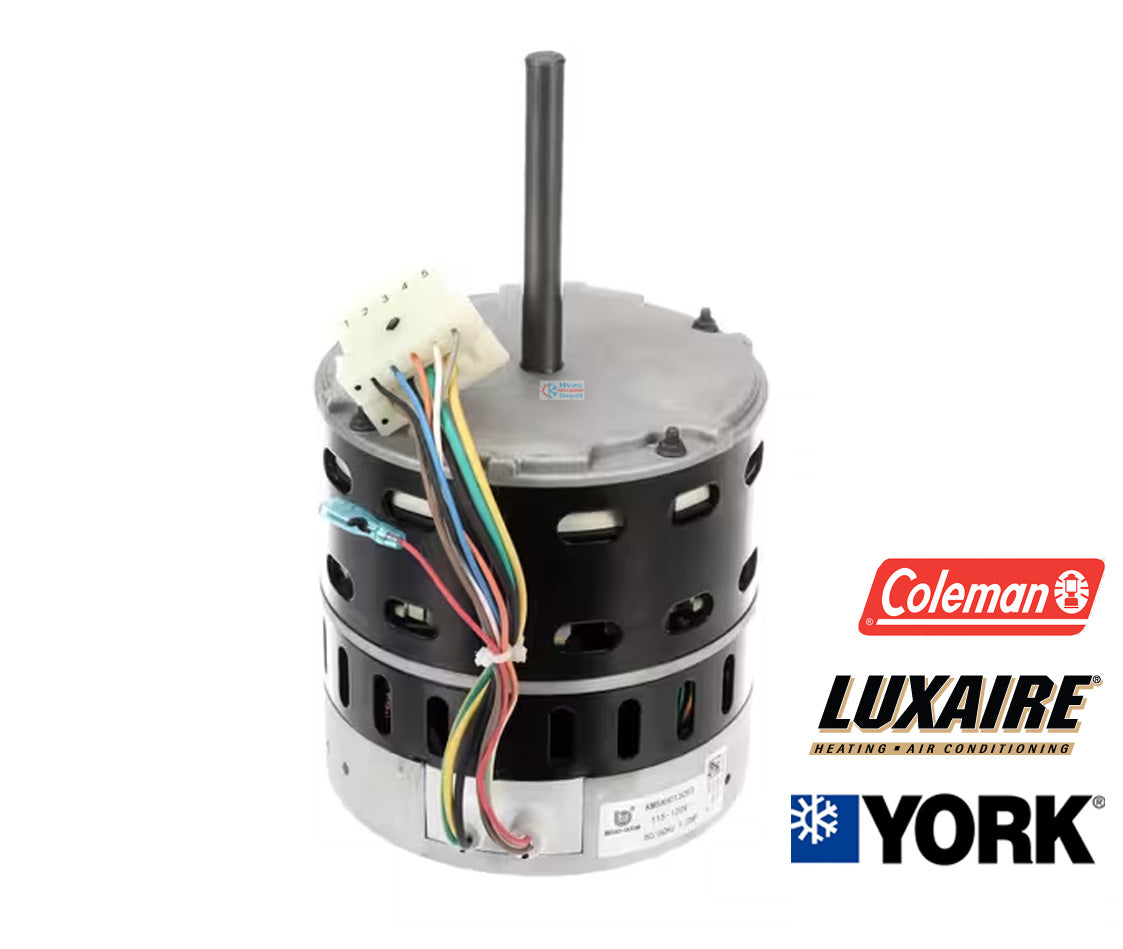

York P/N S1-02436094000 – Genuine OEM ECM Blower Motor with Control Module (1/2 HP, 115-120V)
The York S1-02436094000 is a Genuine Original Equipment Manufacturer (OEM) Constant Torque ECM blower motor and control module assembly, designed for use in specific York, Luxaire, and Coleman high-efficiency residential furnaces. This 1/2 horsepower (HP) motor is engineered to provide precise, constant torque airflow while drastically reducing energy consumption compared to traditional PSC motors. The integrated, programmable control module manages airflow based on the furnace's heat rise and cooling demands.
As a factory-programmed Genuine OEM component, the S1-02436094000 ensures the motor communicates perfectly with your system's control board, maintaining factory-spec performance and comfort levels. It operates on a standard 115-120V single-phase power supply and features a robust 48-frame design with permanently lubricated ball bearings for a long, reliable service life.
Key Features and Function:
- Integrated ECM Module: Features a factory-programmed control module for precise speed and torque management.
- Genuine OEM Reliability: Official York replacement engineered for accurate fitment and long-term durability.
- High-Efficiency Performance: Designed to lower utility costs by consuming less power during operation.
- Programmable Logic: Integrated module responds to control board signals to deliver exact CFM for heating and cooling stages.
Product Details and Key Specifications:
- Part Number: S1-02436094000
- Catalog #: N/A (Part number serves as catalog ID)
- Manufacturer: York (Johnson Controls)
- Part Type: ECM Blower Motor with Control Module
- Horsepower: 1/2 HP
- Voltage: 115-120 VAC
- Frequency: 50/60 Hz
- Phase: 1
- RPM: 1050 RPM (Nominal, Variable Speed)
- Frame Size: 48
- Bearing Type: Ball
- Shaft Size: 1/2 inch Diameter x 3.25 inches Length
🛠️ HVAC Depot Pro Tip: The "Module vs. Motor" Test
ECM failures often occur in the control module (the "bell" on the back) rather than the motor windings themselves. If your motor is getting high-voltage power but refuses to turn, the module has likely failed due to a voltage spike. Before replacing, inspect the board for any visible "burn marks" or "puffed" capacitors. We highly recommend installing a motor-specific surge protector to safeguard the expensive electronics in the motor's module and prevent future failures.
Cross-Reference:
The S1-02436094000 is a direct OEM replacement for the following part numbers:
- OEM & Catalog Numbers: S1-02436094000, 024-36094-000, 02436094000.
Extensive Model Compatibility List:
Note: Use 'CTRL+F' to search for your specific model:
- York/Luxaire/Coleman Furnaces (Specific Models):
- TM9V060B12MP11BA, TM9V080B12MP11BA, TM9V080C16MP11BA
- HM9H060B12MP11BA, HM9H080B12MP11BA, HM9H080C16MP11BA
- CM9V060B12MP11BA, CM9V080B12MP11BA, CM9V080C16MP11BA
