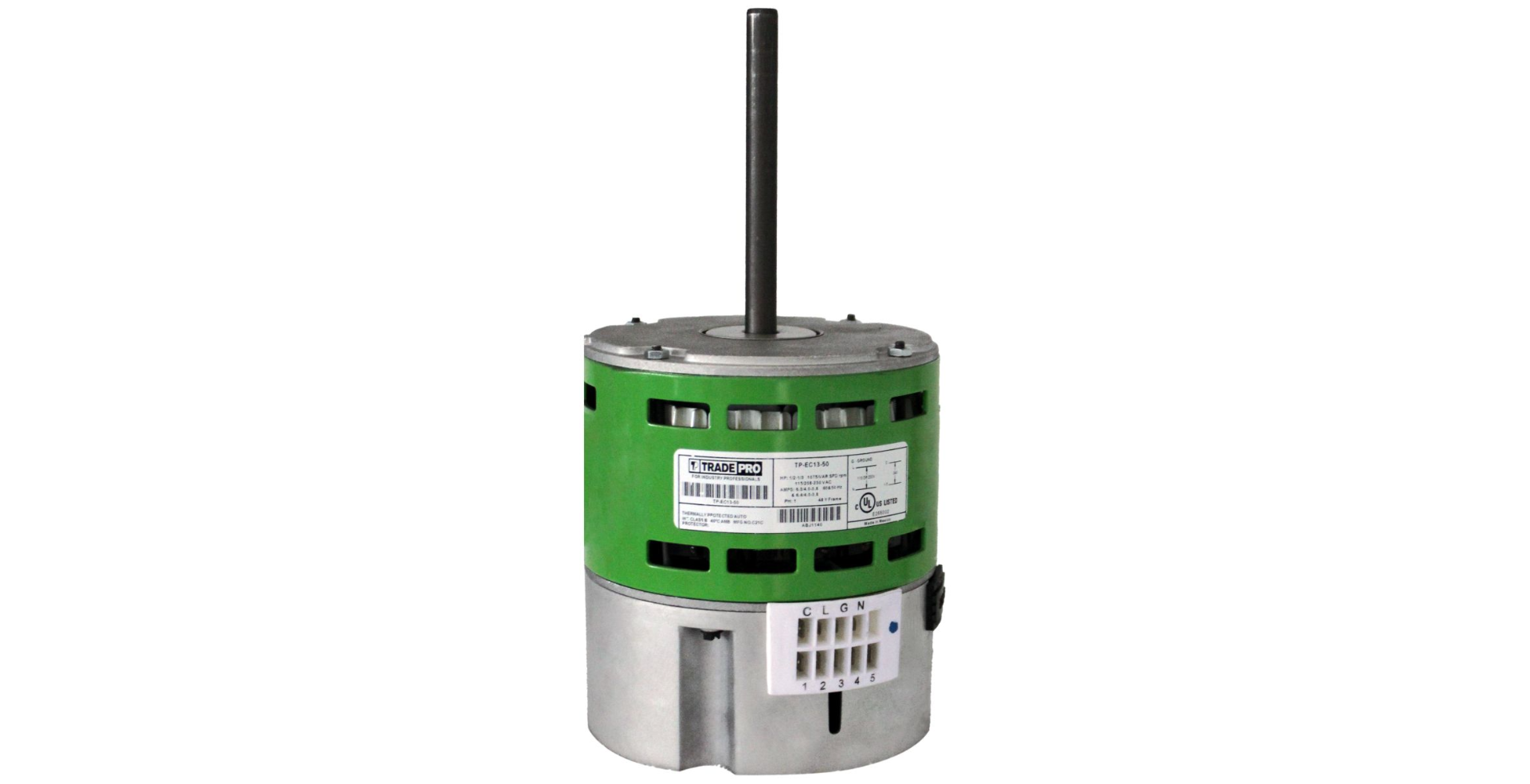

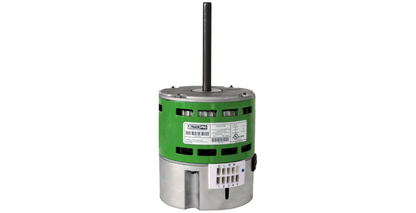

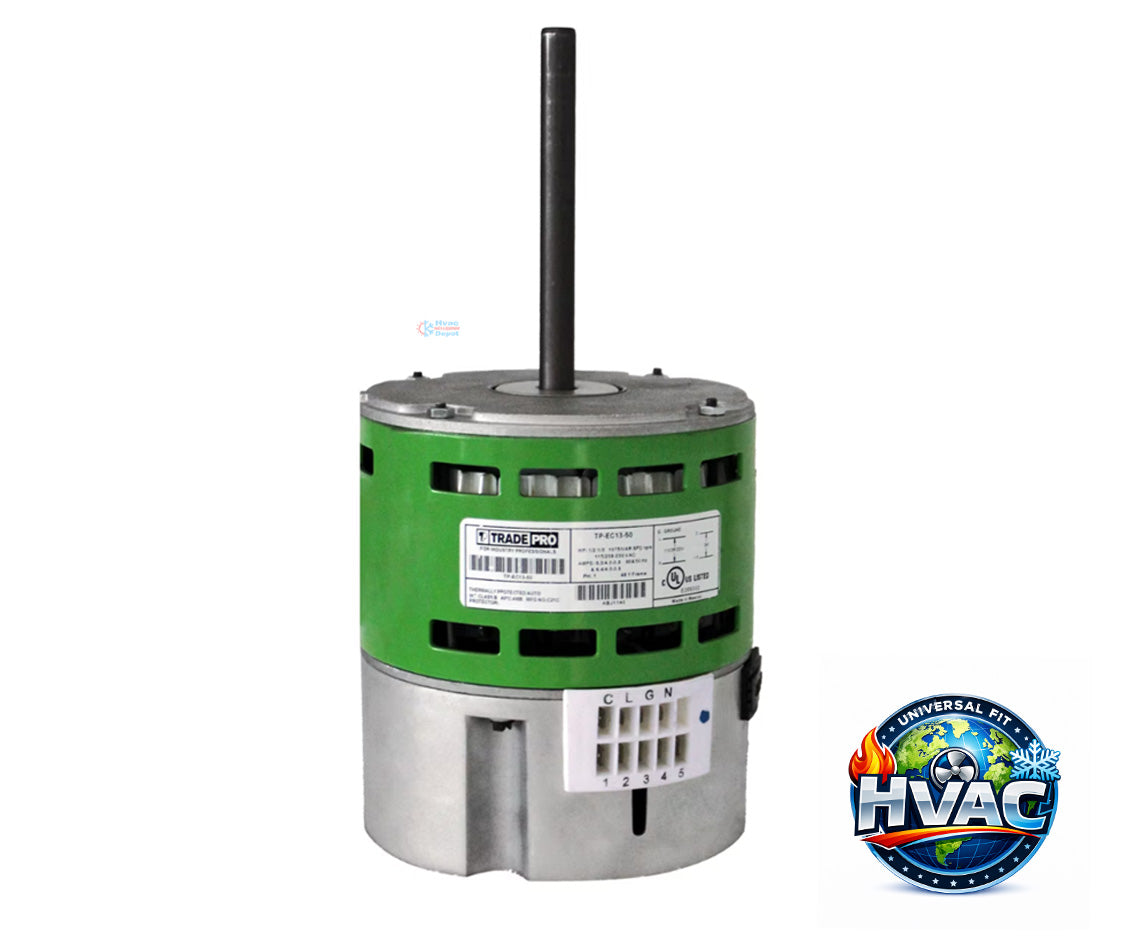

TRADEPRO P/N TP-EC13-50 – Genuine OEM Universal ECM Blower Motor (1/3 HP to 1/2 HP, 115/208-230V)

The TRADEPRO TP-EC13-50 is a Genuine Original Equipment Manufacturer (OEM) Constant Torque ECM blower motor, designed as a universal replacement for a wide range of high-efficiency furnaces and air handlers across major HVAC brands (e.g., Carrier, Trane, Goodman, York). This versatile motor covers both 1/3 horsepower (HP) and 1/2 HP applications and operates on dual voltage (115/208-230 VAC). It is engineered to maintain precise airflow while significantly reducing energy consumption compared to traditional PSC motors. It is specifically designed as an "X13 type" direct replacement motor.

As a versatile and high-quality replacement component from TRADEPRO (distributed by Carrier Enterprise), the TP-EC13-50 features integrated, factory-programmed control logic and a robust 48-frame design with permanently lubricated ball bearings. This motor is dual-voltage (120/240V) and typically includes multiple speed tap connections for flexibility in the field, ensuring compatibility with the specific airflow requirements of various systems.

Key Features and Function:

• Universal ECM Replacement: Designed as a direct X13 motor equivalent for broad compatibility across most major HVAC brands.
• Genuine OEM Quality: Authentic TRADEPRO product ensures durable construction and reliable performance.
• High Efficiency: Consumes significantly less power than standard motors, supporting high SEER and AFUE ratings.
• Dual Voltage Support: Compatible with both 115V and 208-230V power supplies across 50/60 Hz frequencies.

Product Details and Key Specifications:

• Part Number: TP-EC13-50
• Catalog #: N/A (Part number serves as catalog ID)
• Manufacturer: TRADEPRO (Distributed by Carrier Enterprise)
• Part Type: ECM Blower Motor (Constant Torque, X13 Type)
• Horsepower: 1/3 HP to 1/2 HP
• Voltage: 115/208-230 VAC
• RPM: 1075 RPM (Nominal, Variable Speed)
• Frame Size: 48
• Bearing Type: Ball
• Shaft Size: 1/2 inch Diameter x 4 inches Length (approx.)
• Gross Shipping Weight: 13.0 LB

🛠️ HVAC Depot Pro Tip: The "X13 Universal" Advantage

The TP-EC13-50 is a constant torque ECM motor (X13 type), a popular industry replacement style. These motors typically do not require complex field programming. Instead, they use simple color-coded wiring harnesses that connect to your furnace's control board to select the appropriate speed (CFM). When installing this universal motor, ensure you select the correct speed tap wire for your specific unit's tonnage and heating/cooling requirements as outlined in your air handler's manual to guarantee optimal system performance.

Cross-Reference:

The TP-EC13-50 is designed to cross-reference with many other manufacturer and universal motor part numbers:

• OEM & Catalog Numbers: TP-EC13-50, GENTECH E50-X13, D78824, 5KCP39SGA085AS, HQ1082269TR.

Extensive Model Compatibility List:

Note: This is a universal replacement component. Compatibility is determined by motor specifications (1/3 to 1/2 HP, X13, 115/208-230V) rather than specific furnace model numbers. It fits most systems requiring this motor type, including those using Lennox EL180 and EL195 series furnaces.
