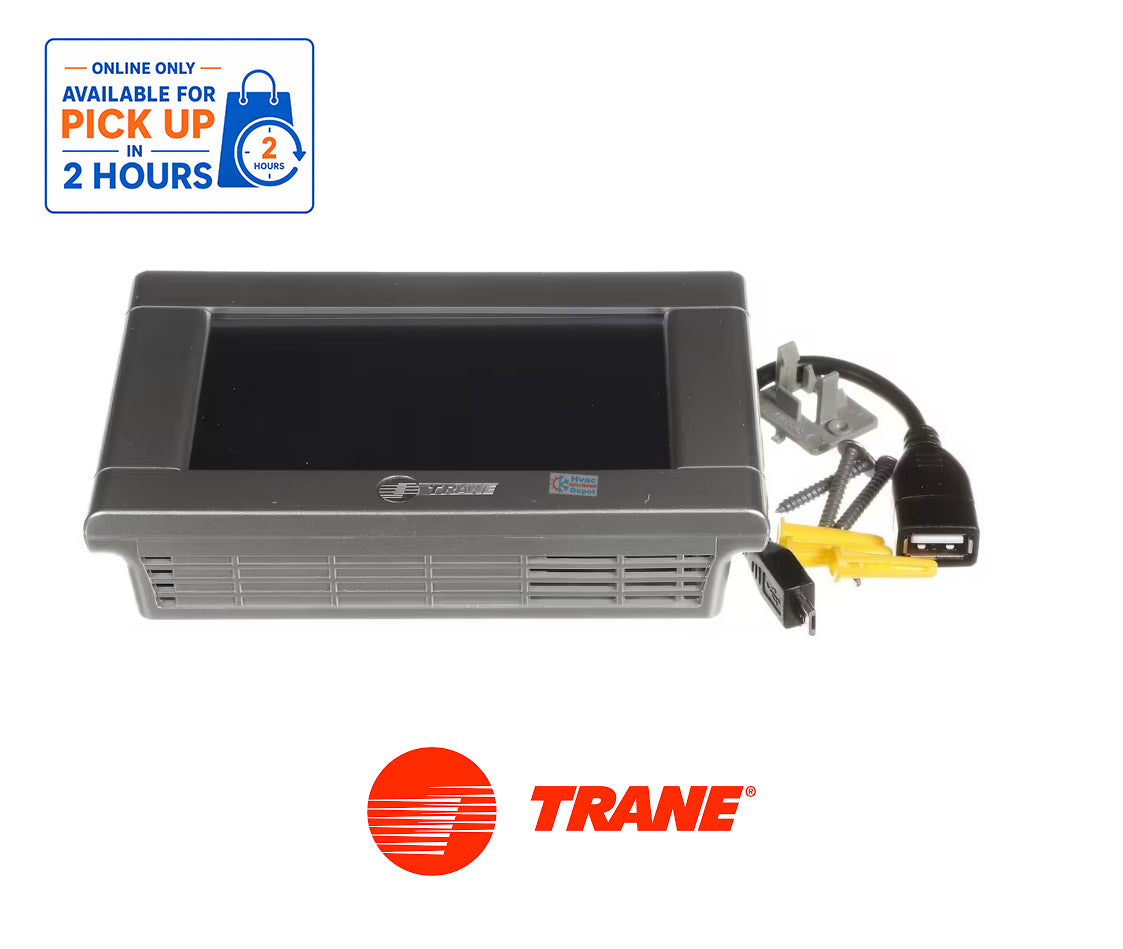

Trane XL824 TCONT824AS52DC/TCONT824AS52DB  OEM Smart Wi-Fi Thermostat – 4.3" Color Touchscreen, 24V, Programmable, Z-Wave, 5 Heat / 2 Cool

The Trane XL824 Smart Thermostat TCONT824AS52DC/TCONT824AS52DC is an advanced Wi-Fi-enabled HVAC control designed to provide convenient temperature management, customizable scheduling, and remote access for compatible heating and cooling systems.

Featuring a 4.3-inch full-color touchscreen, the Trane XL824 combines modern technology with easy-to-use comfort controls. Homeowners can adjust temperatures, customize heating and cooling schedules, monitor indoor humidity, and manage their HVAC system remotely through the Trane Home app.

The TCONT824AS52DC supports conventional 24-volt HVAC systems, including gas furnaces, electric heating, heat pumps, and dual-fuel applications. It provides up to 5 heating stages and 2 cooling stages, depending on the equipment configuration.

With built-in Wi-Fi connectivity, Ethernet capability, and an integrated Z-Wave bridge, the XL824 offers connected comfort features and smart-home integration.

Designed for energy-conscious homeowners, the Trane XL824 includes seven-day programmable scheduling, humidity monitoring, compatible HVAC diagnostics, and software update capabilities.

Whether replacing an existing thermostat or upgrading a compatible HVAC system, the Trane XL824 TCONT824AS52DC provides a combination of comfort, connectivity, and precise temperature control.

Key Features & Function

• Brand: Trane
• Manufacturer Part Number: TCONT824AS52DC
• Model: XL824 Smart Thermostat
• Genuine Trane OEM HVAC control
• 4.3-inch full-color touchscreen
• 24 VAC operating voltage
• Wi-Fi and wired Ethernet connectivity
• Remote temperature control through the Trane Home app
• Built-in Z-Wave smart-home bridge
• Seven-day programmable scheduling
• Up to four scheduled periods per day
• Supports up to five heating and two cooling stages
• Compatible with approved conventional and heat pump systems
• Indoor temperature and relative humidity monitoring
• Enhanced dehumidification capabilities
• Trane Diagnostics support
• Compatible voice-assistant integration
• Weather information with internet connectivity
• Software update capabilities
• Smart-home comfort and energy management

Product Details & Specifications

HVAC Depot Pro Tip

The Trane XL824 TCONT824AS52DC is designed for conventional 24-volt HVAC control systems and should not be confused with Trane's proprietary communicating thermostats.

Before installing the XL824, verify that the HVAC system uses compatible conventional thermostat wiring.

Recommended installation checks:

1. Confirm the HVAC equipment model and control system type.
2. Verify the system uses conventional 24 VAC thermostat controls.
3. Check thermostat wiring and available terminals.
4. Confirm the equipment's heating and cooling stage requirements.
5. Verify a compatible common wire (C-wire) connection is available.
6. Check the control transformer capacity.
7. Connect the thermostat to Wi-Fi or Ethernet for smart features.
8. Configure heating, cooling, and humidity settings.
9. Test all operating modes after installation.

HVAC Depot Pro Tip: The XL824 supports advanced features such as remote access, scheduling, and humidity management. However, it is not a direct replacement for proprietary communicating thermostats used with certain Trane variable-speed systems.

Important: Turn off HVAC system power before thermostat installation. Incorrect low-voltage wiring can damage the thermostat or HVAC control board.

Equipment / Model Compatibility

The Trane XL824 TCONT824AS52DC is designed for compatible conventional 24-volt heating and cooling systems.

Compatibility Notice: The XL824 is a conventional 24V thermostat. Verify equipment compatibility, wiring, and stage configuration before ordering. Exact equipment model compatibility must be checked individually.
