Trane VAL09030 2-Stage Gas Valve Assembly | Natural Gas, 24V, 1/2" NPT Inlet/Outlet
Trane VAL09030 2-Stage Gas Valve Assembly | Natural Gas, 24V, 1/2" NPT Inlet/Outlet
Low stock: 4 left
Quick Feature Highlights
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description

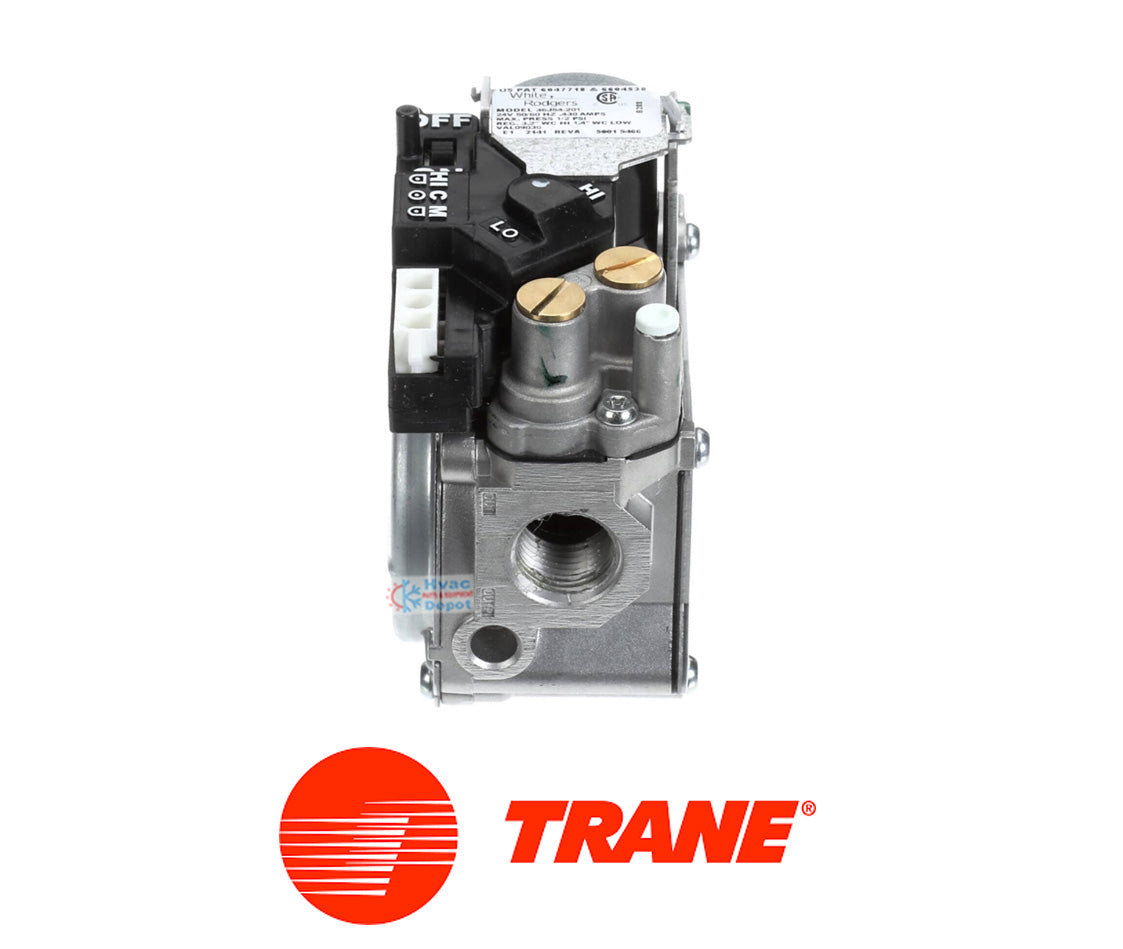

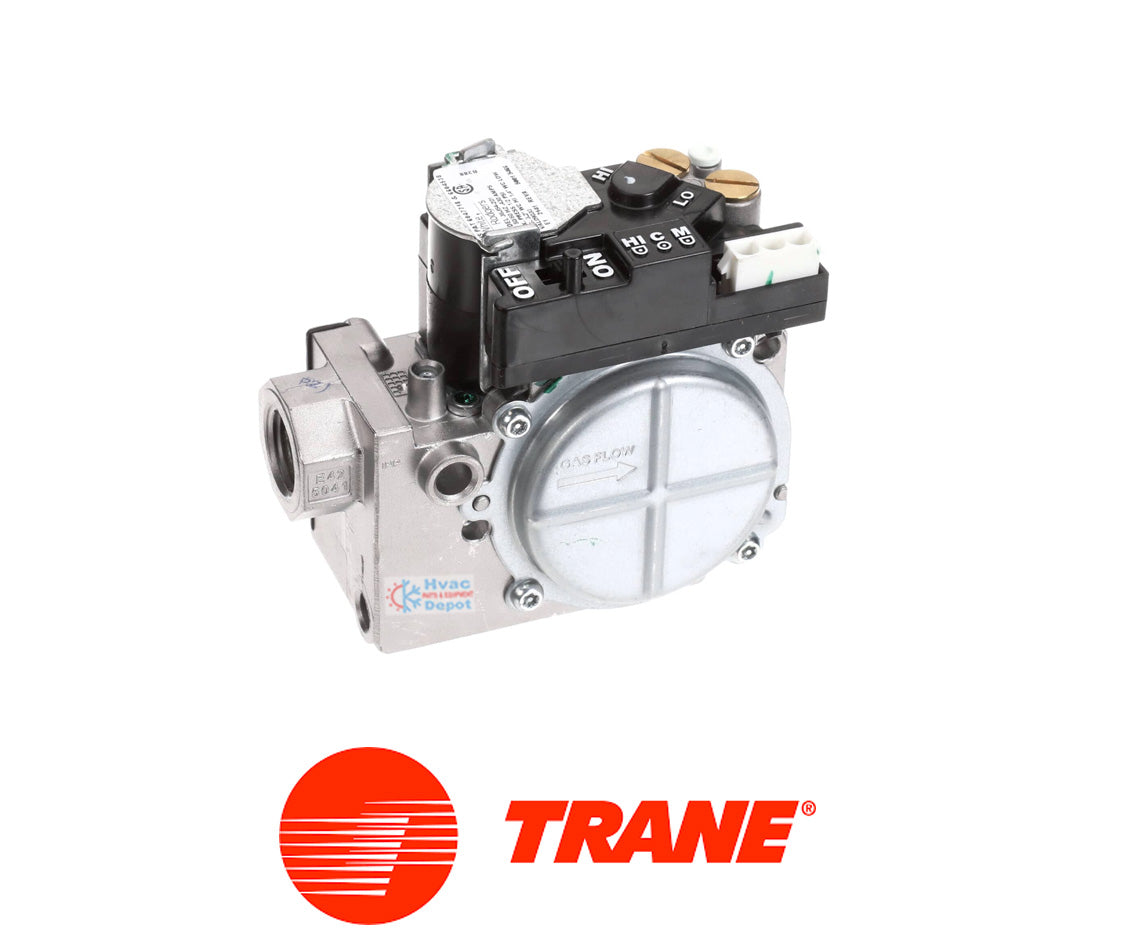

Trane VAL09030 2-Stage Gas Valve Assembly - Natural Gas, 24V, 1/2" NPT Inlet/Outlet
The Trane VAL09030 is a genuine OEM White-Rodgers (36G J-Series) two-stage natural gas valve designed for precise and safe control of gas flow in high-efficiency Trane furnace systems. This 24-volt combination valve allows the furnace to operate at both a low and high heat setting, enhancing comfort and energy efficiency by adjusting the heating output based on demand. Using this factory-certified replacement ensures optimal system performance, precise pressure regulation for both stages, and maintains your furnace's rigorous safety certifications.
Key Features
- Two-Stage Operation: Provides both high-fire and low-fire heat settings to match varying heating requirements, improving comfort control and efficiency.
- Precise Pressure Regulation: Features separate adjustable regulators factory-set for low-stage (approx. 1.4" WC) and high-stage (approx. 3.2" WC) manifold pressures.
- Redundant Safety Shutoff: Utilizes dual redundant solenoid valves for fail-safe operation, automatically cutting gas flow upon power interruption or safety trigger.
- Fast-Opening Mechanism: Designed with a fast-opening characteristic to ensure prompt ignition and reduced warm-up periods.
Product Details & Specification
- Part Type: Gas Valve Assembly (Combination Type)
- Brand: Trane (White-Rodgers 36J54-201 Model)
- Stages: 2-Stage
- Fuel Type: Natural Gas (Configured, LP Conversion Kit Not Incl)
- Voltage: 24 V AC, 50/60 Hz
- Inlet/Outlet Size: 1/2" NPT
- Manifold Pressure (Nat Gas High): 3.2" WC (Factory Set Range: 2.5"-5.0")
- Manifold Pressure (Nat Gas Low): 1.4" WC (Factory Set Range: 1.0"-4.0")
- Max Inlet Pressure: 1/2 PSI (14" WC)
- Opening Characteristic: Fast Opening
🛠️ HVAC Depot Pro Tip
This VAL09030 is a two-stage valve. When installing, verify both the high and low-stage manifold pressures using a manometer to ensure optimal combustion and the correct BTU output for each stage. The high pressure setting must always be at least 1" WC above the low pressure setting. Ensure all gas line connections are properly sealed to prevent leaks.
Cross-Reference
-
Superseded Part:
VAL05934, VAL5934 -
Legacy Numbers:
36G54-203, 36G54 Type J, 36J54-201 -
Manufacturer:
Trane / American Standard
Model Compatibility
- TDD060R9V3F5
- TDD080R9V3F5
- TDD100R9V5F5
Note: Compatible with various Trane high-efficiency furnaces requiring two-stage operation. USE Ctrl+F to search if this is a direct fit for your furnace.
American Standard
- ADD040R924F4
- ADD060R936F4
- ADD060R937F4
- ADD060R9V3F4
- ADD080R936F4
- ADD080R9V3F4
- ADD100R945F4
- ADD100R948F4
- ADD100R960F4
- ADD100R9V5F4
- ADD120R960F4
- ADD120R9V5F4
- ADD140R960F4
- ADD2A040A9242AA
- ADD2A060A9362AA
- ADD2B060A9362AA
- ADD2B080A9362AA
- ADD2B100A9482AA
- ADD2C100A9482AA
- ADD2C100A9602AA
- ADD2D120A9602AA
- ADD2D140A9602AA
- AUD040R924K5
- AUD060R936K5
- AUD060R937K5
- AUD060R9V3K4
- AUD080R936K5
- AUD080R948K5
- AUD080R9V3K4
- AUD080R9V4K4
- AUD100R936K5
- AUD100R948K5
- AUD100R960K5
- AUD100R961K5
- AUD100R9V3K4
- AUD100R9V5K4
- AUD120R954K5
- AUD120R960K5
- AUD120R9V5K4
- AUD140R960K5
- AUD140R9V5K4
- AUD2A040A9242AA
- AUD2A060A9362AA
- AUD2B060A9362AA
- AUD2B060AFV32AA
- AUD2B080A9362AA
- AUD2B080A9482AA
- AUD2B080AFV32AA
- AUD2B100A9362AA
- AUD2B100AFV32AA
- AUD2C080AFV42AA
- AUD2C100A9482AA
- AUD2C100A9602AA
- AUD2C120A9542AA
- AUD2D100A9602AA
- AUD2D120A9602AA
- AUD2D120AFV52AA
- AUD2D140A9602AA
- S9V2B060U3PSBAA
- S9X2B040D3PSBAA
- Trane
- TDD040R924F4
- TDD060R936F4
- TDD060R937F4
- TDD060R9V3F3
- TDD060R9V3F4
- TDD060R9V3F5
- TDD080R936F4
- TDD080R9V3F3
- TDD080R9V3F4
- TDD080R9V3F5
- TDD100R945F4
- TDD100R948F4
- TDD100R960F4
- TDD100R9V5F3
- TDD100R9V5F4
- TDD100R9V5F5
- TDD120R960F4
- TDD120R9V5F3
- TDD120R9V5F4
- TDD120R9V5F5
- TDD140R960F4
- TDD2A040A9242AA
- TDD2A040A9242AB
- TDD2A040A9242AC
- TDD2A060A9362AA
- TDD2A060A9362AB
- TDD2A060A9362AC
- TDD2B060A9362AA
- TDD2B060A9362AB
- TDD2B060A9362AC
- TDD2B060ACV32AA
- TDD2B080A9362AA
- TDD2B080A9362AB
- TDD2B080A9362AC
- TDD2B080ACV32AA
- TDD2B100A9482AA
- TDD2B100A9482AB
- TDD2B100A9482AC
- TDD2C100A9482AA
- TDD2C100A9482AB
- TDD2C100A9482AC
- TDD2C100A9602AA
- TDD2C100A9602AB
- TDD2C100A9602AC
- TDD2C100ACV52AA
- TDD2D120A9602AA
- TDD2D120A9602AB
- TDD2D120A9602AC
- TDD2D120ACV52AA
- TDD2D140A9602AA
- TDD2D140A9602AB
- TDD2D140A9602AC
- TUD040R924K5
- TUD060R936K5
- TUD060R937K5
- TUD060R9V3K3
- TUD060R9V3K4
- TUD060R9V3K5
- TUD080R936K5
- TUD080R948K5
- TUD080R9V3K3
- TUD080R9V3K4
- TUD080R9V3K5
- TUD080R9V4K3
- TUD080R9V4K4
- TUD080R9V4K5
- TUD100R936K5
- TUD100R948K5
- TUD100R960K5
- TUD100R961K5
- TUD100R9V3K3
- TUD100R9V3K4
- TUD100R9V3K5
- TUD100R9V5K3
- TUD100R9V5K4
- TUD100R9V5K5
- TUD120R954K5
- TUD120R960K5
- TUD120R9V5K3
- TUD120R9V5K4
- TUD120R9V5K5
- TUD140R960K5
- TUD140R9V5K3
- TUD140R9V5K4
- TUD140R9V5K5
- TUD2A040A9242AA
- TUD2A040A9242AB
- TUD2A040A9242AC
- TUD2A060A9362AA
- TUD2A060A9362AB
- TUD2A060A9362AC
- TUD2B060A9362AA
- TUD2B060A9362AB
- TUD2B060A9362AC
- TUD2B060A9V3VBA
- TUD2B060ACV32AA
- TUD2B060AFV32AA
- TUD2B060AFV32AB
- TUD2B080A9362AA
- TUD2B080A9362AB
- TUD2B080A9362AC
- TUD2B080A9482AA
- TUD2B080A9482AB
- TUD2B080A9482AC
- TUD2B080A9V3VBA
- TUD2B080ACV32AA
- TUD2B080AFV32AA
- TUD2B080AFV32AB
- TUD2B100A9362AA
- TUD2B100A9362AB
- TUD2B100A9362AC
- TUD2B100A9V3VBA
- TUD2B100ACV32AA
- TUD2B100AFV32AA
- TUD2B100AFV32AB
- TUD2C080A9V4VBA
- TUD2C080ACV42AA
- TUD2C080AFV42AA
- TUD2C080AFV42AB
- TUD2C080B9V4VBA
- TUD2C100A9482AA
- TUD2C100A9482AB
- TUD2C100A9482AC
- TUD2C100A9602AA
- TUD2C100A9602AB
- TUD2C100A9602AC
- TUD2C100A9V5VBA
- TUD2C100ACV52AA
- TUD2C100B9V5VBA
- TUD2C120A9542AA
- TUD2C120A9542AB
- TUD2C120A9542AC
- TUD2D100A9602AA
- TUD2D100A9602AB
- TUD2D100A9602AC
- TUD2D120A9602AA
- TUD2D120A9602AB
- TUD2D120A9602AC
- TUD2D120A9V5VBA
- TUD2D120ACV52AA
- TUD2D120AFV52AA
- TUD2D120AFV52AB
- TUD2D120B9V5VBA
- TUD2D140A9602AA
- TUD2D140A9602AB
- TUD2D140A9602AC
- TUD2D140A9V5VBA
- TUD2D140ACV52AA
