Trane SWT03623 Switch - Low Pressure Cutout, 250 Open | Refrigerant

Trane SWT03623 Switch - Low Pressure Cutout, 250 Open | Refrigerant

Low stock: 6 left

Regular price $79.50 USD
Regular price Sale price $79.50 USD
Sale Sold out
Shipping calculated at checkout.

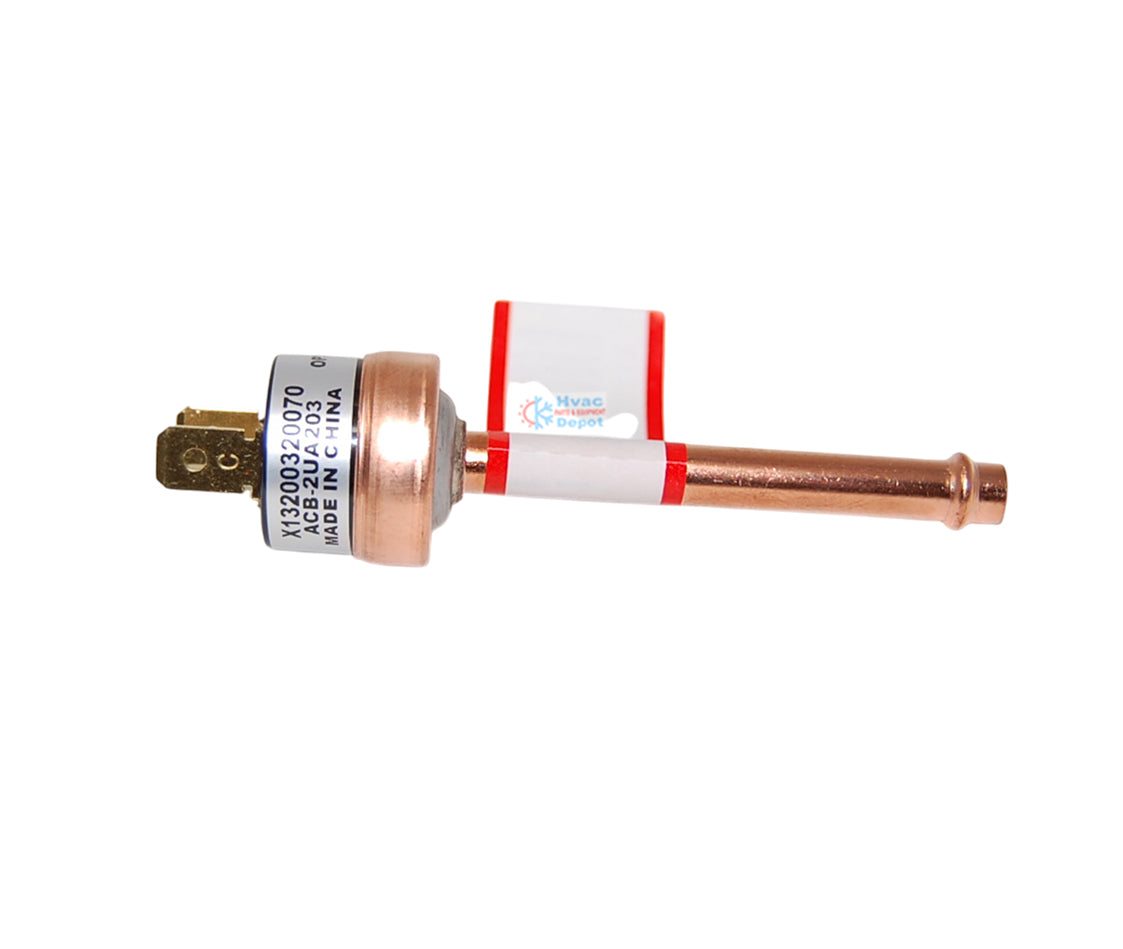

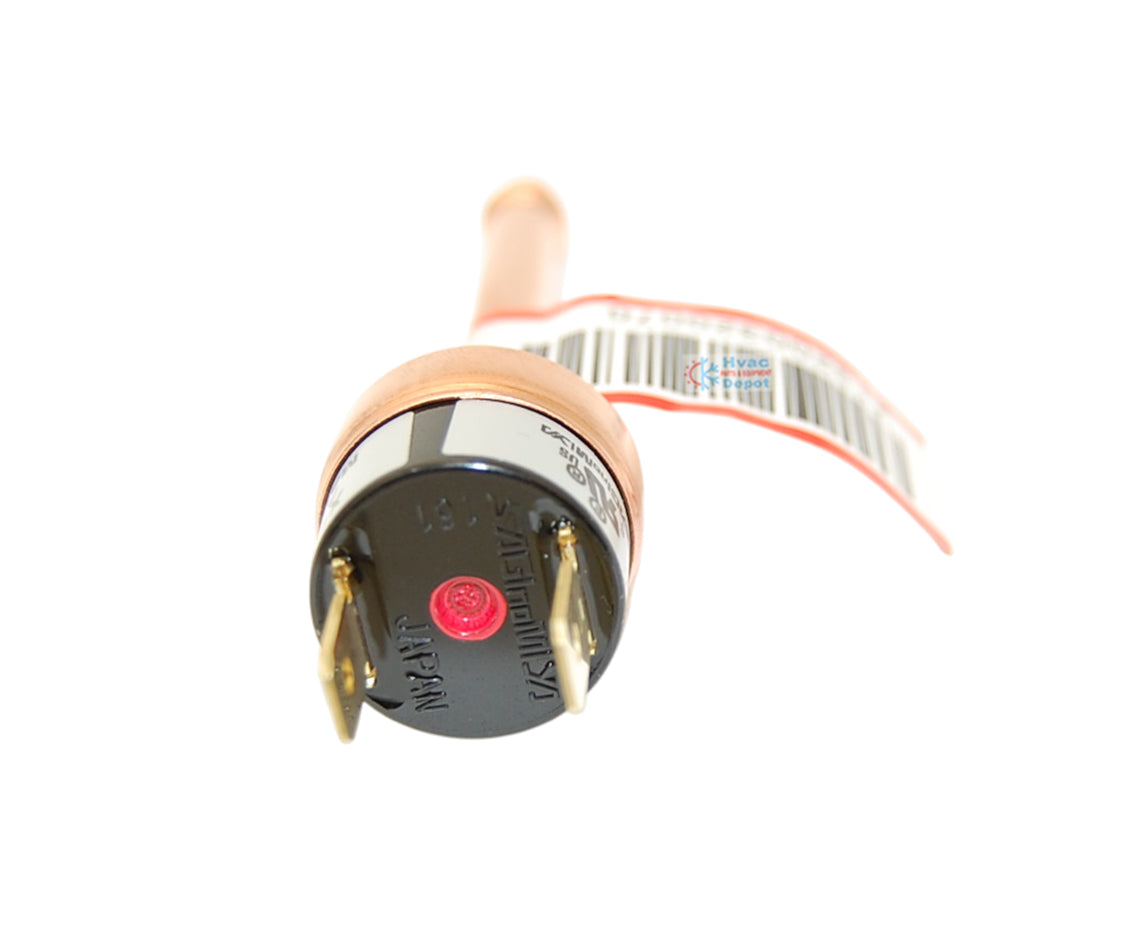

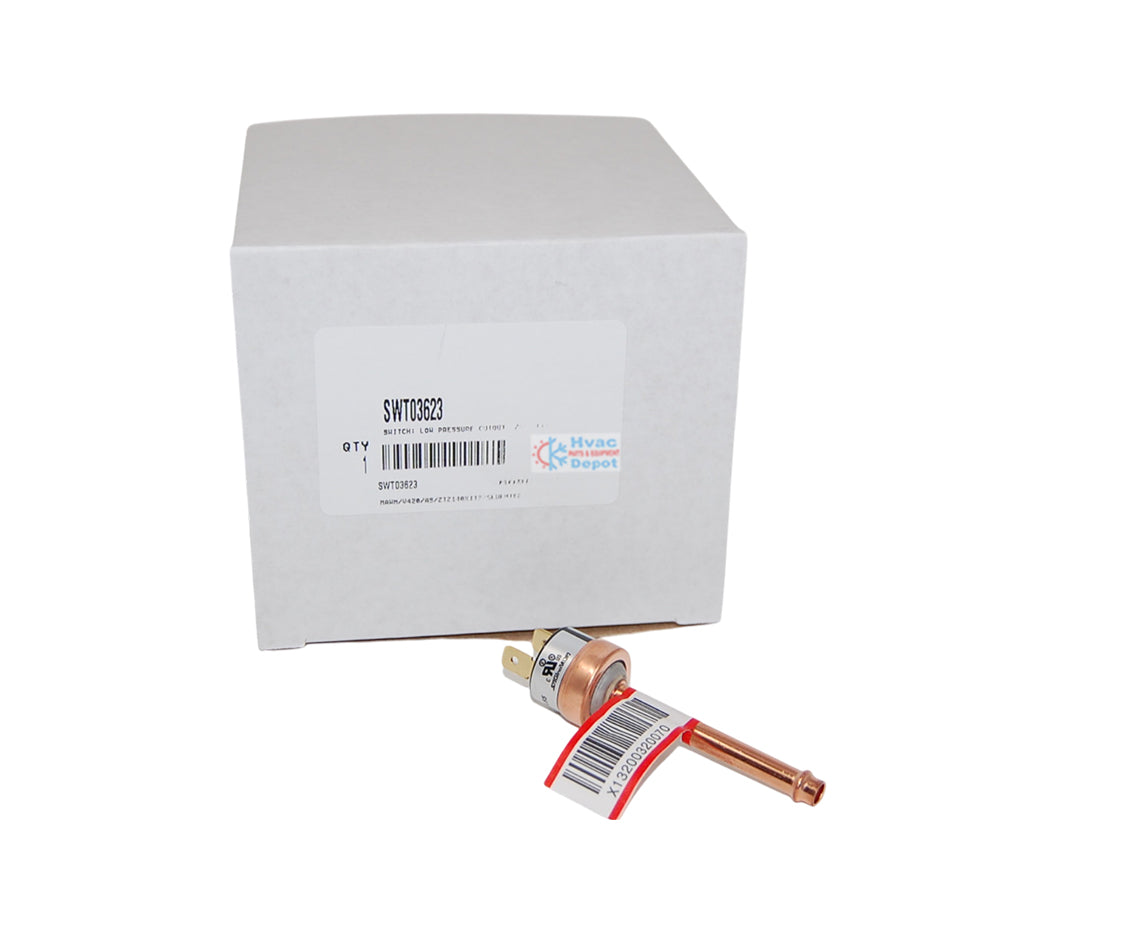

Trane SWT03623 Switch - Low Pressure Cutout, 250 Open

  • Precise System Safeguard – Factory-calibrated to open at 250 PSIG, preventing your compressor from running during low-charge conditions.

  • Automatic Reset Function – Features an actuation pressure of 55 +/- 5 PSI and a reset at 35 +/- 5 PSI for hands-off system recovery.

  • Genuine Trane OEM – A direct-fit cartridge-style control designed specifically for high-capacity TSC and YSC rooftop units.

  • Commercial Grade Durability – Rated for 8A current and built to withstand burst pressures up to 300 Bar, ensuring long-term reliability.

  • Seamless Installation – Comes with standard lead wire terminals for a quick, "no-fuss" electrical connection in the field.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

  • Type: Low Pressure Cut Out Switch
  • Pressure Setting: 250 PSIG open
  • Actuation Pressure: 55pm 5 PSI
  • Reset Pressure: 35pm 5 PSI
  • Brand: Trane
  • Contact Configuration: SPST
  • Current Rating: 8A
  • Number of Poles: 1
  • Pressure Rating: -0.5 to 45 Bar Operating, 300 Bar Burst
  • Shipping Weight: 0.186
  • Terminal Type: Lead Wire
  • Type: Cartridge Control, Low, Small Disc

description

Genuine Trane & American Standard SWT03623 Low Pressure Cutout Switch

Protect your air conditioning or refrigeration compressor from catastrophic failure due to low refrigerant pressure with the Trane SWT03623 cutout switch. This is a critical safety component that automatically shuts down the compressor when the pressure drops below a safe threshold, preventing overheating and inadequate lubrication. It is designed as a direct OEM replacement for various Trane and American Standard units.


Key Performance Features:

  • Compressor Protection: Safeguards the most expensive component of an AC system by halting operation when refrigerant pressure is too low.
  • Automatic Reset: Once pressure returns to a safe level, the switch automatically resets itself, restoring system operation.
  • Precision Actuation: Factory-set to open at 250 PSIG (Pounds per Square Inch Gauge) to ensure proper safety thresholds are met.
  • Broad System Compatibility: Used across a wide range of Trane commercial and residential AC systems (THC, YSC, TSC models).


Product Specifications:

  • Type: Low Pressure Cut Out Switch
  • Pressure Setting: 250 PSIG open
  • Actuation Pressure: 55 PSI +/- 5 PSI
  • Reset Pressure: 35, +/- 5 PSI
  • Brand: Trane
  • Contact Configuration: SPST
  • Current Rating: 8A
  • Number of Poles: 1
  • Pressure Rating: -0.5 to 45 Bar Operating, 300 Bar Burst
  • Shipping Weight: 0.186
  • Terminal Type: Lead Wire
  • Type: Cartridge Control, Low, Small Disc


Cross-Reference & Compatibility for the SWT03623 directly replaces or cross-references with these part numbers:

Trane / American Standard:

  • SWT3623
  • TRNSWT03623


Troubleshooting Guide:

  • Symptom: AC unit shuts down on a hot day, and the compressor is hot to the touch.
  • This is often due to low refrigerant levels, which causes the SWT03623 to trip.
  • Safety Warning: A tripping low pressure switch nearly always indicates a refrigerant leak or another system issue. Replacing the switch will not fix the underlying problem. A licensed technician must recover refrigerant and repair the leak before charging the system.
  • Pro Tip: This switch has lead wires for connection and an automatic reset feature, so you won't find a button to press on the switch itself.


Compatible Trane & American Standard Series:

  • TSC102H Series: Covers all H3, H4, and HWR configurations.
  • YSC102H Series: Covers all High-Efficiency Gas/Electric rooftop units.

Key Model Prefixes:

  • TSC102H3R / TSC102H4R
  • YSC102H3E / YSC102H4E
  • YSC102H3R / YSC102H4R
  • YSC102HWR / TSC102HWR
