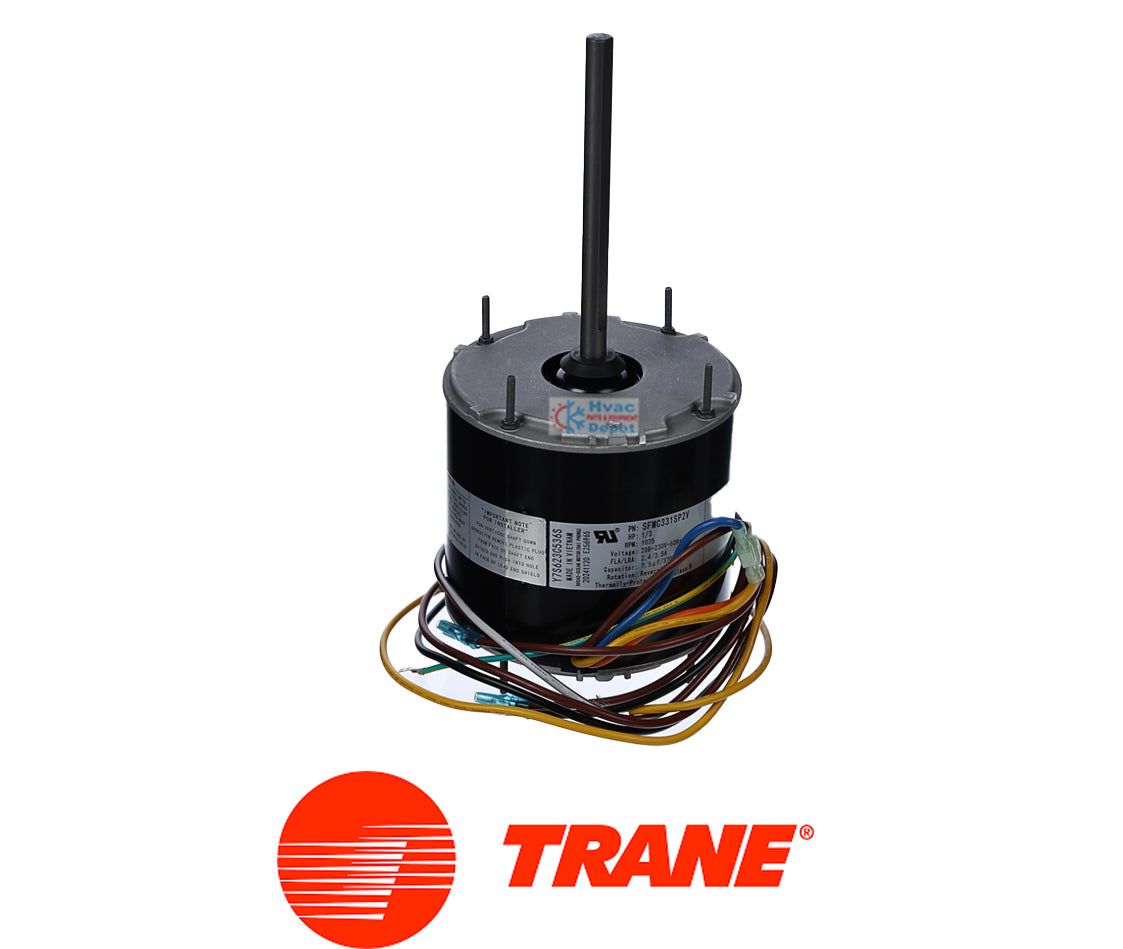

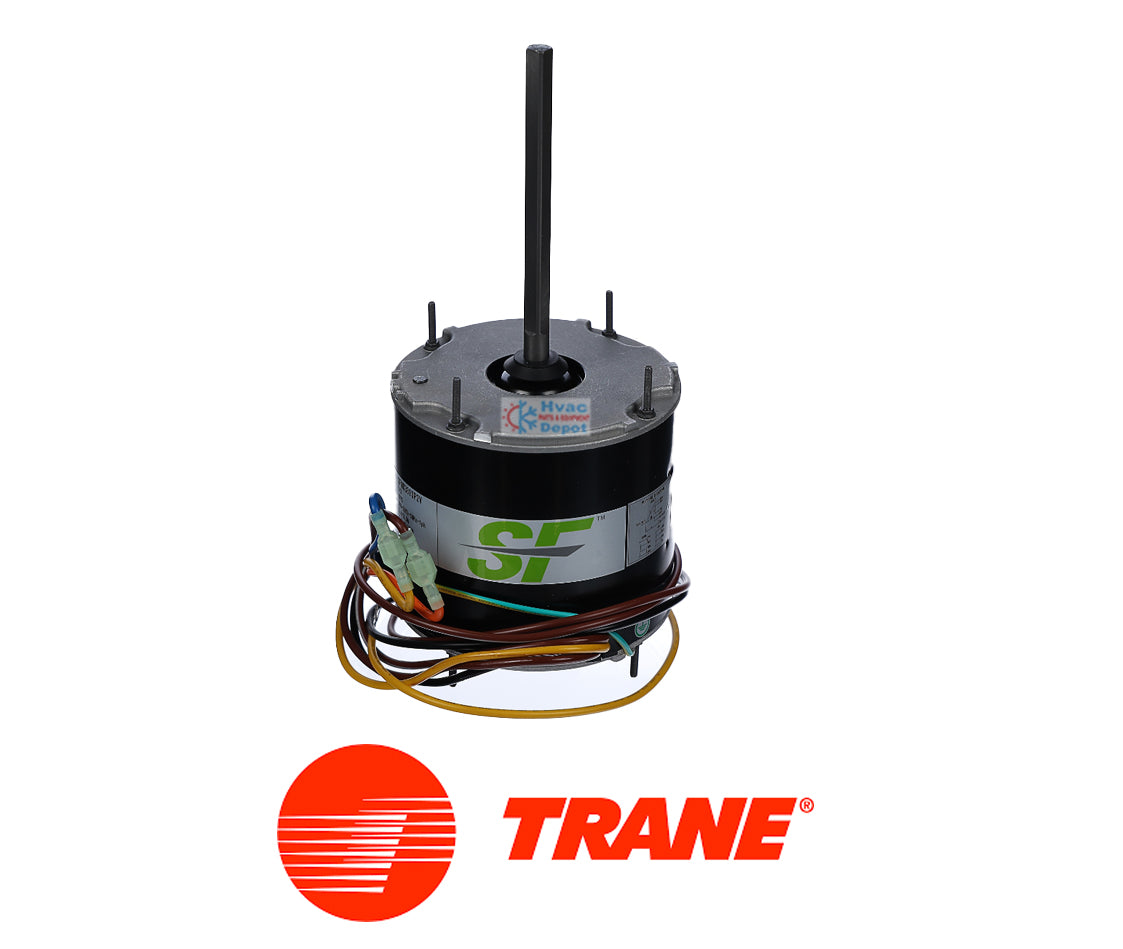

Trane SFMC331SP2V 1/3 HP Condenser Fan Motor 1075 RPM 208-230V

Trane SFMC331SP2V 1/3 HP Condenser Fan Motor 1075 RPM 208-230V

In stock

Regular price $194.44 USD
Regular price Sale price $194.44 USD
Sale Sold out
Shipping calculated at checkout.

Key Features & Specifications

  • 1/3 HP Power Output: Provides robust torque to drive large-diameter fan blades in 3 to 4-ton residential condensing units.

  • All-Position Mounting: Versatile design allows for shaft-up, shaft-down, or horizontal installation in any Trane or American Standard chassis.

  • Reversible Rotation: Simple lead-swapping allows for easy field adjustment to match your system's original factory rotation.

  • Thermal Overload Protection: Built-in automatic reset prevents motor burnout during extreme triple-digit summer heatwaves.

  • Standard 48 Frame: Industry-standard sizing ensures a perfect fit in existing mounting brackets and belly-band clamps.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details:


• Part Number: SFMC331SP2V
• Manufacturer: Trane / American Standard (Genuine OEM Spec)
• Part Type: Condenser Fan Motor (TEAO)
• Voltage: 208-230V / 60 Hz / 1 PH
• HP / RPM: 1/3 HP @ 1075 RPM
• Phase / Hertz: Single-Phase (1PH) / 60Hz
• Bore / Shaft: 1/2" Diameter x 2.5" Length
• Rotation: Reversible (CW/CCW)
• Shipping Weight: 12.8 lbs

description

Trane SFMC331SP2V 1/3 HP Condenser Fan Motor 1075 RPM 208-230V

The Trane SFMC331SP2V is a high-performance, genuine OEM-spec condenser fan motor designed to serve as the primary "heat mover" for your outdoor air conditioning or heat pump unit. This heavy-duty motor functions as the driver for the condenser fan blade, pulling ambient air across the coils to dissipate heat and maintain critical system head pressure. Specifically engineered with a Totally Enclosed Air Over (TEAO) design, it supports a vast range of Trane and American Standard residential condensing units, providing the rugged weather resistance and precise airflow management required to keep the "brain" of your cooling system running at peak efficiency.

Key Features:


• Precision Airflow Management: Features a factory-calibrated 1075 RPM speed rating, providing the exact torque needed to maintain OEM-specified CFM without over-stressing the fan blade.
• Genuine OEM Fitment: Engineered with a standard 48-frame diameter and all-position mounting, part number SFMC331SP2V replaces multiple legacy Trane motors with zero field modifications.
• Silent Operation Technology: Built with high-grade, permanently lubricated bearings and a balanced internal rotor to fix the "grinding," "squealing," or "humming" noise issues common in failing motors.
• TEAO Weather Protection: The Totally Enclosed Air Over (TEAO) housing prevents rain, dust, and coastal salt air from entering the motor windings, ensuring maximum electrical life in harsh environments.
• Direct-Fit Mounting: Includes extended thru-bolts and a standard 1/2" diameter shaft for seamless integration with existing Trane slinger rings and motor brackets.

Product Details:


• Part Number: SFMC331SP2V
• Manufacturer: Trane / American Standard (Genuine OEM Spec)
• Part Type: Condenser Fan Motor (TEAO)
• Voltage: 208-230V / 60 Hz / 1 PH
• HP / RPM: 1/3 HP @ 1075 RPM
• Phase / Hertz: Single-Phase (1PH) / 60Hz
• Bore / Shaft: 1/2" Diameter x 2.5" Length
• Rotation: Reversible (CW/CCW)
• Shipping Weight: 12.8 lbs

🛠️ HVAC Depot Pro Tip: The "Drip Loop" Rule


When installing the SFMC331SP2V, ensure the motor's lead wires are positioned facing downward to create a "drip loop." This prevents rainwater from traveling down the wires and into the motor housing. Additionally, always replace the run capacitor (typically 5 MFD / 370V-440V) at the same time as the motor; a weak capacitor is the leading cause of premature winding failure in new fan motors.

Cross-Reference:


• OEM Numbers: MOT18598, MOT12674, MOT13170, MOT0331
• Legacy Numbers: 5KCP39LF, F48A45A01, F48C11A01
• Drawing Numbers: D156100P01, 18-BA25D1-1

Model Compatibility:


• XR13 Series: 4TTR3036, 4TTR3042, 4TTR3048
• XR14 Series: 4TTR4036, 4TTR4042, 4TTR4048
• XB13 Series: 4TTB3036, 4TTB3042, 4TTB4048
• American Standard Silver: 4A7A3036, 4A7A3042, 4A7A4048
• Heat Pump Units: 4TWR3036, 4TWR4036, 4A6H3036

Specification
