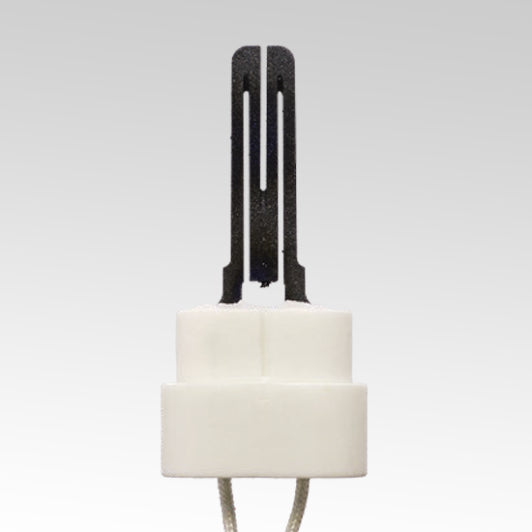

Trane-American Standard IGN00054 Hot Surface Ignitor-Direct Replacement

Name: Trane-American Standard IGN00054 Hot Surface Ignitor-Direct Replacement
Brand: Trane / American Standard
SKU: IGN00054
Price: 76.00 USD
Availability: InStock

Low stock: 2 left

$76.00 USD

Sale Sold out

Shipping calculated at checkout.

Key Specs and Features

Genuine Trane and American Standard OEM Product
120V @ 3.5 Amps
Silicon Carbide Material
Standard 2-Pin AMP Connector
Replaces IGN00034

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details and Key Specifications

Brand: Trane/American Standard
Connector Type: Amp Plug
Connectors: AMP Pin Terminal
Insulator Type: Thermoflex 500
Material: Steatite Class L-3
Shipping Weight: 2.2 LB
Wire Length: 5.25 inch
Voltage: 120 Volt
Description: IGNITOR; HOT SURFACE, 120V AT 3.5 AMP

description

Trane IGN00054 Hot Surface Ignitor (120V @ 3.5A) – Genuine OEM Replacement

The Trane IGN00054 is a genuine OEM (Original Equipment Manufacturer) 120V hot surface ignitor (HSI) designed for use in a wide range of Trane and American Standard furnace models (like the XE80/90 and XL80/90 series). This part is critical for safe operation; it uses a durable silicon carbide element to heat up rapidly and ignite the gas-air mixture for operation.

This ignitor is a direct OEM replacement for several older part numbers (like IGN00034), ensuring your furnace runs efficiently with a reliable ignition source. It features a standard plug-on AMP connector for straightforward installation.

Key Features and Function:

Function: Heats up a ceramic element rapidly to safely ignite the gas stream, providing a reliable and durable ignition source.
Reliability: Ensures the seamless and reliable ignition process vital for efficient and effective operation.
Direct Replacement: A genuine OEM part designed to perfectly integrate with your existing Trane or American Standard equipment.
Broad Compatibility: Used in a large number of specific furnace models, including XE, XL, XV, and Freedom 80/90 series.

Product Details and Key Specifications

Brand: Trane/American Standard
Connector Type: Amp Plug
Connectors: AMP Pin Terminal
Insulator Type: Thermoflex 500
Material: Steatite Class L-3
Shipping Weight: 2.2 LB
Wire Length: 5.25 inch
Voltage: 120 Volt
Description: IGNITOR; HOT SURFACE, 120V AT 3.5 AMP

🛠️HVAC Depot Pro Tip: The "No-Touch" Rule & The Ohms Test

The black element on this ignitor is extremely fragile and sensitive.

Never touch the black element with bare fingers. Oils from your skin can cause "hot spots" and early failure. Always handle by the white ceramic base.

The Ohms Test: If your furnace fails to light, test the ignitor with a multimeter. A healthy IGN00054 should read between 40 and 120 Ohms of resistance at room temperature. A reading of infinity (OL) means the element is broken, and the part must be replaced.

Cross-Reference & Replaced Part Numbers

The IGN00054 (also known as IGN0054 or IGN54) is a direct replacement for the following OEM and drawing numbers:

IGN00034 / IGN34 / IGN00054USA
B340039P01
62-22868-93 (Rheem/Ruud cross-reference number)
270162765807 (Drawing Number)
B340851P01 (Drawing Number)
X24080149010 (X-Number)

Extensive Model Compatibility List

Note: This ignitor is found in hundreds of models across the XE, XL, TDD, TUD, and Freedom 80/90 series. Use 'CTRL+F' to search for your specific model number below.

This ignitor is used in a large number of specific furnace and HVAC models. Key series where it is commonly found include:

Trane:

XE80/XE90 Series
XL80/XL90 Series
XV80 Series
TDD, TDE, TUC, TUD, TUE, TUJ, and TDC series models

American Standard:

Freedom 80/90 Series (e.g., AUC, AUE, AUD models)
Equivalent ADH models

IGN00054 is a direct replacement for Trane and American Standard Furnaces:

American Standard Furnace Model Numbers:

ADD040C924C3
ADD040R924C0
ADD060R936C3
ADD080R9V3C3
ADD100R960C3
ADD100R9V5C0
ADD120C960C4
ADD120R9V5C1
ADD140R960C0
AUD080R9V3H0

Trane and American Standard Furnaces:

CDB060A936A0
CDB060A936B0
CDB060A936C0
CDB060A936C1
CDB060A936D3
CDB060A937D3
CDB080A945A0
CDB080A945B0
CDB080A945C0
CDB080A945C1
CDB080A945D3
CDB100A945A0
CDB100A945B0
CDB100A945C0
CDB100A945C1
CDB100A945D3
CDB100A960A0
CDB100A960B0
CDB100A960C0
CDB100A960C1
CDB100A960D3
CDB120A960A0
CDB120A960B0
CDB120A960C0
CDB120A960C1
CDB120A960D3
CDB1A060A9361AA
CDB1A060A9361AB
CDB1B060A9361AA
CDB1B060A9361AB
CDB1B080A9451AA
CDB1B080A9451AB
CDB1B100A9451AA
CDB1B100A9451AB
CDB1C100A9601AA
CDB1C100A9601AB
CDB1D120A9601AA
CDB1D120A9601AB
CDC040A924A0
CDC040A924A1
CDC040A924A2
CDC040A924A3
CDC040A924A5
CDC040A924A6
CDC060A936A0
CDC060A936A1
CDC060A936A2
CDC060A936A3
CDC060A936A5
CDC060A936A6
CDC080A942A0
CDC080A942A1
CDC080A942A2
CDC080A942A3
CDC080A942A5
CDC080A942A6
CDC100A948A0
CDC100A948A1
CDC100A948A2
CDC100A948A3
CDC100A948A5
CDC100A948A6
CDC120A960A0
CDC120A960A1
CDC120A960A2
CDC120A960A3
CDC120A960A5
CDC120A960A6
CDX1B040A9241AA
CDX1B040A9241AC
FCAA060A30E0
FCAC100A50D1
FCAD120A50D1
FCAD120A50E0
FUAA040A20D1
FUAA060A30D1
FUAB080A30D1
FUAB080A30E0
FUAB100A40D1
FUAD120A50D0

Trane Furnace Model Numbers:

TDD040C924C3
TDD040R924C0
TDD060R936C3
TDD080R9V3C3
TDD100R960C3
TDD100R9V5C0
TDD120C960C4
TDD140R960C0
TDE120A960C0
TUD080R9V3H0

If your specific model number is not listed above, please contact our support team @ 214-734-5222 to verify fitment.
