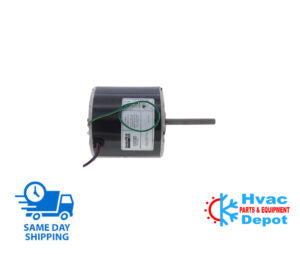

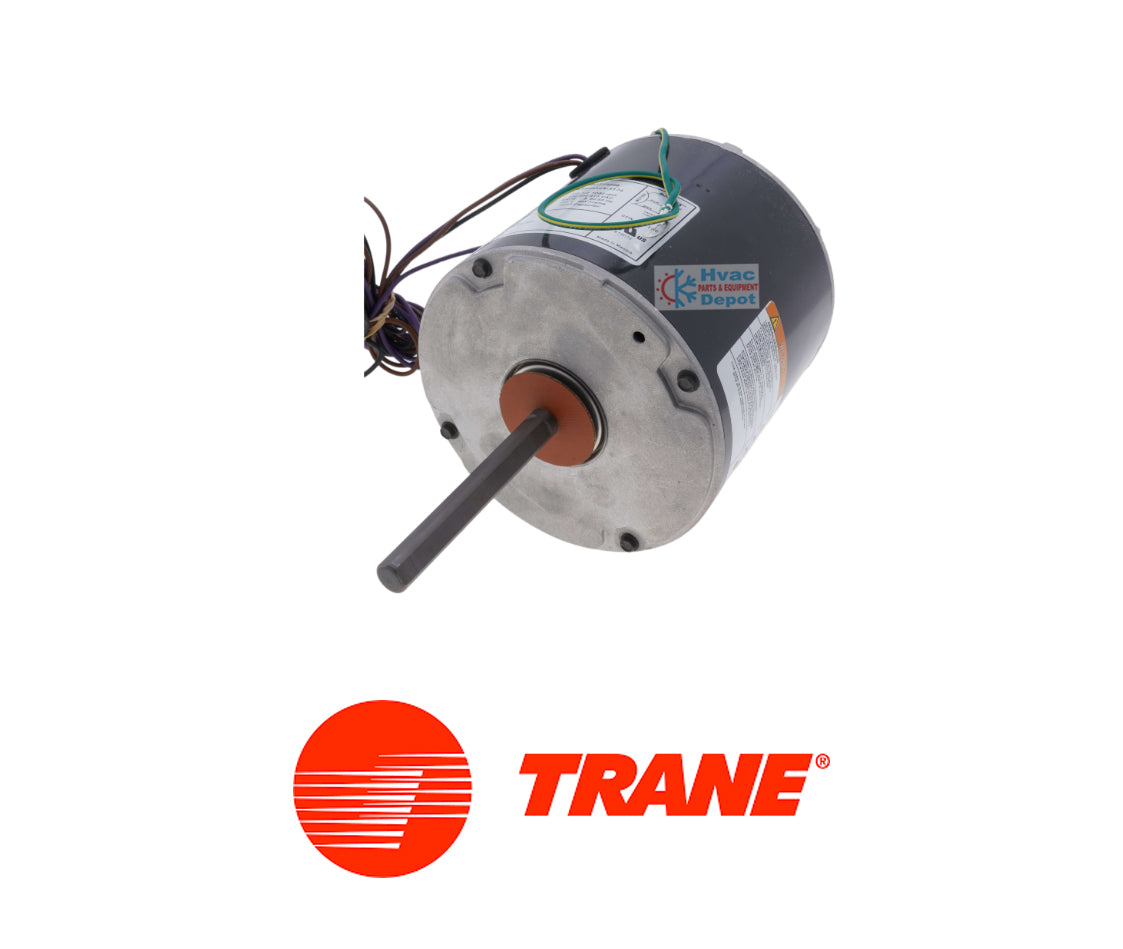

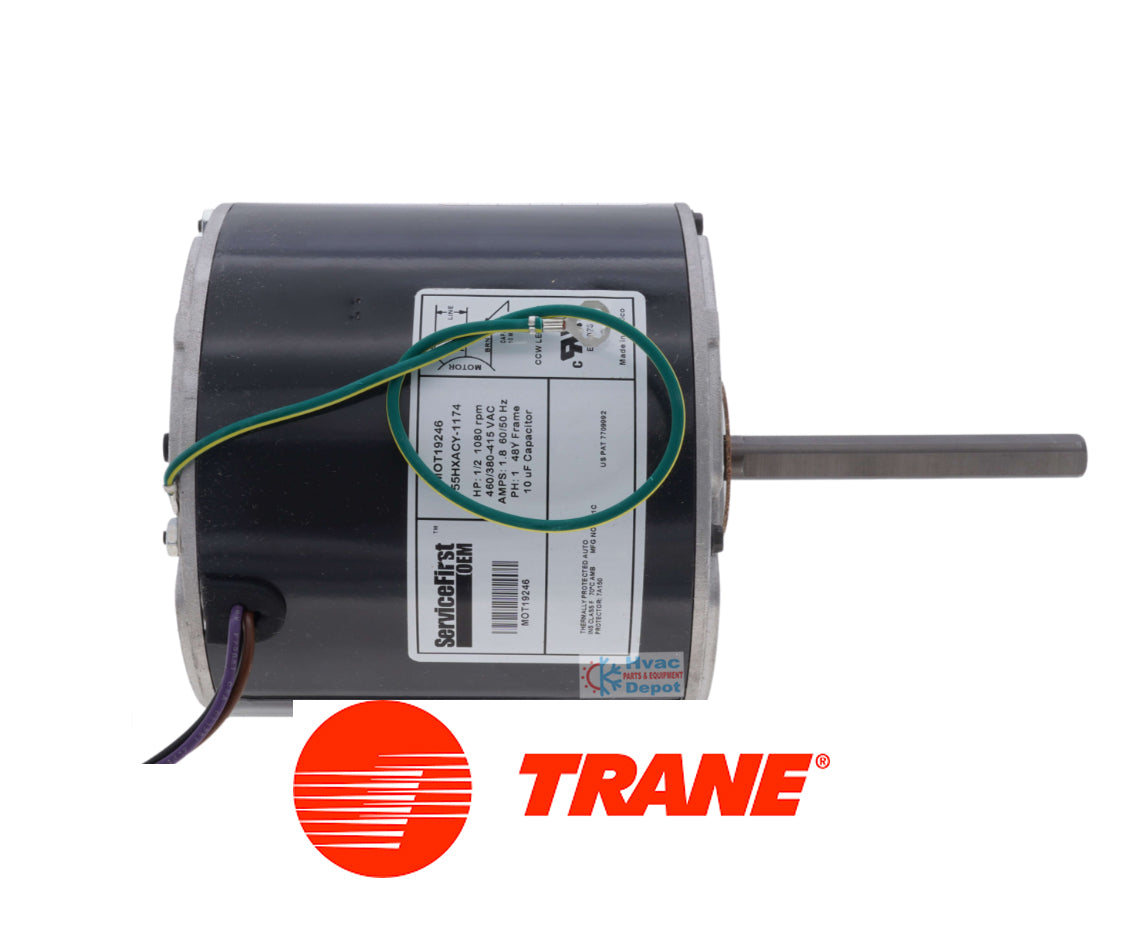

Trane MOT19246 Condenser Fan Motor | 1/2 HP 460/380-415V 1100 RPM

Trane MOT19246 Condenser Fan Motor | 1/2 HP 460/380-415V 1100 RPM

Regular price $925.38 USD
Regular price Sale price $925.38 USD
Sale Sold out
Shipping calculated at checkout.

Quick Feature Highlights

  • Direct OEM Performance: Guaranteed to replace Trane MOT18707 and MOT05419 without modification.

  • High-Voltage Reliability: Dual-frequency 50/60Hz support for universal commercial power grids.

  • Sealed TEAO Housing: Maximum protection for internal electronics in harsh rooftop environments.

  • Precision 1100 RPM: High-velocity rotation specifically calibrated for large commercial coils.

  • Ball Bearing Design: Engineered for 24/7 industrial duty cycles in both vertical and horizontal mounts.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Specification Detail

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/2 HP
  • Voltage: 460V / 380-415V
  • RPM: 1100 RPM (also rated 1140/1200 depending on load)
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Frame Size: 48 Frame
  • Shaft Dimensions: 0.5" Diameter x 4.25" Long
  • Frequency: 50/60 Hz
  • Capacitor Required: 10.0 MFD / 370V AC (Sold Separately)
  • Shipping Weight: 17.5 lbs

description

Trane MOT19246 Is A OEM Condenser Fan Motor 1/2 HP 460/380-415V 1100 RPM HIGH VOLTAGE


The Trane MOT19246 is a genuine OEM high-voltage PSC (Permanent Split Capacitor) condenser fan motor designed for high-tonnage Trane commercial condensing units and rooftop units. Operating at a precise 460/380-415V 1100 RPM, this 1/2 HP motor is engineered for efficient refrigerant heat dissipation in demanding commercial environments. As a factory-authorized replacement, it ensures factory-spec airflow and optimal thermal protection for the system's compressor.


Key Features

  • Commercial Multi-Voltage Support: Operates seamlessly on 460V (60Hz) and 380-415V (50Hz) industrial power supplies.
  • Genuine OEM Fit: A direct drop-in replacement that perfectly matches the original 48-frame mounting and electrical requirements.
  • Industrial-Grade Housing: Features a Totally Enclosed Air-Over (TEAO) enclosure to protect internal windings from industrial dust, dirt, and moisture.
  • Extended Service Life: Built with high-quality ball bearings and internal thermal overload protection to ensure safety during extreme summer operation.

Product Specification Detail

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/2 HP
  • Voltage: 460V / 380-415V
  • RPM: 1100 RPM (also rated 1140/1200 depending on load)
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Frame Size: 48 Frame
  • Shaft Dimensions: 0.5" Diameter x 4.25" Long
  • Frequency: 50/60 Hz
  • Capacitor Required: 10.0 MFD / 370V AC (Sold Separately)
  • Shipping Weight: 17.5 lbs


🛠️ HVAC Depot Pro Tip

The MOT19246 is a specialized high-voltage motor. Critical: Never install this 460V motor into a standard 208-230V residential system. Always replace your 10.0 MFD capacitor during installation; a weak capacitor is the most common cause of high-torque motor burnout in commercial RTUs.


Cross-Reference

  • Directly Replaces P/Ns:

    MOT18707, MOT05057, MOT05419, MOT03769, MOT04757
  • Drawing / X Numbers:

    X70371010010 (related series)
  • Legacy Equivalents:

      TRNMOT03775, TRNMOT03769


Model Compatibility

This motor is found in numerous Trane and American Standard high-tonnage commercial series. Use Ctrl+F to search:

  • 4A6C3048, 4A6C3060, 4A7C3048, 4A7C3060, 2TTA3060, 2TWA3060, 4TTB3048, 4TTB3060.
