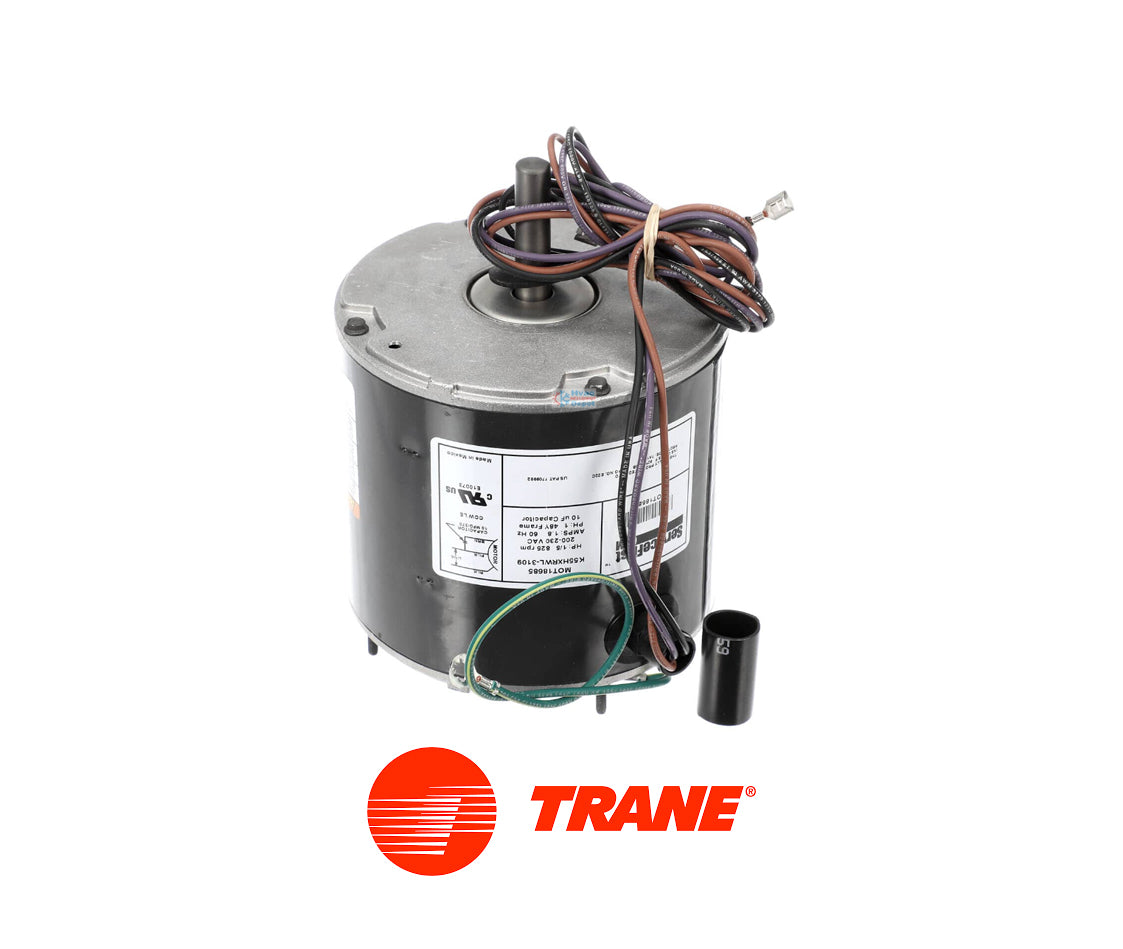

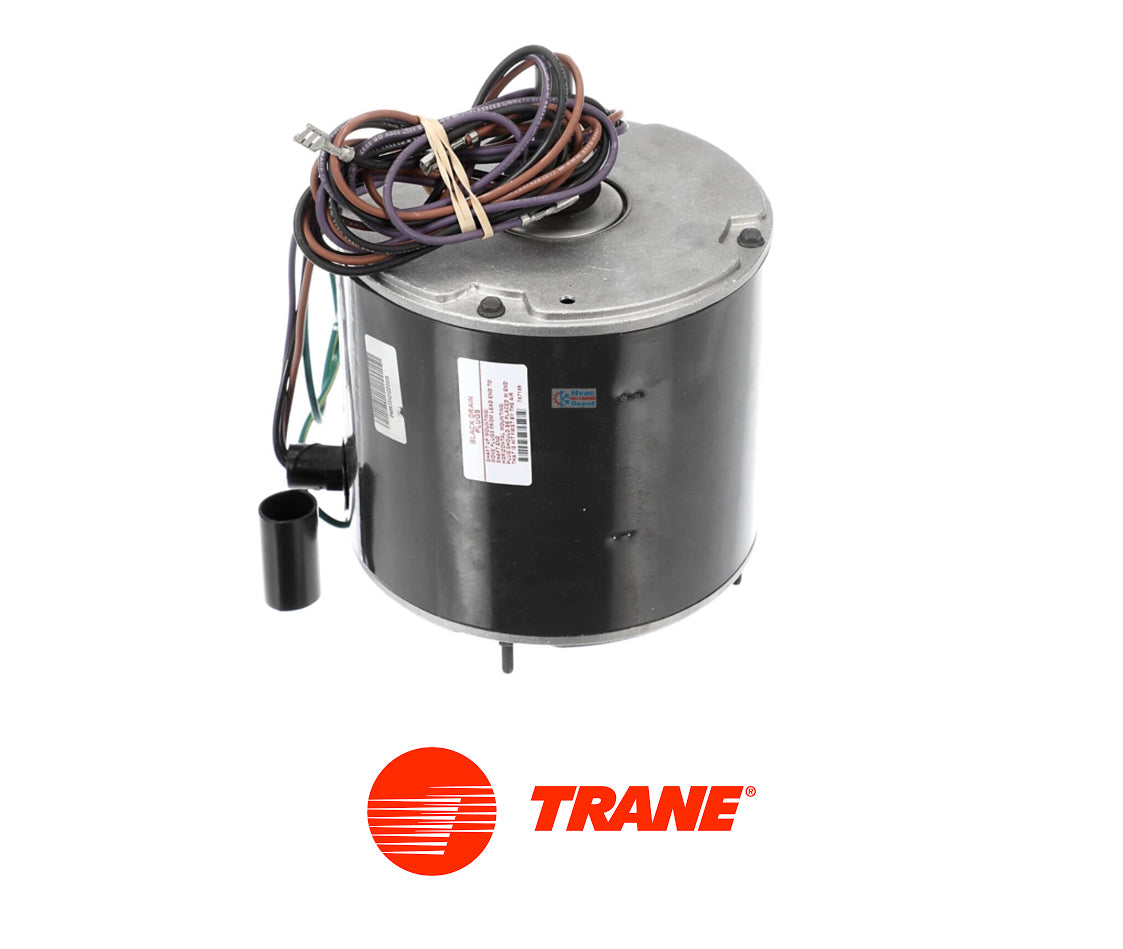

Trane MOT18685 Condenser Fan Motor | 1/5 HP 200-230V 850 RPM

Trane MOT18685 Condenser Fan Motor | 1/5 HP 200-230V 850 RPM

Regular price $442.67 USD
Regular price Sale price $442.67 USD
Sale Sold out
Shipping calculated at checkout.

Quick Feature Highlights

  • Direct OEM Replacement: Specifically designed to replace Trane MOT13693 and MOT17917 without electrical modification.

  • Precision 850 RPM: Slower fan speed optimized for specific Trane coils to minimize noise and maximize efficiency

  • Sealed for Longevity: TEAO enclosure keeps moisture and debris out of internal motor electronics.

  • Safety Integrated: Built-in thermal overload protection guards against motor burnout.

  • Standard 48Y Frame: Compatible with existing Trane stud-mount configurations for fast installation.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Specification Detail

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/5 HP
  • Voltage: 200–230 VAC
  • RPM: 850 RPM
  • Amperage (FLA): 1.8 Amps
  • Frame Size: 48Y NEMA Frame
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Bearing Type: Sleeve Bearing
  • Capacitor Required: 10.0 MFD / 370V AC (Sold Separately)



description

Trane MOT18685 Is A OEM Condenser Fan Motor That Is 1/5 HP 200-230V 850 RPM

The Trane MOT18685 is a genuine OEM PSC (Permanent Split Capacitor) replacement condenser fan motor designed for residential Trane outdoor air conditioning and heat pump systems. This 1/5 HP motor operates at a specialized 850 RPM (8-pole design), providing the high-torque airflow needed for heat dissipation while maintaining low noise levels. As a factory-authorized part, it ensures an exact physical fit and the correct electrical specifications required to maintain system efficiency and protect your compressor.

Key Features

  • Genuine OEM Fit: A direct replacement for factory-installed motors; matches the original 48Y frame mounting and wiring harness exactly.
  • Optimal Airflow: Calibrated 850 RPM speed ensures proper heat exchange for units requiring slower, more consistent fan rotation.
  • Weatherproof Construction: Totally Enclosed Air-Over (TEAO) design protects internal motor windings from rain, dust, and outdoor debris.
  • Reliable Operation: Built with durable sleeve bearings and integrated thermal protection for quiet, long-lasting performance.

Product Specification Detail

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/5 HP
  • Voltage: 200–230 VAC
  • RPM: 850 RPM
  • Amperage (FLA): 1.8 Amps
  • Frame Size: 48Y NEMA Frame
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Bearing Type: Sleeve Bearing
  • Capacitor Required: 10.0 MFD / 370V AC (Sold Separately)

🛠️ HVAC Depot Pro Tip

The MOT18685 requires a specific 10 MFD / 370V capacitor. Do not reuse the old capacitor or an incorrect MFD rating, as this is the primary cause of premature motor failure. The 850 RPM rating is critical for proper system function; do not substitute a 1075 RPM motor.

Cross-Reference

  • Directly Replaces P/Ns:

    MOT13693, MOT17917, MOT12400, MOT12111, MOT12750, MOT13314
  • Drawing / Production Numbers:

    X70370299010, D159177P01, D156744P01
  • Manufacturer Model Numbers:

    K55HXRWL-3109, K55HXJPM-9251

Model Compatibility

This motor is the primary replacement for various Trane XR13 and XB13 series outdoor units. Press Ctrl+F to search:

2A6B3036, 2A6B3042, 2A6H3036, 2A6H3042, 2A6M3036, 2A7A4042, 2A7A4048, 2A7A4060, 2A7A5048.
