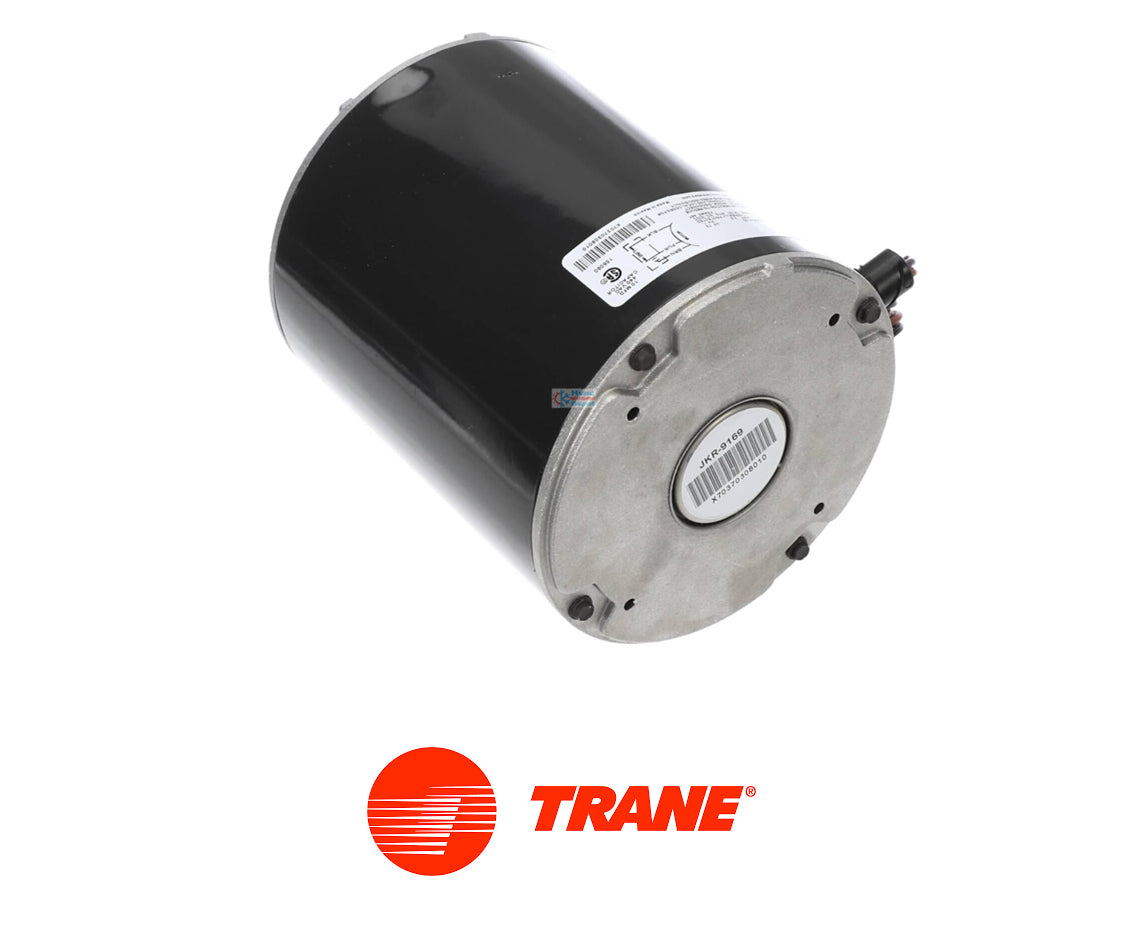

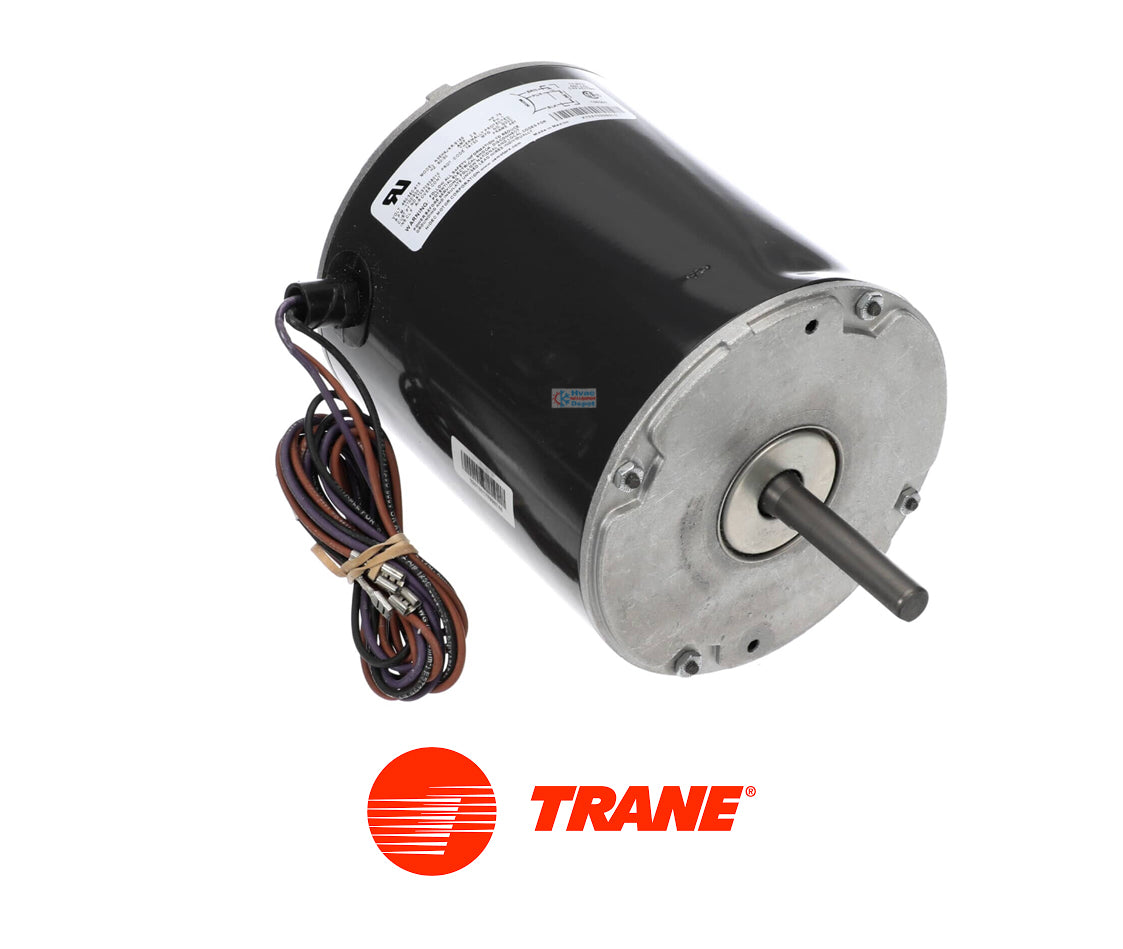

Trane MOT10512 Genuine OEM 3/4 HP Condenser Fan Motor 1100 RPM 460V
The Trane MOT10512 is a heavy-duty, industrial-grade condenser fan motor engineered to serve as the primary "heat exchanger driver" for high-capacity commercial outdoor units. This Genuine OEM Trane motor functions as the mechanical force behind the condenser fan blade, pulling massive volumes of ambient air through the coils to maintain safe refrigerant head pressures. Specifically designed for 460V three-phase and high-voltage single-phase commercial applications, it provides the precise torque and 1100 RPM speed required to support the "brain" of large-scale cooling systems. Built to withstand 50/60 Hz cycles, this motor ensures consistent thermal management for Trane and American Standard rooftop units (RTUs) and large commercial split systems.
Key Features:
• High-Voltage Airflow Management: Precision-calibrated 1100 RPM motor designed for 460V systems, ensuring the exact CFM delivery needed to prevent high-pressure lockouts during peak summer loads.
• Genuine OEM Commercial Fit: Engineered with a specialized 56-frame chassis and the exact lead length of part number MOT10512, allowing for a direct "drop-in" replacement without modifying the mounting bracket.
• Silent Cooling Technology: Features high-grade internal ball bearings and a balanced rotor to fix the "clunking" or "vibration" issues common in failing commercial-grade motors.
• TEAO Weather Protection: The Totally Enclosed Air Over (TEAO) housing protects internal windings from rain, dust, and debris, ensuring long-term electrical reliability in exposed rooftop environments.
• Dual Frequency Versatility: Rated for both 60Hz and 50Hz operation, making it a globally compatible solution for Trane’s high-voltage commercial equipment.
Product Details:
• Part Number: MOT10512 (Replaces MOT07944, MOT08573)
• Manufacturer: Trane / American Standard (Emerson/Nidec)
• Part Type: Condenser Fan Motor (TEAO)
• Voltage: 460/380-415V
• HP / RPM: 3/4 HP @ 1100 RPM
• Phase / Hertz: 1PH / 60-50 Hz
• Rotation: CCWLE (Counter-Clockwise Lead End)
• Bore / Shaft: 5/8" Diameter x 3.5" Length
• Shipping Weight: 24.2 lbs
🛠️ HVAC Depot Pro Tip: The "Shaft Down" Drain Rule
When installing the MOT10512 in a vertical "shaft-down" position (common in large RTUs), ensure the plastic drain plugs located on the bottom end-bell are removed. This allows internal condensation to escape the motor housing. Failing to pull these plugs in a high-moisture environment is the #1 cause of internal corrosion and premature winding failure in commercial fan motors.
Cross-Reference:
• OEM Numbers: MOT10512, MOT07944, MOT08573, MOT09252
• Manufacturer Model: K55HXKGF-9169, 5KCP39SGL674S
• Drawing Numbers: 18-BA25D1-15, D154484P01
Model Compatibility:
• Voyager RTU Series: TCH180, TCH210, TCH240, TCH300
• Precedent Series: TSC120, TSC150, YSC120, YSC150
• Commercial Split: TTA180, TTA240, TWA180, TWA240
• American Standard Commercial: AUC180, AUC240, ADX180, ADX240
