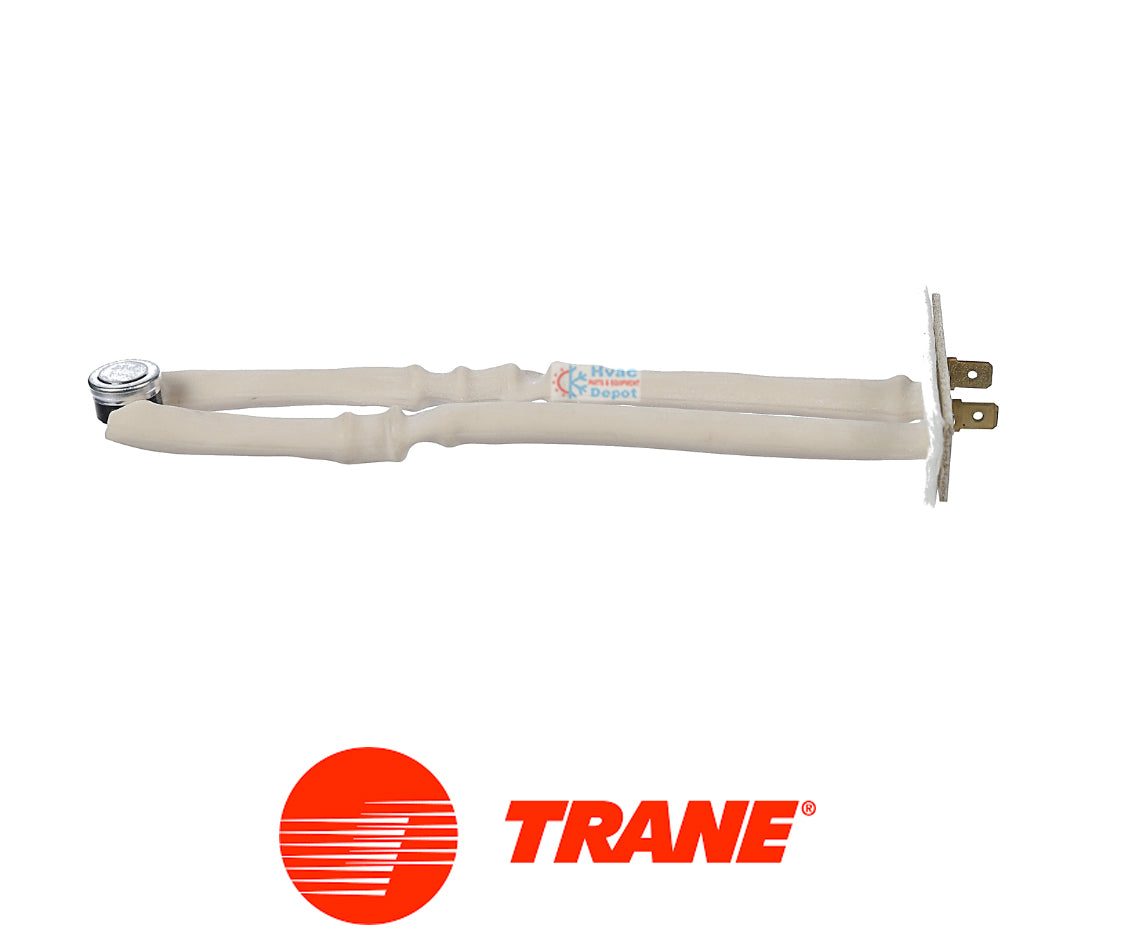

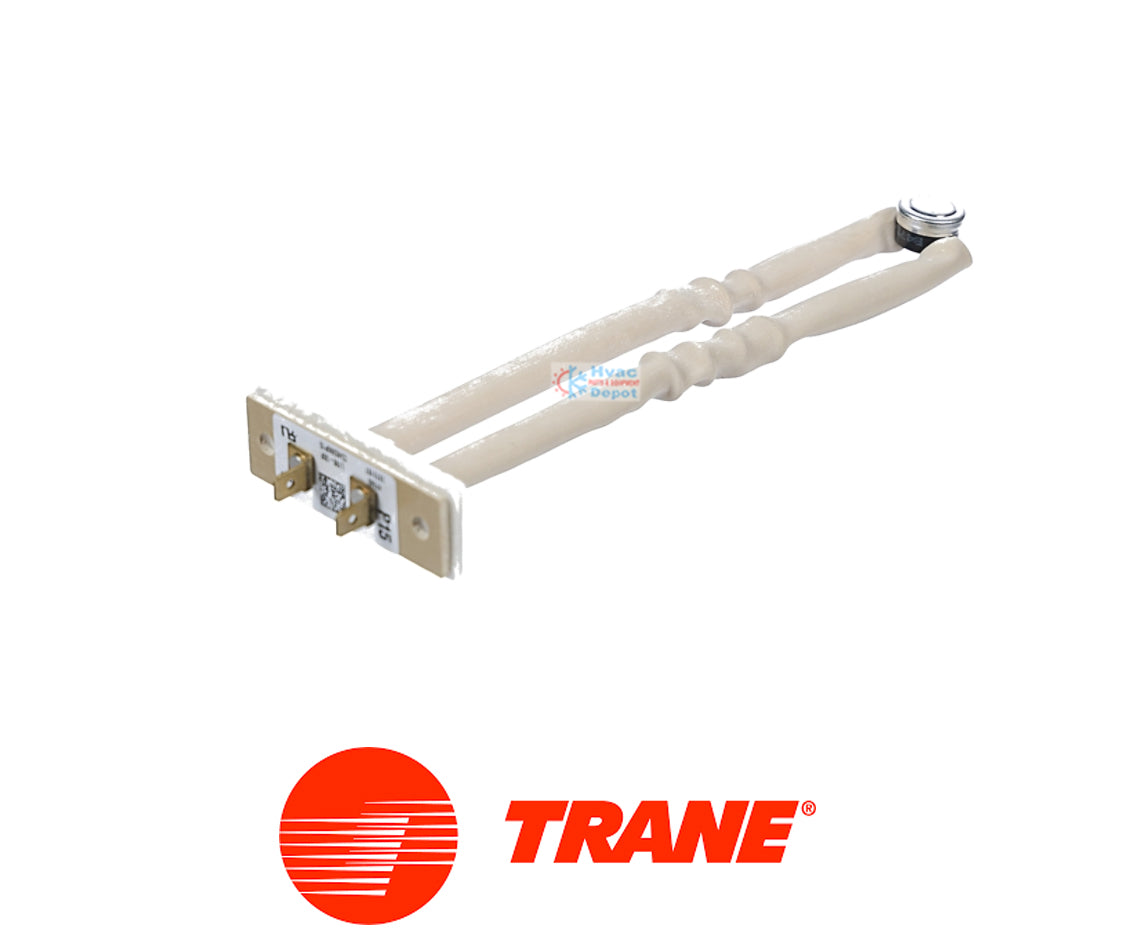

Trane Limit Switch SWT3031, OEM Replacement, Open-190F, Close-160F

Name: Trane Limit Switch SWT3031, OEM Replacement, Open-190F, Close-160F
Brand: Trane / American Standard
SKU: SWT03031
Price: 58.35 USD
Availability: InStock

Low stock: 5 left

$58.35 USD

Sale Sold out

Shipping calculated at checkout.

Why Choose the SWT03031?

Genuine Trane OEM Replacement
190°F Cut-Off / 160°F Reset
Critical Thermal Overload Protection
Quick-Connect Terminals for Easy Install
Replaces C340366P15 & L190-30F

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Brand: Trane/American Standard
Current Rating: 5.8 FLA, 34.8 LRA at 120V AC;
Voltage: 200 MA at 24V AC
Amps: Minimum 1.5 A at 24V AC Max
Number of Poles: 1
Shipping Weight: 1.0
Terminal Type: Quick Connect
Type: Thermal Limit Switch
Cut OFF: Opens at: 190 F
Cut IN: Closes at: 160 F

description

Trane SWT03031 High Limit Thermal Switch – Genuine OEM (190°F / 160°F)

The Trane SWT03031 is a critical thermal safety limit switch designed for Trane and American Standard HVAC systems. Its primary job is to protect your home and equipment by monitoring the furnace temperature. If the system reaches a dangerous 190°F, the switch automatically "opens" to shut off the burners. Once the system cools to a safe 160°F, the switch "closes," allowing the furnace to reset and resume operation.

As a genuine OEM part, the SWT03031 ensures your furnace maintains its factory safety ratings and operates exactly as engineered.

Key Features & Benefits

Thermal Protection: Acts as a fail-safe to prevent heat exchanger damage and fire hazards by stopping the system during an overheat event.
Automatic Reset: Self-resetting design (160°F Close) means no manual intervention is required once the system cools.
Genuine OEM Quality: Replaces common manufacturer numbers like C340366P15 and L190-30F with factory-level precision.
Universal Quick-Connect: Features standard terminal types for a fast, secure DIY or professional installation.

Product Specifications

Brand: Trane / American Standard
Part Number: SWT03031 (SWT3031)
Cut OFF (Opens): 190°F
Cut IN (Closes): 160°F
Electrical Rating: 5.8 FLA / 34.8 LRA @ 120V AC
Low Voltage Rating: 200 MA @ 24V AC (1.5A Max)
Number of Poles: 1 (Single Pole)
Shipping Weight: 1.5 lbs
Terminal Type: Quick Connect
Type: Thermal Limit Switch

🛠️ HVAC DEPOT Pro Tip: Is Your Limit Switch "Tripping"?

If your furnace is short-cycling (turning off before reaching the thermostat setting), your SWT03031 is likely doing its job. Before replacing it, check your air filter. 90% of limit switch "trips" are caused by restricted airflow from a dirty filter or blocked vents. If the filter is clean and the furnace still shuts down, the switch may be "weak" or failed and requires immediate replacement.

Cross-Reference & Part Numbers

This limit switch is a direct replacement for the following P/N, Drawing Numbers, and X Numbers:

C340366P15
X13540827150
389696
L190-30F (Commonly found on the side of the original part)

Extensive Model Compatibility List

Note: This is a partial list. Use 'CTRL+F' to find your specific model below.

The SWT03031 is commonly found in the following American Standard and Trane furnace model numbers:

American Standard Models:

ADC1B080A9421AC, ADC1B080A9421AD, ADC1B080A9421AE, ADC1B080A9421AF, ADC1B080A9421AG
ADX080R942W7, ADX1B080A9421AC, ADX1B080A9421AD, ADX1B080A9H31BB
ADX2B080A9422AA, ADX2B080A9422AB

Trane Models:

CDX1B080A9421AC
TDC1B080A9421AC, TDC1B080A9421AD, TDC1B080A9421AE, TDC1B080A9421AF, TDC1B080A9421AG
TDX080R942W7, TDX1B080A9421AC, TDX1B080A9421AD, TDX1B080A9H31BB
TDX2B080A9422AA, TDX2B080A9422AB

SWT03031 is often found in the following furnace model numbers:

American Standard furnace model numbers:

ADC1B080A9421AC
ADC1B080A9421AD
ADC1B080A9421AE
ADC1B080A9421AF
ADC1B080A9421AG
ADX080R942W7
ADX1B080A9421AC
ADX1B080A9421AD
ADX1B080A9H31BB
ADX2B080A9422AA
ADX2B080A9422AB

Trane Furnace model numbers:

CDX1B080A9421AC
TDC1B080A9421AC
TDC1B080A9421AD
TDC1B080A9421AE
TDC1B080A9421AF
TDC1B080A9421AG
TDX080R942W7
TDX1B080A9421AC
TDX1B080A9421AD
TDX1B080A9H31BB
TDX2B080A9422AA
TDX2B080A9422AB
