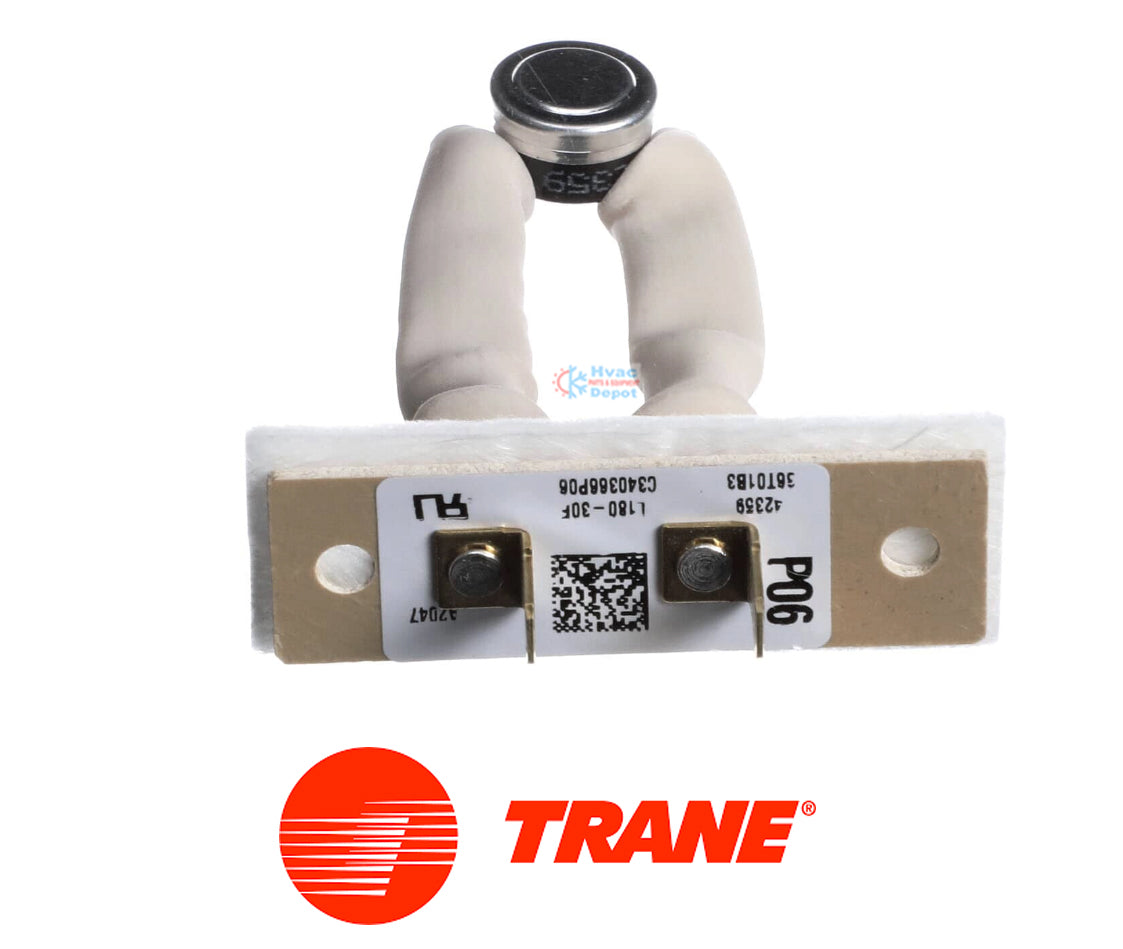

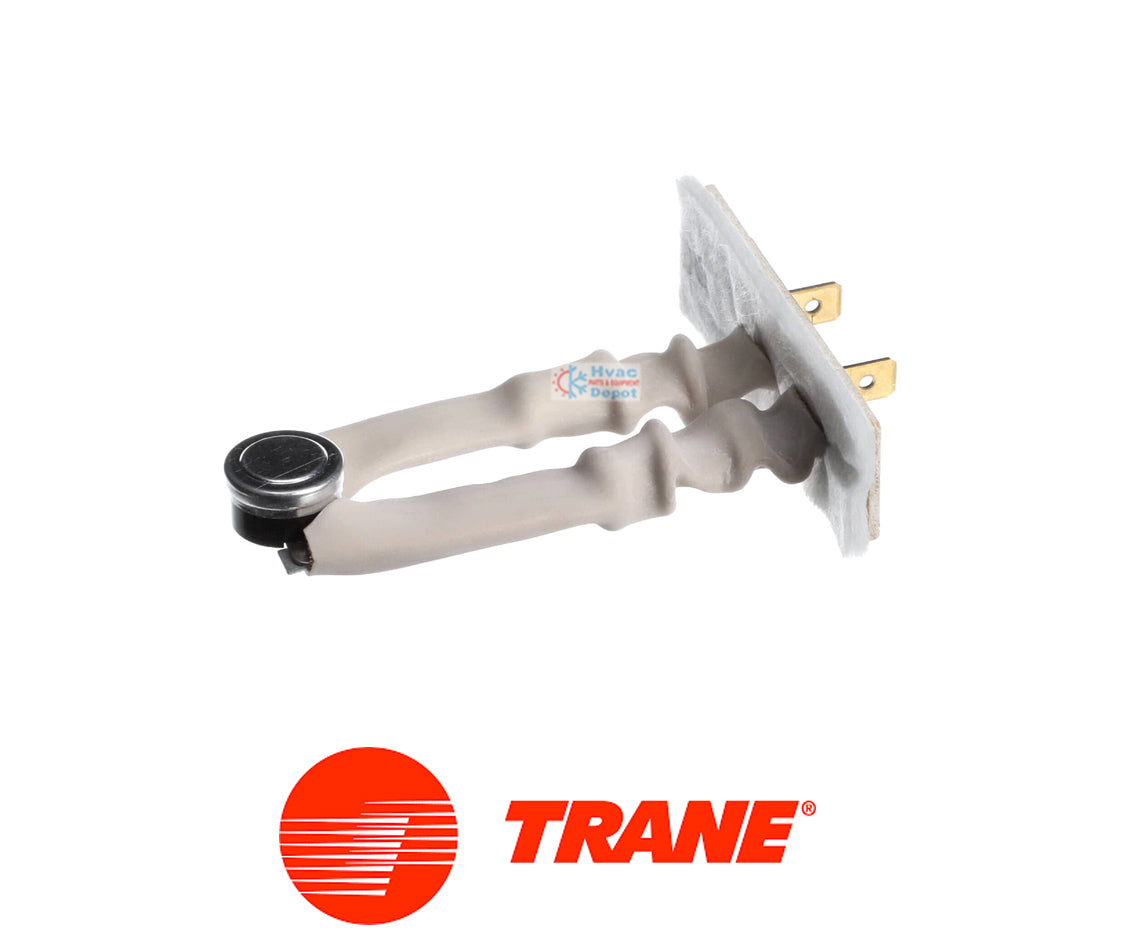

Trane Limit Switch SWT01635, OEM Replacement, Open-180F, Close-150F

Name: Trane Limit Switch SWT01635, OEM Replacement, Open-180F, Close-150F
Brand: Trane / American Standard
SKU: SWT01635
Price: 17.45 USD
Availability: InStock

Low stock: 5 left

$17.45 USD

Sale Sold out

Shipping calculated at checkout.

Quick Feature Highlights

Genuine OEM Replacement for Trane & American Standard.
180°F High-Limit trip point for critical safety.
3-Inch Probe for deep-reach thermal sensing.
Automatic Reset at 150°F for system recovery.
Replaces old part numbers C340366P06 and SWT1257

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details & Specification

Brand: Trane / American Standard
Part Number: SWT01635
Insert Length: 3.0 Inches
Electrical: 24V / 120V (5.8 FLA @ 120V)
Product: Thermal limit switch / Thermostat assembly
Current Rating: 5.8 FLA, 34.8 LRA at 120V AC
Number of Poles: 1
Shipping Weight: 1.5 LB
Terminal Type: Quick Connect
Terminal Type: Thermal Limit Switch
Cut Out Temp: Open Temperature: 180F
Cut In Temp: Close Temperature: 150F

description

Trane / American Standard SWT01635 Genuine OEM Furnace Limit Switch (180°F / 3" Insert)

The Trane / American Standard SWT01635 is a high-limit safety device engineered for specific gas furnace configurations. As a Genuine OEM component, it serves as the primary "watchdog" for your heat exchanger's temperature. If the internal plenum temperature reaches the critical threshold of 180°F, the switch breaks the electrical circuit to the gas valve, instantly halting combustion to prevent catastrophic heat exchanger failure or fire hazards. Its 3-inch probe is designed to penetrate deeper into the airflow to provide a more accurate reading in high-capacity furnaces.

Key Features

High-Limit Thermal Protection: Specifically calibrated to "Open" at 180°F, providing a higher safety ceiling for specific high-efficiency or large-BTU furnace models.
Automatic Reset Logic: The switch is designed to "Close" and restore system operation once the temperature drops to 150°F, allowing for a 30°F cooling differential.
Extended 3" Probe Depth: Features a 3-inch insert length (Standard L180-30), ensuring the sensor is positioned correctly within the heat exchanger's discharge air stream.
System Integrity: Being a Genuine OEM part, it maintains the UL/CSA safety ratings of your original equipment, which can be voided by using generic "will-fit" alternatives.

Product Details & Specification

Brand: Trane / American Standard
Part Number: SWT01635
Insert Length: 3.0 Inches
Electrical: 24V / 120V (5.8 FLA @ 120V)
Product: Thermal limit switch / Thermostat assembly
Current Rating: 5.8 FLA, 34.8 LRA at 120V AC
Number of Poles: 1
Shipping Weight: 1.5 LB
Terminal Type: Quick Connect
Terminal Type: Thermal Limit Switch
Cut Out Temp: Open Temperature: 180F
Cut In Temp: Close Temperature: 150F

🛠️ HVAC Depot Pro Tip

A limit switch that trips at 180°F often indicates a significant airflow blockage or an oversized furnace for the ductwork. Before replacing SWT01635, verify that all supply registers are open and that the secondary heat exchanger (if applicable) is not plugged with debris. If the switch continues to trip after replacement, use a dual-port manometer to check your Total External Static Pressure to ensure your blower can move enough air to keep the heat exchanger cool.

Cross-Reference

Supersedes / Legacy / Drawing Numbers:
SWT1635 (Current shorthand)
L180-30F (Thermal Spec)
C340366P06 (Original Drawing #)
C340056P01
SWT01257 / SWT1257

Model Compatibility

SWT01635 is a direct replacement in the following Trane and American Standard model numbers:

Trane Models:

TDC (TDC120C960B4, TDC1B080A9421AD)
TDD (Standard 80% and 90%+ models)
TUC (TUC080C942B3, TUC100C948B6)
TUD (TUD100, TUD120 series)
TUH (TUH1D100A9601CB, TUH2C100A9V4VBA)

American Standard Models:

ADC (ADC120C960B4, ADC080C942B8)
ADD (Legacy 80% Upflow/Downflow)
AUC (AUC120C960B4, AUC080C942B7)
AUD (AUD100, AUD120 series)
AUH (AUH2B060A9V3VAA, AUH2C100A9V4VAB)
