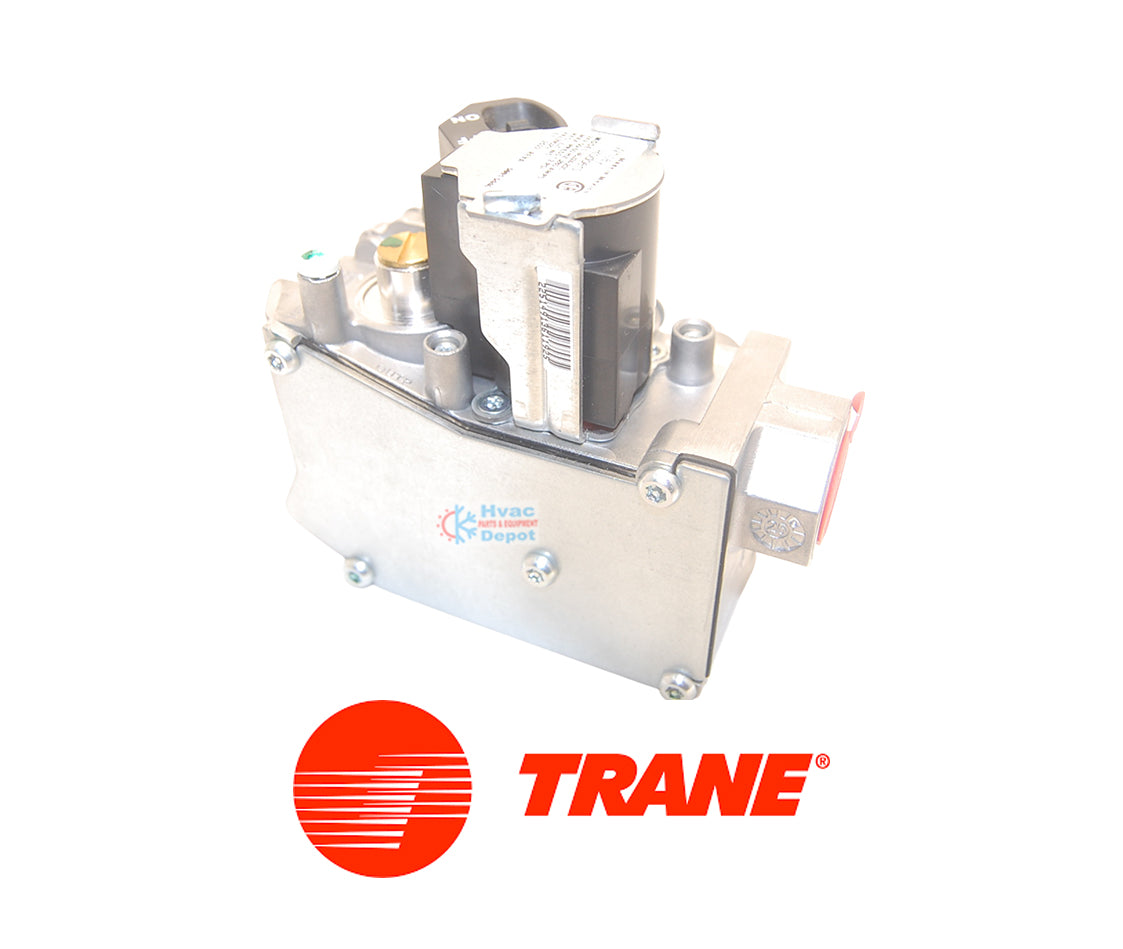

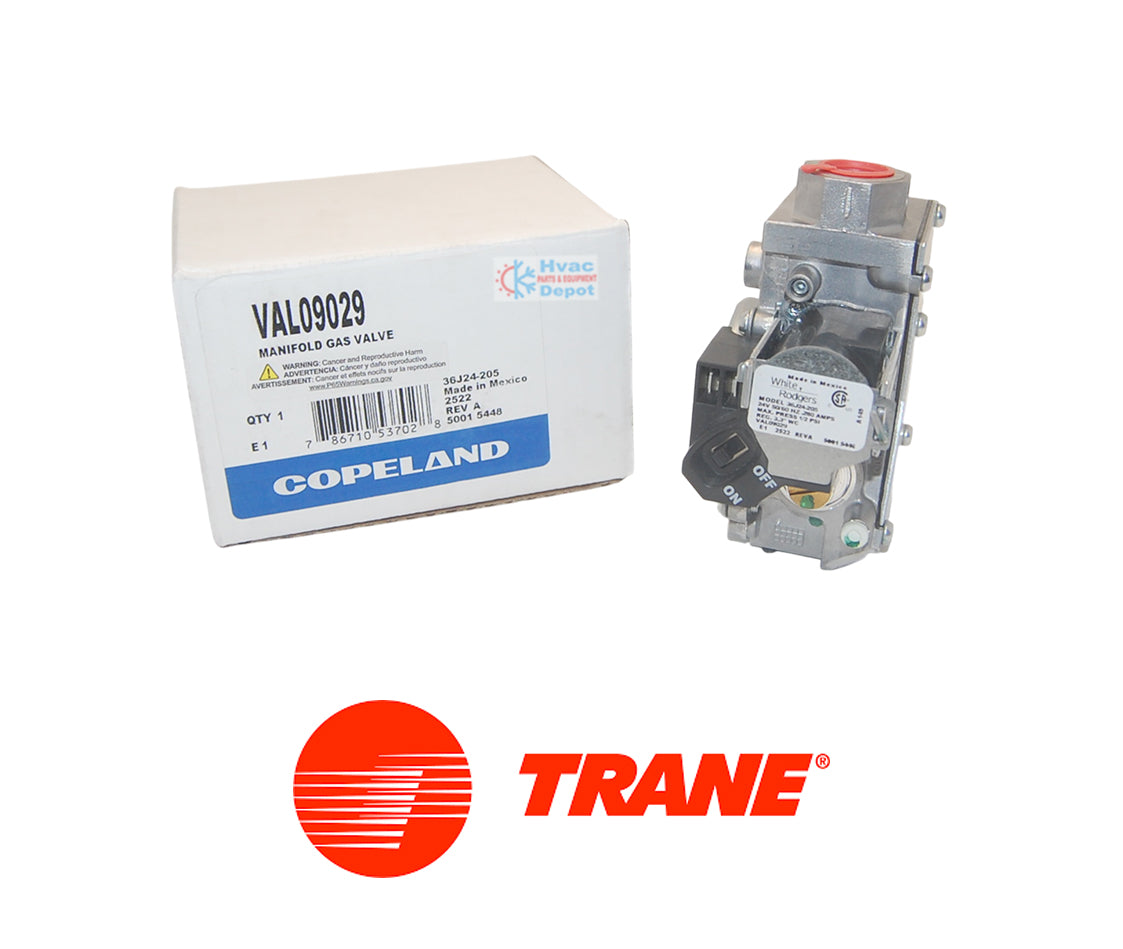

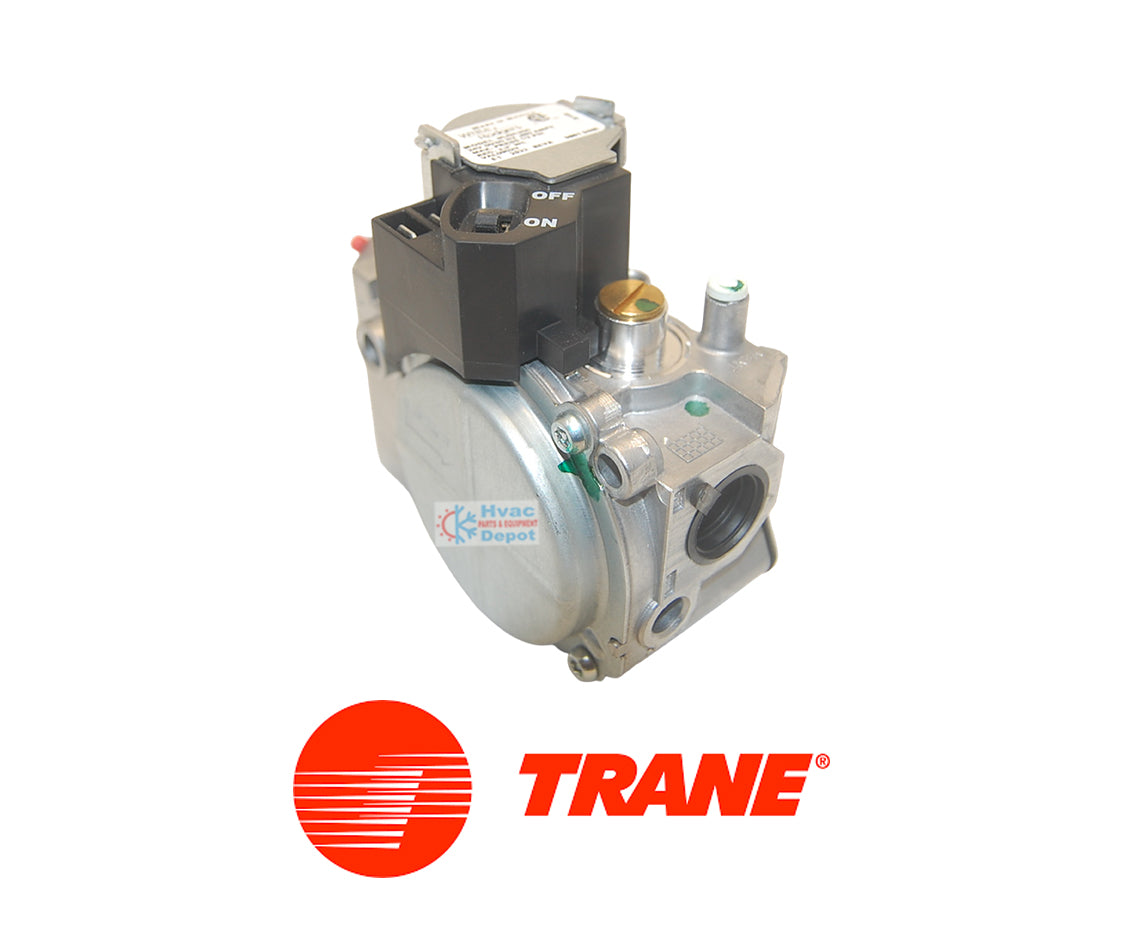

Trane VAL09029 Gas Valve Assembly | 1-Stage, Natural Gas, 24V, 1/2" NPT, Fast Opening

Trane VAL09029 Gas Valve Assembly | 1-Stage, Natural Gas, 24V, 1/2" NPT, Fast Opening

Low stock: 2 left

Regular price $110.90 USD
Regular price Sale price $110.90 USD
Sale Sold out
Shipping calculated at checkout.

Quick Feature Highlights

  • Genuine Trane / American Standard OEM

  • Single-Stage (On/Off) Operation

  • Fast-Opening for Immediate Ignition

  • Standard 1/2" NPT Inlet and Outlet

  • Factory-Set 3.5" WC Regulator

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details Specification

  • Part Type: Gas Valve Assembly
  • Brand: Trane (White-Rodgers 36G22-202)
  • Number of Stages: 1-Stage (Single Stage)
  • Opening Type: Fast Opening
  • Fuel Type: Natural Gas (Propane/LP requires conversion kit)
  • Voltage: 24 V AC (50/60 Hz)
  • Inlet/Outlet Size: 1/2" NPT x 1/2" NPT
  • Pressure Setting: 3.5" WC (Outlet/Manifold)
  • Max Inlet Pressure: 14" WC (1/2 PSI)
  • Temperature Range: -40°F to 175°F

description

Trane VAL09029 Gas Valve Assembly - 1-Stage, Natural Gas, 24V, 1/2" NPT (Fast Opening)


The Trane VAL09029 is a genuine OEM single-stage combination gas valve (White-Rodgers 36G22 series) engineered for reliable fuel regulation in Trane residential gas furnaces. Unlike multi-stage valves, the VAL09029 operates with a simplified "on/off" logic, providing a consistent manifold pressure to the burner assembly. This valve incorporates a high-capacity pressure regulator and a redundant solenoid safety shutoff in a compact, die-cast aluminum body, ensuring your heating system meets factory safety and efficiency standards.


Key Features

  • Single-Stage Performance: Designed for standard-efficiency furnaces requiring a single, consistent heat output.
  • Fast-Opening Design: Features a "Fast Open" characteristic, providing immediate gas flow to the burners for rapid ignition and heat delivery.
  • Integrated Pressure Regulator: Factory-calibrated for Natural Gas at 3.5" WC (Water Column) to ensure optimal combustion and prevent over-firing.
  • Redundant Safety Solenoids: Equipped with two internal valves that work in series; if one fails to close, the second provides a fail-safe shutoff.
  • Compact 36G Chassis: The 36G series footprint allows for an exact fit in tight furnace vestibules without manifold modification.


Product Details Specification

  • Part Type: Gas Valve Assembly
  • Brand: Trane (White-Rodgers 36G22-202)
  • Number of Stages: 1-Stage (Single Stage)
  • Opening Type: Fast Opening
  • Fuel Type: Natural Gas (Propane/LP requires conversion kit)
  • Voltage: 24 V AC (50/60 Hz)
  • Inlet/Outlet Size: 1/2" NPT x 1/2" NPT
  • Pressure Setting: 3.5" WC (Outlet/Manifold)
  • Max Inlet Pressure: 14" WC (1/2 PSI)
  • Temperature Range: -40°F to 175°F


🛠️ HVAC Depot Pro Tip

The VAL09029 is a Fast-Opening valve. If you are replacing a "Slow-Opening" valve with this model, you may notice a slightly louder ignition sound. Always use a calibrated manometer to verify the 3.5" WC manifold pressure after installation. Over-pressurization can lead to cracked heat exchangers, while under-pressurization causes "sooting" and inefficient heating.


Cross-Reference

  • Manufacturer Part:

    VAL09029, VAL9029, VAL07732, VAL06968, VAL04854, VAL04335
  • White-Rodgers Model:

    36G22-202, 36G22 Type 202
  • Legacy Numbers:

    VAL9029, 50PN66, X13120668010, X13120654010
  • Service First No: VAL09029


Model Compatibility

Trane & Service First Model Compatibility

This valve is compatible with various Trane high-efficiency furnaces. Below are some common compatible model prefixes; always verify the exact fit with your unit's data plate.

  • TDC Models: TDC040C924BA, TDC060C936BA, TDC080C942BA, TDC100C948BA, TDC120C960BA
  • TDD Models: TDD060C924F3, TDD080C936F3, TDD100C945F3, TDD120C954F3, TDD140C960F3
  • TUC Models: TUC040C924BA, TUC060C936BA, TUC080C942BA, TUC100C948BA, TUC120C960BA
  • TUD Models: TUD1A040A9241AA, TUD1B060A9361AA, TUD1C080A9601AA, TUD1D120A9601AA
  • TUE Models: TUE1A060A9361AA, TUE1B080A9481AA, TUE1C100A9601AA, TUE1D140A9601AB


American Standard Models:

  • ADC Models: ADC040C924BA, ADC060C936BA, ADC080C942BA, ADC100C948BA, ADC120C960BA
  • ADD Models: ADD040C924F3, ADD060C936F3, ADD080C945F3, ADD100C945F3, ADD140C960F3
  • AUC Models: AUC040C924BA, AUC060C936BA, AUC080C942BA, AUC100C948BA, AUC120C960BA
  • AUD Models: AUD1A040A9241AA, AUD1B060A9361AA, AUD1C080A9601AA, AUD1D120A9601AA
  • AUE Models: AUE1A060A9361AA, AUE1B080A9481AA, AUE1C100A9601AA, AUE1D140A9601AA
