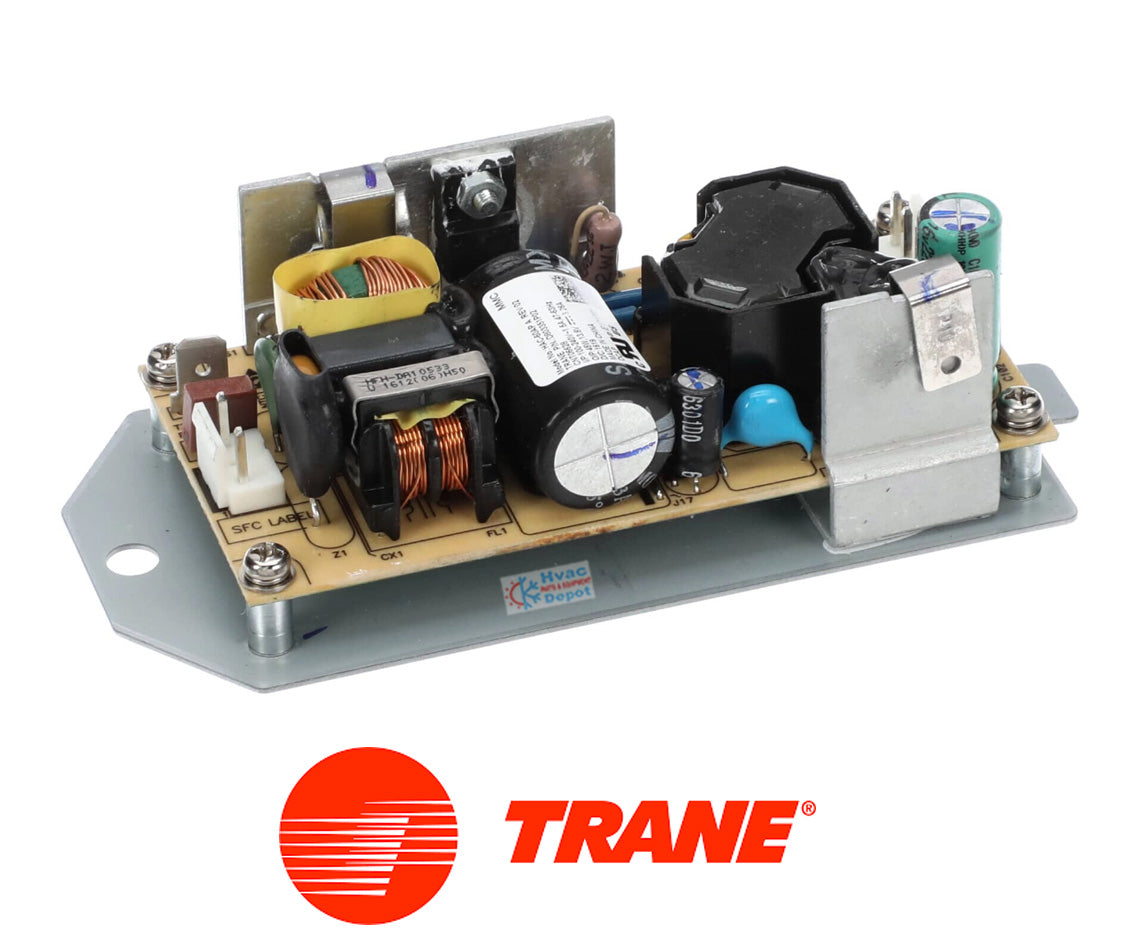

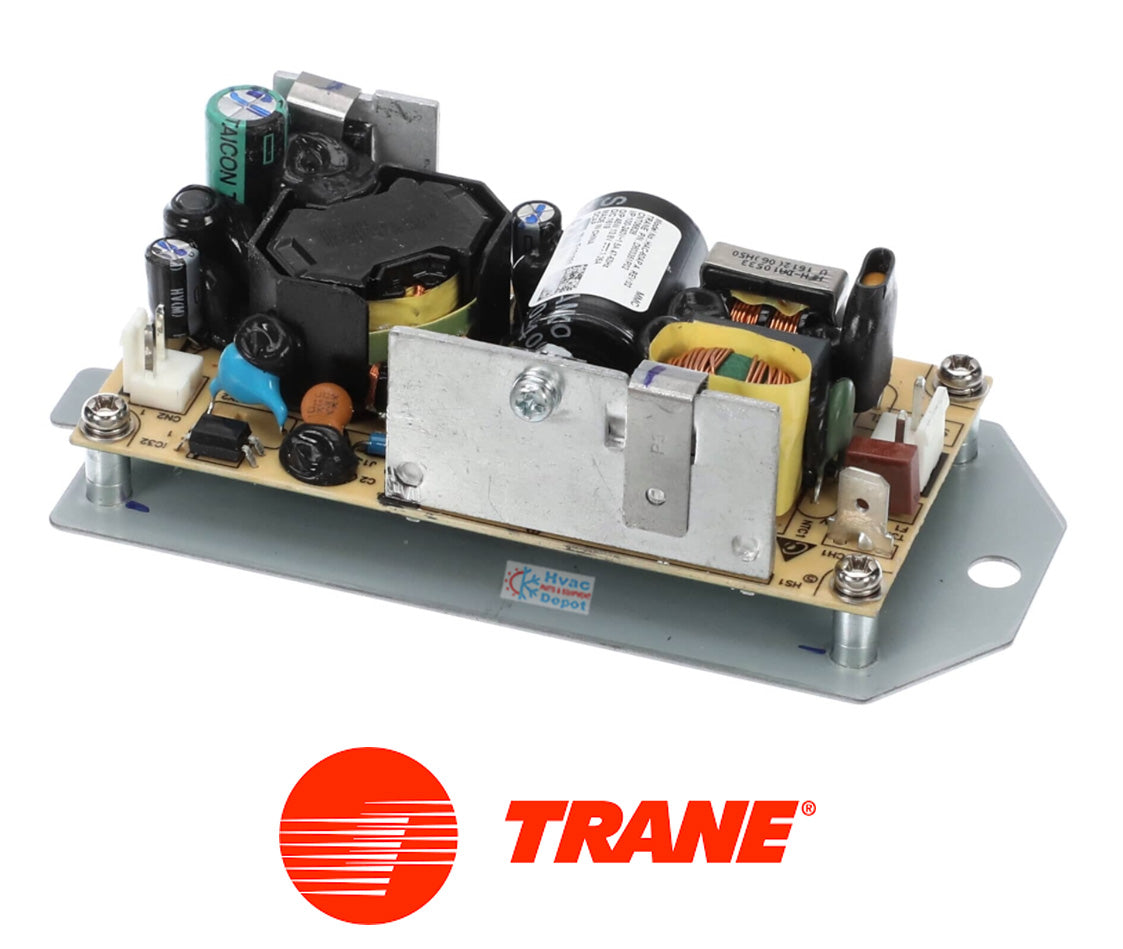

Trane CNT6103 Control Board - Outdoor Unit Control Assembly, 24V

Trane CNT6103 Control Board - Outdoor Unit Control Assembly, 24V

Low stock: 2 left

Regular price $642.00 USD
Regular price Sale price $642.00 USD
Sale Sold out
Shipping calculated at checkout.

Quick Feature Highlights

  • Genuine Trane OEM Replacement

  • Manages Compressor & Fan Cycling

  • Advanced Microprocessor Technology

  • Integrated Diagnostic Features

  • Designed for Outdoor Units

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Detail & Specification

  • Part Type: Outdoor Control Board Assembly
  • Brand: Trane / American Standard
  • Voltage: Rating 24 V
  • Power Phase: Single Phase
  • Shipping Weight: 3.5 lbs (276.69 g)
  • Dimensions: 10.9 in L x 6.95 in W x 2.3 in H
  • Drawing Number: D154153G03
  • Part Number: CNT06103

description

Trane CNT6103 Control Board - Outdoor Unit Control Assembly, 24V


The Trane CNT6103 is a genuine OEM outdoor control board assembly designed to function as the "brain" of your external HVAC unit. This advanced control board coordinates and executes the operation of various components, including the fan and compressor cycling, by sending the necessary voltage to ensure optimal system performance. Using this real OEM replacement guarantees seamless operation, enhanced energy efficiency, and precise control tailored to your specific Trane system.


Key Features

  • Precise System Management: Utilizes advanced microprocessor technology to manage critical outdoor unit functions like compressor and fan motor control.
  • Integrated Diagnostics: Includes diagnostic features to help technicians quickly identify and troubleshoot system issues.
  • Energy Optimization: New circuit designs help manage temperature and cycles efficiently, improving system reliability and energy savings.
  • Weather-Resistant Design: Designed specifically for outdoor units and built to withstand various weather conditions.


Product Detail & Specification

  • Part Type: Outdoor Control Board Assembly
  • Brand: Trane / American Standard
  • Voltage: Rating 24 V
  • Power Phase: Single Phase
  • Shipping Weight: 3.5 lbs (276.69 g)
  • Dimensions: 10.9 in L x 6.95 in W x 2.3 in H
  • Drawing Number: D154153G03
  • Part Number: CNT06103


🛠️ HVAC Depot Pro Tip

This control board is essential for units in the Trane XL condenser line. A common issue signaling a fault with the CNT6103 is erratic compressor or fan cycling. Always check all safety switches and sensors before condemning the board itself, ensuring power is completely disconnected during installation.



Cross-Reference

  • Superseded Part:

    The MFR changed the part number, but the product is identical.
  • Direct Replacement Part Number:

    CNT06103
  • Legacy Numbers:

    CNT6103, CNT5127
  • Drawing Numbers:

    D154153G03


Model Compatibility

  • 4TTZ0024A1000CA
  • 4TTZ0036A1000CA
  • 4TTZ0036B1000AA
  • 4TTZ0048A1000CA
  • 4TTZ0048B1000AA
  • 4TTZ0060A1000CA
  • 4TWZ0024A1000CA
  • 4TWZ0036A1000CA
  • 4TWZ0036B1000AA
  • 4TWZ0048A1000CA
  • 4TWZ0048B1000AA
  • 4TWZ0060A1000CA

Note: Compatible with various Trane air conditioning and heat pump outdoor units
