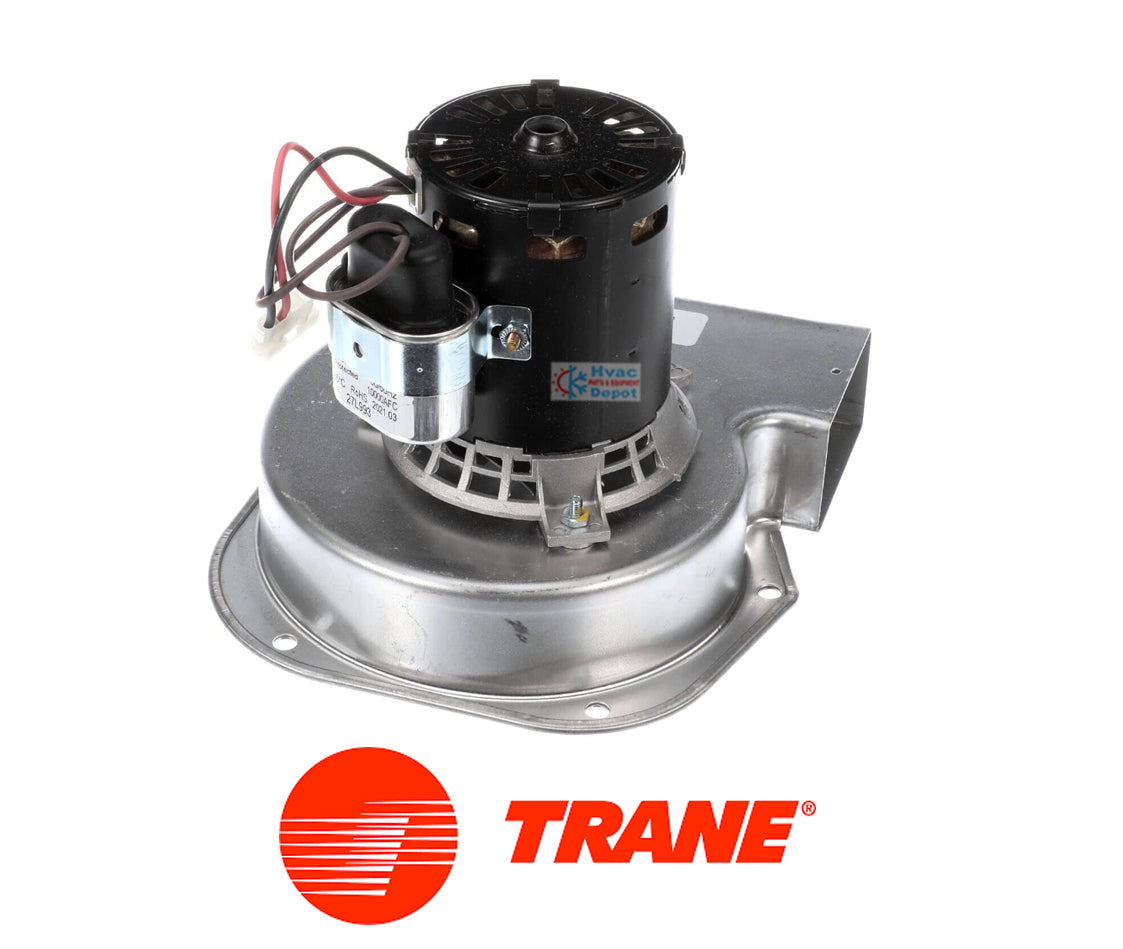

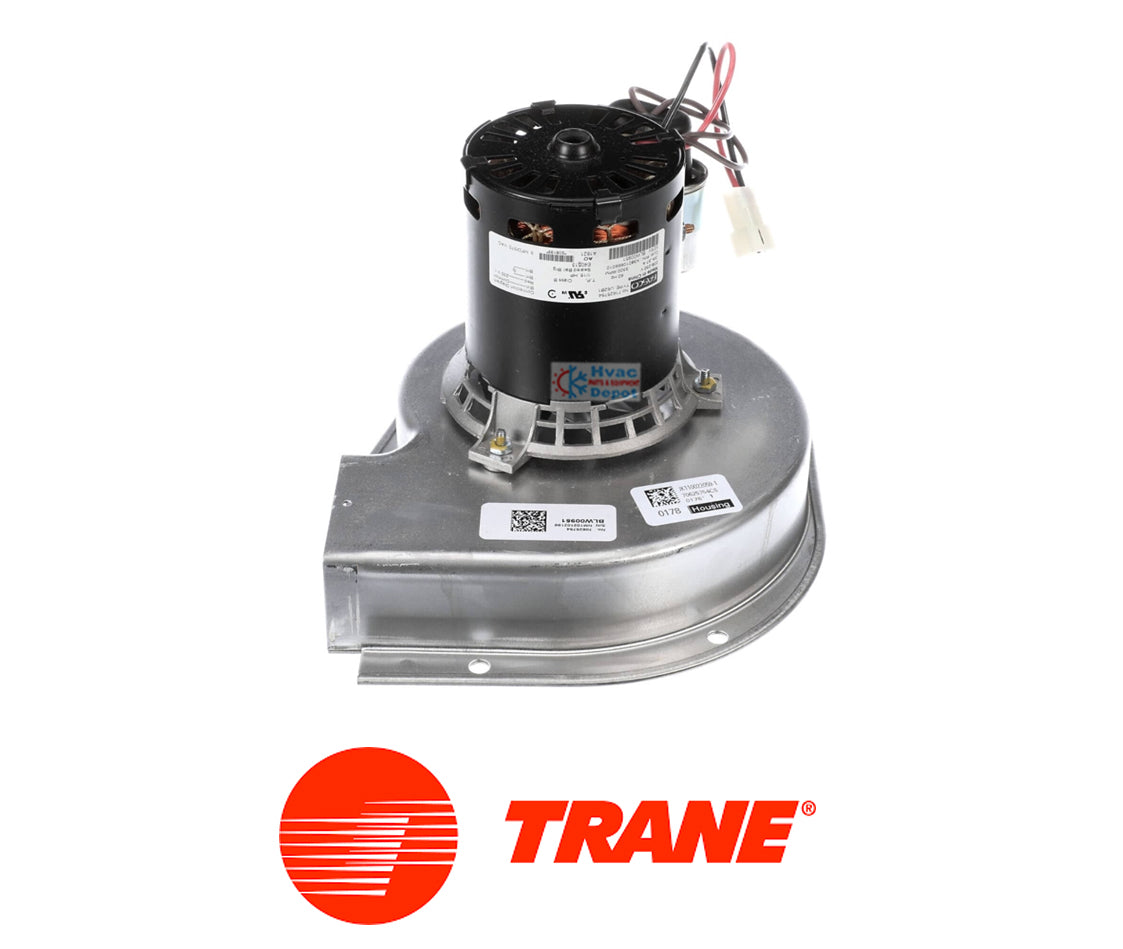

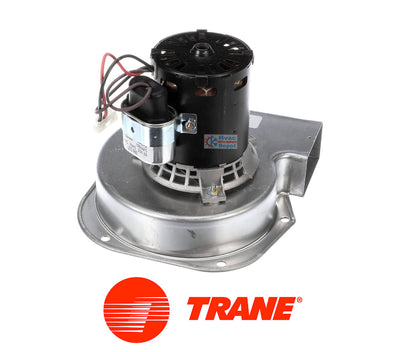

Trane BLW00951 Commercial Draft Inducer Motor – Genuine OEM (208-230V, 3300 RPM)

The Trane BLW00951 is a high-performance, genuine OEM draft inducer motor assembly engineered for Trane and American Standard commercial packaged units. This combustion blower is a vital safety component housed in a durable stainless steel assembly. Its primary function is to pull combustion gases from the heat exchanger and expel them safely outside, allowing the unit to operate efficiently and safely.

Operating efficiently at 3300 RPM on 208-230V power, the BLW00951 ensures the correct negative pressure is maintained to close the pressure switch. As a genuine OEM PSC motor, it guarantees a precision fit and exact electrical specifications required to prevent pressure switch faults and system lockouts.

Key Features and Function:

• Precision Combustion Control: Engineered to provide the exact CFM and static pressure required for safe gas furnace operation.
• Genuine OEM Reliability: Direct factory replacement ensures structural integrity and electrical compatibility with Trane commercial controllers.
• Heavy-Duty Construction: PSC motor designed for demanding commercial duty cycles (1/15 HP range).
• Stainless Steel Housing: Built to resist corrosion and structural warping in harsh commercial environments.

Product Details and Key Specifications:

• Part Number: BLW00951 (Replaces BLW00950)
• Manufacturer: Trane / American Standard (Genuine OEM)
• Part Type: Draft Inducer Motor Assembly / Combustion Blower
• Motor Type: PSC (Permanent Split Capacitor)
• Voltage: 208-230 V
• Frequency: 50/60 Hz
• Phase: Single-phase (1 PH)
• Horsepower (HP): 1/15 HP
• Speed: 3300 - 3600 RPM
• Amperage: 0.4 Amps
• Rotation: Clockwise (CW)
• Capacitor Required: 2 MFD @ 370 VAC (typically included with assembly)
• Housing: Stainless Steel
• Shipping Weight: 5.6 lbs

🛠️ HVAC Depot Pro Tip: Check the Pressure Switch Tubing!

If you install the BLW00951 and the unit still won't ignite, check the pressure switch tubing before assuming the new motor is at fault. Small insects, debris, or condensation can block the "port" where the hose connects to the blower housing. Clearing this common obstruction often resolves phantom pressure switch lockouts.

Cross-Reference & Compatibility:

The BLW00951 is a direct OEM replacement for the following part numbers:

• Trane / American Standard:

  BLW00950, BLW00521, BLW-521, C663946P01

• Fasco:

  A369, 7062-3915, 7062-5754

• Drawing Numbers (X-Ref):

  X38010666010, X38040363010, X38040363020

Extensive Model Compatibility List:

Note: This motor is used in many Trane and American Standard YHC commercial packaged units. Use 'CTRL+F' to search for your specific model:

• YHC Series Commercial Packaged Units:

  YHC036E3EHA1TD2C1A, YHC036E3EZA1TD2B1A, YHC036E3RHA1TD0B, YHC036E3RHA1TD0C1, YHC036E3RHA1TD2C1A2A, YHC036E3RHA1TE0B0A2B0B, YHC036E3RHA25H201, YHC036E3RHA25K0B, YHC036E3RHA26K0E1C1, YHC036E3RHA29D0B1A1, YHC036E3RZA1TD0C0A1B, YHC036E3RZA1TG0B0A1B, YHC036E3RZA23G0B0A1B, YHC036E3RZA25D0C1A1A6B, YHC036E3RZA26H0B1A1, YHC036E3RZA26H0B1A2B0, YHC036E3RZA26M0E1, YHC036E3RZA27D0B1, YHC036E3RZA27F2C1A2B2, YHC036E3RZA27H0C3A1B6B0C, YHC036E3RZA27H2C1A1A, YHC036E3RZA29E0C1A1A0B, YHC036E3RZA2EE0C1A1A, YHC036E3RZA2EK0C1C1B7B, YHC036E3RZA2EP0B1C2A0, YHC036E4EHA1TD2, YHC036E4RHA1TB0C0A1B, YHC036E4RHA1TC2C1, YHC036E4RHA26H2A1A, YHC036E4RZA1T02C1A1, YHC036E4RZA1TB0B0A0A6B, YHC036E4RZA1TH0B1A1B0B, YHC036E4RZA1TH0C1A1B6B, YHC036E4RZA1TH2B0A1A, YHC036E4RZA22P0B1A1B6B, YHC036E4RZA25P0B1A1B6B, YHC036E4RZA2602E1A1A, YHC036E4RZA26D0B1, YHC036E4RZA26D0B1A1B, YHC036E4RZA26G0B1A1B6B, YHC036E4RZA26G0D1, YHC036E4RZA27H0B1A1A, YHC036E4RZA27P0C1C106B, YHC036E4RZA29P0E1A2A, YHC036E4RZA2BP0B1C0A6B0CA, YHC036E4RZA2ED2B1A1B, YHC036E4RZA2FH0E1A2A6B, YHC036EWRZA1TK0C1A106B, YHC036EWRZA26C0E1, YHC036EWRZA2DD2C1A1
