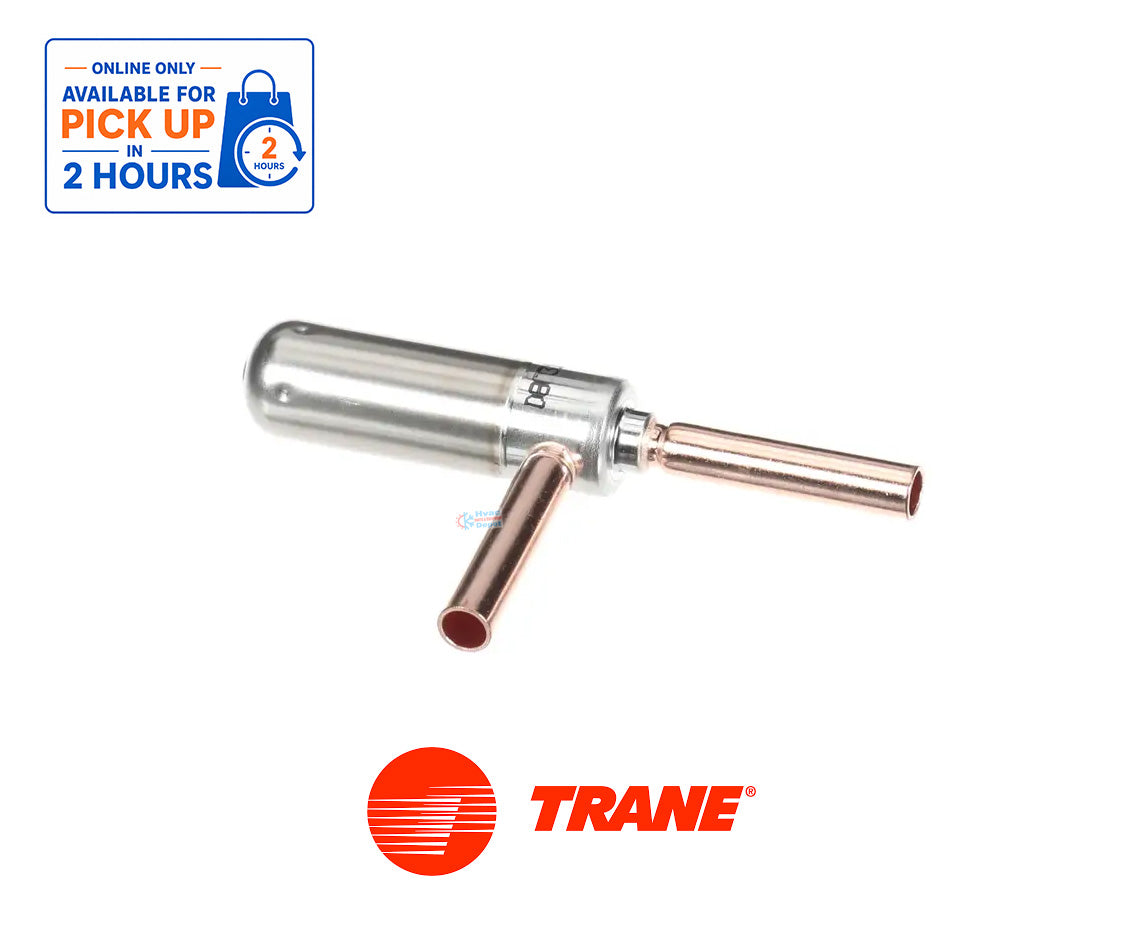

Trane / American Standard VAL10196 OEM Electronic Expansion Valve (EEV) – HVAC Refrigerant Flow Control Valve
Trane / American Standard VAL10196 OEM Electronic Expansion Valve (EEV) – HVAC Refrigerant Flow Control Valve
Low stock: 1 left
Trane VAL10196 Electronic Expansion Valve (EEV)
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
The Trane / American Standard VAL10196 is an OEM Electronic Expansion Valve (EEV) designed for compatible HVAC air-conditioning and heat pump systems. This electronic refrigerant metering valve regulates refrigerant flow through the refrigeration circuit to support proper cooling and heating performance.
Unlike a traditional thermostatic expansion valve (TXV), an electronic expansion valve operates through signals from a compatible electronic control system. The EEV adjusts refrigerant flow based on system operating conditions, helping maintain appropriate evaporator performance, refrigerant control, and overall system efficiency.
The VAL10196 is intended for HVAC equipment specifically requiring this factory electronic expansion valve.
Key Features & Function
- Genuine Trane / American Standard OEM replacement component
- Part Number: VAL10196
- Electronic Expansion Valve (EEV)
- Electronically controlled refrigerant metering
- Regulates refrigerant flow through compatible HVAC systems
- Works with equipment-specific electronic controls
- Supports evaporator performance and refrigerant management
- Designed for compatible air-conditioning and heat pump applications
- Factory replacement refrigeration component
- Intended for equipment specifically requiring VAL10196
Product Details & Key Specifications
|
Specification |
Details |
|
Brand |
Trane / American Standard |
|
Manufacturer Part Number |
VAL10196 |
|
Product Type |
Electronic Expansion Valve |
|
Common Name |
EEV / Electronic Refrigerant Metering Valve |
|
Valve Operation |
Electronically Controlled |
|
Primary Function |
Refrigerant Flow Regulation |
|
Application |
HVAC Refrigeration Circuit |
|
Replacement Type |
OEM Service Component |
|
Nominal Capacity |
Verify manufacturer specifications |
|
Refrigerant Compatibility |
Verify manufacturer specifications |
|
Inlet Connection |
Verify manufacturer specifications |
|
Outlet Connection |
Verify manufacturer specifications |
|
Electrical Requirements |
Verify manufacturer specifications |
|
Control Compatibility |
Equipment-Specific |
|
Actuator / Coil Inclusion |
Verify supplied assembly |
|
Wire Harness Inclusion |
Verify supplied assembly |
|
Installation |
Professional HVAC Installation |
🛠️ HVAC Depot Pro Tip
When replacing the Trane VAL10196, verify the complete OEM part number and equipment compatibility before ordering.
Part Number: VAL10196
Component: Electronic Expansion Valve (EEV)
Function: Electronic Refrigerant Metering
An electronic expansion valve is not interchangeable with a conventional TXV simply because the connection sizes or refrigeration capacity appear similar.
Before purchasing, confirm:
- Original EEV part number
- Complete equipment model and serial number
- Refrigerant type
- Inlet and outlet connection sizes
- Electronic control board compatibility
- Actuator or coil requirements
- Electrical connector and wiring configuration
- Manufacturer-specific installation or calibration procedures
Installation Tip: EEV replacement may require refrigerant recovery, brazing, evacuation, leak testing, electrical verification, and electronic valve initialization or calibration, depending on the equipment.
Installation should be performed by a qualified HVAC technician.
Equipment / Model Compatibility
The Trane / American Standard VAL10196 is intended for compatible HVAC equipment specifically requiring this factory electronic expansion valve.
Potential applications include:
- Compatible Trane air-conditioning systems
- Compatible Trane heat pump systems
- Compatible American Standard HVAC equipment
- Select electronically controlled refrigeration systems
- Equipment requiring OEM part number VAL10196
Before ordering, verify the complete equipment model number, serial number, original EEV identification, refrigerant type, and electronic control requirements.
Compatibility Note: Exact equipment model numbers, refrigerant compatibility, valve capacity, and connection dimensions have not been independently confirmed for VAL10196.
