Trane American Standard SWT01714 OEM Furnace Door Switch – SPST, 21 Amp, 125/250 VAC – HVAC Blower Compartment Safety Switch

Product Description

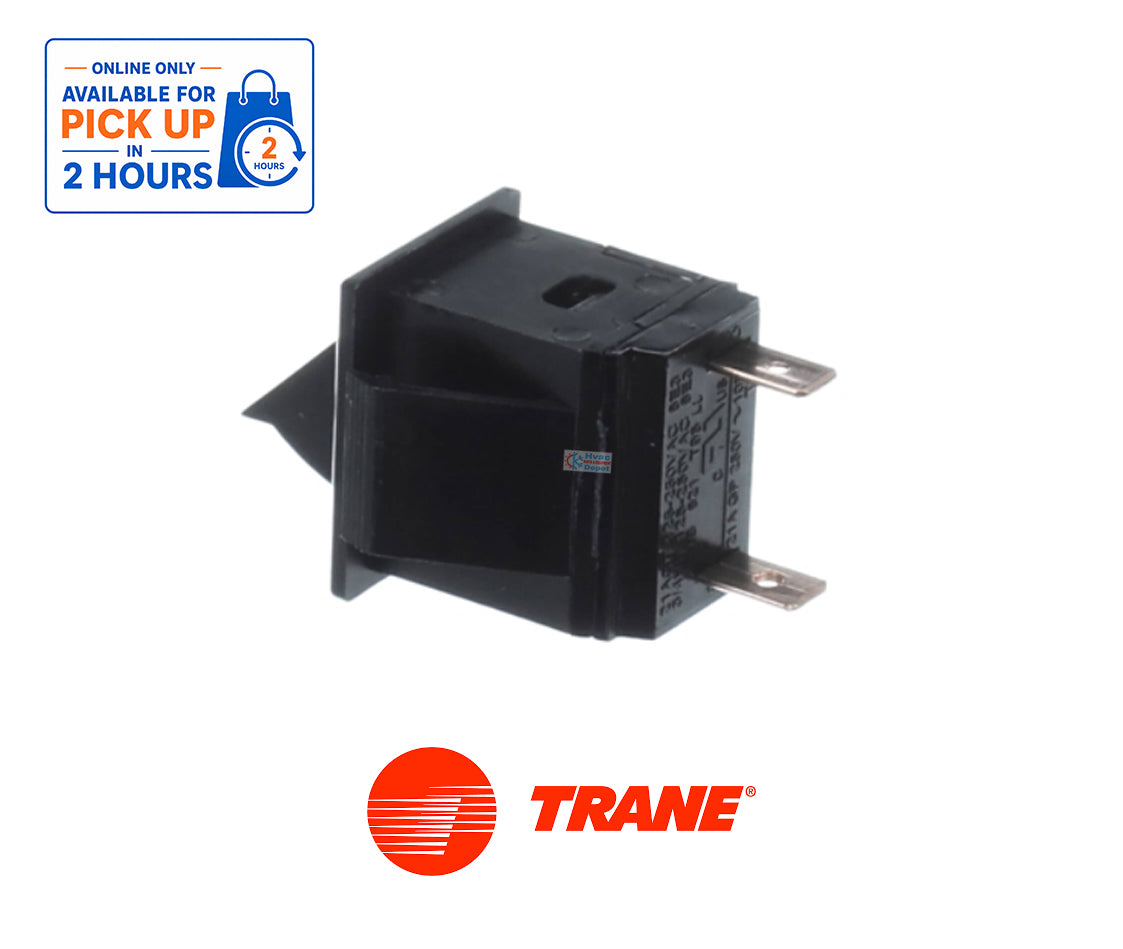

The Trane American Standard SWT01714 Door Switch is an OEM electrical safety component designed for compatible Trane and American Standard HVAC equipment.

Featuring a Single Pole Single Throw (SPST) contact configuration and a 21-amp electrical rating at 125/250 VAC, the SWT01714 is designed for applications requiring a door-actuated electrical switching mechanism.

Commonly used as a furnace or blower compartment door interlock, this type of switch helps prevent equipment operation when the designated access panel is removed or improperly secured.

The Trane SWT01714 provides an electrical switching function that responds to the position of the equipment access door. When installed in its approved application, the switch helps maintain the manufacturer's intended equipment safety operation.

Designed for equipment-specific replacement, the SWT01714 is suitable for servicing compatible heating and cooling equipment requiring this exact OEM door switch.

Key Features & Function

• Brand: Trane / American Standard
• Manufacturer Part Number: SWT01714
• Product Type: HVAC Door Safety Switch
• Contact Configuration: SPST (Single Pole Single Throw)
• Current Rating: 21 Amps
• Voltage Rating: 125/250 VAC
• Door-actuated electrical switching
• Designed for compatible furnace access-panel applications
• Supports equipment door-interlock safety functions
• Helps prevent operation when the designated access panel is removed
• OEM replacement for approved Trane and American Standard equipment
• Suitable for professional HVAC service and maintenance

Product Details & Specifications

Specification Note: The SPST configuration, 21-amp rating, and 125/250 VAC rating are based on the supplied OEM description. Contact state, actuator dimensions, terminal arrangement, and mounting requirements should be verified before ordering.

HVAC Depot Pro Tip

A faulty furnace door switch may prevent the heating or cooling equipment from operating even when the thermostat is calling for operation.

Before replacing the Trane SWT01714, verify that the equipment access panel is installed correctly and that the switch actuator is being engaged as designed.

Recommended diagnostic checks:

1. Confirm the equipment model and serial number.
2. Verify the original door switch part number.
3. Inspect the blower compartment access panel.
4. Check for broken or misaligned switch actuators.
5. Inspect switch terminals and wiring connections.
6. Test switch continuity with power disconnected.
7. Confirm the SPST contact configuration.
8. Verify the 21-amp and 125/250 VAC ratings.
9. Check the mounting position and actuator travel.
10. Confirm normal equipment operation with the access panel properly installed.

HVAC Depot Pro Tip: An SPST door switch controls one electrical circuit. However, SPST alone does not identify whether the contacts are normally open or normally closed. Always match the original switch's contact operation and actuator design.

Important Safety Warning: Never permanently bypass or jumper a furnace door safety switch. Disconnect equipment power before inspection or replacement, and restore all access panels before returning the system to service.

Equipment / Model Compatibility

The Trane SWT01714 is intended for select Trane and American Standard heating and cooling equipment requiring this specific OEM door switch.

Exact compatible equipment models have not been independently verified.

Before purchasing, confirm:

• Complete equipment model number
• Equipment serial number
• Original door switch part number
• SPST contact configuration
• 21-amp current rating
• 125/250 VAC voltage rating
• Normal contact position
• Actuator length and operating travel
• Terminal style
• Mounting dimensions

Compatibility Notice: SWT01714 is not a universal furnace door switch. Matching voltage and amperage ratings alone does not guarantee compatibility.
