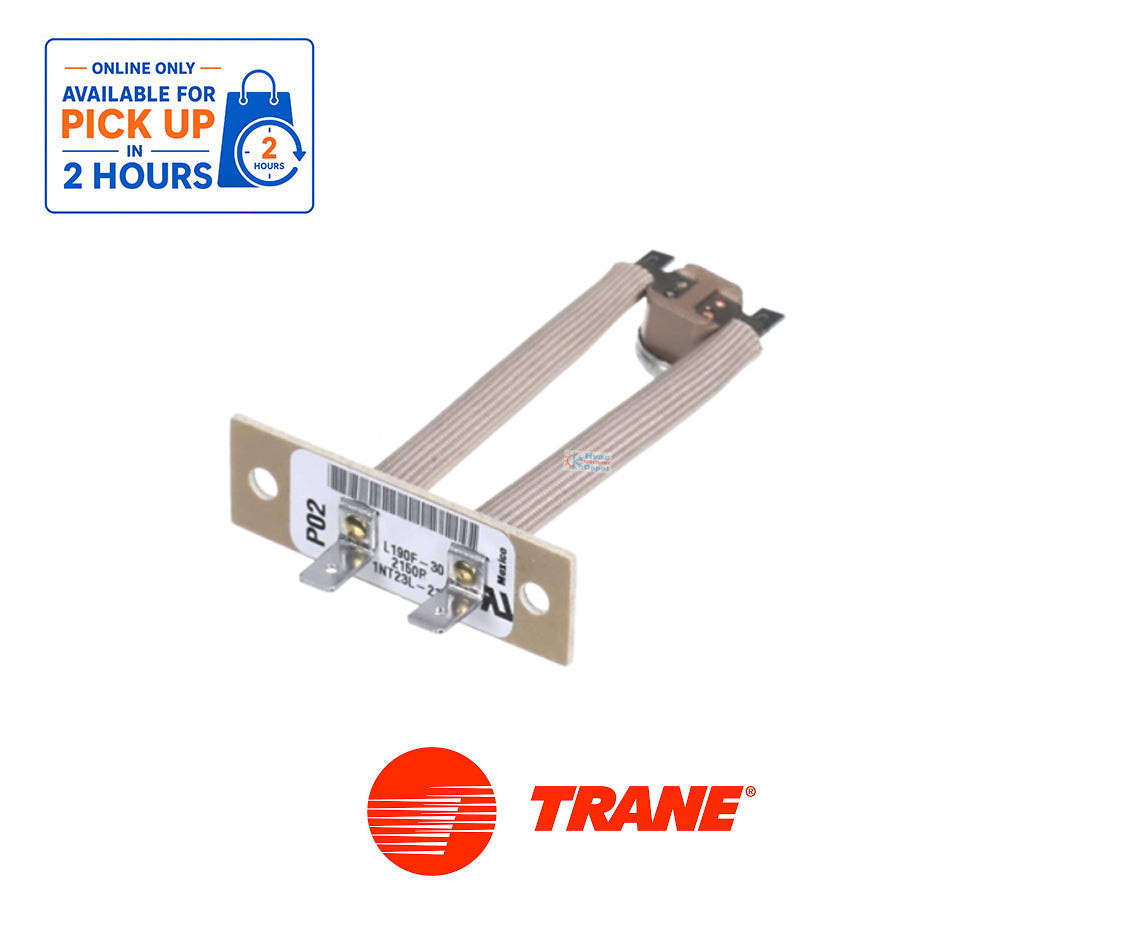

Trane American Standard SWT01612 OEM Thermal Limit Switch – Opens at 190°F, Closes at 160°F, 5.8 FLA at 120V – Furnace High-Temperature Safety Control

Name: Trane American Standard SWT01612 OEM Thermal Limit Switch – Opens at 190°F, Closes at 160°F, 5.8 FLA at 120V – Furnace High-Temperature Safety Control
Brand: Trane
SKU: SWT01612
Price: 45.26 USD
Availability: InStock

Low stock: 1 left

$45.26 USD

Sale Sold out

Shipping calculated at checkout.

Trane SWT01612 OEM Thermal Limit Switch – 190°F Open / 160°F Close

Genuine Trane / American Standard OEM thermal limit safety switch
Opens electrical contacts at 190°F
Closes electrical contacts at 160°F
30°F temperature differential with 5.8 FLA at 120V rating
Factory replacement thermal limit switch, part SWT01612

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details & Specifications

Specification

Details

Manufacturer

Trane

Brand

Trane / American Standard

Manufacturer Part Number

SWT01612

Product Type

Thermal Limit Switch

OEM Description

Switch – Thermal Limit

Primary Application

HVAC High-Temperature Safety Control

Opening Temperature

190°F

Closing Temperature

160°F

Temperature Differential

30°F

Electrical Rating

5.8 FLA at 120V

Reset Operation

Automatic Temperature-Based Reclosure

Temperature Setting

Fixed

Adjustability

Verify Manufacturer Specifications

Contact Configuration

Verify Manufacturer Specifications

Terminal Configuration

Verify Original Component

Mounting Style

Equipment-Specific

Equipment Application

Compatible Trane / American Standard Heating Equipment

Replacement Type

OEM Factory Replacement

Installation

Qualified HVAC Technician Recommended

Specification Note: The opening temperature, closing temperature, and electrical rating are based on the supplied product specifications. Physical dimensions, terminal arrangement, and approved equipment compatibility should be confirmed before ordering.

description

Trane American Standard SWT01612 OEM Thermal Limit Switch – Opens at 190°F, Closes at 160°F, 5.8 FLA at 120V – Furnace High-Temperature Safety Control

Product Description

The Trane American Standard SWT01612 Thermal Limit Switch is an OEM temperature-actuated safety control designed for compatible Trane and American Standard heating equipment.

Engineered to protect HVAC systems against excessive operating temperatures, the SWT01612 is designed to open its electrical contacts at 190°F and close at 160°F, providing temperature-responsive control within the furnace safety circuit.

This thermal limit switch features a 30°F temperature differential, allowing the switch to reopen or reclose its contacts according to the specified operating temperatures.

With an electrical rating of 5.8 full-load amperes (FLA) at 120 volts, the SWT01612 is designed for approved heating equipment applications requiring these specific electrical and thermal characteristics.

The Trane SWT01612 is an equipment-specific replacement component intended to help maintain proper furnace temperature protection and reliable heating system operation.

Key Features & Function

Brand: Trane / American Standard
Manufacturer Part Number: SWT01612
Genuine OEM thermal limit switch
Opening Temperature: 190°F (87.8°C)
Closing Temperature: 160°F (71.1°C)
Temperature Differential: 30°F
Electrical Rating: 5.8 FLA at 120V
Temperature-actuated electrical switching
Automatic temperature-based contact reclosure
Fixed operating temperature thresholds
Designed for compatible furnace safety circuits
Helps protect heating equipment against excessive temperatures
Suitable for OEM furnace maintenance and replacement applications

Product Details & Specifications

Specification	Details
Manufacturer	Trane
Brand	Trane / American Standard
Manufacturer Part Number	SWT01612
Product Type	Thermal Limit Switch
OEM Description	Switch – Thermal Limit
Primary Application	HVAC High-Temperature Safety Control
Opening Temperature	190°F
Closing Temperature	160°F
Temperature Differential	30°F
Electrical Rating	5.8 FLA at 120V
Reset Operation	Automatic Temperature-Based Reclosure
Temperature Setting	Fixed
Adjustability	Verify Manufacturer Specifications
Contact Configuration	Verify Manufacturer Specifications
Terminal Configuration	Verify Original Component
Mounting Style	Equipment-Specific
Equipment Application	Compatible Trane / American Standard Heating Equipment
Replacement Type	OEM Factory Replacement
Installation	Qualified HVAC Technician Recommended

HVAC Depot Pro Tip

A furnace thermal limit switch is an important safety component that helps protect heating equipment from excessive temperatures.

If a thermal limit switch repeatedly opens, the underlying problem may involve restricted airflow, overheating, or an equipment malfunction.

Recommended diagnostic checks:

Verify the furnace model and serial number.
Confirm the original thermal limit switch part number.
Check the air filter for restrictions.
Inspect the blower motor and blower wheel.
Verify proper blower speed and airflow.
Inspect supply and return air restrictions.
Measure furnace temperature rise.
Check the heat exchanger and burner operation.
Inspect the switch wiring and electrical connections.
Confirm the replacement opens at 190°F and closes at 160°F.

HVAC Depot Pro Tip: The SWT01612 has a 30°F operating differential. Its contacts are specified to open at 190°F and close again after the sensed temperature decreases to 160°F.

Replacing a thermal limit switch without correcting the cause of overheating can result in repeated shutdowns and possible equipment damage.

Important Safety Warning: Never bypass, jumper, or install a thermal limit switch with an unapproved temperature rating. If the furnace repeatedly trips its limit switch, discontinue operation until the cause has been diagnosed and corrected by a qualified HVAC technician.

Equipment / Model Compatibility

The Trane SWT01612 is intended for select Trane and American Standard heating systems requiring this specific OEM thermal limit switch.

Exact compatible furnace model numbers have not been independently verified.

Before purchasing, confirm:

Complete equipment model number
Equipment serial number
Original switch part number
Required 190°F opening temperature
Required 160°F closing temperature
5.8 FLA at 120V electrical rating
Terminal configuration
Mounting style and dimensions
Manufacturer-approved replacement requirements

Compatibility Notice: The SWT01612 is not a universal thermal limit switch. Matching the opening temperature alone does not guarantee compatibility.
