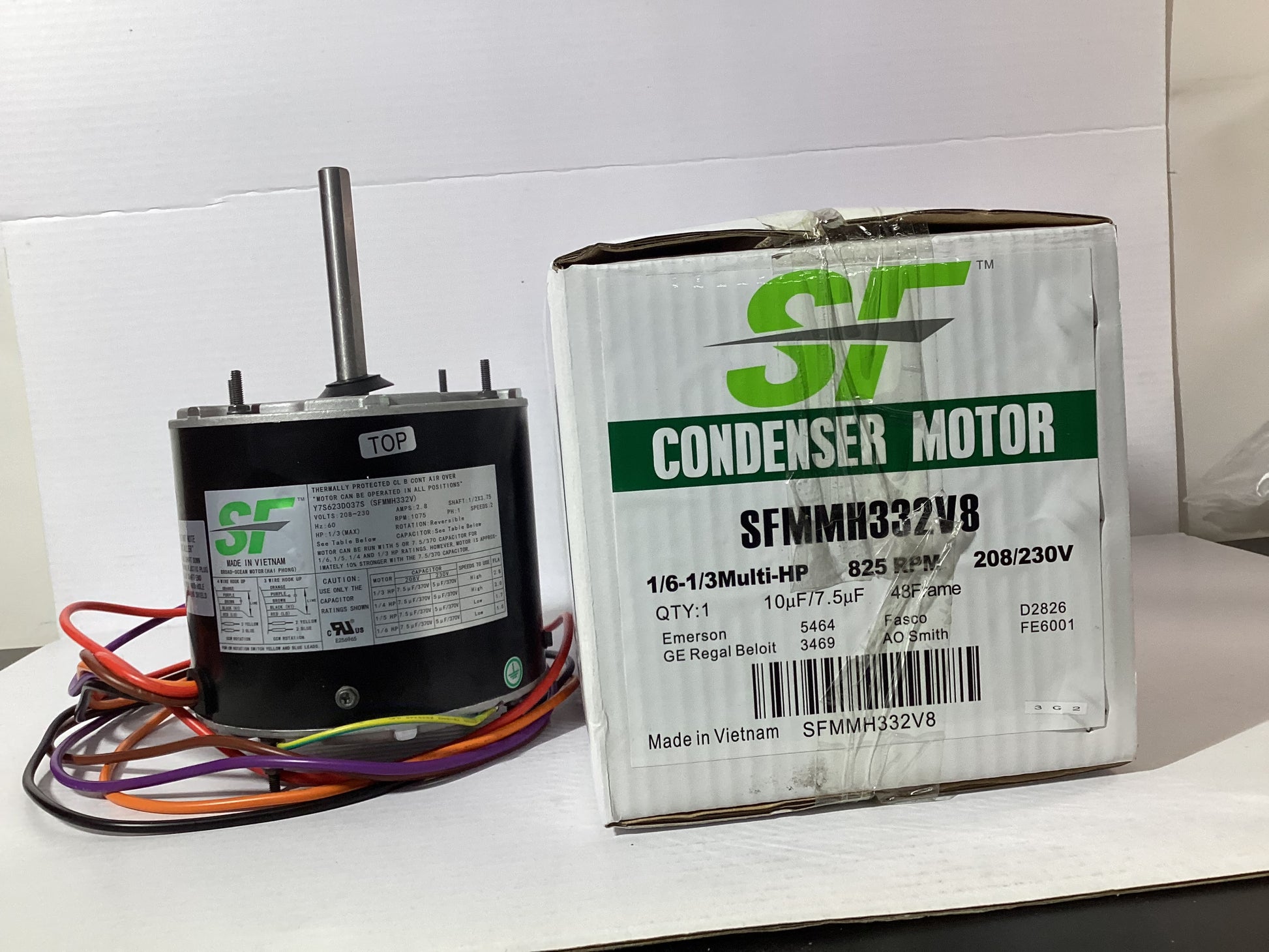

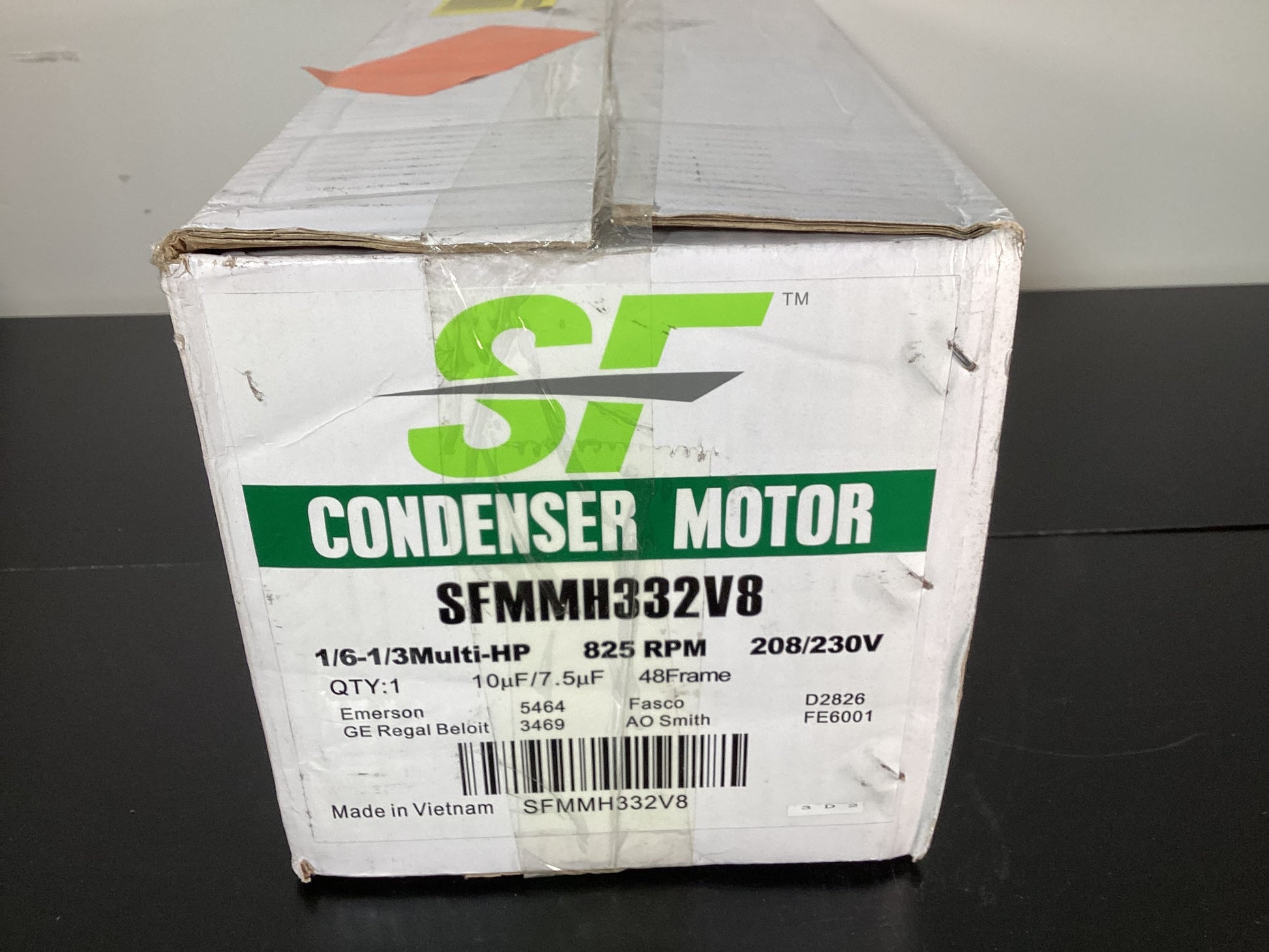

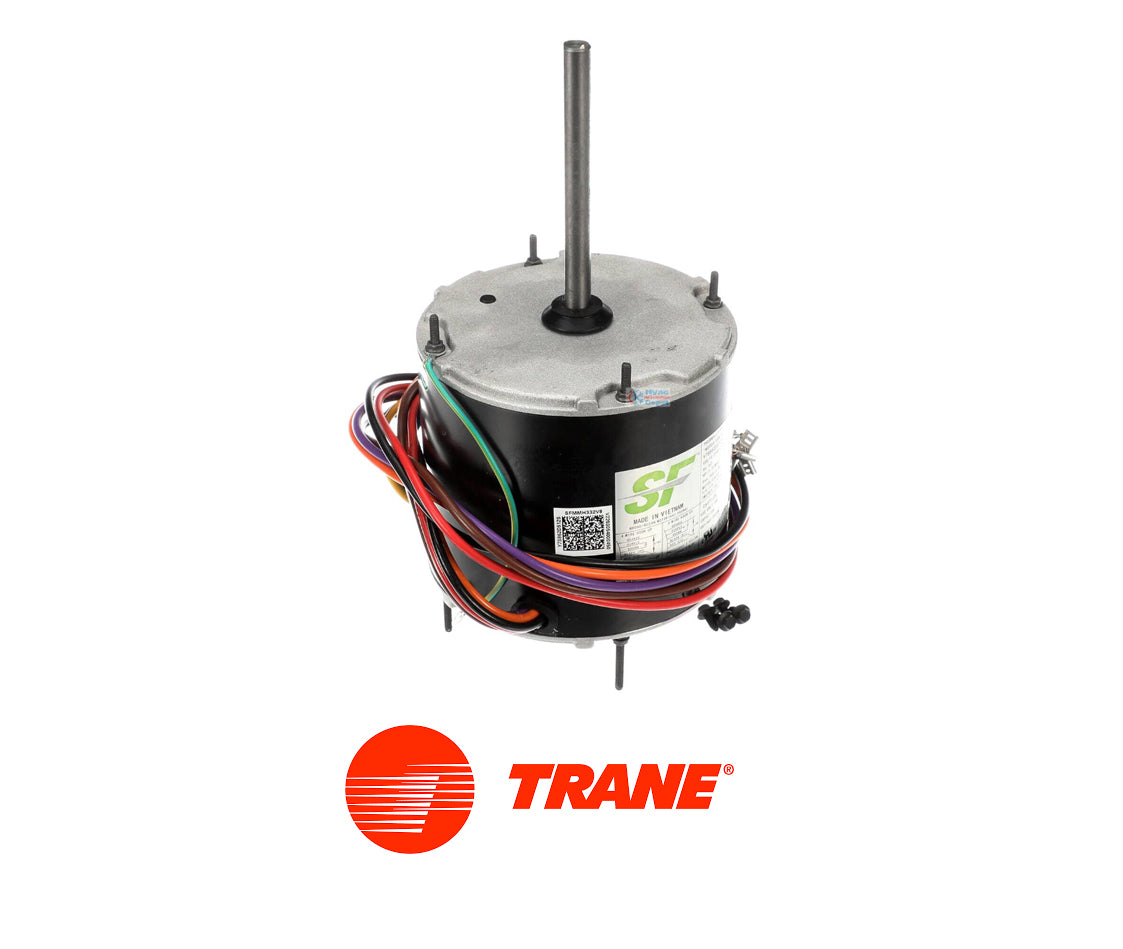

Trane SFMMH332V8 Condenser Fan Motor | Multi-HP 1/6-1/3 HP 208-230V 825 RPM

Trane SFMMH332V8 Condenser Fan Motor | Multi-HP 1/6-1/3 HP 208-230V 825 RPM

In stock

Regular price $229.55 USD
Regular price Sale price $229.55 USD
Sale Sold out
Shipping calculated at checkout.

Quick Feature Highlights

  • Multi-Horsepower Versatility: Single SKU replaces motors ranging from 1/6 HP up to 1/3 HP.

  • Reliable PSC Technology: Utilizes robust Permanent Split Capacitor (PSC) technology proven in thousands of HVAC systems.

  • Automatic Thermal Protection: Built-in protector safeguards windings from overheating and electrical spikes.

  • Standard 48-Frame: Ensures compatibility with all standard 48-frame Trane mounting brackets.

  • CSA & UL Certified: Meets industry safety standards for peace of mind installation.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Specifications & Details

  • Brand: Trane (OEM/Service First)
  • Horsepower (HP): 1/6 - 1/3 HP (Multi-HP)
  • Voltage: 208–230 VAC
  • RPM: 825 RPM
  • Speeds: 1 Speed
  • Frame Size: 48 Frame
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Phase / Freq: 1-Phase / 60 Hz
  • Enclosure: Totally Enclosed Air-Over (TEAO)
  • Shaft Diameter: 0.5 inches
  • Thermal Protection: Automatic/True
  • Capacitor Required: 10 MFD / 370V (Sold Separately)
  • Shipping Weight: 8.5 lbs

description

Trane SFMMH332V8 Condenser Replacement Fan Motor Multi-HP 1/6-1/3 HP 208-230V 825 RPM


The Trane SFMMH332V8 is a genuine OEM multi-horsepower PSC (Permanent Split Capacitor) condenser fan motor designed for use in a wide range of Trane outdoor air conditioning and heat pump systems. This versatile motor automatically adapts its output between 1/6 HP and 1/3 HP to meet varying system demands. Its primary function is to power the outdoor fan to remove heat from the condenser, ensuring the compressor runs efficiently and safely.


Key Features

  • Multi-Horsepower Flexibility: Auto-adjusts output from 1/6 HP up to 1/3 HP, reducing the need to stock multiple fixed-HP motors.
  • Genuine OEM Component: Guaranteed fit and function exactly like the original components, ensuring a perfect match and maintaining equipment warranty.
  • All-Weather Build: Features a Totally Enclosed Air-Over (TEAO) enclosure designed for durability against outdoor elements like rain and dust.
  • Quiet & Reliable: Built with durable ball bearings on both ends for extended life and quiet operation.


Product Specifications & Details

  • Brand: Trane (OEM/Service First)
  • Horsepower (HP): 1/6 - 1/3 HP (Multi-HP)
  • Voltage: 208–230 VAC
  • RPM: 825 RPM
  • Speeds: 1 Speed
  • Frame Size: 48 Frame
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Phase / Freq: 1-Phase / 60 Hz
  • Enclosure: Totally Enclosed Air-Over (TEAO)
  • Shaft Diameter: 0.5 inches
  • Thermal Protection: Automatic/True
  • Capacitor Required: 10 MFD / 370V (Sold Separately)
  • Shipping Weight: 8.5 lbs


🛠️ HVAC Depot Pro Tip

This motor requires a specific 10 MFD run capacitor. When installing, always install a brand-new capacitor (370V) to prevent premature failure of the new motor. Mounting Note: This multi-HP motor can utilize bracket mounts, belly bands, or shaft-up/down mounting configurations for universal installation compatibility.


Cross-Reference

  • Superseded & Legacy P/Ns: MOT12688
  • Drawing / X Numbers: X70371092010
  • Alternative Manufacturer Equivalents: Emerson 5464, A.O. Smith FE6001, GE 3469, Fasco D2826


Model Compatibility

This motor is compatible with various Trane outdoor units. Consult your specific 14-digit model number to ensure compatibility:

  • 2A6B3018A1000AA, 4A6B3024A1000AA, 4A7A3030A1000AA, 4TTR4024A1000AA, and many other Trane XR and XB series units.

Specification
