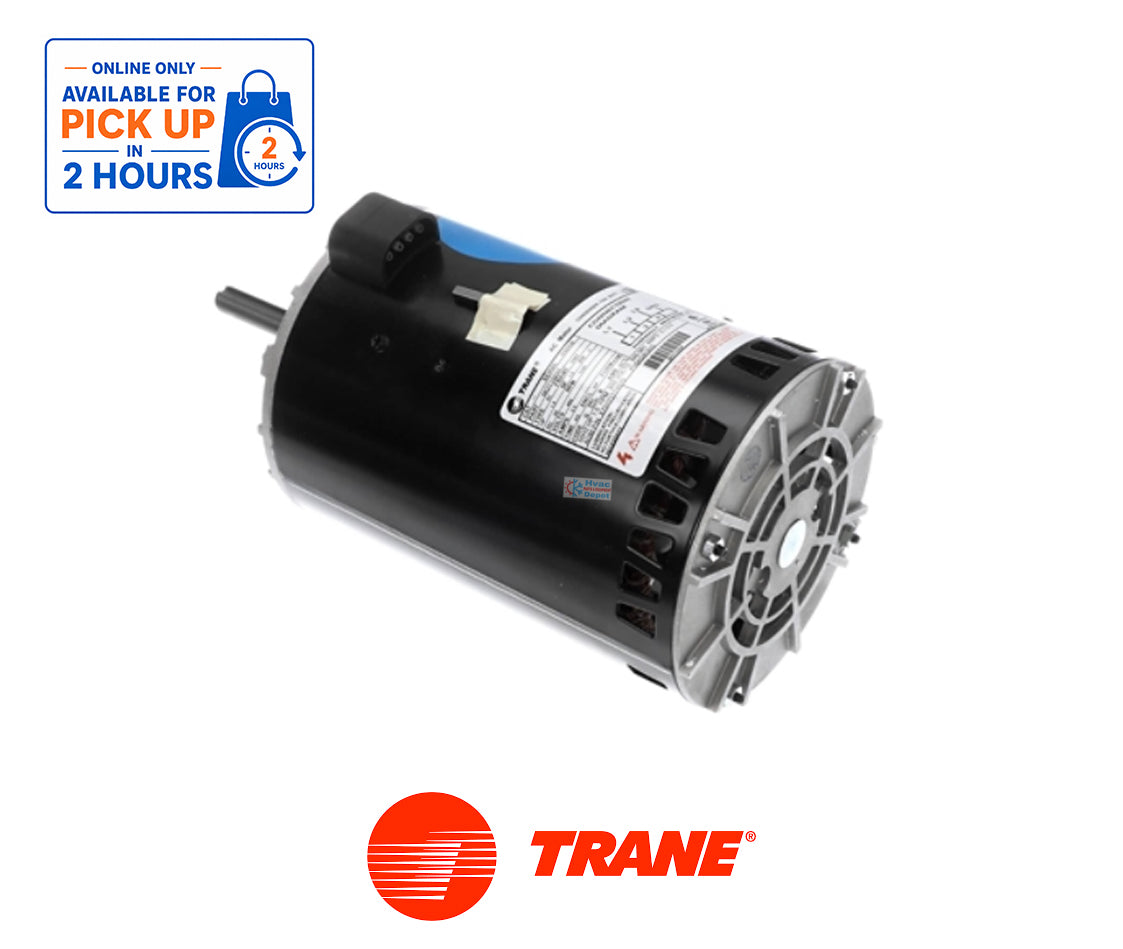

Trane American Standard MOT10294 OEM General-Purpose Motor – 460V, 1100–1200 RPM, 56 Frame, TEAO, F1, 3-Phase

Product Description

The Trane American Standard MOT10294 General-Purpose Motor is an OEM replacement electric motor designed for compatible Trane and American Standard HVAC equipment requiring a 460-volt, three-phase motor.

Featuring an operating speed range of 1100–1200 RPM, a 56-frame construction, and a Totally Enclosed Air-Over (TEAO) enclosure, the MOT10294 is intended for equipment applications requiring these specific electrical and mechanical characteristics.

The TEAO enclosure is designed to help protect the motor's internal components while allowing external airflow over the motor housing to assist with cooling during operation.

The Trane MOT10294 also features an F1 configuration designation, commonly associated with the motor's terminal-box or lead-exit arrangement. The exact orientation should be verified against the manufacturer's specifications.

Designed for approved HVAC applications, this OEM motor provides a replacement option for equipment requiring the MOT10294 part number.

Key Features & Function

• Brand: Trane / American Standard
• Manufacturer Part Number: MOT10294
• OEM general-purpose electric motor
• Operating Voltage: 460 VAC
• Rated Speed Range: 1100–1200 RPM
• Motor Frame: 56 Frame
• Enclosure Type: Totally Enclosed Air-Over (TEAO)
• Configuration: F1
• Electrical Phase: 3-Phase, based on supplied designation
• Designed for compatible commercial HVAC equipment
• External airflow-assisted motor cooling
• Equipment-specific OEM replacement
• Suitable for professional HVAC motor replacement and maintenance

Product Details & Specifications

Specification Note: The supplied description ends with “F1, 3.” The three-phase designation is a likely interpretation but should be confirmed using the motor nameplate or manufacturer documentation before publishing it as a verified specification. Horsepower, amperage, rotation, and shaft dimensions have not been provided.

HVAC Depot Pro Tip

When replacing a 460V HVAC motor, matching the voltage and frame size is not sufficient to guarantee compatibility.

The replacement motor must also meet the equipment's horsepower, speed, rotation, mounting, and cooling requirements.

Recommended installation checks:

1. Confirm the complete HVAC equipment model and serial number.
2. Verify the original motor part number is MOT10294.
3. Check the motor nameplate for horsepower and full-load amperage.
4. Confirm the 460V electrical supply.
5. Verify whether the motor is three-phase.
6. Inspect the motor shaft and connected equipment for mechanical binding.
7. Confirm the 56-frame mounting configuration.
8. Verify the required F1 arrangement.
9. Confirm motor rotation before placing the equipment into service.
10. Inspect contactors, overload protection, and electrical connections.
11. Measure operating amperage under normal load.
12. Confirm adequate external airflow over the TEAO motor housing.

HVAC Depot Pro Tip: A TEAO motor depends on the intended external airflow for cooling. Installing it in an application without adequate airflow can lead to overheating and premature motor failure.

Important: This motor is specified for high-voltage equipment. Installation, wiring, and electrical testing should be performed by a qualified HVAC technician or electrician using appropriate lockout/tagout procedures.

Equipment / Model Compatibility

The Trane MOT10294 is intended for select Trane and American Standard HVAC equipment requiring this specific OEM motor.

Exact compatible equipment model numbers have not been independently verified.

Before purchasing, confirm:

• Equipment model and serial number
• Original motor part number
• 460V operating voltage
• Electrical phase
• 1100–1200 RPM speed requirement
• 56-frame motor dimensions
• TEAO enclosure requirement
• F1 configuration
• Horsepower and amperage
• Motor rotation
• Shaft dimensions
• Mounting configuration

Compatibility Notice: MOT10294 is not a universal general-purpose motor. Matching voltage, speed, and frame size alone does not guarantee compatibility.
