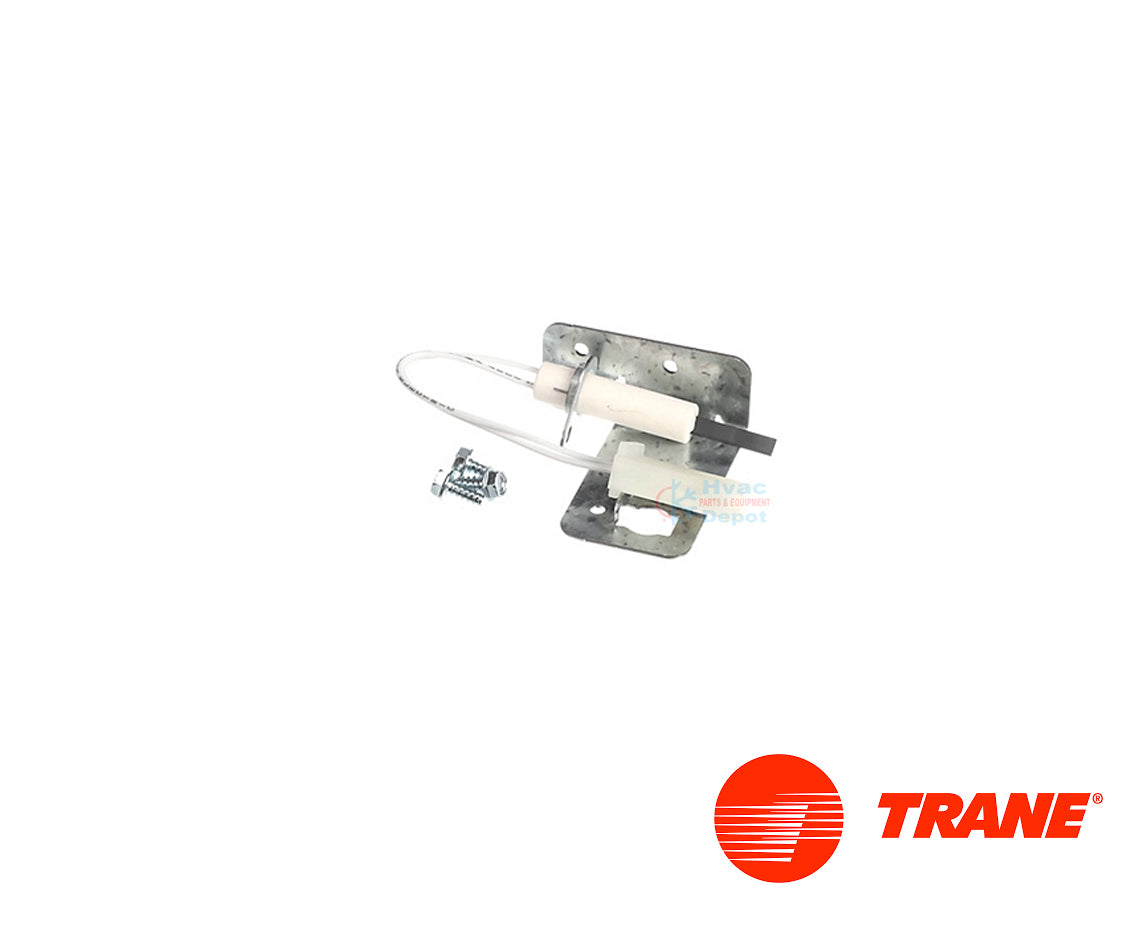

Trane IGN00152 Silicon Nitride Ignitor Kit – Genuine OEM for S-Series Furnaces

Name: Trane IGN00152 Silicon Nitride Ignitor Kit – Genuine OEM for S-Series Furnaces
Brand: Trane / American Standard
SKU: IGN00152
Price: 75.28 USD
Availability: InStock

Low stock: 1 left

$75.28 USD

Sale Sold out

Shipping calculated at checkout.

Why Buy the IGN00152 Kit?

Genuine Trane OEM High-Performance Part
Premium Silicon Nitride for Long Life
Includes Brackets & Screws for Easy Install
Fits Modern S9V2 & S9X2 High-Efficiency Units
Direct Upgrade for IGN00146 & IGN146

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Specifications

Brand: Trane / American Standard
Part Number: IGN00152 (Replaces IGN00146)
Material: Premium Silicon Nitride
Voltage: 120 Volts
Connection: Female Molex Plug
Insulation: Aluminum Oxide / Alumina
Wire Length: 4.31 Inches
Shipping Weight: 2.55 lbs

description

Trane IGN00152 Silicon Nitride Ignitor Kit – Genuine OEM for S-Series Furnaces

The Trane IGN00152 is a genuine OEM (Original Equipment Manufacturer) high-performance silicon nitride furnace ignitor. Specifically engineered for modern Trane and American Standard high-efficiency HVAC systems, this 120V ignitor is the factory-authorized replacement for the S9V2 and S9X2 series.

Upgraded from older silicon carbide models, this Silicon Nitride element offers superior durability, a longer lifespan, and a faster temperature response. This complete kit includes the necessary mounting bracket and screws to ensure a secure, professional installation.

Key Features & Benefits

Genuine OEM Upgrade: Direct factory replacement ensures your high-efficiency furnace maintains its original safety and performance ratings.
Silicon Nitride Durability: Far more resilient than traditional ignitors, designed to withstand thousands of ignition cycles without cracking.
Complete Installation Kit: Includes the specialized mounting bracket and hardware for a perfect "first-time" fit.
High-Speed Heat Up: Optimized for 120V operation to initiate the burner flame quickly and efficiently.

Product Specifications

Brand: Trane / American Standard
Part Number: IGN00152 (Replaces IGN00146)
Material: Premium Silicon Nitride
Voltage: 120 Volts
Connection: Female Molex Plug
Insulation: Aluminum Oxide / Alumina
Wire Length: 4.31 Inches
Shipping Weight: 2.55 lbs

🛠️ HVAC Depot's Pro Tip: The S-Series "Safety Ground"

When installing the IGN00152 in a modern S9V2 or S9X2 furnace, the mounting bracket is more than just a holder—it acts as part of the electrical ground path for flame rectification.

Tighten the Screw: Ensure the included mounting screw is snug. A loose bracket can cause "nuisance" flame sensor errors.
No Fingerprints: Even though Silicon Nitride is tougher than old-school ignitors, you should still avoid touching the element with bare fingers. Skin oils can lead to "hot spots" that shorten the part's life.

Cross-Reference & Compatibility

The IGN00152 replaces several older part, engineering, and drawing numbers:

Supersedes/Replaces:
IGN00146, IGN146, IGN152, 43632, D156805P01.
Drawing & X-Numbers:
D344416P01, D343693P01, D343749P01, D156805P01.

Extensive Model Compatibility List

American Standard Models:
A801X100, A952V040, A952V060, A952V080, A952V100, A952V120, AUHMB080ACV3VBE.
Trane S-Series Models:
S8X1C100, S8X2C100, S9V2B040, S9V2B060, S9V2B080, S9V2C080, S9V2C100, S9V2D120, S9X2B040, S9X2B060, S9X2B080, S9X2C080, S9X2C100, S9X2D120.

Note: This ignitor is the primary replacement for modern S-Series and high-efficiency units. Search your model below using CTRL+F.

While compatibility extends to hundreds of specific model numbers, the ignitor is known to fit popular models such as:

TUD2B100G9V3VAA
AUD1B080A9241BA
S9X2C100D5P
ADE, TDE, AUE, TUE series models

IGN00152 is a direct replacement for Trane / American Standard Following Furnaces Model Numbers:

American Standard Furnace model numbers:

A801X100CM5SCBA
A952V040BD3SADA
A952V040BU3SABA
A952V040BU3SACA
A952V040BU3SADA
A952V060BD3SADA
A952V060BU3SABA
A952V060BU4SABA
A952V060BU4SACA
A952V080BD4SADA
A952V080BU4SABA
A952V080BU4SACA
A952V080BU4SADA
A952V080CU5SABA
A952V080CU5SACA
A952V080CU5SADA
A952V100CD5SADA
A952V100CU4SABA
A952V100CU5SABA
A952V100CU5SACA
A952V100CU5SADA
A952V120DD5SADA
A952V120DU5SABA
A952V120DU5SACA
A952V120DU5SADA
AUHMB080ACV3VBE

Trane Furnace model numbers:

S8X1C100M5PSCBA
S8X2C100M5PSCBA
S9V2B040D3PSBDA
S9V2B040U3PSBBC
S9V2B040U3PSBCA
S9V2B040U3PSBDA
S9V2B040U3VSABB
S9V2B040U3VSABC
S9V2B040U3VSACA
S9V2B040U3VSADA
S9V2B040U3VSAEA
S9V2B060D3PSBCA
S9V2B060D3PSBDA
S9V2B060U3PSBBC
S9V2B060U3VSABB
S9V2B060U3VSABC
S9V2B060U3VSACA
S9V2B060U3VSADA
S9V2B060U4PSBBC
S9V2B060U4PSBCA
S9V2B060U4PSBDA
S9V2B080D4PSBCA
S9V2B080D4PSBDA
S9V2B080D4VSADA
S9V2B080U4PSBBC
S9V2B080U4PSBCA
S9V2B080U4PSBDA
S9V2B080U4VSABB
S9V2B080U4VSABC
S9V2B080U4VSACA
S9V2B080U4VSADA
S9V2C080U5PSBBC
S9V2C080U5PSBCA
S9V2C080U5PSBDA
S9V2C100D4VSADA
S9V2C100D5PSBCA
S9V2C100D5PSBDA
S9V2C100U4PSBBC
S9V2C100U4VSABB
S9V2C100U4VSABC
S9V2C100U4VSACA
S9V2C100U5PSBBC
S9V2C100U5PSBCA
S9V2C100U5PSBDA
S9V2D120D5PSBCA
S9V2D120U5PSBBC
S9V2D120U5PSBCA
S9V2D120U5PSBDA
S9V2D120U5VSABB
S9V2D120U5VSABC
S9V2D120U5VSACA
S9V2D120U5VSADA
S9X2B040U3PSBAB
S9X2B060U4PSBAB
S9X2B080U4PSBAB
S9X2C080U5PSBAB
S9X2C100U5PSBAB
S9X2D120U5PSBAB
