Trane / American Standard BAY24VRPAC52DC OEM 24V HVAC Interface Relay Panel – ComfortLink Control with Auxiliary Contacts, 5 Heat / 2 Cool

Name: Trane / American Standard BAY24VRPAC52DC OEM 24V HVAC Interface Relay Panel – ComfortLink Control with Auxiliary Contacts, 5 Heat / 2 Cool
Brand: Trane
Price: 227.00 USD
Availability: OutOfStock

Out of stock

$227.00 USD

Sale Sold out

Shipping calculated at checkout.

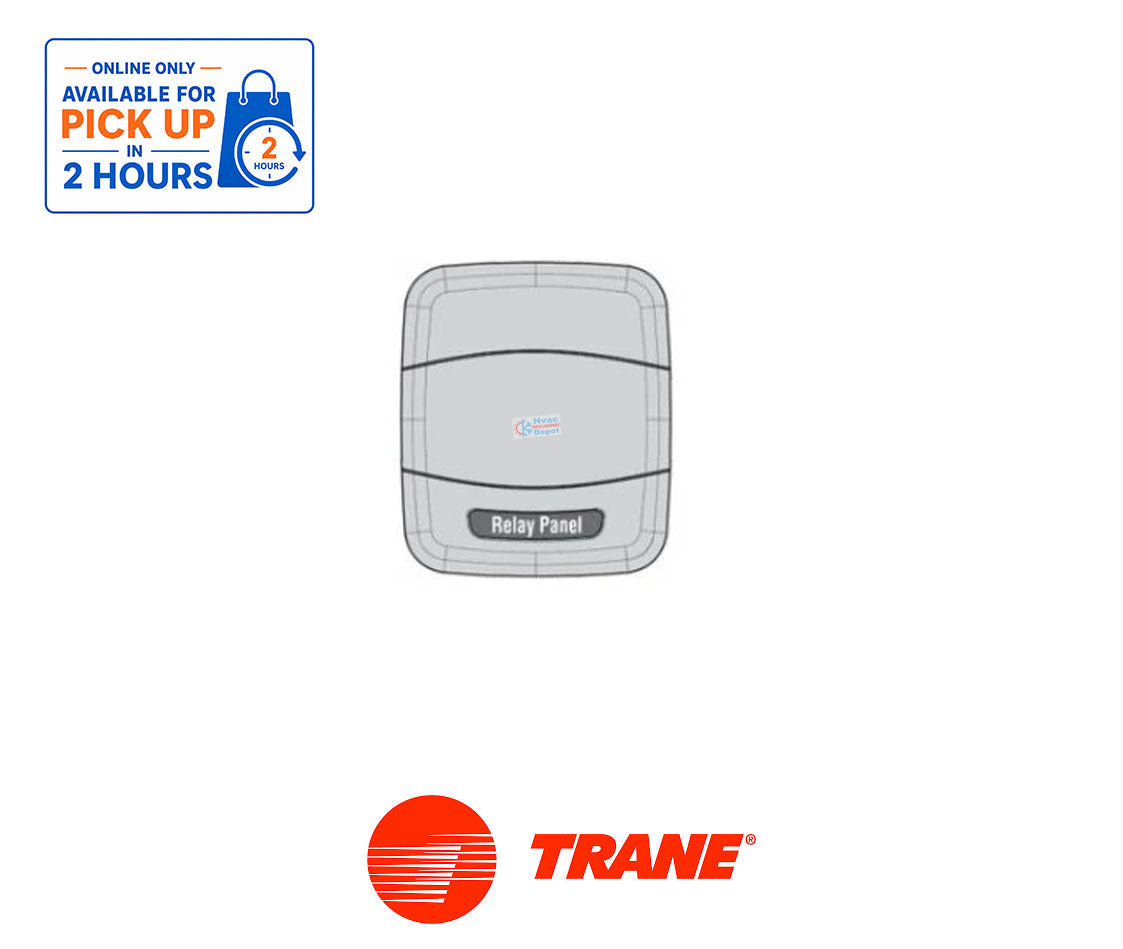

Trane BAY24VRPAC52DC 24V ComfortLink Interface Relay Panel

Genuine Trane / American Standard OEM relay panel
24VAC conventional HVAC system interface
Supports up to 5 heating and 2 cooling stages
Auxiliary contacts for humidification, dehumidification, and ventilation
Compatible with select Trane ComfortLink XL850 and XL1050 controls

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Specification Details

Manufacturer Trane / American Standard

Manufacturer Part Number BAY24VRPAC52DC

Product Type HVAC System Interface Relay Panel

Control Voltage 24VAC

Operating Voltage Range 18–30VAC

Power Consumption 4 VA

Heating Stages Up to 5

Cooling Stages Up to 2

Heat Pump Support Yes, compatible configurations

Dual Fuel Support Yes

Auxiliary Contact Rating 2A Dry Contact

Dehumidifier Control Supported

Ventilation Control Supported

Humidifier Control Supported

Stage Indicators LED

Terminal Connections Removable Low-Voltage Terminal Blocks

Width 8.0 inches

Height 9.3 inches

Depth 1.9 inches

Operating Temperature -40°F to 150°F

Storage Temperature -40°F to 175°F

Operating Humidity 5–95% RH, Non-Condensing

Replacement Type OEM HVAC Control Component

description

The Trane / American Standard BAY24VRPAC52DC is an OEM 24-volt HVAC system interface relay panel designed for compatible Trane ComfortLink and American Standard AccuLink communicating control systems. This relay panel provides an interface between compatible communicating thermostats and conventional 24V HVAC equipment.

The BAY24VRPAC52DC supports up to 5 stages of heating and 2 stages of cooling, including compatible heat pump and dual-fuel configurations. It features auxiliary contacts for whole-home dehumidification, ventilation, and humidification control, making it a versatile component for integrated HVAC comfort management.

Designed for residential heating and cooling applications, this relay panel includes LED stage indicators, removable low-voltage terminal blocks, and optional remote temperature sensor connections.

Key Features & Function

Brand: Trane / American Standard
Part Number: BAY24VRPAC52DC
Product Type: HVAC Interface Relay Panel
Control Voltage: 24VAC
Heating Stages: Up to 5
Cooling Stages: Up to 2
Compatible System Types: Heat Pump and Dual Fuel
Control Platform: ComfortLink / AccuLink
Auxiliary Contacts: Included
Supports whole-home dehumidifier control
Supports ventilation control
Supports humidifier control
LED indicators for equipment stages
Removable low-voltage terminal blocks
Optional indoor and outdoor temperature sensor connections
Designed for compatible communicating HVAC controls

HVAC Depot Pro Tip

Before installing the Trane BAY24VRPAC52DC, verify that the existing thermostat and HVAC equipment support the required communicating-to-conventional interface configuration.

Important installation checks:
- Confirm compatibility with the existing Trane ComfortLink or American Standard AccuLink control.
- Verify the 24VAC power supply and transformer capacity.
- Confirm the required heating and cooling stage configuration.
- Check auxiliary control wiring for humidifiers, dehumidifiers, and ventilation equipment.
- Follow the manufacturer's wiring diagram and configuration instructions.
Important: The BAY24VRPAC52DC is an HVAC interface relay panel, not a universal furnace control board or standard contactor. It must be installed with compatible equipment and controls.

Installation should be performed by a qualified HVAC technician.

Equipment / Model Compatibility

The Trane BAY24VRPAC52DC is designed for compatible Trane and American Standard HVAC systems using ComfortLink or AccuLink controls.

Compatible Control Models

Control Model

Description

TCONT850AC52UA

Trane ComfortLink XL850 Control

TZON1050AC52ZA

Trane ComfortLink XL1050 Control

Supported Equipment Configurations
- Compatible variable-speed heat pump systems
- Compatible variable-speed air-conditioning systems
- Select S-Series non-communicating variable-speed furnaces
- Compatible dual-fuel HVAC systems
- Conventional 24V HVAC equipment integrated with supported communicating controls
Compatibility Note: Confirm the complete equipment model numbers, thermostat model, and installation requirements before ordering.
