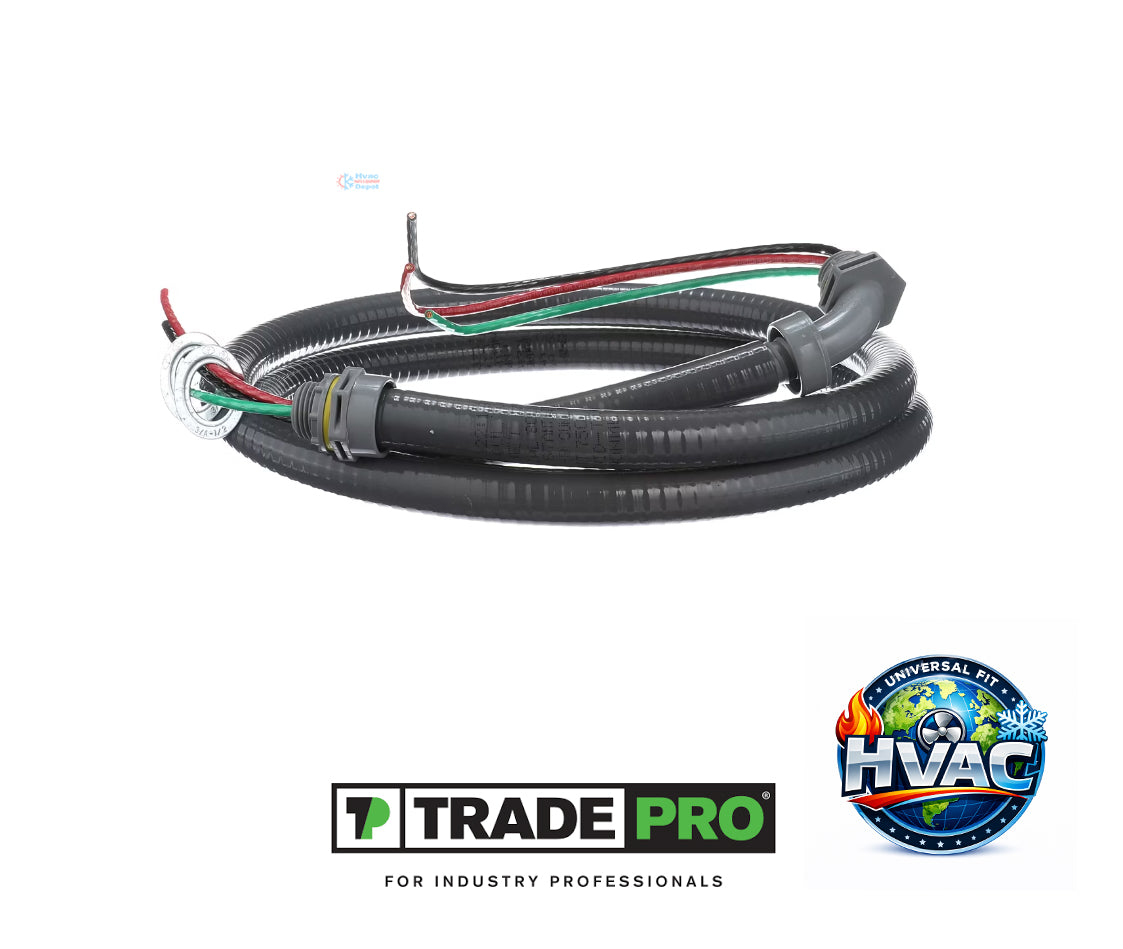

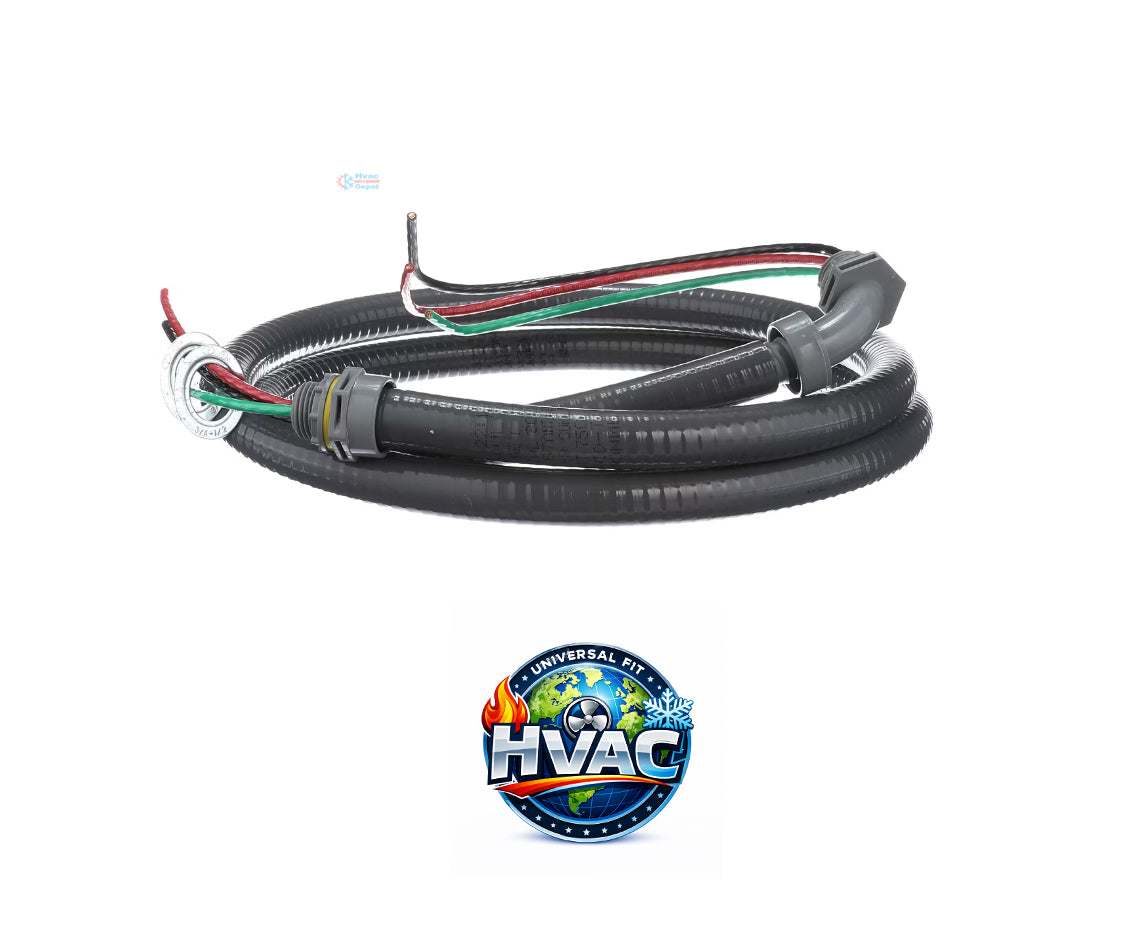

TRADEPRO TP-WHIP-1/2X6NM Non-Metallic HVAC Whip 1/2" x 6' with #10 THHN Wire OEM Replacement

The TP-WHIP-1/2X6NM is a professional-grade, liquid-tight non-metallic power whip, acting as the critical electrical "umbilical cord" for your outdoor condenser or heat pump. This pre-assembled kit functions as the system's primary power brain, safely carrying high-voltage current from the disconnect box to the unit's contactor. Engineered for durability and speed of install, it features a 6-foot flexible conduit housing three #10 gauge THHN copper conductors. By using a genuine TRADEPRO whip, you ensure your installation meets NEC (National Electrical Code) requirements for outdoor liquid-tight applications, preventing the internal wire degradation and short circuits common with inferior field-assembled wiring.

Key Features

• Genuine TRADEPRO Part Number TP-WHIP-1/2X6NM: Guaranteed professional-grade fit featuring pre-installed non-metallic connectors for a 100% rust-proof installation.
• Heavy-Duty #10 THHN Wire: Specifically sized to handle up to 30-amp circuits, providing the necessary current for 1.5 to 5-ton residential cooling systems.
• Eliminate Corrosion and Noise Issues: Replaces old, rusted metallic whips that vibrate against the cabinet or crack over time, leading to dangerous ground faults.
• Advanced UV and Moisture Monitoring: Manufactured with high-flex, sunlight-resistant conduit that stays pliable in freezing temperatures and won't crack under direct UV exposure.
• Simplified Installation Kit: Includes one straight and one 90-degree non-metallic connector, allowing for a clean, professional sweep from the wall to the unit.

Product Details

• Brand: TRADEPRO
• Manufacturer: Nidec / TRADEPRO
• Part Number: TP-WHIP-1/2X6NM
• Conduit Size: 1/2" Diameter
• Length: 6 Feet
• Wire Gauge: #10 AWG (THHN)
• Conductors: 3 (Black, Red, Green Ground)
• Connector Type: Non-Metallic (1 Straight, 1 90-Degree)
• Maximum Amperage: 30 Amps
• Weight: 2.8 lbs

🛠️ HVAC Depot Pro Tip

Take a Picture First — Before pulling the old wires out of the disconnect box, photograph the terminal lugs and the ground bar. Since this whip uses #10 THHN wire, ensure your wire nuts or terminal screws are torqued tightly; a loose connection at 30 amps is the leading cause of "burnt" wires and intermittent unit restarts. During your diagnostic check, make sure the 90-degree connector is installed at the unit side to prevent water from pooling against the electrical knockouts. Always use the included anti-short bushings if required by local code to prevent the conduit edges from rubbing the wire insulation.

Cross-Reference

• Superseded Parts: TP-WHIP-1/2X4, NM-WHIP-12-6, 12-6-10NM
• Legacy Drawing Numbers: 84131, 84133, 84136
• Equivalent Brands: Southwire 55189307, DiversiTech 6-12-10NM, Mars 84131, Rectorseal 83015

Model Compatibility

• Condenser Units (Suffixes: 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton, 3.5 Ton)
• Heat Pump Systems (Suffixes: Standard and High-Efficiency Outdoor Units)
• Package Units (Suffixes: Small Footprint Gas/Electric and Dual Fuel)
• Ductless Outdoor (Suffixes: 18k, 24k, 30k, 36k BTU Multi-Zone)
