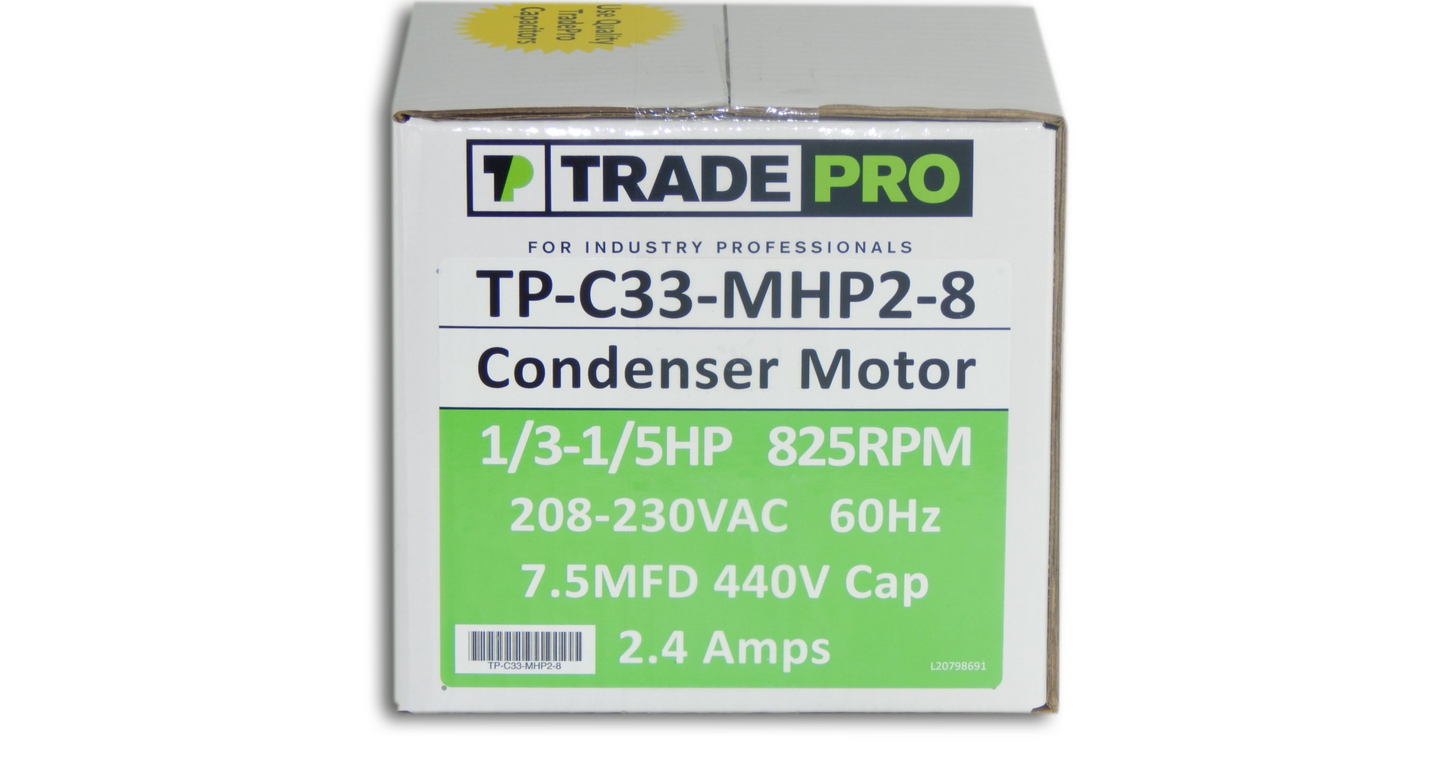

TRADEPRO TP-C33-MHP2-8 Condenser Motor | 825 RPM 208-230V 1/3 - 1/5 Multi-HP 48 Frame

The TP-C33-MHP2-8 is a high-performance, professional-grade Multi-Horsepower condenser motor designed to serve as the heavy-duty "heart" of your outdoor AC or heat pump unit. This motor acts as the primary "brain" for heat rejection, driving the fan blade to pull ambient air across the condenser coils to maintain safe refrigerant pressures. Engineered as a universal "truck stock" solution, this motor supports a range of power outputs from 1/3 HP down to 1/5 HP, making it the ultimate replacement for hundreds of OEM models. Its low-speed 825 RPM calibration is specifically designed for high-efficiency units that require quiet operation and superior static pressure management, ensuring your system hits its rated SEER performance even in extreme 2026 summer heat.

Key Features

• Multi-Horsepower Versatility: The TP-C33-MHP2-8 features a specialized "one-motor-replaces-many" design, allowing it to function as a 1/3, 1/4, or 1/5 HP motor by simply matching the correct capacitor.
• Precision OEM Fit: Built on a standardized 48 Frame (5.6" diameter) with extended mounting bolts, ensuring a seamless fit into the existing motor brackets of Carrier, Trane, Goodman, and Rheem units.
• Resolved Noise & Vibration: Features high-grade ball bearings and a dynamically balanced rotor to fix specific "shaking" or "bearing squeal" issues found in aging sleeve-bearing motors.
• All-Angle Safety Monitoring: Equipped with automatic thermal overload protection and a totally enclosed (TEAO) housing, allowing for safe operation in shaft-up, shaft-down, or horizontal positions.
• Superior Weather Protection: Designed with extra-long 36" leads and a water-shedding slinger to prevent moisture from entering the motor through the shaft, fixing common "short-to-ground" failures.

Product Details

• Brand: TRADEPRO®
• Manufacturer: Professional Grade
• Part Number: TP-C33-MHP2-8
• Horsepower: 1/3 - 1/5 HP Multi-HP
• Voltage: 208-230 VAC
• RPM: 825 (6-Pole)
• Full Load Amps (FLA): 2.0A (at 1/3 HP)
• Frame Size: 48 Frame (5.6" Diameter)
• Enclosure: Totally Enclosed Air Over (TEAO)
• Capacitor Required: 7.5 MFD or 5.0 MFD / 370V (Dependent on HP used)

🛠️ HVAC Depot Pro Tip

Before removing your old motor, take a high-resolution picture of the original wiring and the fan blade's position on the shaft. Because this is a multi-HP motor, it is critical to use the correct capacitor: use a 7.5 MFD for 1/3 HP and a 5.0 MFD for smaller loads. When installing the TP-C33-MHP2-8, ensure you check the rotation (CW/CCW); this motor features easy reversing leads that allow you to match the fan blade's pitch in seconds. Always replace the run capacitor when installing a new motor to validate your warranty and ensure proper start-up torque.

Cross-Reference

This multi-HP motor is a direct replacement or equivalent for the following legacy and manufacturer part numbers:

• Superseded Parts: TP-C33-MHP2, MOT09415
• Legacy Numbers: F48G39A01, 5KCP39SFS237, S81-016
• Drawing Numbers: 4868, MARS 10468
• White-Rodgers/Emerson Equivalents: 1868, 5464, Rescue 5464

Model Compatibility

This 825 RPM motor is compatible with a wide range of outdoor condensing units. Grouped by base tonnage/application:

High-Efficiency Residential Condensers

• 3-Ton to 5-Ton Units (Suffixes: 13 SEER, 14 SEER, 16 SEER)
• Heat Pump Units (Suffixes: Low Speed Fan, Quiet Shift)

Commercial Roof Top Units (RTU)

• Carrier / Bryant / Payne (Suffixes: 38 series, 50 series)
• Goodman / Amana (Suffixes: GSX, GSZ series)
