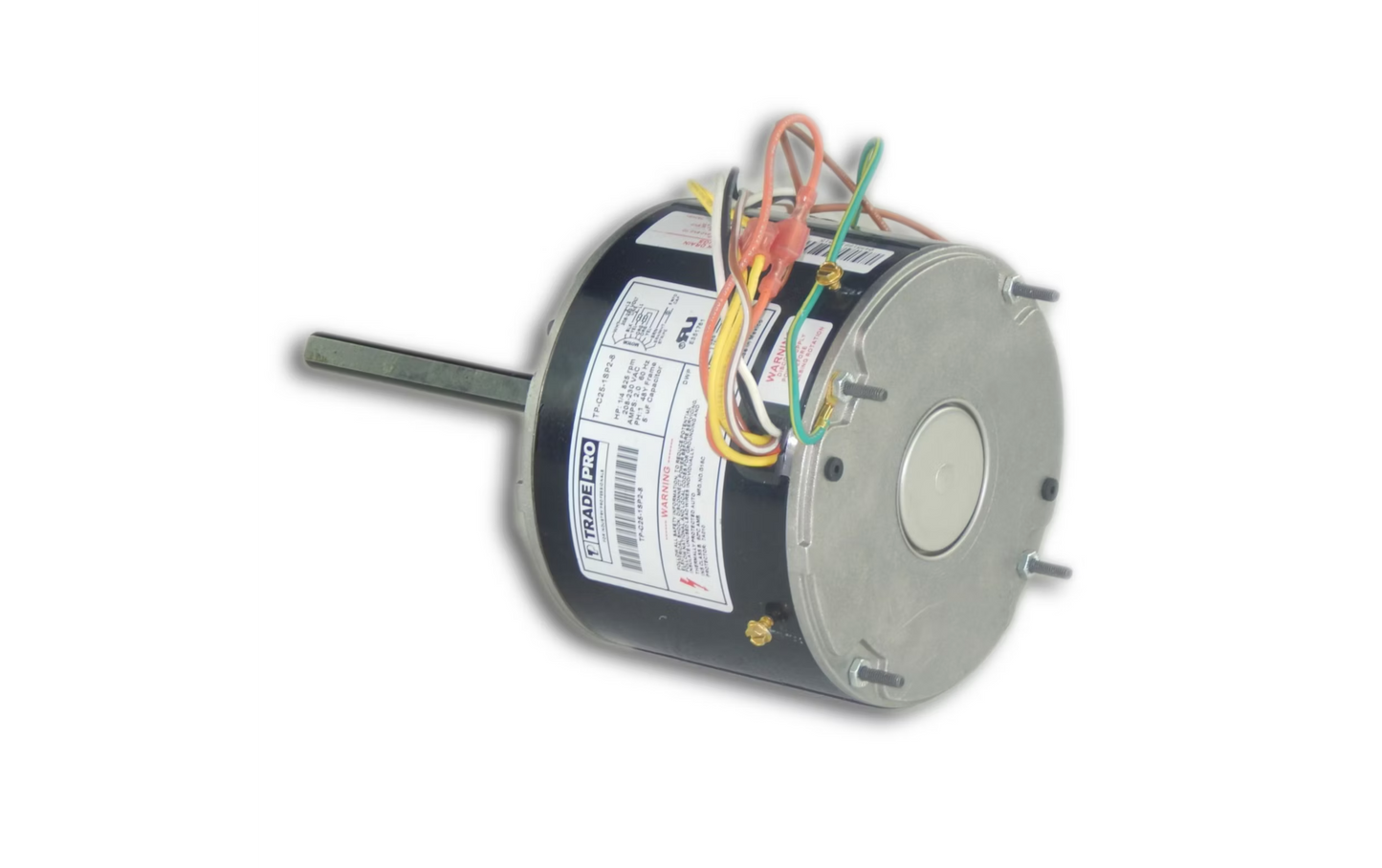

TRADEPRO® TP-C25-1SP25-1SP Condenser Fan Motor – PSC 1/4 HP 208-230V 825 RPM 1-Speed

The TRADEPRO® TP-C25-1SP is a high-reliability Permanent Split Capacitor (PSC) condenser fan motor, acting as the primary heat-rejection "engine" for your outdoor air conditioning or heat pump system. Designed for high-ambient outdoor environments, this 1/4 HP motor drives the fan blades that dissipate thermal energy from the condenser coils, ensuring your system maintains the correct head pressure. Operating at a specialized 825 RPM, it is the perfect solution for ultra-quiet operation and specific high-efficiency furnace and A/C series that require lower velocity airflow. As a professional-grade TRADEPRO® component, it offers an OEM-quality fit with upgraded internal insulation to handle the intense duty cycles of modern cooling systems.

Key Features and Function:

• Quiet Airflow Management: The 825 RPM low-speed calibration provides significant noise reduction compared to standard 1075 RPM motors while maintaining critical thermal exchange.
• Genuine Professional Reliability/Fitment: Features a standard 48-frame housing and extended mounting bolts, ensuring a direct fit for major brands like Carrier, Rheem, and Goodman.
• Heavy-Duty Ball Bearing Build: Equipped with permanently lubricated ball bearings for smooth, vibration-free operation and an extended service life in vertical or horizontal orientations.
• Direct-Fit Design/Plug-and-Play: Includes a 4-wire color-coded lead system and reversible rotation capability, allowing for a simplified installation across a vast array of condenser cabinets.

Product Details and Key Specifications:

• Part Number: TP-C25-1SP (Replaces P251-8254, MOT09403)
• Manufacturer: TRADEPRO® (Professional Grade)
• Part Type: PSC Condenser Fan Motor
• Voltage: 208-230V
• HP / RPM: 1/4 HP @ 825 RPM
• Phase / Hertz: Single-phase (1PH) / 60 Hz
• Rotation: Reversible (Lead Reversal)
• Frame Size: 48 Frame (5-5/8" Diameter)
• Capacitor Required: 5 MFD / 370V (Sold Separately)
• Shipping Weight: 13.8 lbs

🛠️ HVAC Depot Pro Tip: Check Your Fan Pitch

Before installing the TP-C25-1SP, verify the pitch and balance of your existing fan blade. Because this motor runs at a lower 825 RPM, any imbalance or "wobble" in the blade can cause the motor to draw higher-than-rated amps, potentially tripping the internal thermal overload. Always perform a Diagnostic Check on the new motor's amperage draw once installed; it should be within 10% of the nameplate rating. Additionally, always point the "drain plugs" downward to prevent rainwater from pooling inside the motor windings.

Cross-Reference & Compatibility:

The TP-C25-1SP is a direct replacement for the following part numbers:

• OEM / ServiceFirst: P251-8254, P251-1254, MOT09403, MOT12170
• Fasco / Aftermarket: D7909, 1860, 3860
• Genteq / GE: 3237, 5KCP39FGN651S, 5KCP39EGS070S
• Mars / Packard: 10458, 43458, 60458

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

• Carrier / Bryant / Payne: 38TZA, 38BYC, 38YKC (825 RPM Series)
• Rheem / Ruud / WeatherKing: RAMA, RAKA, RPLA, UAKA (1/4 HP Low-Speed Configurations)
• Lennox / Ducane / Armstrong: 13ACD, 13HPD (Check motor shaft length)
• Goodman / Amana: Various high-efficiency 14-16 SEER outdoor units requiring 825 RPM.
