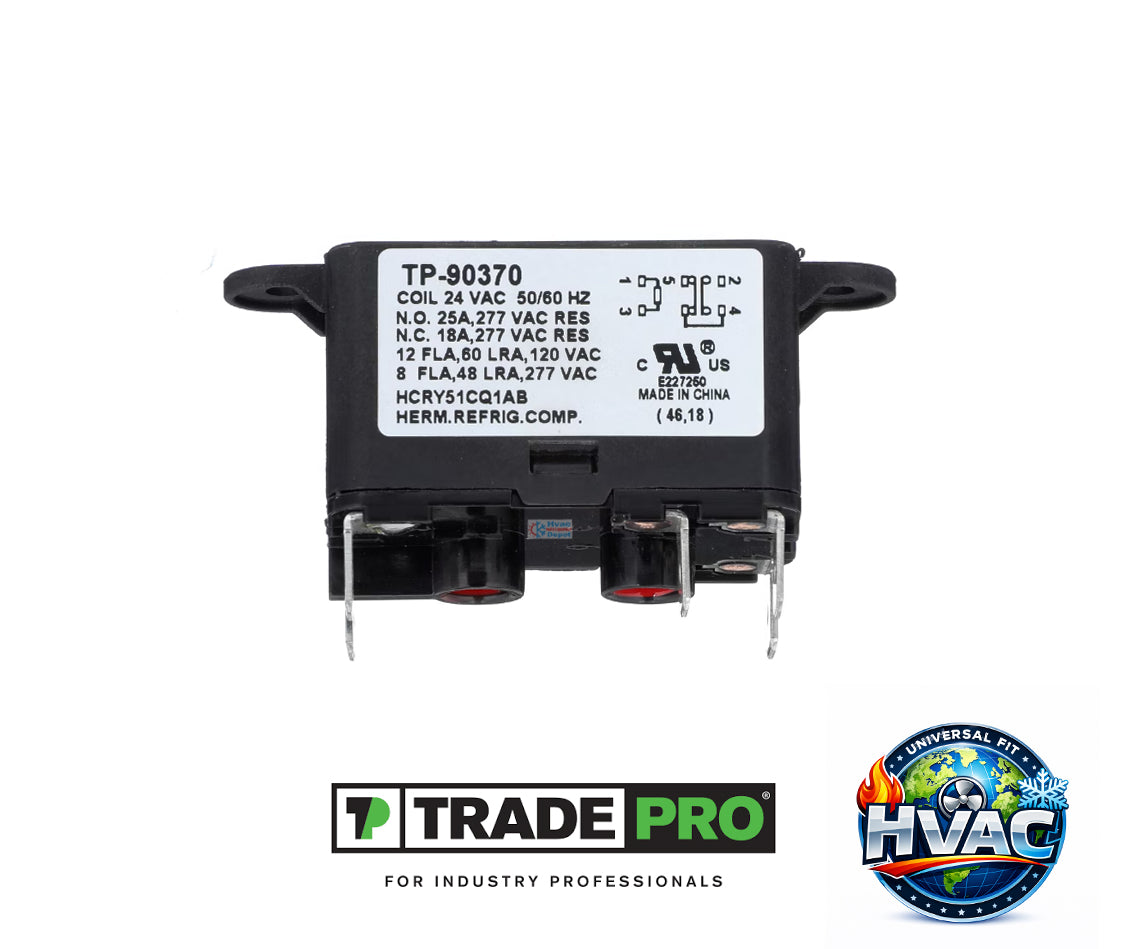

TRADEPRO TP-90370 – Heavy-Duty SPDT Fan Relay (24 VAC)
TRADEPRO TP-90370 – Heavy-Duty SPDT Fan Relay (24 VAC)
Low stock: 4 left
Key Features & Specifications
-
Industrial-grade 24 VAC switching relay for HVAC systems.
-
SPDT configuration (1 Form C) for flexible wiring applications.
-
Fully enclosed housing protects internal contacts for longer life.
-
Standard 1/4" quick-connect terminals for fast installation.
-
Direct replacement for Mars 90370 and White-Rodgers 90-370.
Please visit our store for pick up.
Couldn't load pickup availability
safe & secure Checkout
Specifications
Specifications
Product Details and Key Specifications:
Part Number: TP-90370 (MFG: HCRY51CQ1AB217)
Manufacturer: TRADEPRO®
Part Type: General Purpose / Fan Switching Relay
Coil Voltage: 24 VAC
Contact Arrangement: SPDT (Single Pole Double Throw)
Contact Rating: 12A / 15A Res. @ 120V
Terminals: 1/4" Male Quick-Connects
description
description
TRADEPRO TP-90370 – Heavy-Duty SPDT Fan Relay (24 VAC)
The TRADEPRO® TP-90370 is a professional-grade Single Pole Double Throw (SPDT) switching relay designed for reliable control of blower motors, fans, and auxiliary HVAC components. This relay allows a low-voltage 24 VAC control signal to safely manage higher voltage loads. As a critical link in the system's electrical sequence, it ensures that high-amperage components engage only when triggered by the thermostat or control board.
Constructed for high-duty cycles, the TP-90370 features an enclosed design to protect electrical contacts from dust, moisture, and oxidation. The SPDT configuration provides both Normally Open (NO) and Normally Closed (NC) circuits, offering versatile wiring options for two-speed fan applications or interlocking safety circuits. Choosing a TRADEPRO® relay ensures industrial-strength switching reliability and a long mechanical life.
Key Features and Function:
-
Precision 24V Control: Specifically tuned for standard 24 VAC HVAC control circuits to prevent sticking or failing to pull in.
-
Dual-Circuit Flexibility: SPDT design allows for "change-over" switching between two different loads or speeds.
-
Quiet & Reliable Operation: High-quality internal coil and contact points reduce mechanical hum and electrical arcing.
-
Universal Mounting: Features a heavy-duty mounting bracket designed to fit standard screw patterns in most furnace and air handler cabinets.
Product Details and Key Specifications:
-
Part Number: TP-90370 (MFG: HCRY51CQ1AB217)
-
Manufacturer: TRADEPRO®
-
Part Type: General Purpose / Fan Switching Relay
-
Coil Voltage: 24 VAC
-
Contact Arrangement: SPDT (Single Pole Double Throw)
-
Contact Rating: 12A / 15A Res. @ 120V
-
Terminals: 1/4" Male Quick-Connects
🛠️ HVAC Depot Pro Tip: The "Speed-Switching" Setup
The TP-90370 is the "go-to" relay for adding a manual fan-on option to older systems. When wiring for two-speed control, ensure the "Common" terminal is securely seated. If you hear a loud buzzing, check your common wire connection; a loose terminal creates high resistance that can melt the plastic housing of the relay before the fuse even blows.
Cross-Reference & Compatibility:
The TP-90370 is a direct replacement for many industry-standard SPDT relays, including:
-
Mars: 90370, 90340
-
Honeywell: R8222D1014
-
White-Rodgers: 90-370
-
Zettler: AZ2280-1C-24AF
-
DiversiTech: REL-370
Extensive Model Compatibility List:
-
Forced Air Systems: Used in residential and light commercial air handlers from Carrier, Goodman, York, and Nordyne.
-
Specialty Controls: Compatible with electronic air cleaners, bypass humidifiers, and zone control panels.
