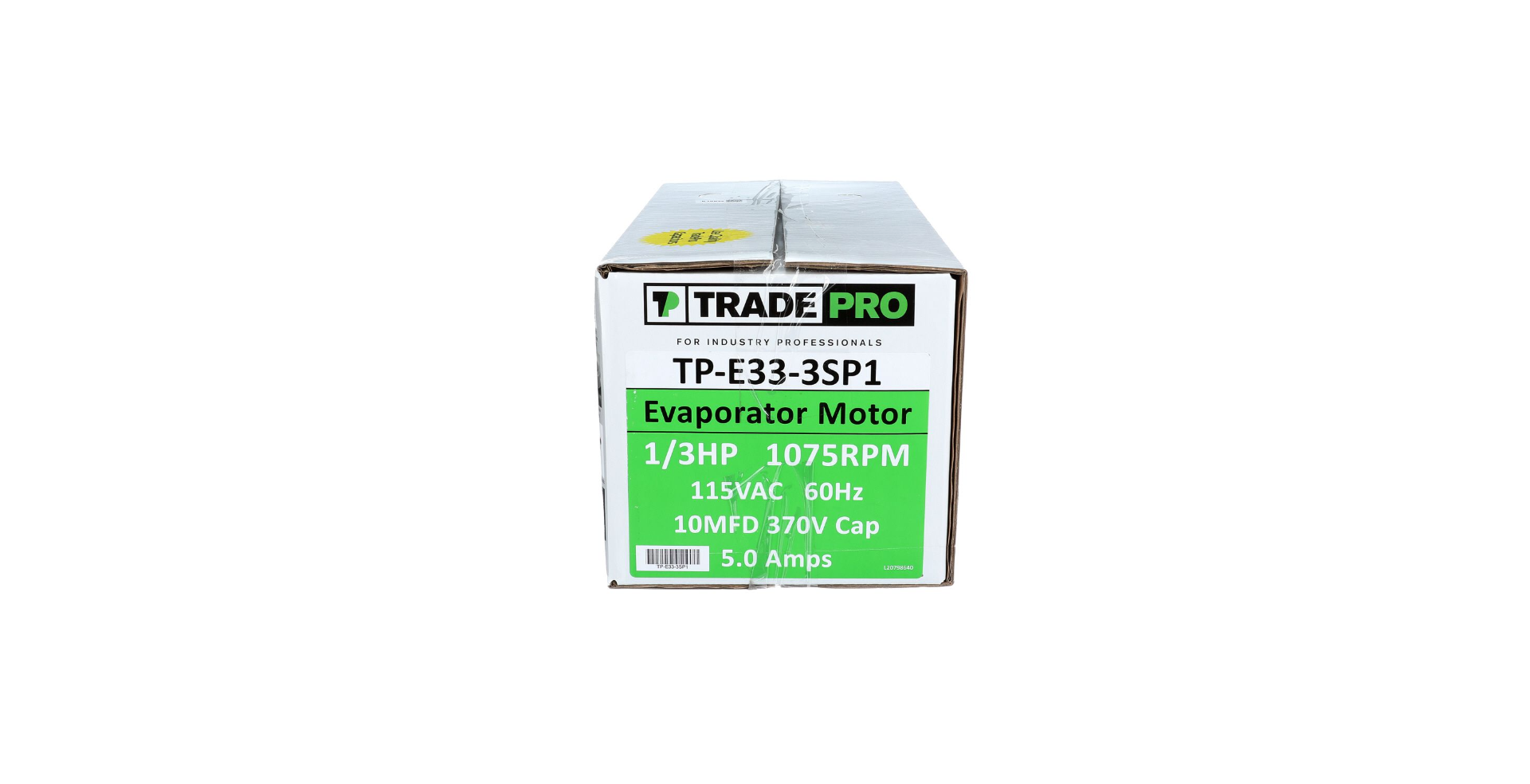

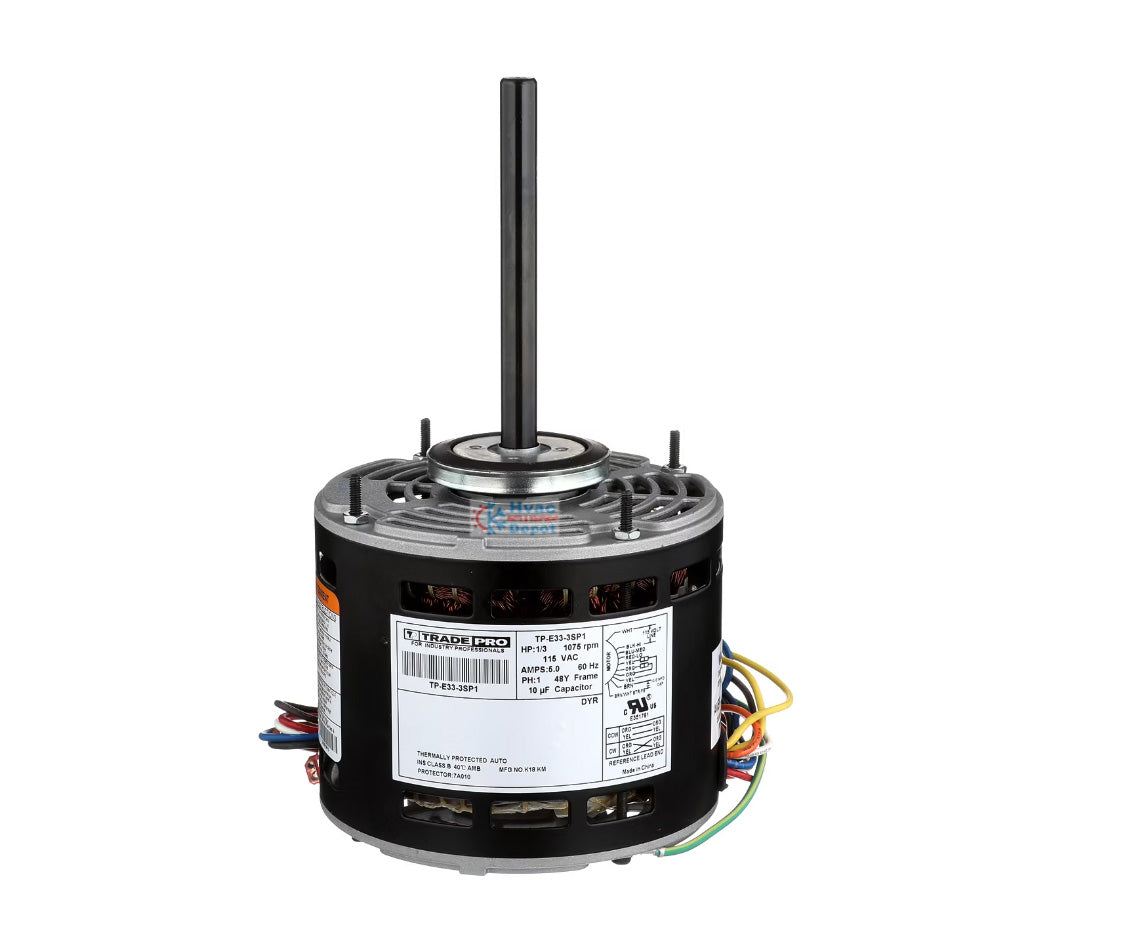

Trade Pro TP-E33-3SP1 PSC Evaporator Motor 1/3 HP 115V 1075RPM 3-Speed

Trade Pro TP-E33-3SP1 PSC Evaporator Motor 1/3 HP 115V 1075RPM 3-Speed

Low stock: 7 left

Regular price $175.62 USD
Regular price Sale price $175.62 USD
Sale Sold out
Shipping calculated at checkout.

Key Features & Specifications

  • Universal 1/3 HP PSC motor compatible with numerous HVAC systems.

  • Operates on 115V single-phase power with a 5.0 Amp draw.

  • Offers three speeds (up to 1075 RPM) for flexible airflow management.

  • Features a durable 48Y frame, 1/2" shaft, and quiet self-aligning bearings.

  • Reversible rotation allows for versatile installation in CCW or CW applications.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details:

  • Feature: Specification
  • Horsepower: 0.33 HP (1/3 HP)
  • Voltage: 115 VAC
  • Phase: Single-phase
  • RPM: 1075 RPM (3 speeds)
  • Amperage: (FLA) 5 A
  • Rotation: Reversible
  • Frame Size: 48Y
  • Shaft Diameter: 0.50 inches (1/2")
  • Shaft Length: 5 inches
  • Enclosure Type: Open Air Over (OPAO)
  • Insulation Class: Class B
  • Capacitor Required: 10 MFD 370V or 440V (inlcuded)

description

Trade Pro TP-E33-3SP1 PSC Evaporator Motor 1/3 HP 115V 1075RPM 3-Speed

The Trade Pro TP-E33-3SP1 is a universal fixed fractional PSC (Permanent Split Capacitor) evaporator motor designed for use in a wide variety of residential and light commercial HVAC air handling units and furnaces. It serves as the primary component for moving conditioned air through the ductwork, with multiple speed options to accommodate different operational demands for heating and cooling cycles.

Key Features:

  • Multi-Speed Versatility: Offers three distinct speeds (800, 950, 1075 RPM) to fine-tune airflow based on system requirements and desired efficiency levels.

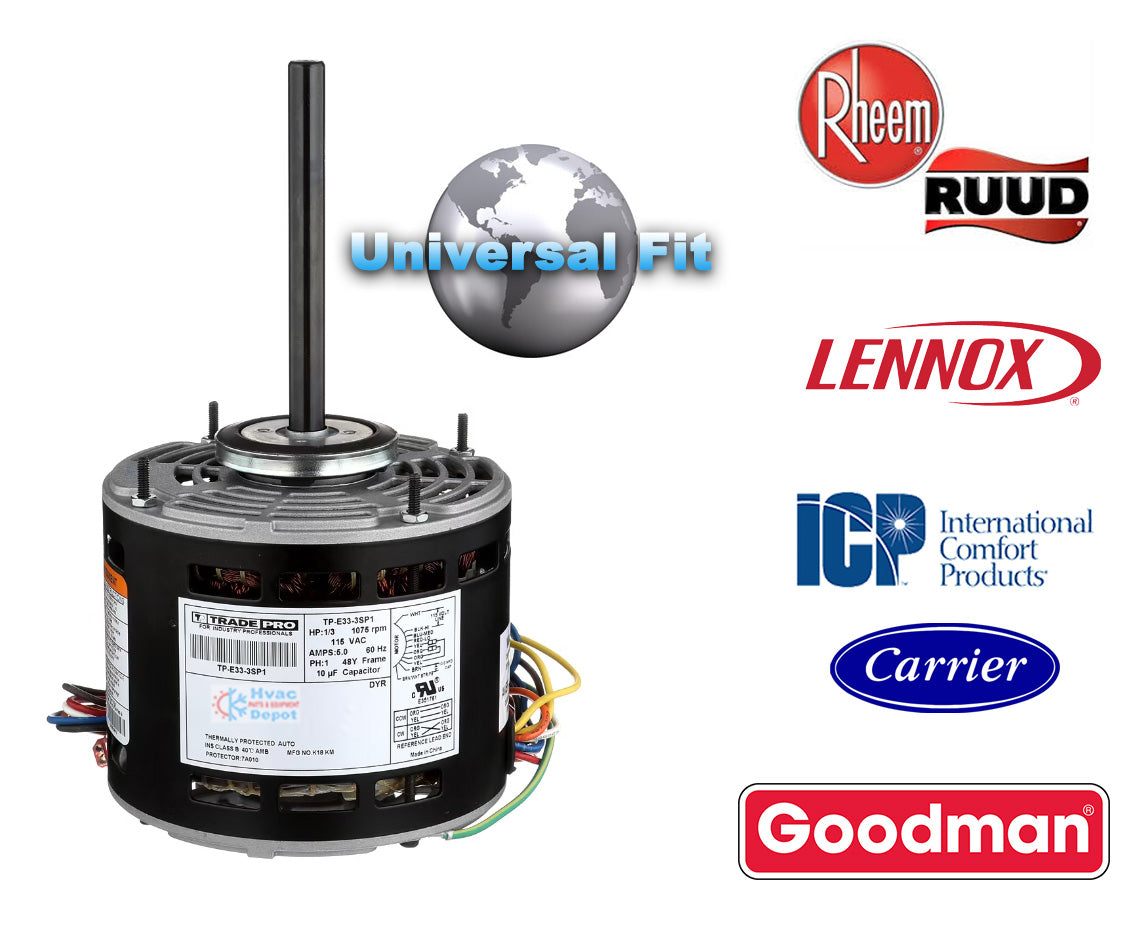

  • Universal Replacement: Designed as a universal component with pre-drilled side shell mounts to accept various mounting rings and brackets, simplifying replacement across different brands.
  • Durable Bearing System: Features self-aligning sleeve bearings (SAB) designed for quiet operation and a long service life.
  • Reversible Rotation: The direction of rotation is reversible, offering installation flexibility without needing different motor models for CW or CCW applications.

Product Details:

  • Feature: Specification
  • Horsepower: 0.33 HP (1/3 HP)
  • Voltage: 115 VAC
  • Phase: Single-phase
  • RPM: 1075 RPM (3 speeds)
  • Amperage: (FLA) 5 A
  • Rotation: Reversible
  • Frame Size: 48Y
  • Shaft Diameter: 0.50 inches (1/2")
  • Shaft Length: 5 inches
  • Enclosure Type: Open Air Over (OPAO)
  • Insulation Class: Class B
  • Capacitor Required: 10 MFD 370V or 440V (inlcuded)

🛠️ HVAC Depot Pro Tip:

This motor is reversible. To change the rotation direction, you must follow the wiring diagram on the motor label and swap the specified two leads. Also, because this is an Open Air Over (OAO) motor, it relies on the air movement created by the attached blower wheel to stay cool. Ensure the motor is installed correctly in the airflow path and the blower wheel is clean and balanced.

Cross-Reference:
Manufacturer: Trade Pro
Compatible With: Many universal motor replacements (verify specs)
Country of Origin: Mexico
Model Compatibility:
As a universal motor, it is not tied to specific OEM furnace models but is compatible with systems requiring the listed electrical and physical specifications. It is designed to fit many brands, including units from:
Rheem
Goodman
Carrier
Lennox
Amana
