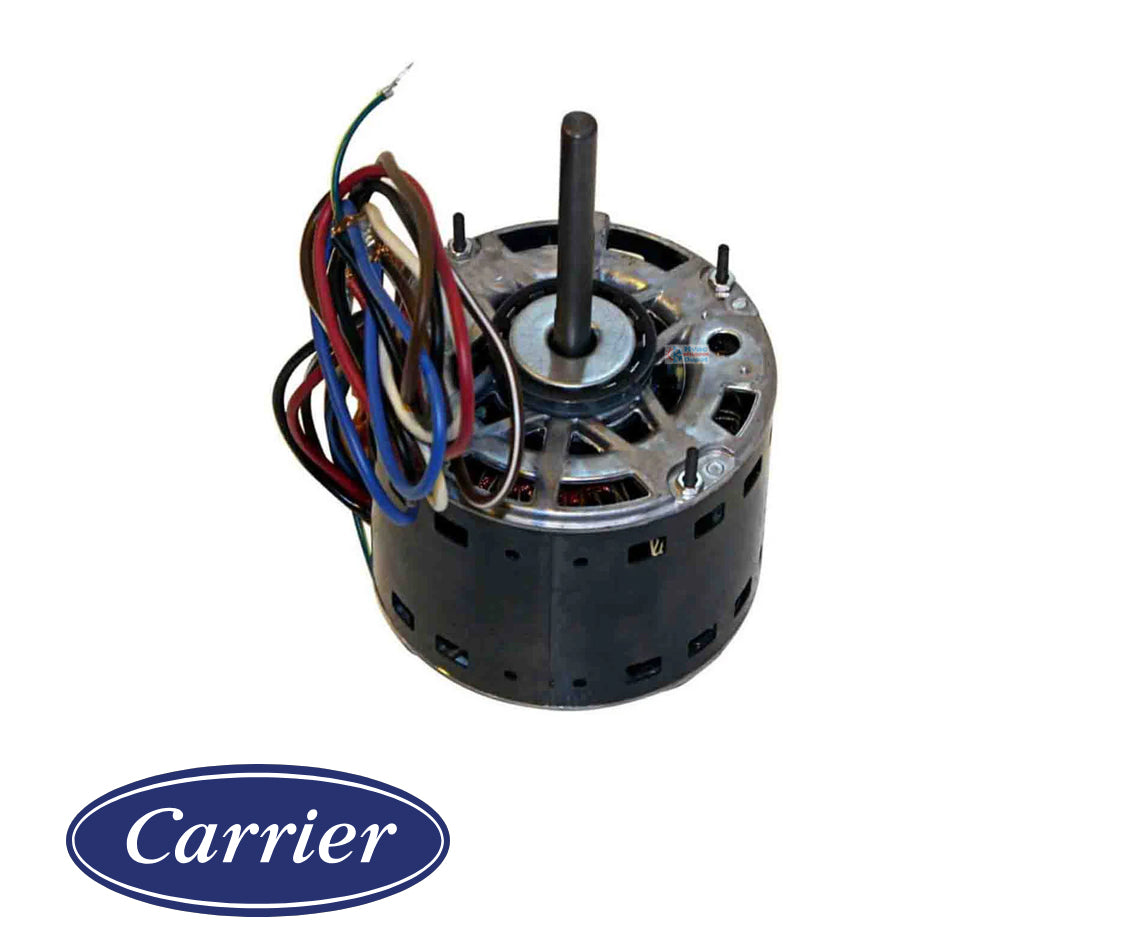

TOTALINE® P257-E5461 Multi-Horsepower Direct Drive Blower Motor – 1/6 to 1/2 HP, 208-230 VAC, 1,075 RPM, 4-Speed PSC

TOTALINE® P257-E5461 Multi-Horsepower Direct Drive Blower Motor – 1/6 to 1/2 HP, 208-230 VAC, 1,075 RPM, 4-Speed PSC

In stock

Regular price $359.46 USD
Regular price Sale price $359.46 USD
Sale Sold out
Shipping calculated at checkout.

Totaline - Totaline Direct Drive Blower Motors

  • High-Voltage Universal Repair: One motor covers five horsepower ratings for 208-230V systems, ensuring you always have the right part for the job.

  • OEM Fit & Performance: Built to Carrier's exacting standards to restore factory-specified airflow and quiet operation.

  • Rapid Field Reversal: Reversing plugs allow for instant rotation adjustment without the need for complex rewiring.

  • Advanced Motor Protection: Internal thermal sensors prevent expensive system downtime by protecting motor windings from electrical stress.

  • Multi-Speed Efficiency: Utilize the four available speed taps to find the perfect balance between comfort, noise, and energy consumption.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Details

  • Brand: TOTALINE® (Carrier Authorized)
  • Manufacturer: Totaline / Carrier Corporation
  • Part #: P257-E5461
  • Weight: 14.2 lbs
  • Horsepower (HP): Multi-Horsepower (1/6, 1/5, 1/4, 1/3, 1/2 HP)
  • Voltage: 208-230 VAC (60 Hz)
  • Full Load Amps (FLA): 3.9 Amps
  • RPM: 1,075 RPM
  • Speeds: 4-Speed
  • Frame Size: 48Y NEMA Frame (5.6" diameter)
  • Capacitor Required: 10 MFD @ 370 VAC (Varies by HP selection; verify nameplate)
  • Enclosure: Open Air Over (OAO)

description

TOTALINE® P257-E5461 Multi-Horsepower Direct Drive Blower Motor – 1/6 to 1/2 HP, 208-230 VAC, 1,075 RPM, 4-Speed PSC

The High-Voltage Universal Rescue Solution

The TOTALINE® P257-E5461 is a professional-grade, multi-horsepower direct-drive motor specifically engineered for 208-230V residential and light commercial HVAC systems. As an official OEM Totaline "Rescue" component for Carrier, Bryant, and Payne equipment, this Permanent Split Capacitor (PSC) motor eliminates the need to carry multiple single-horsepower motors. With a selectable power range from 1/6 HP up to 1/2 HP, it acts as the central "engine" for air handlers and furnaces, providing the high-voltage reliability required to maintain original manufacturer airflow specifications across a vast array of equipment sizes.

Key Features

  • Multi-Horsepower Part Number: The P257-E5461 replaces five distinct motor ratings (1/6, 1/5, 1/4, 1/3, and 1/2 HP) in one SKU, drastically reducing truck stock requirements.
  • Selectable 4-Speed Logic: Equipped with four separate speed taps, allowing for precise CFM tuning to resolve common issues like evaporator coil freezing or insufficient heat rise.
  • Simple Reversible Rotation: Features a dedicated reversing plug system for instant rotation changes in the field, ensuring compatibility with both clockwise and counter-clockwise blower housings.
  • OEM Safety Monitoring: Built with an automatic reset thermal overload protector that prevents motor burnout during high-pressure or restricted airflow events.
  • Universal Installation Design: Utilizes extended thru-bolts and a standard 48Y NEMA frame, allowing it to fit into existing OEM cradle, torsion flex, or belly-band mounts without modification.

Product Details

  • Brand: TOTALINE® (Carrier Authorized)
  • Manufacturer: Totaline / Carrier Corporation
  • Part #: P257-E5461
  • Weight: 14.2 lbs
  • Horsepower (HP): Multi-Horsepower (1/6, 1/5, 1/4, 1/3, 1/2 HP)
  • Voltage: 208-230 VAC (60 Hz)
  • Full Load Amps (FLA): 3.9 Amps
  • RPM: 1,075 RPM
  • Speeds: 4-Speed
  • Frame Size: 48Y NEMA Frame (5.6" diameter)
  • Capacitor Required: 10 MFD @ 370 VAC (Varies by HP selection; verify nameplate)
  • Enclosure: Open Air Over (OAO)

🛠️ HVAC Depot Pro Tip

"Check Your Voltage and Capacitance." When installing the P257-E5461, ensure you are working with a true 208-230V power supply; installing this on a 115V circuit will cause permanent damage. Because this is a multi-horsepower motor, always refer to the wiring diagram on the motor shell to match the correct run capacitor to your horsepower selection. A weak or incorrectly sized capacitor will cause the motor to "hunt" for speed or trip on thermal limit. Always secure the unused speed leads with wire nuts to prevent shorting against the blower housing.

Cross-Reference

  • Superseded/Legacy Numbers: F257-3464, T257-3464, 5461, 3464, 1171805
  • Equivalent Model Numbers: ML10464, K55HXNFM-0908, WG840464, S1-FHM3464
  • White-Rodgers/Emerson Equivalents: Emerson 1864, 50M51-243 (Board match)
  • Industry Equivalents: Rescue 5461, Mars 10464, Wagner WG840464, Packard FDL6002

Model Compatibility

  • Carrier / Bryant / Payne (Suffixes: FB4B, FA4A, PF4M, 40AQ, FC4D, FJ4, FX4**)**
  • Trane / American Standard (Suffixes: TWE, TWE-E, TWA, TWC**)**
  • Lennox (Suffixes: CBX25, CBX27, CBX32, CB26, CB30**)**
  • Universal Application (Suffixes: Fits most 208-230V residential air handlers and heat pump fan coils utilizing a 48-frame motor**)**
