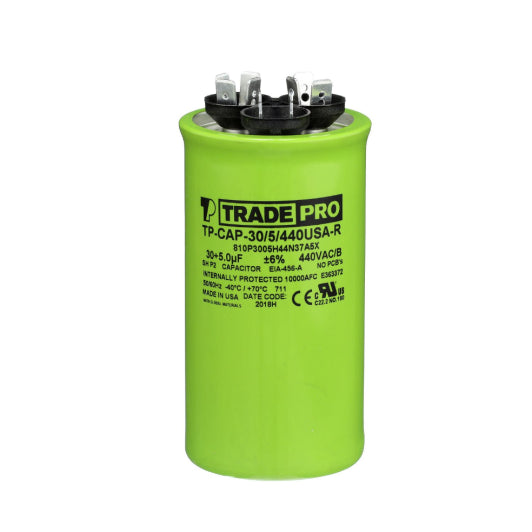

TRADEPRO® TP-CAP-30/5/440USAR Round Dual Run Capacitor – 30/5 MFD, 440V, USA Made, UL 810

The TRADEPRO® TP-CAP-30/5/440USAR is a premium, USA-manufactured dual run capacitor engineered to be the dependable "heart" of residential and light commercial HVAC systems. This aluminum, oil-filled powerhouse is designed to provide the specific phase-shift torque required by both the compressor and the condenser fan motor simultaneously. Built in strict accordance with UL 810 and EIA standard RS-456, it ensures your outdoor unit starts smoothly and runs with maximum electrical efficiency. By utilizing advanced microprocessor-grade quality control during production, this USA-made component significantly reduces the risk of premature motor failure and mid-season system lockouts.

Key Features

• Dual-Function Output: Precision-engineered with 30/5 MFD capacitance, the TP-CAP-30/5/440USAR independently supports the compressor and fan for balanced system performance.
• True American Craftsmanship: Proudly Made in the USA, offering superior foil-winding consistency and longer service life compared to standard import alternatives.
• Universal Voltage Protection: Rated for 440 VAC, providing a heavy-duty, high-tolerance upgrade for systems originally using 370 VAC capacitors.
• Industrial-Grade Safety: Features a built-in pressure-sensitive interrupter and non-PCB oil construction, ensuring the unit fails safely under extreme electrical stress.
• Enhanced Heat Dissipation: The rugged aluminum housing is designed to quickly shed heat, maintaining stable capacitance in extreme attic or outdoor environments.

Product Details

• Brand: TRADEPRO®
• Manufacturer Part #: TP-CAP-30/5/440USAR (ERP ID: 337588)
• Weight: 0.55 lbs
• Capacitance (MFD µF): 30/5
• Voltage: 440 VAC (370V Compatible)
• Cycle/Hertz: 50/60 Hz
• Shape: Round (1.75" to 2" Diameter)
• Composition: Aluminum Oil-Filled
• Temperature Range: -40°F to 158°F (-40°C to 70°C)
• Standards: UL 810, EIA RS-456, UL Recognized, CSA Certified
• Origin: USA Made

🛠️ HVAC Depot Pro Tip

"Check the Terminals for Corrosion." When replacing a capacitor, always inspect the female spade connectors on your wires. If they are loose, burnt, or rusted, snip them off and crimp on new heat-shrink terminals. A loose connection at the capacitor is the #1 cause of "melted" terminals and premature board failure. Always discharge the old capacitor with an insulated tool before touching these leads!

Cross-Reference

• Superseded/Legacy Numbers: TP-CAP-30/5/440, 30+5 MFD 440V, 337588, TRPCAP305440
• White-Rodgers/Emerson & Industry Equivalents: 97F9834, C3305R, CPT00652, MARS 12278, Packard PRC305, GE / Genteq 97F9834BZ3
• Drawing Numbers: RS-456 Standard, UL810 Build

Model Compatibility

• Carrier / Bryant / Payne Suffixes: 38CKC, 38BRC, 38TKA, 561CJ, 661CJ, PH10, PA13**)**
• Goodman / Amana / Janitrol Suffixes: CKL, CPKF, GSC, GSH, GSX13, SSZ14**)**
• Rheem / Ruud Suffixes: RAMB, RAPM, RARL, RASC, RAST, UAKA, UAKB**)**
• Trane / American Standard Suffixes: 2TTB, 2TTR, 4TTB, 4TTR, TWN, TWE**)**
• Lennox Suffixes: 13ACX, 13HPX, 14ACX, 14HPX, HS26, HS29**)**
