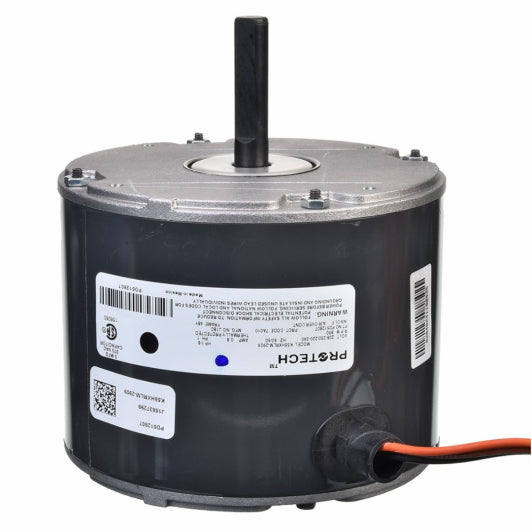

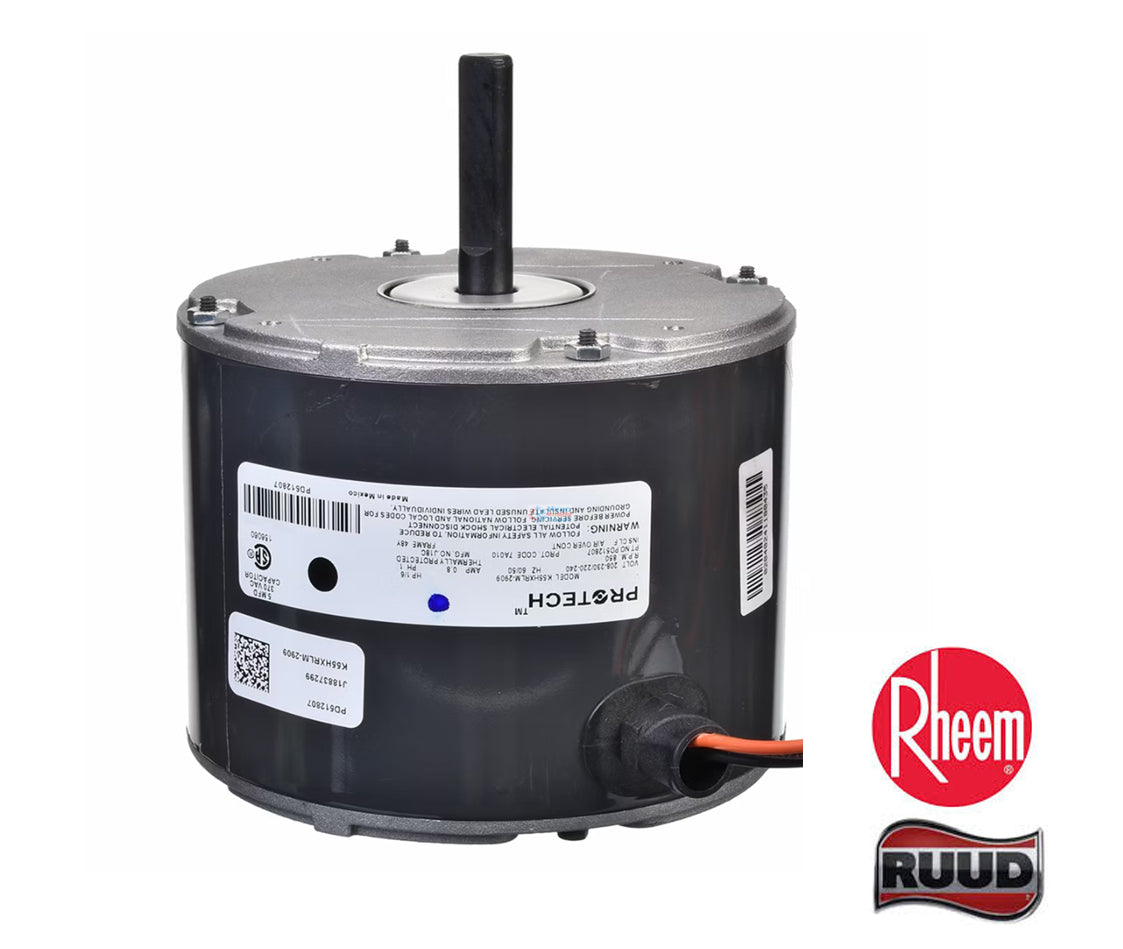

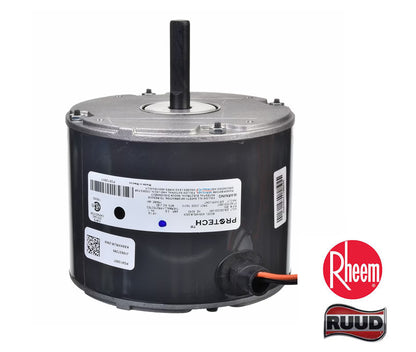

Rheem PD512807 Genuine OEM Condenser Fan Motor 1/6 HP 208-230V 825 RPM

Name: Rheem PD512807 Genuine OEM Condenser Fan Motor 1/6 HP 208-230V 825 RPM
Brand: PROTECH™
SKU: 662766625608
Price: 298.22 USD
Availability: InStock

$298.22 USD

Sale Sold out

Shipping calculated at checkout.

Quick Details & Specs

Ultra-Quiet Low RPM: Engineered at a specialized 825 RPM to provide steady airflow for smaller outdoor units while significantly reducing ambient operational noise.
True OEM Calibration: This 1/6 HP motor is a factory-authorized PROTECH replacement for part PD512807, ensuring your system maintains its original SEER efficiency rating.
Thermal Protection Shield: Equipped with internal Automatic Thermal Overload Protection to monitor winding heat and prevent motor burnout during extreme summer heatwaves.
Resilient Outdoor Build: Features a Totally Enclosed Air Over (TEAO) housing and permanently lubricated bearings to resist rain, dust, and debris in harsh environments.
Seamless Installation: Designed as a standard 48-frame motor with universal mounting options, allowing for a direct-fit replacement in Rheem, Ruud, and WeatherKing units.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Electrical Specifications

Horsepower: 1/6 HP
Voltage: 208-230 VAC
Phase: Single Phase (1 PH)
Frequency: 50/60 Hz
Full Load Amps (FLA): 1.0A @ 230V
Speed: 825 RPM (1 Speed)
Rotation (OSE): Counter-Clockwise (CCW)
Starting Method: DOL (Direct On Line)
Capacitor Required: 5 MFD / 370V (Sold Separately)
Frame Size: 48 Frame (5.6" Diameter)
Enclosure: Totally Enclosed Air Over (TEAO)

description

Rheem PD512807 Genuine OEM Condenser Fan Motor 1/6 HP 208-230V 825 RPM

The PROTECH™ PD512807 is a high-efficiency Genuine OEM Outdoor Condenser Fan Motor specifically designed for Rheem, Ruud, and WeatherKing air conditioning and heat pump systems. This motor is the primary component responsible for driving the condenser fan blade, which pulls ambient air through the outdoor coils to reject heat. By maintaining precise airflow, it ensures your system operates at peak efficiency while protecting the compressor from high-pressure failure.

Technical Performance:

Operating at 208-230V, this 1/6 HP motor features a specialized 825 RPM low-speed profile. This low-speed design is factory-tuned to match the static pressure requirements of specific Rheem/Ruud cabinets, providing a whisper-quiet operation that reduces the decibel levels of the outdoor unit. Being a Genuine OEM part, it features a Totally Enclosed Air-Over (TEAO) housing and high-grade ball bearings, ensuring it can withstand the extreme thermal cycling and weather exposure of a residential condensing unit.

Key Features and Function:

Precision Airflow Management: The 825 RPM speed is engineered to optimize heat exchange across the outdoor coil without excessive wind noise.
Genuine OEM Reliability & Fitment: Guaranteed to match the original mounting pattern and shaft dimensions, ensuring a "no-vibration" fit.
Heavy-Duty Weatherproof Build: Features a durable, enclosed motor body and permanently lubricated bearings to resist moisture, dust, and debris.
Direct-Fit Plug-and-Play: Includes the factory-correct lead lengths and electrical connectors for a fast, modification-free installation.

Product Details and Key Specifications:

Part Number: PD512807 (Replaces 51-23055-11, 51-42533-01)
Manufacturer: Rheem / Ruud (PROTECH™ Genuine OEM)
Part Type: Condenser Fan Motor (PSC)
Voltage: 208-230 VAC
HP / RPM: 1/6 HP @ 825 RPM
Phase / Hertz: Single-phase (1PH) / 50/60 Hz
Rotation: Clockwise (CW) / Lead End
Shipping Weight: 10.80 lbs

🛠️ HVAC Depot Pro Tip: The Drainage Check

When installing the PD512807, always ensure the motor's drain plugs are removed from the bottom (facing the ground) but left in on the top (facing the sky). This allows internal condensation to escape the motor body while preventing rainwater from entering. Additionally, always replace the 5 MFD / 370V run capacitor to prevent the new motor from overheating and to ensure it starts reliably during high-ambient summer days.

Cross-Reference & Compatibility:

The PD512807 is a direct OEM replacement for the following part numbers:

OEM Numbers: PD512807, 51-23055-11, 51-42533-01, 512305511
GE/Genteq: 5KCP39BGS069S

Extensive Model Compatibility List:

13AJM Series: 13AJM18, 13AJM24, 13AJM30
14AJM Series: 14AJM18, 14AJM24
RA13 Series: RA1318, RA1324
RA14 Series: RA1418, RA1424
WeatherKing: WA13, WA14 Series Condensers
