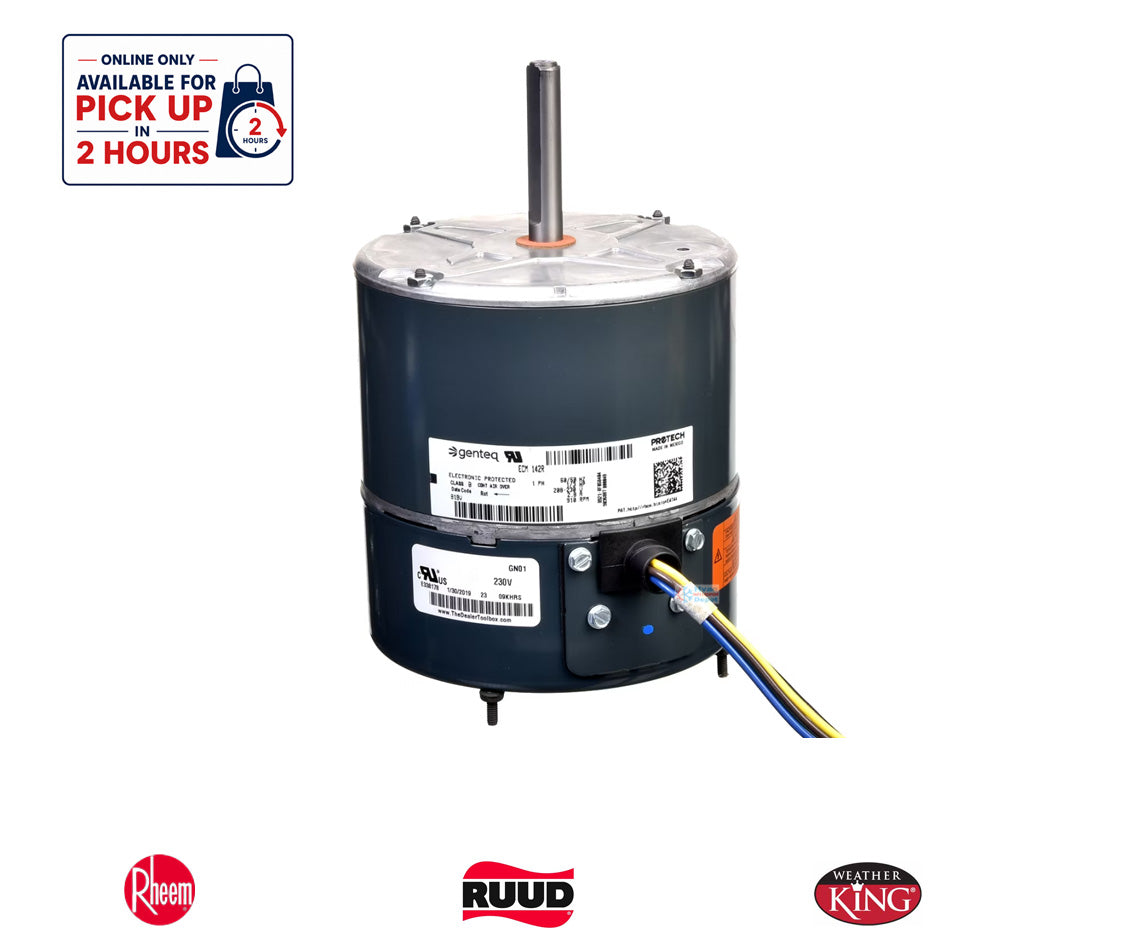

Rheem PROTECH 51-102728-23 Outdoor ECM Condenser Motor - 1/3 HP 208-230V

Name: Rheem PROTECH 51-102728-23 Outdoor ECM Condenser Motor - 1/3 HP 208-230V
Brand: Rheem
SKU: 0662766620139
Price: 675.54 USD
Availability: InStock

Low stock: 1 left

$675.54 USD

Sale Sold out

Shipping calculated at checkout.

Key Features & Specifications

Genuine Rheem/Ruud PROTECH OEM ECM Motor
High-Efficiency 1/3 HP Variable Speed (825/1075 RPM)
Supports 208-230V / 1PH / 60/50Hz Systems
Durable Ball Bearings for Quiet Outdoor Performance
Direct-Fit for RP14, RP15, and RP16 Heat Pumps

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details and Key Specifications:

Part Number: 51-102728-23
Manufacturer: Rheem / Ruud (PROTECH OEM)
Part Type: ECM Outdoor Condenser Fan Motor
Voltage: 208-230V
HP / RPM: 1/3 HP @ 825/1075 RPM (Variable Speed)
Phase / Hertz: Single-phase (1PH) / 60/50 Hz
Rotation: CCW (Counter-Clockwise)
Shipping Weight: 12.27 lbs

description

Rheem PROTECH 51-102728-23 Outdoor ECM Condenser Motor - 1/3 HP 208-230V

The Rheem PROTECH 51-102728-23 is a genuine OEM high-efficiency ECM (Electronically Commutated Motor) designed specifically for Rheem and Ruud outdoor condensing units and heat pumps. This motor plays a critical role in system performance by regulating fan speed to optimize airflow across the condenser coils, ensuring efficient heat rejection and reliable cooling cycles.

Technical Performance:

Operating at a versatile 208-230V range, this variable-speed motor delivers up to 1/3 HP with dual-speed ratings of 825/1075 RPM. As a genuine OEM component, it features factory-precise programming that eliminates the communication errors and vibration issues common with universal "one-size-fits-all" motors, providing a "plug-and-play" solution that maintains the unit's original SEER rating.

Key Features and Function:

Variable Speed Airflow Management: Automatically adjusts fan speed to match system demand, improving energy efficiency and humidity removal.
Genuine PROTECH Reliability: Built to exact factory specifications for a perfect physical and electrical fit without the need for additional wiring harnesses.
Weather-Resistant Build: Specifically engineered for harsh outdoor environments with durable ball bearings for quiet, long-lasting operation.
Direct-Drive Efficiency: Eliminates power loss from belts or pulleys, delivering robust performance directly to the fan blade.

Product Details and Key Specifications:

Part Number: 51-102728-23
Manufacturer: Rheem / Ruud (PROTECH OEM)
Part Type: ECM Outdoor Condenser Fan Motor
Voltage: 208-230V
HP / RPM: 1/3 HP @ 825/1075 RPM (Variable Speed)
Phase / Hertz: Single-phase (1PH) / 60/50 Hz
Rotation: CCW (Counter-Clockwise)
Shipping Weight: 12.27 lbs

🛠️ HVAC Depot Pro Tip: The "Five-Wire" Advantage

Unlike many universal ECM replacements that use a complex four-wire configuration and require an external capacitor or module, the 51-102728-23 is a true five-wire OEM motor. When installing, always check the motor's shaft for debris before mounting the fan blade; even a small amount of corrosion can cause a "wobble" that leads to premature bearing failure on high-efficiency ECMs.

Cross-Reference & Compatibility:

The 51-102728-23 is a direct replacement for the following part numbers:

OEM Numbers: 51-102728-23, RHM51-102728-23
Legacy/Replacement: 51-102728-04

Extensive Model Compatibility List:

Rheem/Ruud Series: RP14, RP15, RP16, RAPM, RPQL
Specific Models: RP1436FC1NA, RP1436FJ1NA, RP1536AC1NA, RP1536AJ1NA, RP1636AJ2NA, RAPM-042JAZ, RP1442AC1NA, RPQL-056JAZ, 15PJL60A01
