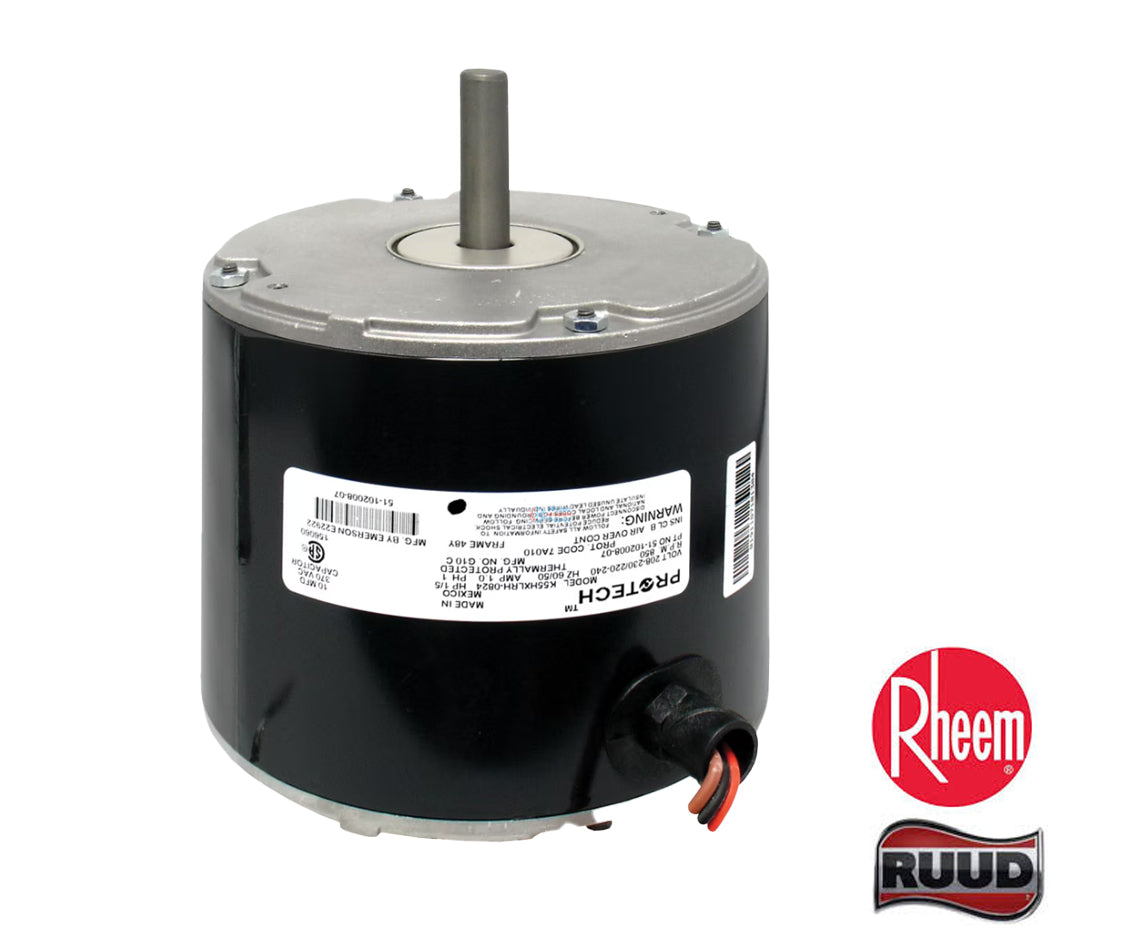

PROTECH™ 51-102500-04 Genuine OEM Condenser Fan Motor 1/5 HP 208-230V 825 RPM

Name: PROTECH™ 51-102500-04 Genuine OEM Condenser Fan Motor 1/5 HP 208-230V 825 RPM
Brand: Rheem
SKU: 662766345063
Price: 309.25 USD
Availability: InStock

In stock

$309.25 USD

Sale Sold out

Shipping calculated at checkout.

Quick Details & Specifications

Low-Speed Efficiency: Specifically rated at 825 RPM to provide quiet, high-efficiency airflow for smaller tonnage condensing units without excessive power consumption.
OEM Engineering: This 1/5 HP motor is a direct factory-authorized replacement for part number 51-102500-04, ensuring 100% mechanical and electrical compatibility.
Optimized Heat Dissipation: Designed as a Totally Enclosed Air Over (TEAO) motor, utilizing the fan's own airflow to maintain safe operating temperatures in extreme outdoor heat.
All-Angle Mounting: Features a versatile 48-frame design with extended thru-bolts and standard mounting holes for seamless installation in Rheem, Ruud, and Weather King cabinets.
Durable Bearings: Equipped with permanently lubricated ball bearings to eliminate the need for seasonal maintenance and resolve common grinding or squealing noise issues.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Electrical Specifications

Horsepower: 1/5 HP
Voltage: 208-230 VAC
Phase: Single Phase (1 PH)
Frequency: 50/60 Hz
Speed: 825 RPM (1 Speed)
Rotation (OSE): Counter-Clockwise (CCW)
Starting Method: DOL (Direct On Line)
Capacitor Required: 5 MFD / 370V (Sold Separately)
Frame Size: 42 Frame
Enclosure: Totally Enclosed Air Over (TEAO)

description

The PROTECH™ 51-102500-04 is a premium Genuine OEM Outdoor Condenser Fan Motor precision-engineered for Rheem, Ruud, and WeatherKing air conditioning and heat pump systems. This motor drives the condenser fan blade to pull ambient air across the outdoor coils, facilitating the critical heat rejection process required to cool your home. By maintaining consistent, designed airflow, this motor protects the compressor from high-pressure stress and ensures peak system efficiency during extreme outdoor temperatures.

Technical Performance:

Operating at 208-230V, this 1/5 HP motor features a specialized 825 RPM low-speed profile. This specific RPM is factory-tuned to minimize operational noise while maximizing airflow through the high-density fins of modern condenser coils. Being a Genuine OEM part, it utilizes a Totally Enclosed Air-Over (TEAO) design and high-grade ball bearings to survive the demanding thermal cycles of an outdoor environment. Unlike universal motors, the 51-102500-04 provides the exact shaft length and mounting diameter for a perfect, vibration-free fit.

Key Features and Function:

Precision Airflow Management: The 825 RPM speed is engineered to match the static pressure of Rheem/Ruud cabinets for optimal heat exchange.
Genuine OEM Reliability & Fitment: Guaranteed to align with factory mounting brackets and fan blade hubs without field modifications.
Heavy-Duty Weatherproof Build: Features a "Rain Shield" design and permanently lubricated bearings to resist moisture, dust, and debris.
Whisper-Quiet Operation: Advanced internal balancing reduces harmonic vibration, maintaining the low-decibel ratings of high-efficiency units.

Product Details and Key Specifications:

Part Number: 51-102500-04 (Replaces 51-23053-11, 51-42533-01)
Manufacturer: Rheem / Ruud (PROTECH™ Genuine OEM)
Part Type: Condenser Fan Motor (PSC)
Voltage: 208-230 VAC
HP / RPM: 1/5 HP @ 825 RPM
Phase / Hertz: Single-phase (1PH) / 60/50 Hz
Rotation: Clockwise (CW) / Lead End
Shipping Weight: 11.50 lbs

🛠️ HVAC Depot Pro Tip: The Slinger Check

When installing the 51-102500-04, ensure the rubber water slinger is positioned approximately 1/4 inch above the motor body on the shaft. This creates a centrifugal barrier that flings water away from the bearings during rain. Additionally, always replace the 3 MFD or 5 MFD / 370V run capacitor (check motor nameplate for specific rating) to prevent the new motor from running hot or failing to start under load.

Cross-Reference & Compatibility:

The 51-102500-04 is a direct OEM replacement for the following part numbers:

OEM Numbers: 51-102500-04, 5110250004
GE/Genteq: 5KCP39BGS069S
Fasco: D1092

Extensive Model Compatibility List:

RA13 Series: RA1318, RA1324, RA1330
RA14 Series: RA1418, RA1424, RA1430
RP14 Series: RP1418, RP1424, RP1430
Classic Series: 13AJM, 14AJM, 13PJL, 14PJL
WeatherKing: WA13, WA14, WP14 Series
