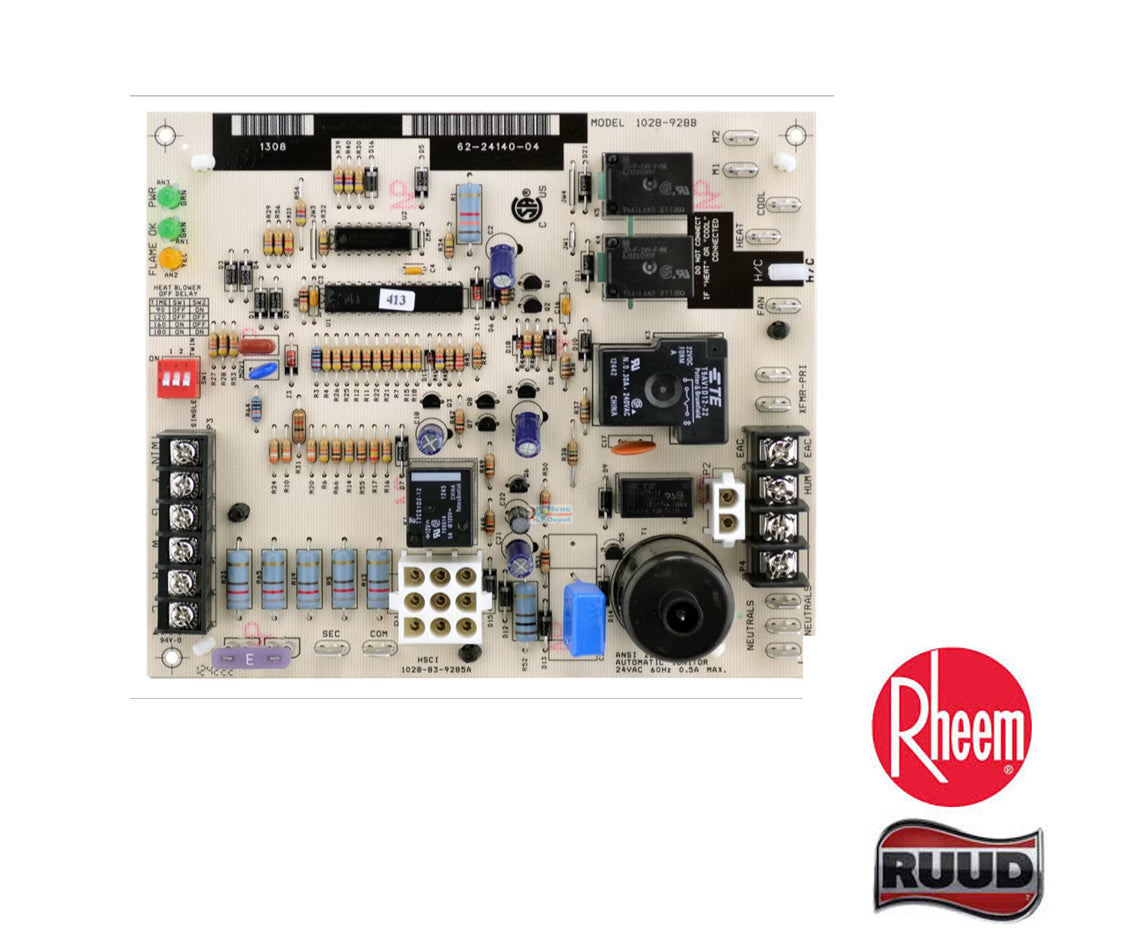

Rheem 62-24140-04 Integrated Furnace Control Board (IFC) Gas Codes EJ, EL, FY

Name: Rheem 62-24140-04 Integrated Furnace Control Board (IFC) Gas Codes EJ, EL, FY
Brand: Rheem
SKU: 662766317664
Price: 319.81 USD
Availability: InStock

Low stock: 2 left

$319.81 USD

Sale Sold out

Shipping calculated at checkout.

Key Product Features & Compatibility

Direct Replacement for Rheem 62-24140-04. This board is a form, fit, and functional replacement for Rheem, Ruud, and WeatherKing DSI (Direct Spark Ignition) systems.
Replaces DSI Systems Only. Note that the ICM292 is not a direct cross-reference for White Rodgers HSI boards like the 50A55 series. It is specifically for Rheem spark ignition models.
Dual Voltage Support. Operates with a 24 VAC control voltage and 115 VAC line voltage. It features a 30-second pre-purge and a 7-second trial for ignition.
Onboard LED Diagnostics. Includes built-in status and fault code LEDs to simplify troubleshooting and maintenance for both homeowners and technicians.
100% Lockout Safety. Microprocessor-based control monitors flame sensing and system switches; compatible with both Natural Gas and LP (Propane) systems.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

SPECIFICATIONS:

Control Voltage: 24 VAC (18-30 VAC), 60 Hz
Line Voltage: 115 VAC, 60 Hz
Power cons: 0.3A plus gas valve current at 24 VAC
Operating temp: -40°F to 176°F (-40°C to 75°C)

Timing:

Pre-purge: 30 seconds
Trial for ignition: 7 seconds
Retries: Two groups of two, 30 seconds delay within the group and 3 minutes delay between groups
Lockout: 1 hour
Post-purge: 90, 120, 160 and 180 seconds

Inputs:

Power: 24 VAC and COM
Thermostat interface: R, W, Y and G
System switches: Vent pressure and limit switches (main and over-temperature switches in series)
Flame Sensing
Heat blower OFF delay: SW1 toggle switch

Outputs:

Gas Valve: 3A Pilot Duty @ 120 VAC
Draft Inducer Motor: 3A max., 1/6 HP @ 125 VAC
Cool Blower: 16A max., 1/2 HP @ 277 VAC
Heat Blower: 14A max., 1/2 HP @ 277 VAC
Circulating Fan:12A max., 1 HP @ 125 VAC
Heat/Cool Fan: 10 A max., 1/2 HP @ 277 VAC
Electronic Air Cleaner: 10 A max., 1HP @ 125 VAC
Humidifier: 11 A max., 1/6 HP @ 125 VAC

LED Indicators:

Power, green LED: PWR
Status, green LED: OK
Flame status, yellow LED: FLAME

WEIGHT/DIMENSIONS:

Weight: 0.6
Height: 2.25
Width: 6.60

description

PROTECH 62-24140-04 Integrated Furnace Control Board (IFC) Gas Codes EJ, EL, FY

The PROTECH™ 62-24140-04 is a high-reliability Genuine OEM Integrated Furnace Control (IFC) Board engineered for Rheem, Ruud, and WeatherKing gas furnaces. As the "brain" of the HVAC system, this board manages the ignition sequence, monitors safety limit switches, and controls the timing for the inducer motor and indoor blower fan to ensure safe and efficient heating cycles.

Technical Performance:

Designed for 80% and 90%+ AFUE single-stage furnaces, this board operates on 24V control power and features advanced microprocessor logic for precise system diagnostics. Being a Genuine OEM component ensures exact timing for the hot surface igniter (HSI) and flame sensing circuits, preventing the "no-heat" lockouts often caused by the incorrect resistance values found in universal aftermarket boards. This specific revision is factory-programmed to recognize Gas Codes EJ, EL, and FY, ensuring seamless communication with your furnace's specific gas valve and inducer assembly.

Key Features and Function:

Precision Ignition Control: Manages the Hot Surface Igniter (HSI) and gas valve timing for reliable burner light-off.
On-Board Diagnostics: Features a multi-color LED indicator that flashes specific fault codes for rapid troubleshooting of limit trips or flame failures.
System Safety Integration: Continuously monitors the high-limit switch, rollout switch, and pressure switches to immediately shut down gas flow if an unsafe condition is detected.
Direct-Fit Engineering: Features factory-matched wiring harnesses and spade terminals for a "plug-and-play" installation without the need for jumper wire kits.

Product Details and Key Specifications:

Part Number: 62-24140-04 (Replaces 62-24140-02, 62-24140-03)
Manufacturer: Rheem / Ruud (PROTECH™ Genuine OEM)
Part Type: Integrated Furnace Control (IFC) / Circuit Board
Compatible Gas Codes: EJ, EL, FY
Voltage: 24V (Input) / 120V (Blower/Inducer Output)
Ignition Type: Hot Surface Ignition (HSI)
Shipping Weight: 1.15 lbs

🛠️ HVAC Depot Pro Tip: The Static Shock Warning

Control boards are extremely sensitive to Static Electricity (ESD). Before removing the board from its anti-static bag, ensure you touch a grounded metal part of the furnace cabinet to discharge any static from your body. Additionally, always take a clear photo of the original wiring before disconnecting any leads to ensure the blower speed taps (Heat/Cool/Fan) are moved to the correct terminals on the new 62-24140-04.

Cross-Reference & Compatibility:

The 62-24140-04 is a direct OEM replacement for the following part numbers:

OEM Numbers: 62-24140-04, 62-24140-02, 62-24140-03
Gas Codes: Must match Gas Code EJ, EL, or FY on the furnace rating plate.
Board ID: 1012-925, 1012-925A

Extensive Model Compatibility List:

R80 Series: R801PA, R801SA, R801TA, R802PA
R92 Series: R92PA, R92TA, R92MS
R95 Series: R95PA, R95TA, R95MS
R96 Series: R96PA, R96TA
Classic Series: RGRA, RGRB, RCBA, RGLN, RGLQ, RGPN, RGPQ
