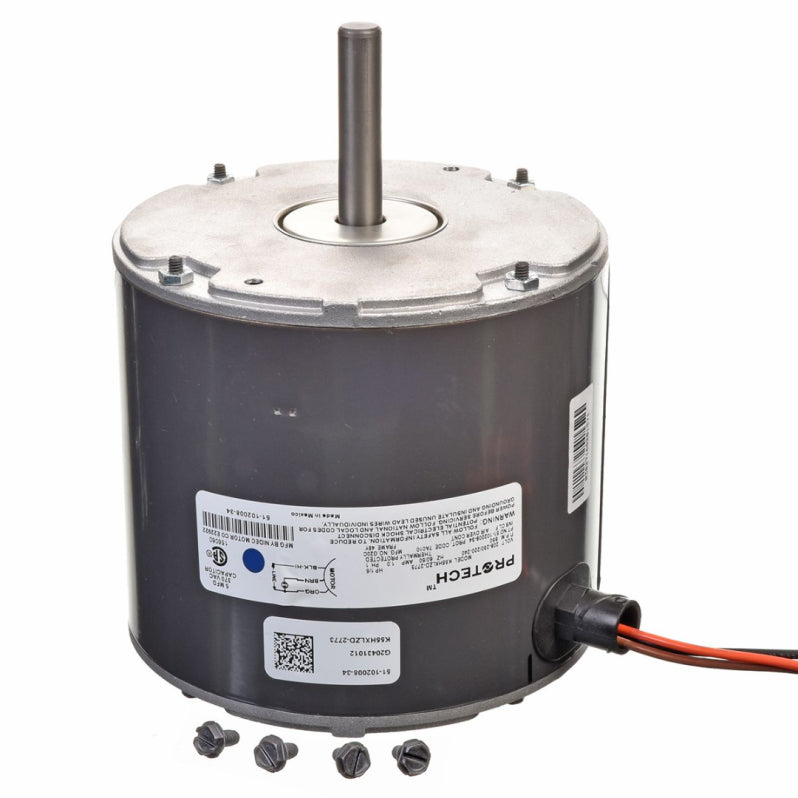

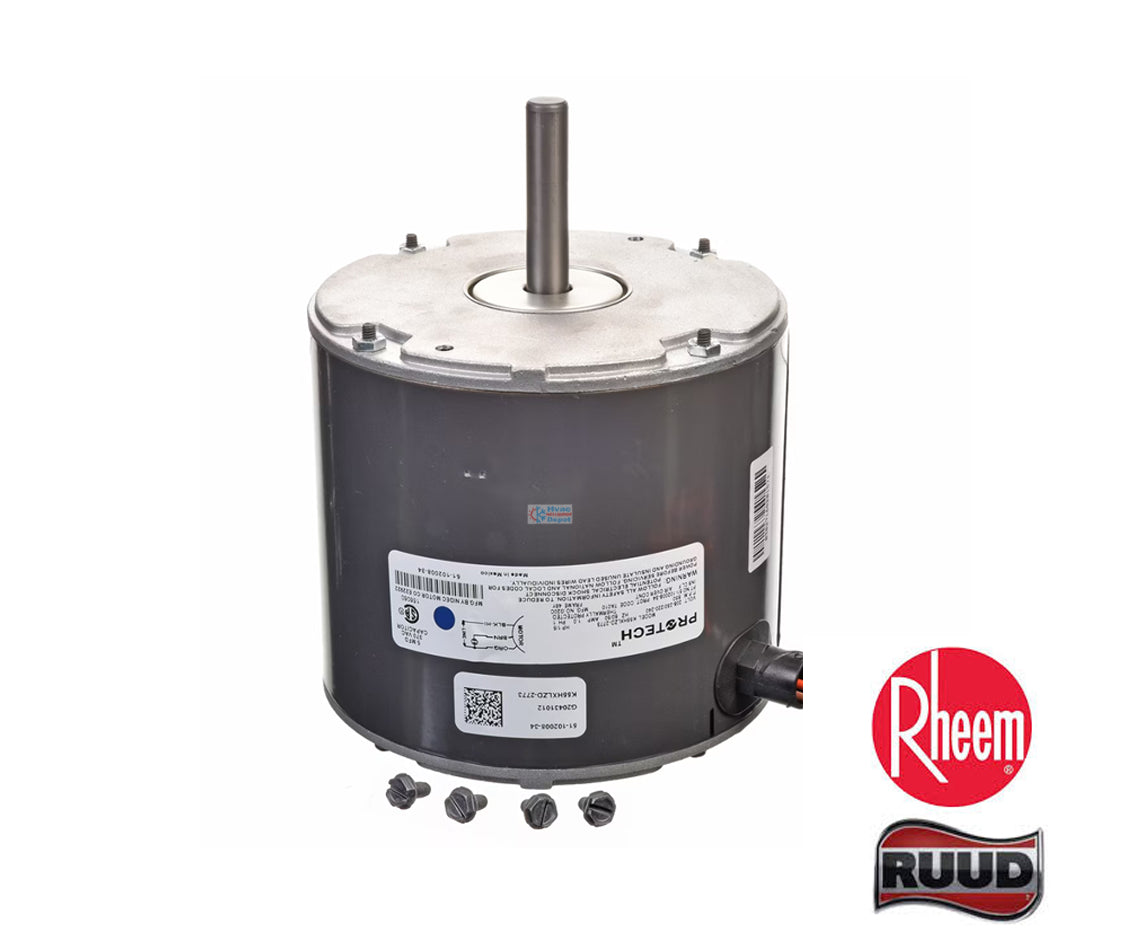

Rheem 51-102008-34 Genuine OEM Condenser Fan Motor 1/5 HP 208-230V 825 RPM

Rheem 51-102008-34 Genuine OEM Condenser Fan Motor 1/5 HP 208-230V 825 RPM

Regular price $312.55 USD
Regular price Sale price $312.55 USD
Sale Sold out
Shipping calculated at checkout.

Quick Details & Specs

  • Whisper-Quiet Operation: Specifically rated at 825 RPM to significantly reduce ambient noise levels compared to standard high-speed motors.

  • True OEM Compatibility: A genuine Rheem-Ruud PROTECH™ factory-authorized part, ensuring a perfect mechanical and electrical fit for Rheem, Ruud, and WeatherKing units.

  • High-Efficiency Torque: The 1/5 HP rating provides consistent airflow for outdoor condensing units without excessive energy consumption.

  • All-Weather Durability: Features a Totally Enclosed Air Over (TEAO) design and permanently lubricated ball bearings for maximum lifespan in harsh outdoor environments.

  • Verified Safety Monitoring: Equipped with internal Automatic Thermal Overload Protection that prevents winding burnout during extreme summer heat or power fluctuations.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Electrical Specifications

  • Horsepower: 1/5 HP
  • Voltage: 208-230 VAC
  • Phase: Single Phase (1 PH)
  • Frequency: 50/60 Hz
  • Full Load Amps (FLA): 1.0A @ 230V
  • Locked Rotor Amps (LRA): 2.4A
  • Speed: 825 RPM (1 Speed)
  • Rotation Direction (OSE): Counter-Clockwise (CCW)
  • Capacitor Required: 5 MFD / 370V
  • Frame Size: 48 Frame (5.6" Body Diameter)
  • Enclosure: Totally Enclosed Air Over (TEAO)

description

Rheem 51-102008-34 Genuine OEM Condenser Fan Motor 1/5 HP 208-230V 825 RPM

The PROTECH™ 51-102008-34 is a high-performance Genuine OEM Outdoor Condenser Fan Motor engineered specifically for Rheem, Ruud, and WeatherKing air conditioning and heat pump systems. This motor is responsible for driving the condenser fan blade, which pulls air through the outdoor coils to reject heat from the refrigerant. By maintaining consistent airflow, it ensures your system operates at peak efficiency while preventing high-pressure compressor trips.

Technical Performance:

Operating at 208-230V, this 1/5 HP motor features a specialized 825 RPM low-speed design, optimized for quiet operation and efficient heat transfer. Being a Genuine OEM part, it is built with high-grade ball bearings and a weather-resistant "Rain Shield" housing to survive harsh outdoor environments. Unlike universal motors that may require lead-cutting or shaft-trimming, the 51-102008-34 provides a precision fit with the correct electrical harness for a direct "plug-and-play" installation.

Key Features and Function:

  • Precision Airflow Management: The 825 RPM low-speed profile is factory-tuned to match the specific static pressure requirements of Rheem/Ruud condenser cabinets.
  • Genuine OEM Reliability & Fitment: Guaranteed to match the original mounting bolt pattern and shaft length, eliminating the need for field modifications.
  • Heavy-Duty Weatherproof Build: Features a totally enclosed air-over (TEAO) design with permanently lubricated bearings to resist moisture and debris.
  • Whisper-Quiet Operation: Precision-balanced internal rotors reduce harmonic vibration, significantly lowering the sound decibel levels of the outdoor unit.

Product Details and Key Specifications:

  • Part Number: 51-102008-34 (Replaces 51-23053-11, 51-42533-01)
  • Manufacturer: Rheem / Ruud (PROTECH™ Genuine OEM)
  • Part Type: Condenser Fan Motor
  • Voltage: 208-230 VAC
  • HP / RPM: 1/5 HP @ 825 RPM
  • Phase / Hertz: Single-phase (1PH) / 60/50 Hz
  • Rotation: Clockwise (CW) / Lead End
  • Shipping Weight: 11.20 lbs

🛠️ HVAC Depot Pro Tip: The Rain Shield Check

When installing the 51-102008-34, always ensure the motor's water slinger (rain shield) is positioned correctly on the shaft above the motor body. This prevents water from running down the shaft and into the bearings. Additionally, always replace the run capacitor (typically a 5 MFD / 370V) at the same time to ensure the new motor starts under the correct electrical load and doesn't overheat during high-ambient summer days.

Cross-Reference & Compatibility:

The 51-102008-34 is a direct OEM replacement for the following part numbers:

  • OEM Numbers: 51-102008-34, 51-23053-11, 51-42533-01, 5110200834
  • GE/Genteq: 5KCP39BGS069S

Extensive Model Compatibility List:

  • RA13 Series: RA13-18, RA13-24, RA13-30
  • RA14 Series: RA14-18, RA14-24, RA14-30
  • RP14 Series: RP14-18, RP14-24
  • Classic Series: 13AJM, 14AJM, 13AJA, 14AJA, 13PJL, 14PJL
  • WeatherKing: WA13, WA14, WP14 Series
