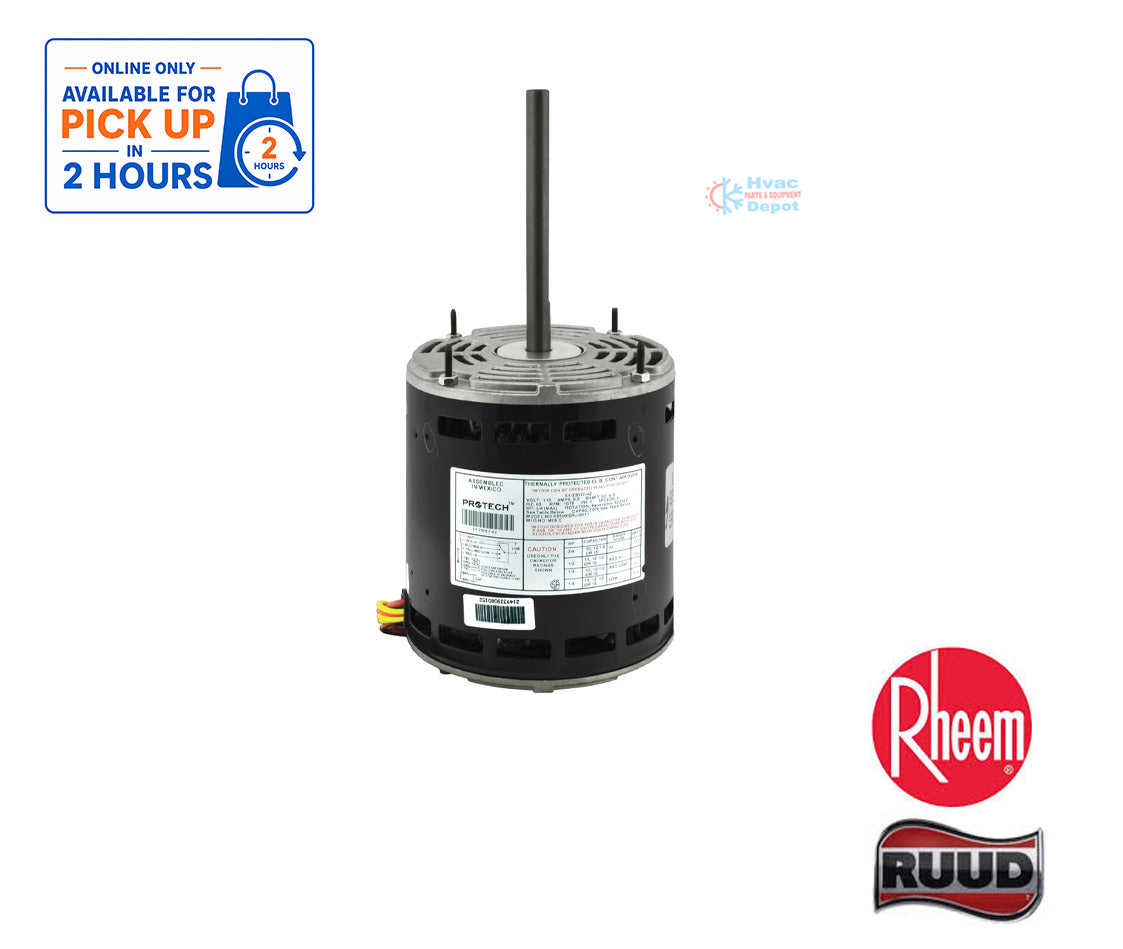

PROTECH / Rheem 51-23017-42 Blower Motor – 1/4 to 3/4 HP, 120V, 1075 RPM, 4-Speed, Reversible

PROTECH / Rheem 51-23017-42 Blower Motor – 1/4 to 3/4 HP, 120V, 1075 RPM, 4-Speed, Reversible

Low stock: 1 left

Regular price $499.99 USD
Regular price Sale price $499.99 USD
Sale Sold out
Shipping calculated at checkout.

PROTECH / Rheem 51-23017-42 Blower Motor – 1/4 to 3/4 HP, 120V, 1075 RPM, 4-Speed, Reversible

  • 1/4 to 3/4 HP PSC indoor blower motor

  • 120V single-phase operation with 1075 RPM

  • 4-speed motor for compatible furnace and air-handler applications

  • Reversible rotation with 48 frame and 1/2-inch shaft

  • Designed for compatible Rheem, Ruud and WeatherKing HVAC equipment

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

SpecificationDetail

Brand

PROTECH / Rheem

Part Number / MPN51-23017-42

Product Type

Indoor Blower Motor

Motor Type

PSC

Horsepower

1/4 – 3/4 HP

Voltage

120V

Phase

Single Phase

Frequency
60 Hz

Speed
1075 RPM

Number of Speeds
4
Full Load Amps

9.5A

Rotation

Reversible

Frame

48

Motor Diameter

5-5/8"

Shaft Diameter

1/2"

Overall Shaft Length

5"

Bearing Type

Ball Bearing

Mounting


Shell-Band / Shell-Screw

Application

Furnace / Air Handler Blower

description

The PROTECH / Rheem 51-23017-42 is a PSC direct-drive indoor blower motor designed for compatible Rheem, Ruud, and WeatherKing HVAC equipment. The motor provides a horsepower range of 1/4 to 3/4 HP, operates on 120V single-phase power, and delivers up to 1075 RPM with 4 selectable speeds.

Its reversible rotation, 48 frame, 1/2-inch shaft diameter, and multiple horsepower configurations make it suitable for a variety of furnace and air-handler blower applications.

Key Features & Function

  • PROTECH / Rheem

  • Part Number: 51-23017-42

  • Indoor blower motor

  • PSC motor design

  • 1/4 to 3/4 HP

  • 120V

  • 1075 RPM

  • 4-Speed

  • Single phase

  • 60 Hz

  • 9.5 amps

  • Reversible rotation

  • 48 frame

  • Ball bearings

  • Direct-drive blower application

  • 1/2" shaft diameter

  • 5" overall shaft length

  • Shell-band / shell-screw mounting

  • Designed for compatible Rheem, Ruud, and WeatherKing equipment

Product Details & Specifications

Specification Details
Brand PROTECH / Rheem
Part Number / MPN 51-23017-42
Product Type Indoor Blower Motor
Motor Type PSC
Horsepower 1/4 – 3/4 HP
Voltage 120V
Phase Single Phase
Frequency 60 Hz
Speed 1075 RPM
Number of Speeds 4
Full Load Amps 9.5A
Rotation Reversible
Frame 48
Motor Diameter 5-5/8"
Shaft Diameter 1/2"
Overall Shaft Length 5"
Bearing Type Ball Bearing
Mounting Shell-Band / Shell-Screw
Application Furnace / Air Handler Blower

The published motor specifications agree on the core electrical and mechanical characteristics above.

🛠️ HVAC Depot Pro Tip

The 51-23017-42 is a multi-horsepower PSC blower motor, so the installation and wiring configuration must match the required blower application.

Before replacing the motor, verify:

  • Required horsepower

  • 120V power supply

  • 1075 RPM requirement

  • Required blower speed

  • Rotation

  • Shaft diameter and length

  • Mounting configuration

  • Run capacitor requirement

Depending on the horsepower configuration, published specifications list 10, 12.5, or 15 MFD at 370V capacitor requirements. Always use the capacitor specified for the actual motor configuration/nameplate rather than selecting one based solely on the part number.

Equipment / Model Compatibility

The 51-23017-42 is designed for compatible:

  • Rheem furnaces

  • Rheem air handlers

  • Ruud furnaces

  • Ruud air handlers

  • WeatherKing HVAC equipment

  • Compatible residential furnace blower assemblies

  • Compatible air-handler blower assemblies

Verify the complete HVAC equipment model number before ordering.

Important current part status: SupplyHouse reports that 51-23017-42 was discontinued by the manufacturer on July 16, 2026 and identifies 51-25023-01 as a suggested current alternative. If you are selling remaining OEM 51-23017-42 inventory
