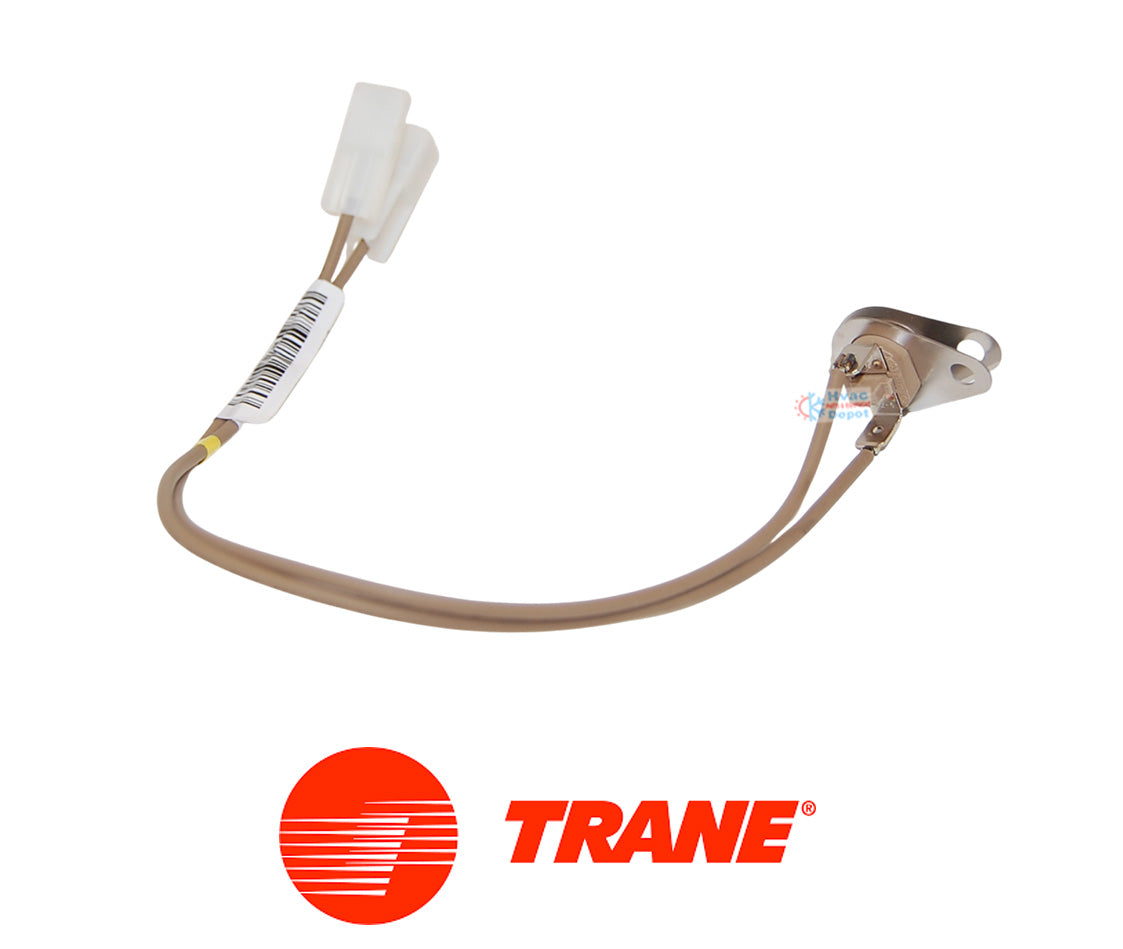

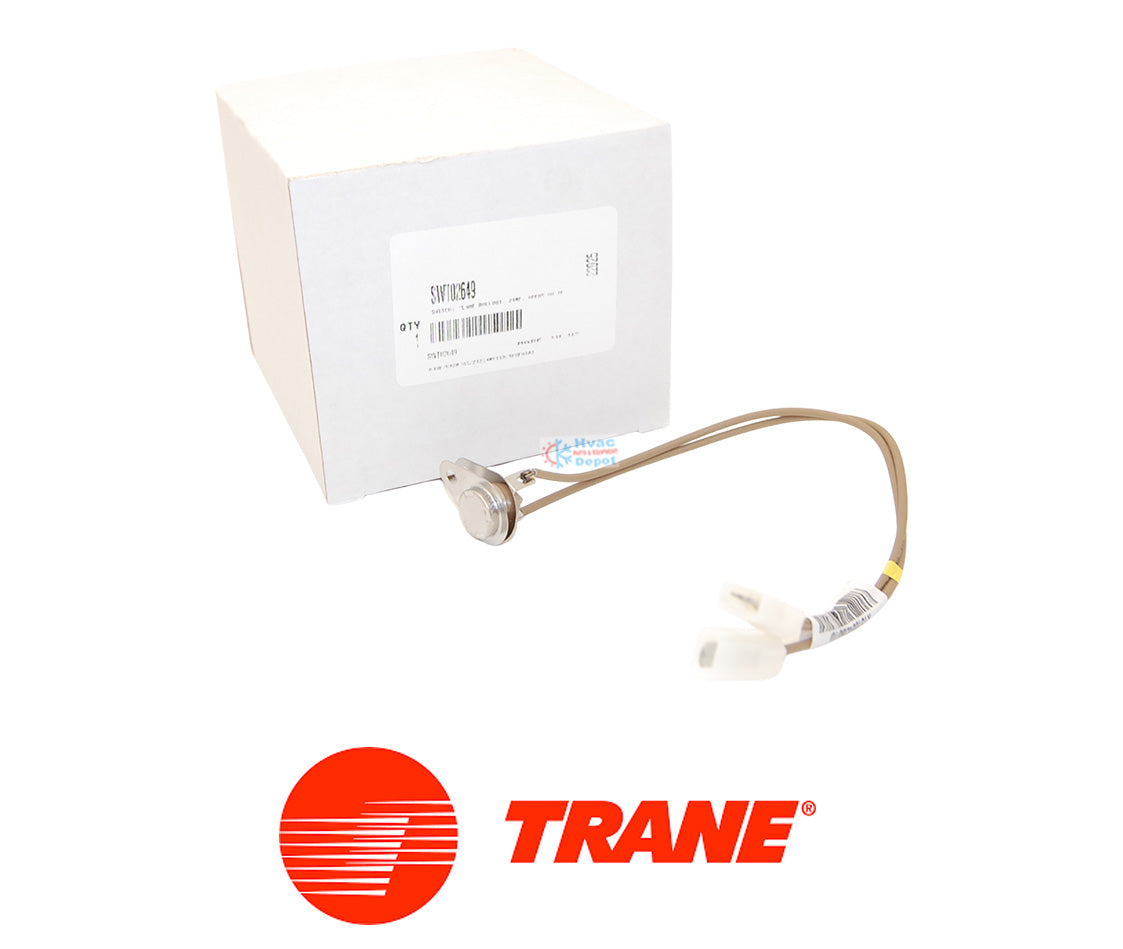

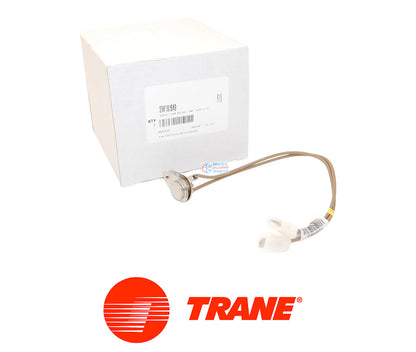

Trane SWT02649 Flame Rollout Switch | 240°F Manual Reset | Replaces 3L12-240, SRL240
Trane SWT02649 Flame Rollout Switch | 240°F Manual Reset | Replaces 3L12-240, SRL240
Low stock: 4 left
Why the SWT02649 is a Critical Safety Fix
Please visit our store for pick up.
safe & secure Checkout
Specifications
Specifications
description
description
Trane SWT02649 Flame Rollout Switch | 240°F Manual Reset | Replaces 3L12-240 & SRL240
Trane SWT02649 is a flame rollout switch, a safety component for HVAC systems that manually resets and is designed to protect against overheating inside the cabinet. It's a Single Pole Single Throw (SPST) switch that opens (shuts the system off) if it detects a flame rollout, which can happen in a furnace. This specific model operates at 240°F and is compatible with various Trane and American Standard HVAC systems. This as a safety device by monitoring for flame rollout in the burner area and inside the cabinet. When a flame issues from the burner area, it triggers a safety shutdown. It has a manual reset, meaning a person must manually reset it to restart the system after the issue is fixed. It is a Single Pole Single Throw (SPST) switch that opens at 240°F and is rated for 240 volts and 25 amps. The flame rollout switch is a crucial safety component that prevents overheating and potential hazards associated with a flame rollout, protecting both the equipment and occupants.
Key Electrical Specifications:
- Brand: Trane/ American Standard
- Current Rating: 25A
- Number of Poles: 1
- Shipping Weight: 0.186
- Terminal Type: Quick Connect
- Type: Manual Reset
- Voltage: 208-230
- Amps: 25 Max
- Flame Rollout MAX Temp: Opens and needs to be reset at 240F
- Description: SWITCH; FLAME ROLLOUT, 240F, OPENS ON TEMP RISE, MANUAL RESET, SPST, 25A/240V QC TERMINAL
The SWT02649 directly replaces the following Trane and American Standard part numbers:
- SWT2649 (older version of the same part number)
- X13100426010
- X13541189-01
- 389683
- Service First SSWT02649
- All Points 8110614
- White-Rodgers: 3L12-240
- Supco: SRL240:
- Packard: PRL240:
- ICP / Heil Quaker: 512532:
- Nordyne/Maytag: 626605 or 626355
- Reznor: 210855
- MARS: 39042
Stop Furnace Overheating with the Trane SWT02649
If your package unit or furnace has completely shut down and won't respond to the thermostat, your flame rollout switch likely tripped. The SWT02649 is a Single Pole Single Throw (SPST) safety device that monitors the burner cabinet.
Pro-Tip for Techs: Because this is a Manual Reset switch, a trip usually indicates a serious issue like a clogged burner or a cracked heat exchanger. Do not just reset it—inspect the combustion area! This switch is the "gold standard" replacement for Service First SSWT02649 and Honeywell equivalents found in major Trane and American Standard commercial and residential package units.
Most Commonly Found in the following Trane/American Standard Package units:
- GCC180A3EHA0907
- GCC180A3EHA0A07
- GCC180A3EHA0B07
- GCC180A3EHA0BC7
- GCC180A3EHA0BD7
- GCC180A3EHA0BN70B
- GCC180A3EHA0C07
- GCC180A3EHA0CC7
- GCC180A3EHA0CD7
- GCC180A3EHA0D07
- GCC180A3EHA0D09
- GCC180A3EHA0DD7
- GCC180A3ELA0907
- GCC180A3ELA0A07
- GCC180A3ELA0B07
- GCC180A3ELA0C07
- GCC180A3ELA0D07
- GCC180A3EMA0C07
- GCC180A4EHA0A07
- GCC180A4EHA0B07
- GCC180A4EHA0C07
- GCC180A4EHA0D07
- GCC180A4ELA0A07
- GCC180A4ELA0B07
- GCC180A4ELA0C07
- GCC180A4ELA0D07
- GCC180A4EMA0C07
- GCC180AWEHA0A07
- GCC180AWEHA0B07
- GCC180AWEHA0BD7
- GCC180AWEHA0C07
- GCC180AWEHA0DC7
- GCC180AWEHA0DD7
- GCC210A3EHA0A07
- GCC210A3EHA0B07
- GCC210A3EHA0D07
- GCC210A3ELA0907
- GCC210A3ELA0A07
- GCC210A3ELA0B07
- GCC210A3ELA0C07
- GCC210A3ELA0D07
- GCC210A3EMA0A07
- GCC210A4EHA0A07
- GCC210A4EHA0D07
- GCC210A4ELA0A07
- GCC210A4ELA0B07
- GCC210A4ELA0D07
- GCC210AWEHA0D07
- GCC210AWELA0C07
- GCC210AWELA0D07
- GCC240A3EHA0A07
- GCC240A3EHA0B07
- GCC240A3EHA0BD7
- GCC240A3EHA0C07
- GCC240A3EHA0C09
- GCC240A3EHA0D07
- GCC240A3ELA0A07
- GCC240A3ELA0B07
- GCC240A3ELA0C07
- GCC240A3ELA0D07
- GCC240A3EMA0D07
- GCC240A4EHA0907
- GCC240A4EHA0A07
- GCC240A4EHA0AJ7
- GCC240A4EHA0B07
- GCC240A4EHA0C07
- GCC240A4EHA0CD7
- GCC240A4EHA0D07
- GCC240A4EHA0D09
- GCC240A4ELA0907
- GCC240A4ELA0A07
- GCC240A4ELA0AD7
- GCC240A4ELA0B07
- GCC240A4ELA0C07
- GCC240A4ELA0D07
- GCC240A4ELA0D09
- GCC240AWEHA0A07
- GCC240AWEHA0BD7
- GCC240AWEHA0D07
- GCC240AWEHA0DC7
- GCC240AWELA0D07
- GCC300A3EHA0B07
- GCC300A3EHA0C07
- GCC300A3EHA0D07
- GCC300A3EHA0D09
- GCC300A3ELA0B07
- GCC300A3ELA0BD7
- GCC300A3ELA0C07
- GCC300A3ELA0D07
- GCC300A3EMA0BC7
- GCC300A3EMA0D07
- GCC300A4EHA0B07
- GCC300A4EHA0D07
- GCC300A4EHA0D09
- GCC300A4ELA0B07
- GCC300A4ELA0D07
- GCC300A4ELA0D09
- GCC300AWEHA0907
- GCC300AWEHA0A07
- GCC300AWEHA0C07
