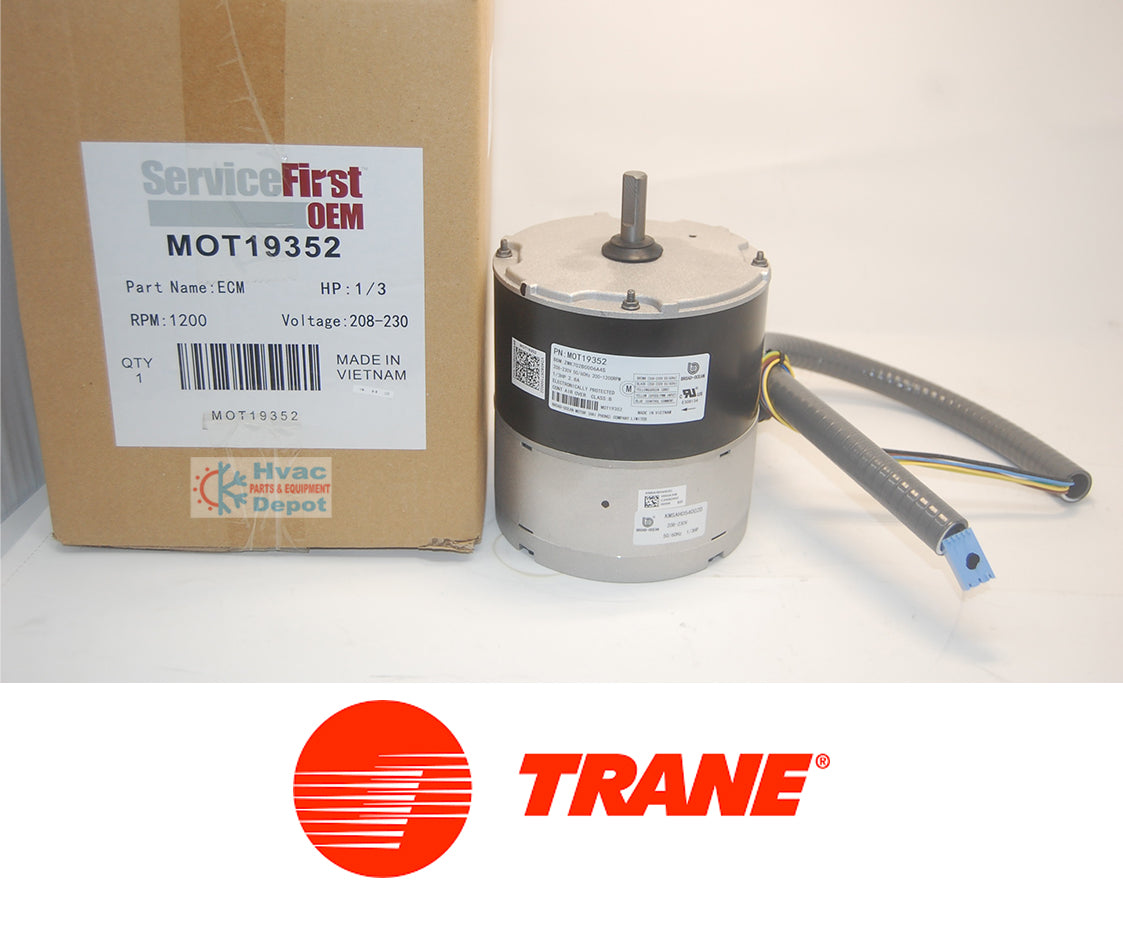

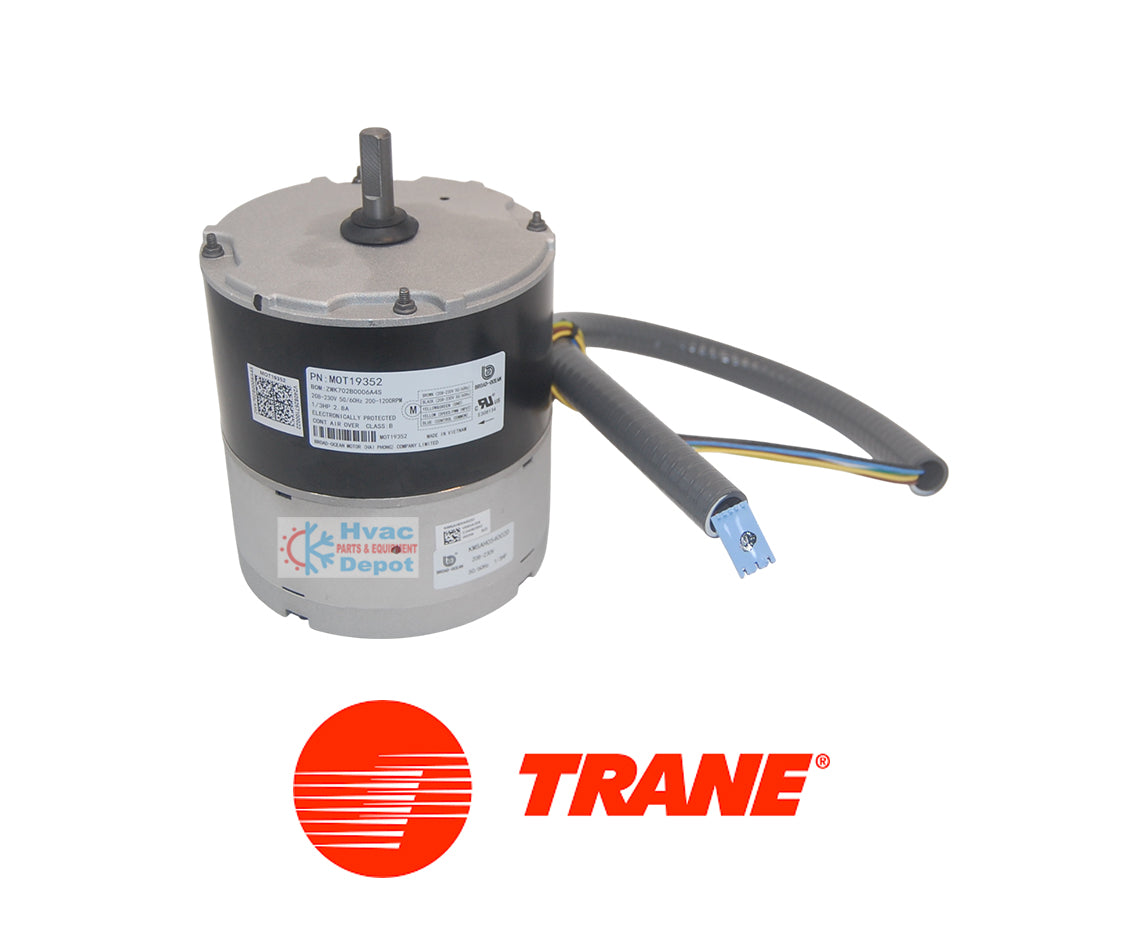

Trane MOT19352 ECM Condenser Fan Motor | 1/3 HP 208-230V 200-1200 RPM

Trane MOT19352 ECM Condenser Fan Motor | 1/3 HP 208-230V 200-1200 RPM

Low stock: 9 left

Regular price $798.53 USD
Regular price Sale price $798.53 USD
Sale Sold out
Shipping calculated at checkout.

Quick Feature Highlights

  • Direct OEM Programming: Factory-loaded software ensures perfect communication with your Trane system controller.

  • Variable Airflow Control: Operates smoothly from 200 to 1200 RPM for maximum comfort and humidity control.

  • No Capacitor Needed: Advanced brushless DC technology eliminates the need for failure-prone run capacitors.

  • Thermal Overload Protection: Built-in protector prevents module and winding damage during extreme temperature spikes.

  • Direct "Drop-In" Replacement with genuine OEM Performance

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Specifications & Details

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/3 HP
  • Voltage: 208–230 VAC
  • RPM Range: 200 – 1200 RPM (Variable)
  • Amperage: 2.8 Amps
  • Frame Size: NEMA 48 Frame
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Shaft Size: 0.5" Diameter
  • Mounting: Screw-type vertical shaft-down configuration
  • Capacitor Required: NONE (Not required for ECM)
  • Phase / Freq: 1-Phase / 50/60 Hz

description

Trane MOT19352 ECM Condenser Fan Motor 1/3 HP 208-230V 200-1200 RPM Variable Speed


The Trane MOT19352 is a genuine OEM variable-speed ECM (Electronically Commutated Motor) designed for high-efficiency Trane outdoor air conditioning and heat pump systems. This motor is factory-programmed to drive the condenser fan at varying speeds based on real-time system conditions. By providing precise airflow control, the MOT19352 ensures quieter operation and significantly higher energy efficiency than standard fixed-speed motors. This unit includes its own integrated control module, making it a critical "brain" component for your outdoor unit's cooling cycle.


Key Features

  • Factory Programmed: Pre-configured to exact Trane factory specifications for immediate "plug-and-play" installation.
  • Advanced ECM Efficiency: Variable-speed technology modulates between 200 and 1200 RPM to reduce energy consumption and noise.
  • Integrated Control Module: Features an onboard microprocessor that manages motor logic and performance without external starters.
  • TEAO Outdoor Rating: The Totally Enclosed Air-Over (TEAO) enclosure is specifically designed to withstand harsh outdoor environments and moisture.


Product Specifications & Details

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/3 HP
  • Voltage: 208–230 VAC
  • RPM Range: 200 – 1200 RPM (Variable)
  • Amperage: 2.8 Amps
  • Frame Size: NEMA 48 Frame
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Shaft Size: 0.5" Diameter
  • Mounting: Screw-type vertical shaft-down configuration
  • Capacitor Required: NONE (Not required for ECM)
  • Phase / Freq: 1-Phase / 50/60 Hz


🛠️ HVAC Depot Pro Tip

The MOT19352 is a vertical shaft-down motor. Ensure the water-shedding slinger is properly positioned on the shaft to prevent moisture from traveling down into the motor bearings. Important: Because this is an ECM motor, it does not use a run capacitor. If you are replacing a motor and find a capacitor, verify your model number—you may be switching from an older PSC design to this high-efficiency ECM.


Cross-Reference

  • Primary Predecessors:

    MOT16196, MOT16195, MOT19351
  • Common Replacements:

    MOT18952, MOT16952, MOT11993, 4712651
  • Drawing / X Numbers:

    D156799P02, D156799P03, D159882P03, ZWK702B0006A4S


Model Compatibility

This motor is compatible with various high-efficiency Trane series (2-ton to 5-ton capacities). Press Ctrl+F to search for your model:

  • 4TWV Series (Variable Speed Heat Pumps): 4TWV0X36A1000AA, 4TWV0X48A1000AA, 4TWV0X60A1000AA.
  • 4A7V Series (Variable Speed AC): 4A7V0X36A1000AA, 4A7V0X48A1000AA, 4A7V0X60A1000AA.
  • 4TTV Series (Two-Stage AC): 4TTV0X36A1000AA, 4TTV0X48A1000AA, 4TTV0X60A1000AA.
  • 4A6V Series (Two-Stage AC): 4A6V0X36A1000AA, 4A6V0X48A1000AA, 4A6V0X60A1000AA.
