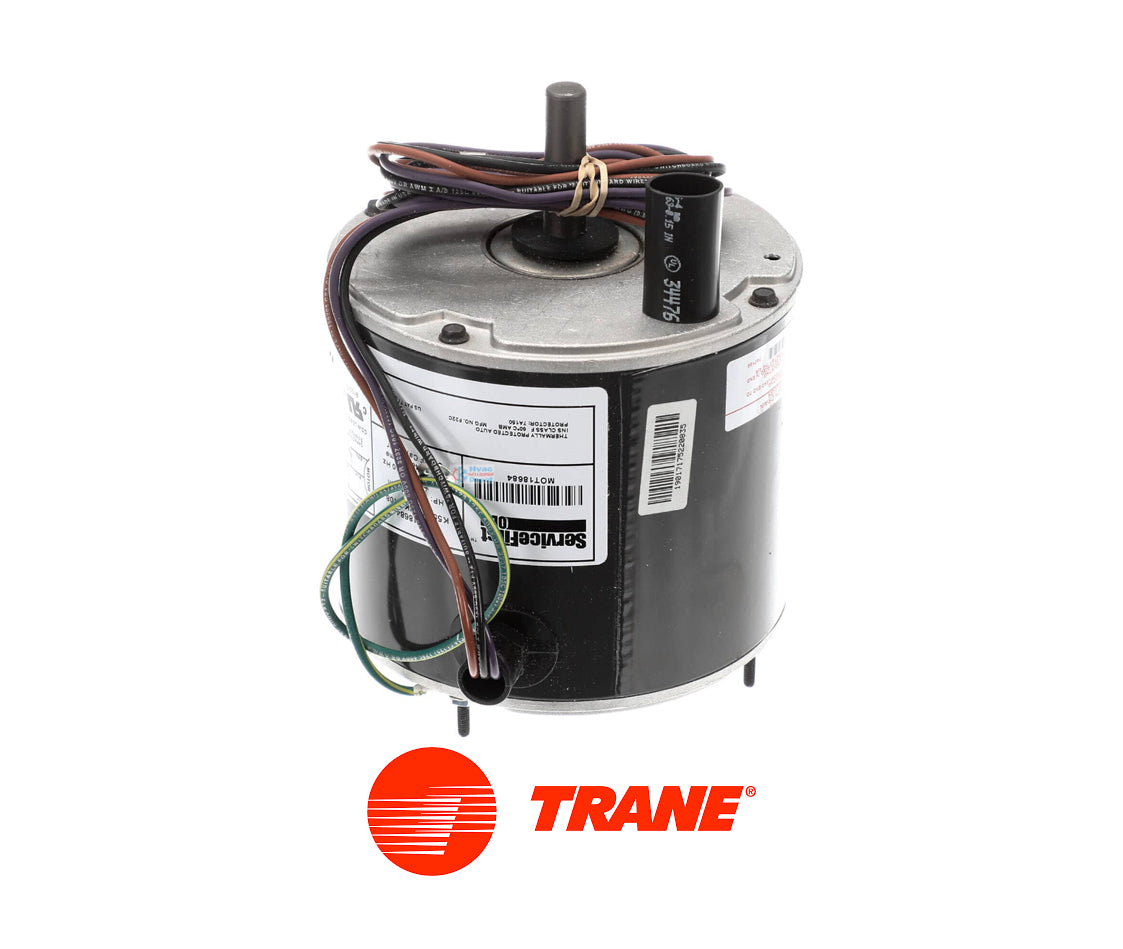

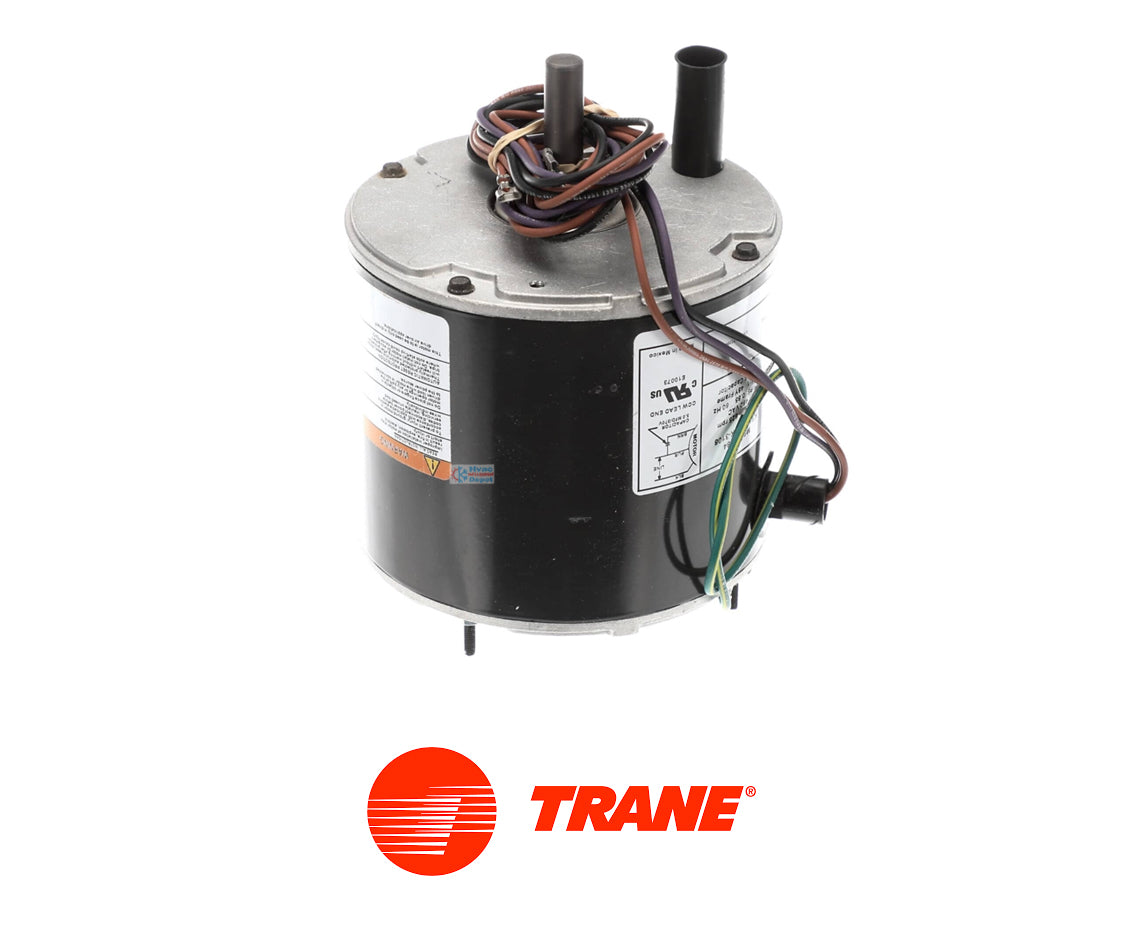

OEM Trane MOT18684 Condenser Fan Motor | 1/5 HP 460V 825 RPM

OEM Trane MOT18684 Condenser Fan Motor | 1/5 HP 460V 825 RPM

Low stock: 1 left

Regular price $495.96 USD
Regular price Sale price $495.96 USD
Sale Sold out
Shipping calculated at checkout.

Quick Feature Highlights

  • Direct OEM Replacement: Engineered by Trane specifically to replace MOT12268 without modification.

  • High-Torque Performance: 825 RPM design ensures efficient cooling for high-capacity 3 to 4-ton units.

  • High-Voltage Reliability: 460V 1-phase operation provides efficient power for commercial tasks.

  • Smooth Operation: Premium ball bearing design reduces vibration and outdoor operational noise.

  • Direct Drive Simplicity: Standard 48-frame motor mounts directly to the unit's fan guard or mounting plate.

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Product Specification Detail

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/5 HP
  • Voltage: 460V
  • RPM: 825 RPM (also rated at 850 RPM in some loads)
  • Phase: 1 Phase
  • Frequency (Hz): 60 Hz
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Frame Size: 48 Frame
  • Shaft Dimensions: 0.5" Diameter x 1.94" Long
  • Enclosure: Totally Enclosed Air-Over (TEAO)
  • Suggested Capacitor: 5.0 MFD / 370V AC (Not Included)

description

OEM Trane MOT18684 Commercial Condenser Fan Motor 1/5 HP 460V 825 RPM


The Trane MOT18684 is a genuine OEM replacement condenser fan motor designed for industrial and commercial Trane HVAC systems requiring a high-voltage power supply. This 1/5 HP motor is engineered to operate at 825 RPM, providing consistent airflow for heat rejection in demanding environmental conditions. As a factory-authorized part, it ensures optimal integration with high-voltage control circuits typical of commercial air conditioners and ventilation equipment.


Key Features

  • Commercial Grade Voltage: Specifically designed for 460V single-phase operation, common in industrial HVAC installations.
  • Genuine OEM Fit: Designed by Trane to match original factory specifications for precise fit and electrical compatibility.
  • Durable Construction: Features a robust rolled steel frame and aluminum flange to withstand industrial operating environments.
  • Safety Optimized: Real OEM motors enhance system safety by minimizing the risk of failure in critical commercial cooling applications.


Product Specification Detail

  • Brand: Trane (OEM)
  • Horsepower (HP): 1/5 HP
  • Voltage: 460V
  • RPM: 825 RPM (also rated at 850 RPM in some loads)
  • Phase: 1 Phase
  • Frequency (Hz): 60 Hz
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Frame Size: 48 Frame
  • Shaft Dimensions: 0.5" Diameter x 1.94" Long
  • Enclosure: Totally Enclosed Air-Over (TEAO)
  • Suggested Capacitor: 5.0 MFD / 370V AC (Not Included)


🛠️ HVAC Depot Pro Tip

The 460V rating is critical; never attempt to use this motor in a standard residential 208-230V system as it will not start or operate correctly. Installation Note: This motor is often a direct replacement for the discontinued MOT12268 part, simplifying repairs for older commercial Trane units.


Cross-Reference

  • Supersedes & Legacy P/Ns:

    MOT12268
  • Alternative Identification:

    K55HXRWK-3108
  • Common Applications:

    High-voltage Trane HVAC systems, air handlers, and commercial condensing units.


Model Compatibility

This motor is a known replacement for several commercial Trane and American Standard model series. Press Ctrl+F to search for your model:

  • 4A6C3036, 4A6C3042, 4A6C3048, 4A6C3060, 4A7C3042, 4A7C3048, 4A7C3060, 2TTA3060, 2TWA3048, 2TWA3060
