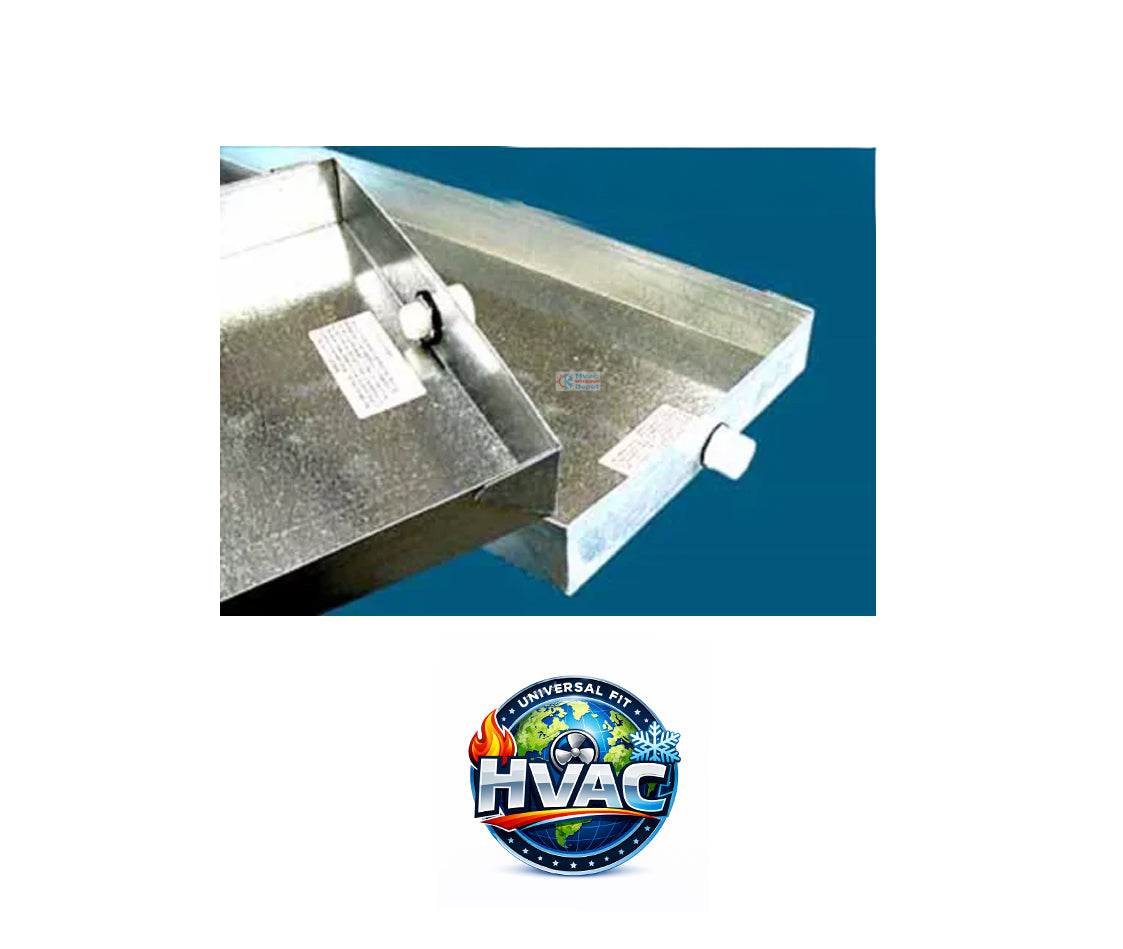

M&M DP-F1643 Secondary Drain Pan with PVC Fitting 16" x 43" 28 Gauge Galvanized Steel

Name: M&M DP-F1643 Secondary Drain Pan with PVC Fitting 16" x 43" 28 Gauge Galvanized Steel
Brand: MnM
SKU: 662766542187
Price: 77.86 USD
Availability: InStock

Low stock: 2 left

$77.86 USD

Sale Sold out

Shipping calculated at checkout.

M&M DP-F1643 Drain Pan Reliability and Troubleshooting

Unmatched Reliability: Galvanized steel construction provides fire-rated protection and 20+ years of leak-proof service.
Simplified Troubleshooting: The silver-reflective surface makes it easy to spot even a single drop of water during routine maintenance.
Restored Efficiency: Prevents water-saturated insulation and wood rot that can lead to structural sagging and airflow leaks.
Enhanced Safety: Pre-installed PVC hub ensures a secure, leak-free connection for secondary overflow piping.
Direct Fit Design: Low-profile 2-inch depth fits into tight crawlspaces and attics where vertical clearance is limited.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details

Brand: M&M Manufacturing
Manufacturer: M&M
Part Number: DP-F1643
Dimensions: 16" Width x 43" Length x 2" Depth
Material: 28 Gauge Galvanized Steel
Fitting Type: 3/4" PVC Female Adapter (Pre-installed)
Application: Horizontal Furnace / Air Handler Secondary Drain
Compliance: Meets standard building codes for secondary HVAC containment
Weight: 6.5 lbs

description

The M&M DP-F1643 is a heavy-duty secondary emergency drain pan, acting as the critical protective "armor" for your home against water damage. This 28-gauge galvanized steel basin functions as the system's primary safety brain for moisture management, engineered to catch overflow from the primary evaporator coil or air handler. Specifically designed for horizontal furnace installations and attic air handlers, the DP-F1643 ensures that any internal blockages in the main drain line are contained within the pan, preventing the catastrophic ceiling damage and mold growth that occur when condensate spills onto building materials.

Key Features

Genuine M&M Part Number DP-F1643: Guaranteed professional-grade fit featuring a 16-inch by 43-inch footprint specifically sized for standard residential fan coils.
Heavy-Duty 28 Gauge Galvanized Steel: Manufactured with high-tensile strength metal that resists sagging under water weight and prevents the cracking common in plastic alternatives.
Eliminate Rust and Leak Issues: Replaces aging, corroded pans or brittle plastic trays that fail over time, restoring the structural integrity of your secondary containment.
Advanced Moisture Safety Monitoring: Features a pre-installed 3/4" PVC drain fitting that allows for easy connection to a secondary drain line or an emergency float switch.
Reinforced Hemmed Edges: Engineered with rolled edges for superior rigidity and safety, preventing sharp metal edges from snagging insulation or cutting technicians during install.

Product Details

Brand: M&M Manufacturing
Manufacturer: M&M
Part Number: DP-F1643
Dimensions: 16" Width x 43" Length x 2" Depth
Material: 28 Gauge Galvanized Steel
Fitting Type: 3/4" PVC Female Adapter (Pre-installed)
Application: Horizontal Furnace / Air Handler Secondary Drain
Compliance: Meets standard building codes for secondary HVAC containment
Weight: 6.5 lbs

🛠️ HVAC Depot Pro Tip

Take a Picture First — Before sliding the new DP-F1643 under your unit, photograph the clearance space and the existing primary drain line. Having a visual record of the "dry" state of the pan is essential for future diagnostic checks; if you see water in your photo later, you know the primary drain is clogged. When installing, ensure the pan is pitched slightly toward the PVC outlet to prevent standing water from becoming a breeding ground for biological growth. Always install an emergency float switch (like a Safe-T-Switch) inside the pan to automatically shut down the system if water is detected.

Cross-Reference

Superseded Parts: DP-1643, DP-F-16-43
Legacy Drawing Numbers: 540-1643, 83011, 83015
Equivalent Brands: DiversiTech 230-DP1643, Rectorseal 83210, Jones Stephens D601643, DiversiTech Metal Pan

Model Compatibility

Horizontal Air Handlers (Suffixes: 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton Units)
Gas Furnaces (Suffixes: Upflow/Horizontal 40k, 60k, 80k, 100k BTU)
Evaporator Coils (Suffixes: Case and Uncased Horizontal A-Coils)
Mini-Split Ducted Units (Suffixes: 18k, 24k, 30k BTU Horizontal Chassis)
