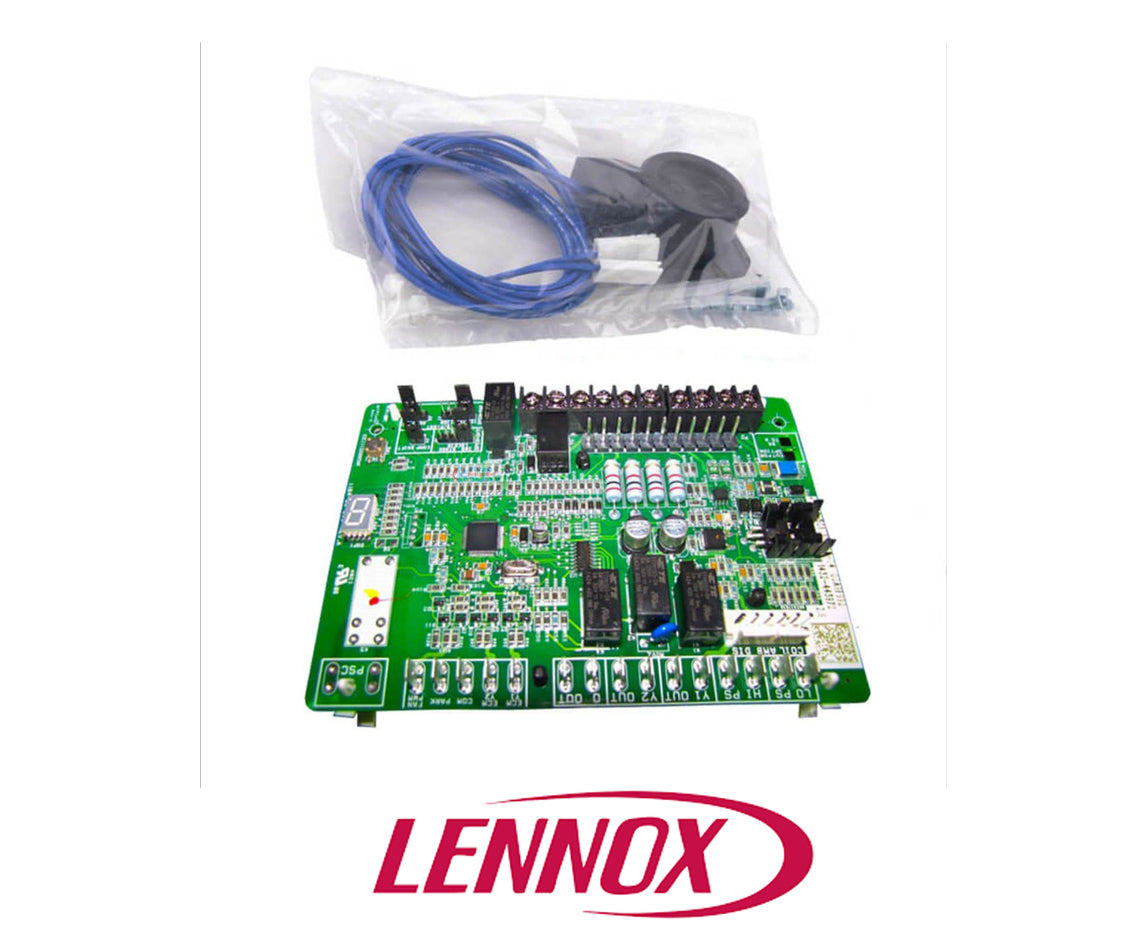

Lennox P/N 605341-10 (11H36) – Genuine OEM iComfort Outdoor Unit Control Board Kit

The Lennox 605341-10 (also known by its current Catalog Number 11H36, which replaces 16X41) is a genuine OEM iComfort Outdoor Unit Control Board Kit. This critical component is the digital communication hub for your high-efficiency Lennox outdoor condensing unit (AC or heat pump) and the indoor iComfort thermostat system. It ensures precise temperature, humidity, and airflow management by enabling seamless, proprietary digital communication between components. A functioning board is vital for system operation and diagnostic capabilities.

Being a Genuine OEM part from Lennox is essential for these sophisticated communicating systems. This original kit is engineered to the exact factory specifications, guaranteeing perfect electrical compatibility and precise fitment. Unlike generic aftermarket alternatives which may lack the specific programming or protocols, the authentic Lennox part maintains system efficiency, reliability, and full diagnostic functionality. The kit comes complete with the necessary control board, a new wire harness, and installation instructions.

Key Features and Function:

• Seamless iComfort Communication: Serves as the main communication hub, linking the iComfort thermostat to the outdoor unit.
• Genuine OEM Reliability: Official part from Lennox, ensuring perfect fitment and validated functionality for high-efficiency systems.
• Enhanced System Performance: Manages essential operational functions like compressor anti-short cycle delays and high/low voltage protection.
• Integrated Kit Solution: Includes the control board (P/N 106363-01 is an example of a component board, but this kit bundles everything needed), wire harness, and instructions for a complete installation.

Product Details and Key Specifications:

• Part Number: 605341-10
• Manufacturer: Lennox (Genuine OEM)
• Part Type: Outdoor Unit Control Board Kit / iComfort Control
• Catalog Number: 11H36
• Voltage: Manages system voltages (Typically used in 208/230V systems).
• Gross Shipping Weight: 2.5 lbs.
• Kit Includes: Control Board, Wire Harness, Installation Instructions.

🛠️ HVAC Depot Pro Tip: Power Cycling and Diagnostics

iComfort control boards often store fault codes in their EEPROM. When replacing this board, make sure to properly power cycle the entire HVAC system (turn power off at the breaker for several minutes) after installation to clear old codes and allow the new board to initialize correctly with the system's other communicating components.

The 605341-10 is a direct OEM replacement for the following part numbers:

• Current Catalog #:

  11H36, 96W57, 96W55, 65W72, 87W24, 90W83

• Superseded OEM Numbers:

  605341-10, 605341-09, 605341-08, 16X41, 10T56, 96W57, 90W83, 103369-03, 609324-01.

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model and revision number:

• Lennox SL18XC1 (AC) Series (230V):

  SL18XC1-024/030/036/042/048/060-230A-01.

• Lennox SL18XP1 (HP) Series (230V):

  SL18XP1-024/030/036/042/048/060-230A-01.

• Lennox XC17 (AC) Series (230V):

  XC17-030-230-09.

• Lennox XC21 (AC) Series (230V):

  XC21-024/036/048-230-09, XC21-060-230-10.

• Lennox XP17 (HP) Series (230V):

  XP17-024/030/042/048-230-09, XP17-030-230-10/11.

• Lennox XP21 (HP) Series (230V):

  XP21-024-230-07, XP21-036/048/060-230-06.
