Lennox 19V36 SureLight Ignition Control Board Kit (LB-109531B) 19V36/69M0801/69M08/10G43

Name: Lennox 19V36 SureLight Ignition Control Board Kit (LB-109531B) 19V36/69M0801/69M08/10G43
Brand: Lennox
SKU: 66255155691
Price: 455.00 USD
Availability: InStock

Low stock: 10 left

$455.00 USD

Sale Sold out

Shipping calculated at checkout.

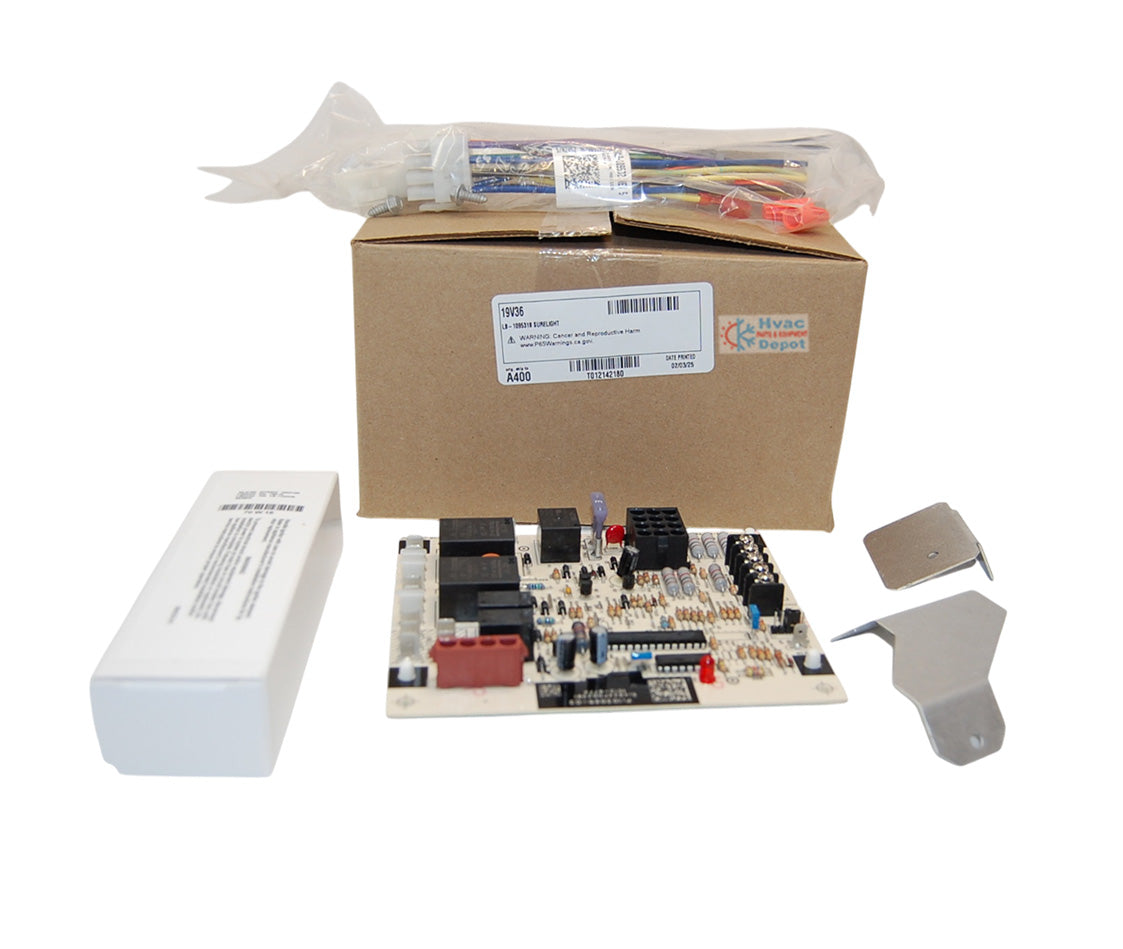

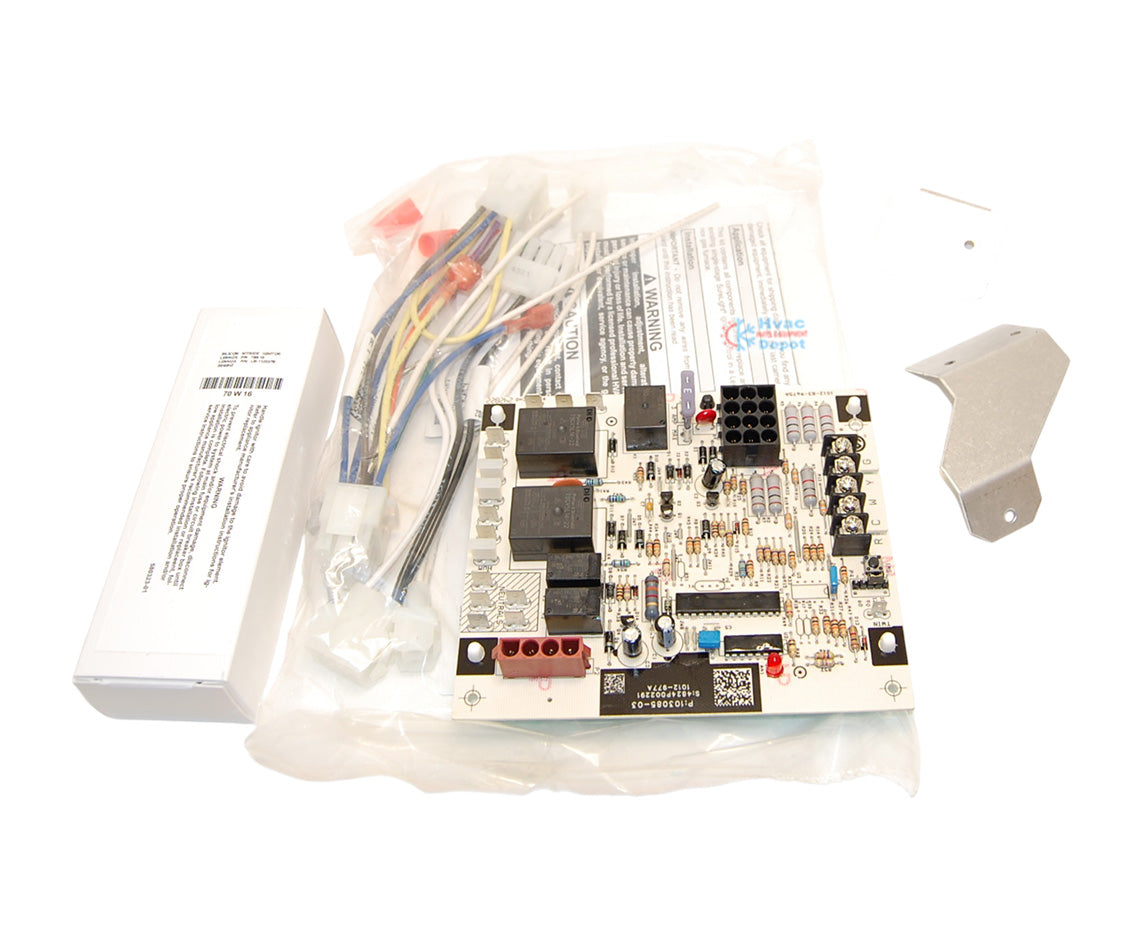

Lennox 19V36 kit includes wiring harnesses and ignitor

Genuine OEM Lennox 19V36 Control Kit (LB-109531B).
Includes new ignitor, wiring adapters, and diagnostic info.
Direct replacement for Y7761, 32M88, 10M93, 56L84.
Manages full furnace ignition sequence & safety checks.
Integrated LED diagnostics for easy troubleshooting.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Replaces Affiliated Lennox Part Numbers 19V36 Replaces:

Lennox Category #: 19V36 The current, active category number for the replacement kit.
Lennox Model/Part #: LB-109531A Obsolete model number (superseded by LB-109531B, which is the 19V36 kit).
Lennox Catalog #: Y7761 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 83M00 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: Y9895 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 32M88, 32M8801 Obsolete catalog numbers
Lennox Catalog #: 12L69, 12L6901 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 69M08, 69M0801 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 97L48, 97L4801 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 56L84, 56L8401 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 10M93, 10M9301 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 56L83, 56L8301 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 24L85, 24L8501 Obsolete Replace with 19V36 catalog number
Lennox Catalog #: 63K89, 63K8901 Obsolete / Replace with 19V36 catalog number

Replaces Affiliated White-Rodgers Part Numbers To 21D83M-843:

White-Rodgers Kit #: 21D83M-843 The current White-Rodgers complete replacement kit number.
White-Rodgers Board #: 50A66-843 The number often found on the actual circuit board within the 21D83M-843 kit.
White-Rodgers Catalog #: 50A62-120 Obsolete/superseded number.
White-Rodgers Catalog #: 50A62-121 Obsolete/superseded number.
White-Rodgers Catalog #: 50A62-820 Obsolete/superseded number.
White-Rodgers Catalog #: 50A65-120 Obsolete/superseded number.
White-Rodgers Catalog #: 50A65-121 Obsolete/superseded number.
White-Rodgers Catalog #: 50A66-122 Obsolete/superseded number.
White-Rodgers Catalog #: 50A66-123 Obsolete/superseded number.

description

19V36 – Genuine OEM Replacement SureLight Ignition Control Kit

The Lennox 19V36 is a critical SureLight Ignition Control Board Replacement Kit for Lennox gas furnaces. Serving as the "brain" of the system, this genuine OEM part ensures the safe and efficient operation of your HVAC unit by processing thermostat signals and managing essential components like the gas valve, ignitor, and blower motor timing. This complete kit provides an integrated solution to replace obsolete control boards such as the Y7761.

This direct OEM replacement kit simplifies installation with pre-configured wiring harnesses and specific components (Model LB-109531B, ignitor, adapters). Using an authentic Lennox part guarantees seamless electrical compatibility, precise fitment, and long-term reliability that maintains the furnace's original safety certifications. Professional installation is recommended to ensure safety and proper system calibration.

Key Features and Function:

System Control Integration: Manages the furnace's operation, coordinating power delivery to all necessary components (fans, ignitors).
Genuine OEM Reliability/Fitment: A true Lennox part (LB-109531B) designed for seamless integration and peak efficiency.
Safety & Diagnostics: Integrated safety lockout mechanisms and diagnostic LEDs ensure reliable and safe operation.
Complete Upgrade Kit: Includes the control board, ignitor (like 70W16), wiring harnesses, adapters, and installation instructions/stickers.

Product Details and Key Specifications:

Part Number: 19V36 (Replaces Y7761, 10M93, 32M88, 56L84, 50A62-120)
Manufacturer: Lennox / White-Rodgers (Genuine OEM)
Part Type: SureLight Ignition Control Replacement Kit
Voltage: 24VAC Control / 120VAC Line
HP / RPM: N/A (Solid-State Control Board)
Phase / Hertz: Single-phase (1PH) / 60 Hz
Rotation: N/A
Shipping Weight: 1.8 lbs

🛠️ HVAC Depot Pro Tip: Verify Wiring Before Install

The 19V36 kit includes 9-pin to 12-pin and 4-pin to 6-pin wiring harnesses. Always take a look at the installation guide provided in the box to verify wiring configurations before purchasing or installing to ensure compatibility with your specific furnace model and prevent electrical damage.

The 19V36 is a direct OEM replacement for the following part numbers:

OEM Numbers (Lennox):

Current Active Category #:
19V36
Model/Part #:
LB-109531A (Obsolete)
Superseded Catalog #s:
Y7761, 83M00, Y9895, 32M88/32M8801, 12L69/12L6901, 69M08/69M0801, 97L48/97L4801, 56L84/56L8401, 10M93/10M9301, 56L83/56L8301, 24L85/24L8501, 63K89/63K8901.

Aftermarket/White-Rodgers Cross-Refs:

White-Rodgers Kit #: 21D83M-843
White-Rodgers Board #: 50A66-843
Superseded WR Catalog #s: 50A62-120, 50A62-121, 50A62-820, 50A65-120, 50A65-121, 50A66-122, 50A66-123.

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model.

80MGF Series: 80MGF2-45A, 80MGF3-75A, 80MGF4/5-140A, and variations.
80UHG/UHGM Series: 80UHG2-75A, 80UHG3-60A, 80UHGM4/5-120-2, etc.
90UGFA Series: 90UGFA2-50-3, 90UGFA3-75-3, 90UGFA4/5-125-5.
G23Q Series: G23Q2-50-5, G23Q3-50-6, G23Q4/5-100-5, etc.
G24M Series: G24M2-45A, G24M3-75A, G24M4/5-100A, and variations.
G26Q Series: G26Q3-50-3, G26Q4/5-75-3, etc.
G27M Series: G27M2-60A-2, G27M3-75A-1, G27M4-100A-1.
G32Q/V Series: G32Q3-75-3, G32V3-75-3, G32V5-100-3.
G40DF/UH Series: G40DF-24A-045-2, G40UH-36A-070-3, G40UH-60D-155-01.
G41UF/G43UF/G50DF/UH/UHI/G51MP Series: Various models within these series are also compatible.
GHR26Q/GHR32Q/GHR32V Series: Including models like GHR26Q3-75-6 and GHR32Q4/5-100-3.
