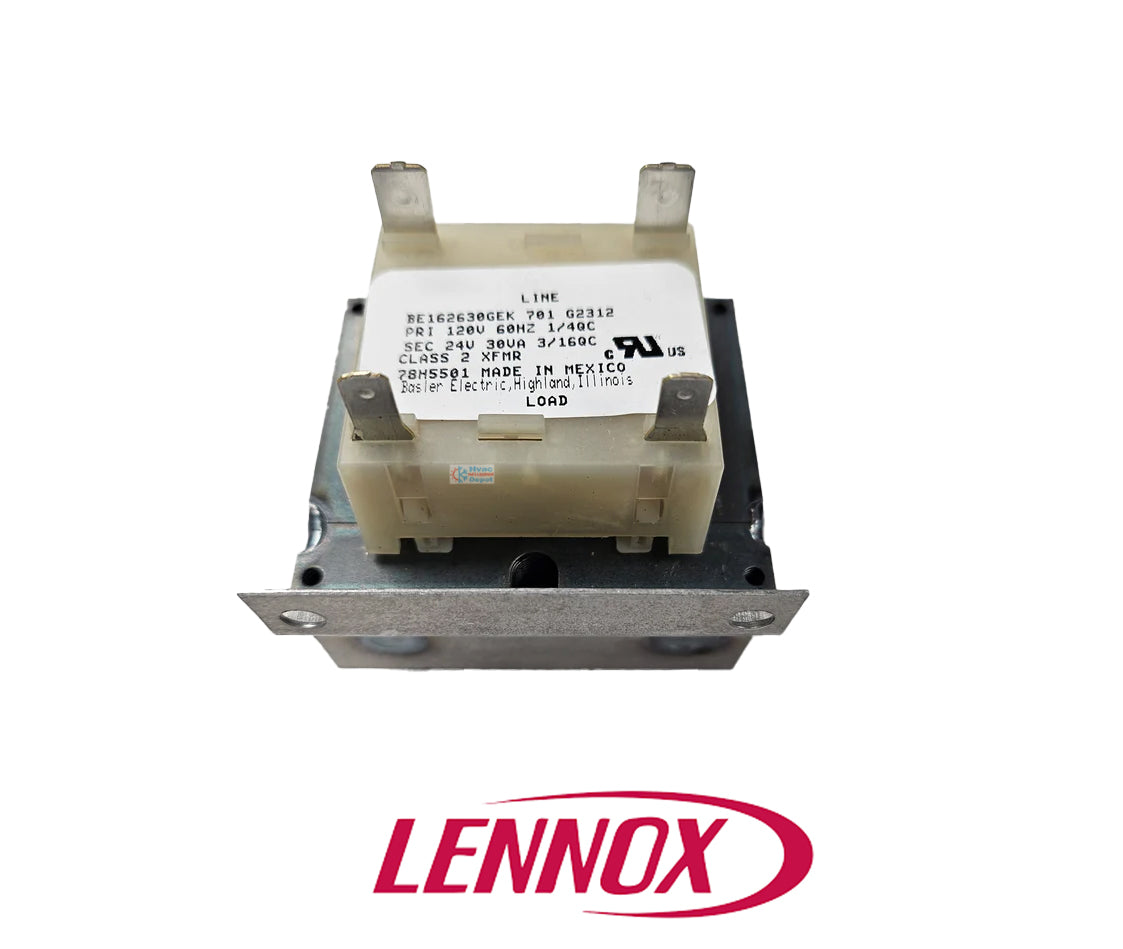

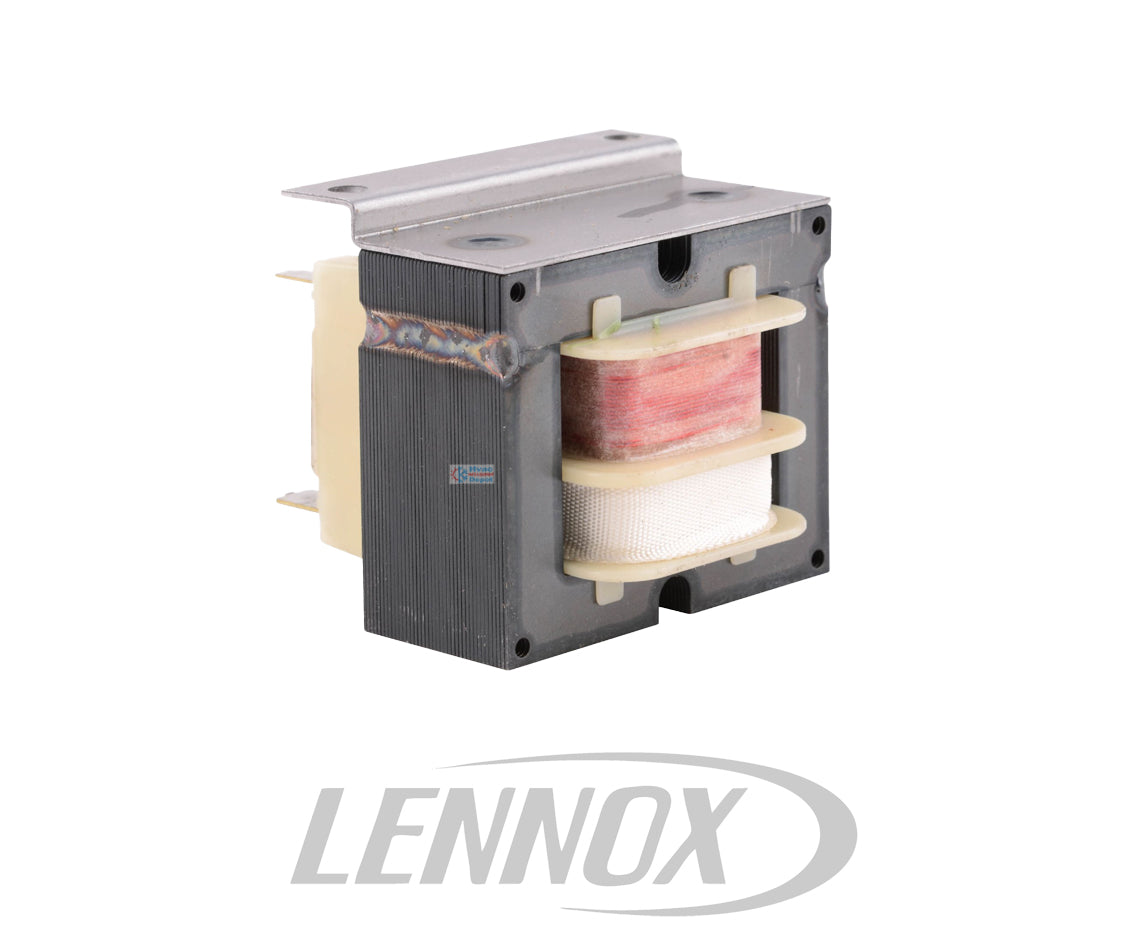

Lennox 78H55 65209700 Class 2 Transformer 120V to 24V 30VA

Name: Lennox 78H55 65209700 Class 2 Transformer 120V to 24V 30VA
Brand: Lennox
SKU: 66255112286
Price: 91.65 USD
Availability: InStock

Low stock: 1 left

$91.65 USD

Sale Sold out

Shipping calculated at checkout.

Lennox 78H55 Transformer Reliability & Troubleshooting

Restore Thermostat Power: Fixes the common issue of blank thermostat screens and unresponsive HVAC systems.
OEM Voltage Control: Prevents erratic furnace behavior caused by fluctuating low-voltage signals from generic transformers.
Safety Protection: Integrated Class 2 limiting prevents the transformer from becoming a fire hazard during a wiring short.
Quiet Operation: High-quality laminations prevent the "humming" or "buzzing" sound often heard in cheap aftermarket replacements.
Exact Footprint: Standard Lennox mounting tabs allow for a 5-minute swap without drilling new holes in the chassis.

Please visit our store for pick up.

safe & secure Checkout

Fast & Tracked Delivery

30 Day money back guarantee

Specifications

Product Details:

Brand: Lennox
Manufacturer: Genuine OEM
Part Number: 65209700 (Cat # 78H55)
Weight: 1.5 lbs
Primary Voltage: 120 VAC / 60 Hz
Secondary Voltage: 24 VAC
Power Rating: 30 VA
Phase/Hertz: Single-Phase (1PH) / 60 Hz
Class: Class 2 Not Wet / Class 3 Wet

description

Introduction: Lennox OEM Focus and System Function

The Lennox 78H55 (Model 65209700) is the vital power-conversion "brain" for your furnace's control circuitry. As a genuine Class 2 transformer, its primary role is to step down 120VAC line voltage to a safe 24VAC output required for the thermostat, control board, and gas valve. It is a critical component for the Lennox Elite and Merit furnace series, ensuring that the low-voltage safety loop remains energized and stable. By using this specific OEM replacement, you guarantee the electrical isolation necessary to protect sensitive microprocessor-based control boards from high-voltage surges.

Key Features:

Genuine OEM Fit (78H55): Engineered by Lennox for an exact bolt-on replacement, eliminating the need for custom mounting brackets or wire splicing in the blower compartment.
Fixes "Dead System" Issues: Specifically designed to resolve no-power symptoms where the thermostat is blank and the furnace control board shows no LED diagnostic lights.
Class 2 Safety Rated: Includes internal thermal overload protection to prevent the transformer from overheating or causing a fire if a low-voltage short occurs.
Precision Voltage Regulation: Provides a stable 24V secondary output, which is essential for preventing relay "chatter" and noise in 24-volt contactors and solenoids.
OEM Reliability: Built with high-grade copper windings and a heavy-duty laminated core to ensure long-term durability in high-heat furnace environments.

Product Details:

Brand: Lennox
Manufacturer: Genuine OEM
Part Number: 65209700 (Cat # 78H55)
Weight: 1.5 lbs
Primary Voltage: 120 VAC / 60 Hz
Secondary Voltage: 24 VAC
Power Rating: 30 VA
Phase/Hertz: Single-Phase (1PH) / 60 Hz
Class: Class 2 Not Wet / Class 3 Wet

🛠️ HVAC Depot Pro Tip: The "Short Circuit" Check

Before installing the new 78H55 transformer, take a picture of the primary (black/white) and secondary (yellow/blue) wiring. If your previous transformer "burned out," there is likely a short in your thermostat wire or a bad contactor coil. Use a multimeter to check for 0 ohms between the 24V wires and ground. If you find a short, fix it before powering up the new transformer, or you will blow the new unit instantly.

Cross-Reference:

Superseded Numbers: 100057-01, 89K59, 100057-02
Legacy Numbers: 652097, 68H5501
Drawing Number: LB-53531A
White-Rodgers/Emerson Equivalents: 90-T40F3, 90-290Q

Model Compatibility:

G24 (Suffixes: -045, -060, -075, -100, -120)
G40 (Suffixes: -045, -070, -090, -110)
G50 (Suffixes: -045, -070, -090, -110)
G60 (Suffixes: -070, -090, -110)
G43 (Suffixes: -045, -070, -090, -110)
ML180 (Suffixes: E, XE, UH)
ML193 (Suffixes: UH)
EL180 (Suffixes: NE, XE)
