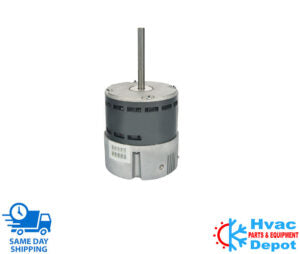

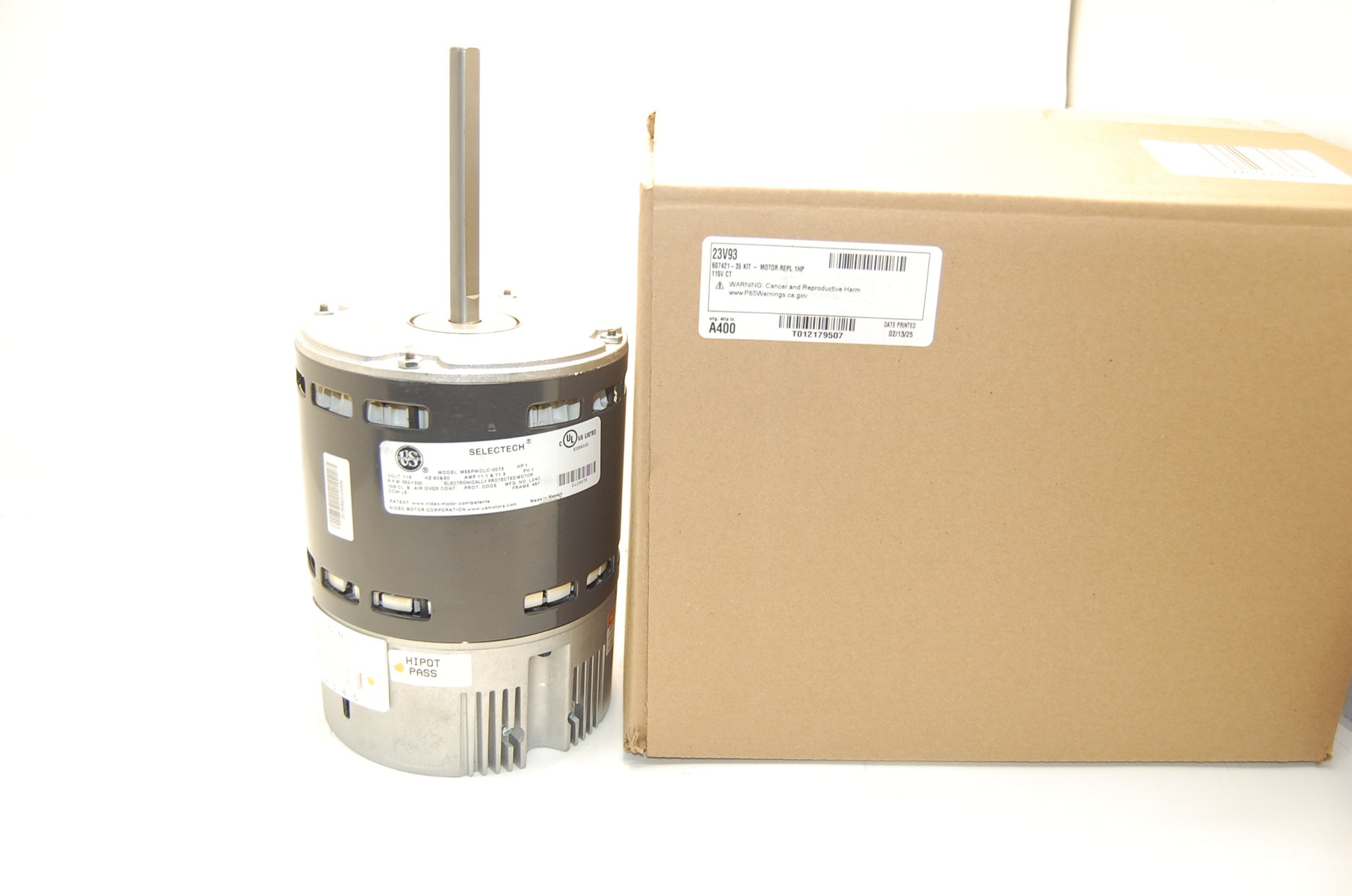

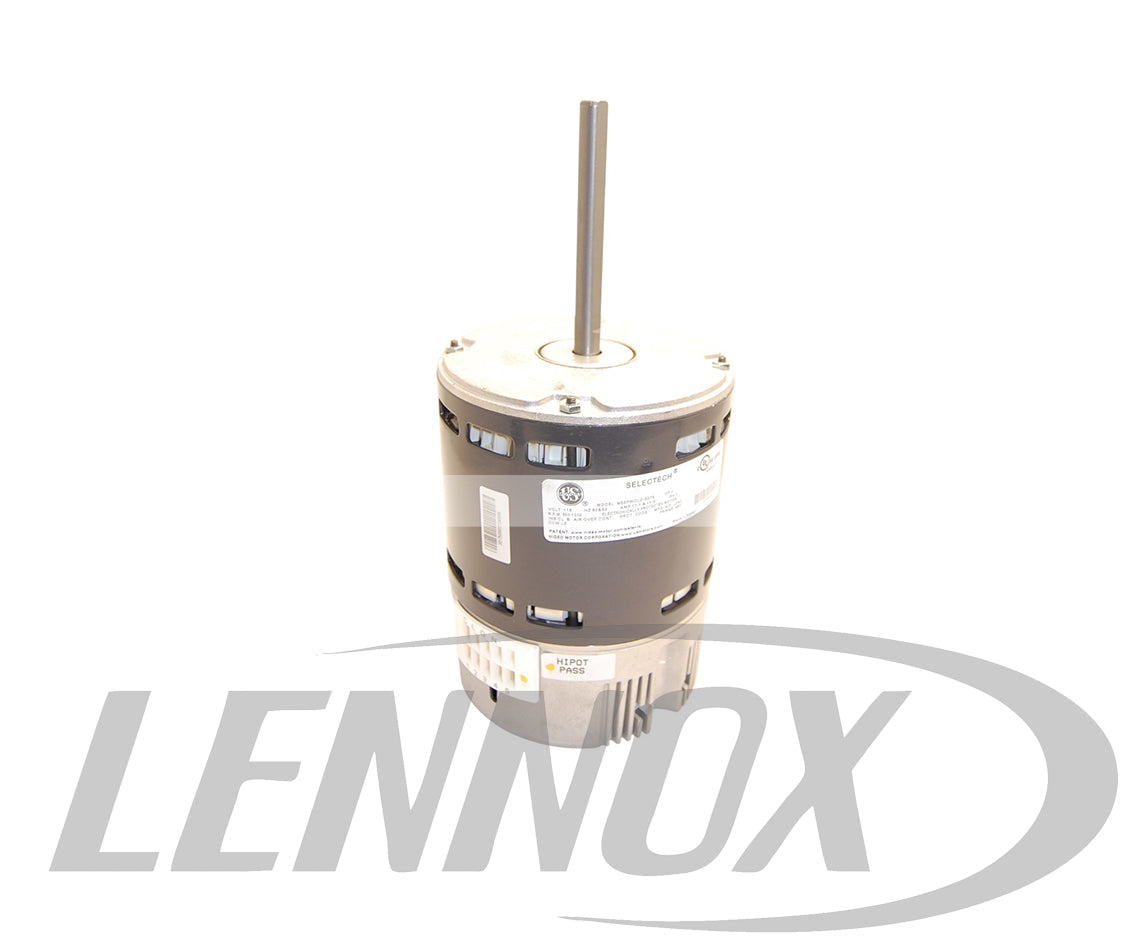

Lennox 607421-35, ECM Constant Torque Blower Motor, Pre-Programmed, 1 HP 115 VAC, 5 Speed, 550-1300 RPM

Lennox 607421-35, ECM Constant Torque Blower Motor, Pre-Programmed, 1 HP 115 VAC, 5 Speed, 550-1300 RPM

Low stock: 1 left

Regular price $781.00 USD
Regular price Sale price $781.00 USD
Sale Sold out
Shipping calculated at checkout.

Key Performance and Compatibility Specs

  • Genuine Lennox OEM Part: (23V93 / 607421-35)

  • 1 HP Constant Torque ECM – Pre-Programmed

  • Plug-and-Play Installation (No Programming Required)

  • Replaces Obsolete Parts: 17G94 & 607421-14

  • Fits Elite Series: EL280 & EL195 UH110 Models

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Brand: Lennox
Catalog Number: 23V93
Model/Part Number: 607421-35
Base Unit of Measure: Unit(S)
EAN / UPC: 66255157964
Horsepower: 1 HP
Gross Weight: 16 LB
Motor Type: ECM - Programmed
RPM: 550-1300 RPM
Motor HP: 1 HP
Number of Speeds: 5 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Belly Band
Motor Voltage: 115 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 4.5 IN
Rotation: CCWLE
Bearing Type: Ball
Frame Size: 48

description

Genuine Lennox 23V93 ECM Constant Torque Blower Motor (1 HP)

Don't settle for "universal" motors that compromise your system’s efficiency. The Lennox 23V93 is a genuine factory-authorized OEM replacement designed for high-performance airflow in Elite Series furnaces. As a Constant Torque ECM, it automatically adjusts to system static pressure, delivering quieter operation and lower utility bills compared to standard motors.


Key Performance Specifications:

  • Catalog Number: 23V93
  • Model/Part Number: 607421-35
  • Motor Type: ECM (Constant Torque)
  • Shipping Weight: 18
  • Horsepower: 1 HP
  • Voltage: 115 VAC
  • Frame: 48
  • Motor Mounting Type: Belly Band
  • Bearing Type: Ball
  • Shaft Size: 1/2 x 4.5 IN
  • Speeds: 5-Speed Taps
  • RPM Range: 550 – 1300 RPM
  • Phase / Hz: 1 Phase / 60 Hz
  • EAN / UPC: 66255157964
  • Rotation: CCWLE (Counter-Clockwise Lead End)
  • Programming: Factory Pre-Programmed (Plug & Play)


Cross-Reference & Superseded Part Numbers

The 23V93 is the current, factory-specified replacement for the following older Lennox and manufacturer part numbers:

  • Lennox Catalog #: 23V93
  • Lennox Part #: 607421-35
  • Legacy Numbers: 17G94
  • Legacy Numbers: 607363-28
  • Legacy Numbers: 607421-14
  • Model Identification: 607421-35


Compatible Furnace Models For a Guaranteed Fit:

This motor is a direct-fit replacement for several Lennox Elite series configurations, specifically the 5-ton cooling / 110k BTU heating models:

  • EL280 Series: EL280UH110XE60C (Revisions 01, 02), EL280UH110E60C (Revisions 01, 02, 03)
  • EL195 Series: EL195UH110XE60C, EL195DF110XE60C
  • Armstrong Air / Ducane: Compatible with various 95% and 80% AFUE constant torque models (Check your data plate for Cat # 23V93).
