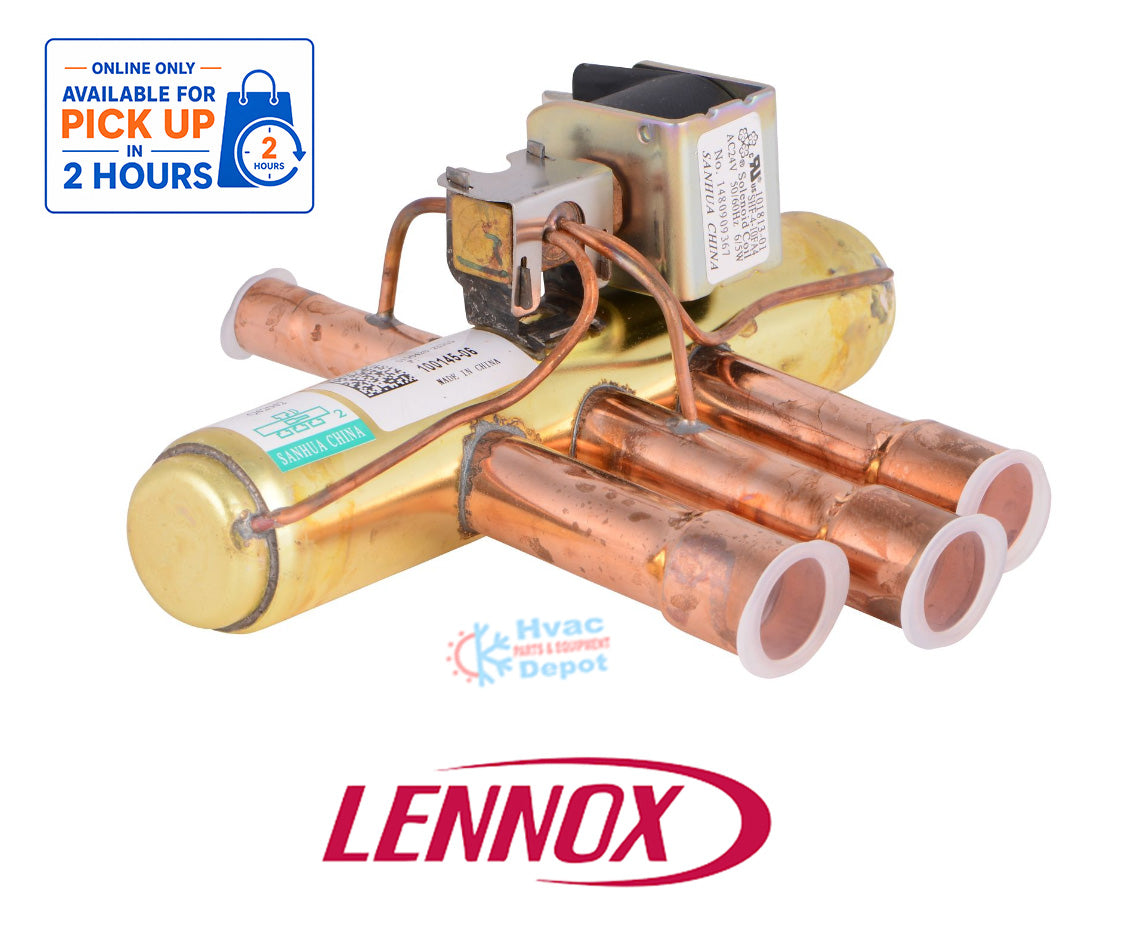

Lennox 49W62 / 603113-01 OEM Reversing Valve Replacement Kit – 24 VAC, 1/2" x 7/8", Solenoid & Wiring Harness

Lennox 49W62 / 603113-01 OEM Reversing Valve Replacement Kit – 24 VAC, 1/2" x 7/8", Solenoid & Wiring Harness

In stock

Regular price $207.00 USD
Regular price Sale price $207.00 USD
Sale Sold out
Shipping calculated at checkout.

Lennox 49W62 / 603113-01 Reversing Valve Replacement Kit

  • Genuine Lennox OEM reversing valve kit

  • Includes reversing valve, 24 VAC solenoid and wiring harness

  • 1/2" compressor discharge and 7/8" suction connections

  • Designed for select Lennox heat pump systems

  • Complete replacement kit for compatible factory-installed reversing valves

Please visit our store for pick up.

Quantity

safe & secure Checkout

Fast & Tracked Delivery
30 Day money back guarantee

Specifications

Specification

Details

Brand

Lennox

Catalog Number

49W62

Model / Part Number

603113-01

Product Type

Reversing Valve Replacement Kit

Valve Part Number

100145-09

Valve Catalog Number

42W59

Solenoid Part Number

101813-01

Solenoid Catalog Number

42W18

Wiring Harness

100273-07

Solenoid Voltage

24 VAC

Frequency

50/60 Hz

Compressor Discharge

1/2"

Compressor Suction

7/8"

Outdoor Coil Connection

7/8"

Vapor Line Service Valve

7/8"

Application

Heat Pump

Function

Reverses Refrigerant Flow

OEM Component

Yes



description

The Lennox 49W62, model/part 603113-01, is a genuine OEM reversing valve replacement kit designed for select Lennox heat pump systems. The complete kit includes the reversing valve, 24 VAC solenoid coil, wiring harness, and installation instructions.

The reversing valve changes the direction of refrigerant flow when a heat pump switches between heating and cooling operation. This kit is designed as a direct service replacement for compatible factory-installed Lennox reversing valves.

Key Features & Function

  • Genuine Lennox OEM replacement kit
  • Cat #: 49W62
  • Model / Part #: 603113-01
  • Reversing valve replacement kit
  • 24 VAC solenoid
  • 50/60 Hz
  • 1/2" compressor discharge connection
  • 7/8" outdoor coil connection
  • 7/8" compressor suction connection
  • 7/8" vapor line service-valve connection
  • Preassembled solenoid and wiring harness
  • Controls refrigerant direction
  • Enables heat pump heating/cooling changeover
  • Designed for select Lennox heat pumps

The valve and connection specifications are documented for this kit, including the 1/2-inch discharge and 7/8-inch suction/vapor connections.

Kit Includes

  • 100145-09 / 42W59 Reversing Valve
  • 101813-01 / 42W18 Solenoid Coil
  • 100273-07 / 42W62 Wiring Harness
  • Installation instructions

These components are listed by Lennox as the contents of the 603113-01 / 49W62 replacement kit.

🛠️ HVAC Depot Pro Tip

The 49W62 is a complete replacement kit, not just the bare reversing valve.

The actual reversing valve included in the kit is:

Valve: 100145-09
Valve Cat #: 42W59

The complete kit is:

Kit Cat #: 49W62
Kit Part #: 603113-01
Solenoid: 24 VAC
Connections: 1/2" discharge / 7/8" suction-vapor

This distinction is useful when a customer is searching for either 49W62, 603113-01, 42W59, or 100145-09.

Before ordering, verify the outdoor unit model, original valve configuration, tubing sizes, refrigerant application, solenoid voltage, and complete equipment serial number.

Equipment / Model Compatibility

The Lennox 49W62 / 603113-01 is used in numerous Lennox heat pump applications. Documented examples include:

  • 13HPD036
  • 13HPD042
  • 13HPD048
  • 13HPX036
  • 13HPX048
  • XP13 Series
  • XP14 Series
  • XP16 Series
  • XP19 Series
  • TPA Series
  • SPA Series
  • Other Lennox equipment specifically calling for 49W62

For example, the kit appears in parts information for the XP1903623002 heat pump and multiple 13HPD/13HPX configurations.

Always verify the complete model and serial number before ordering
